Hidea Grade 80 Clevis Pear Shaped Reeving Link: Strong and Durable for Rigging Systems

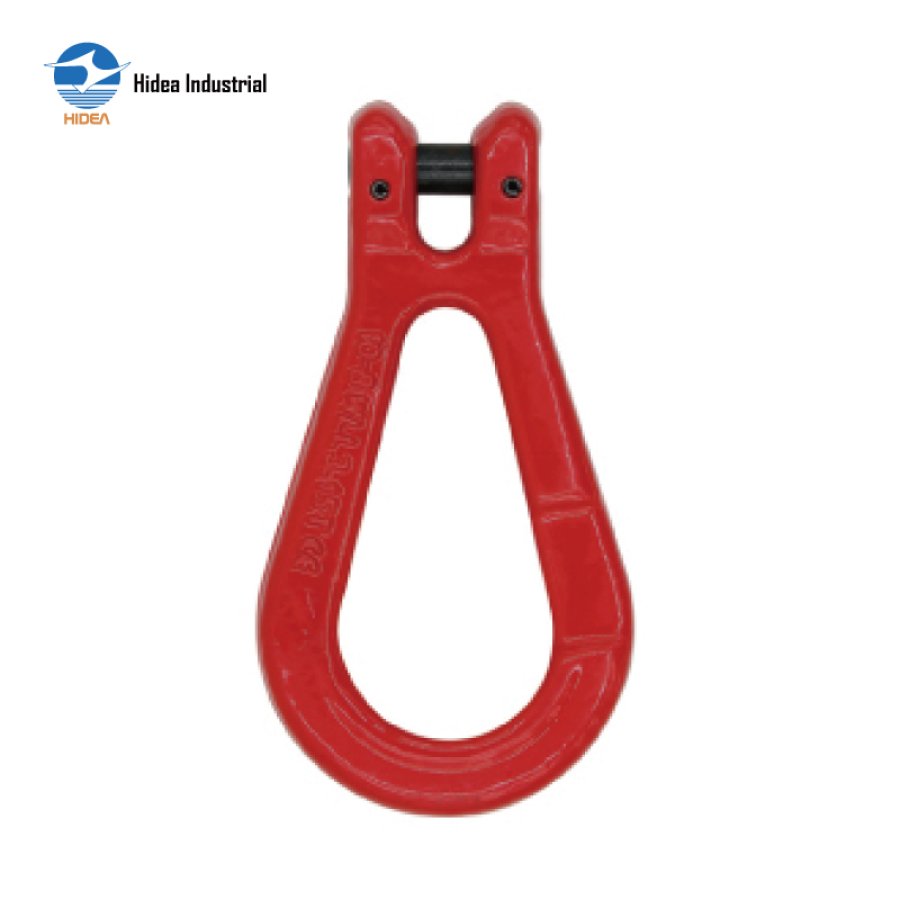

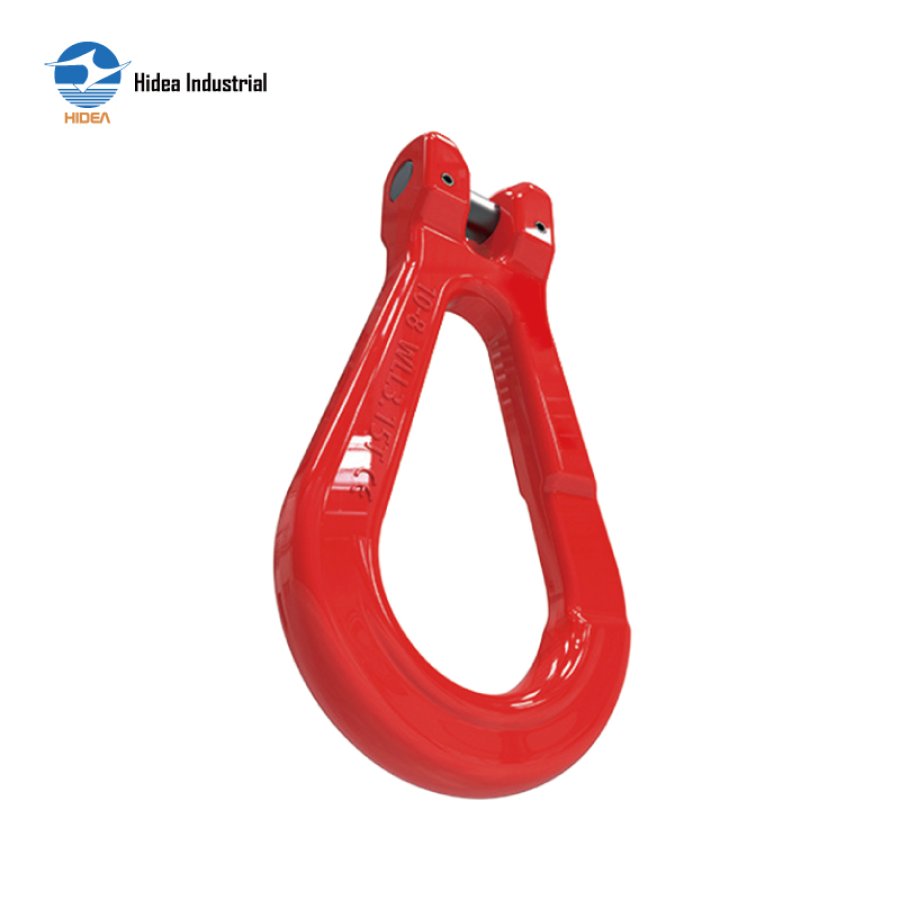

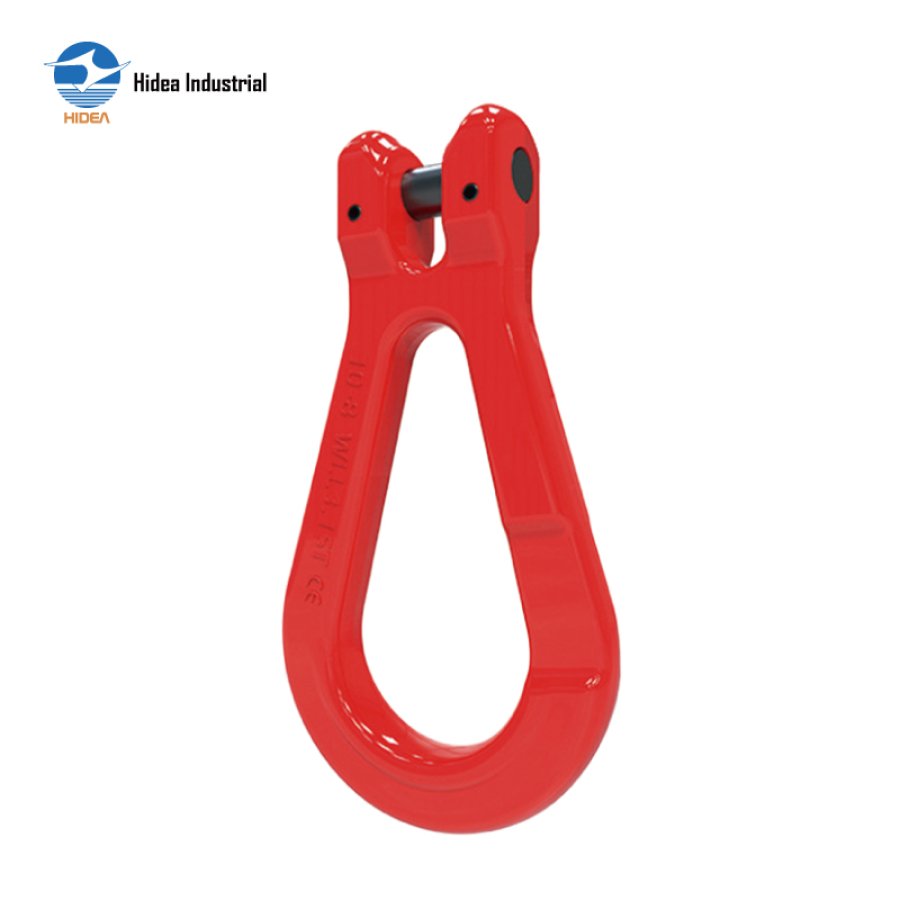

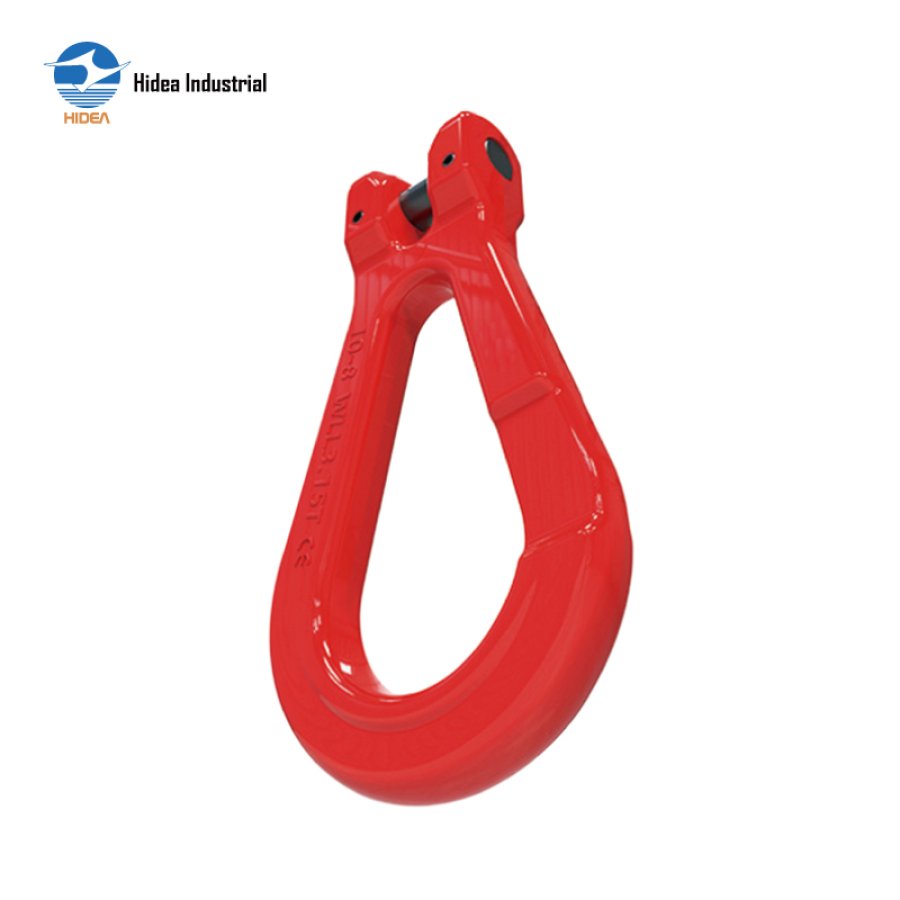

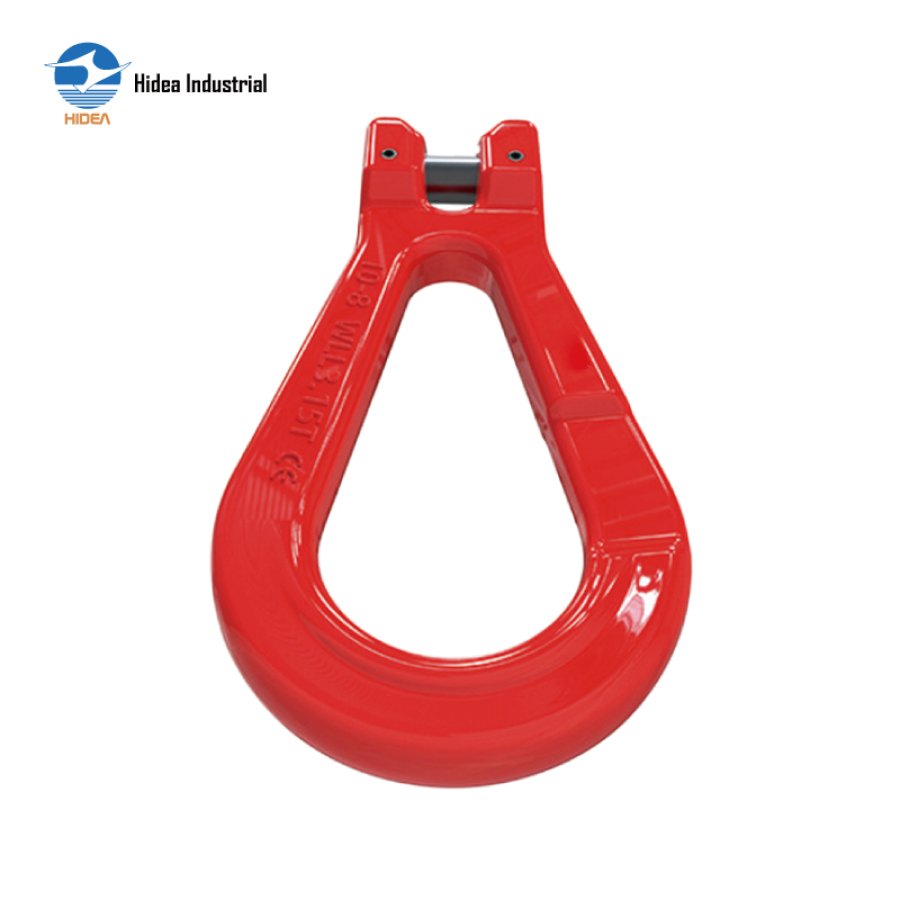

G80 CLEVIS PEAR SHAPE REEVING LINK

Forged super alloy steel-Quenched and Tempered
Suitable for EN818-2 G80 chain
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test

Inquire Now

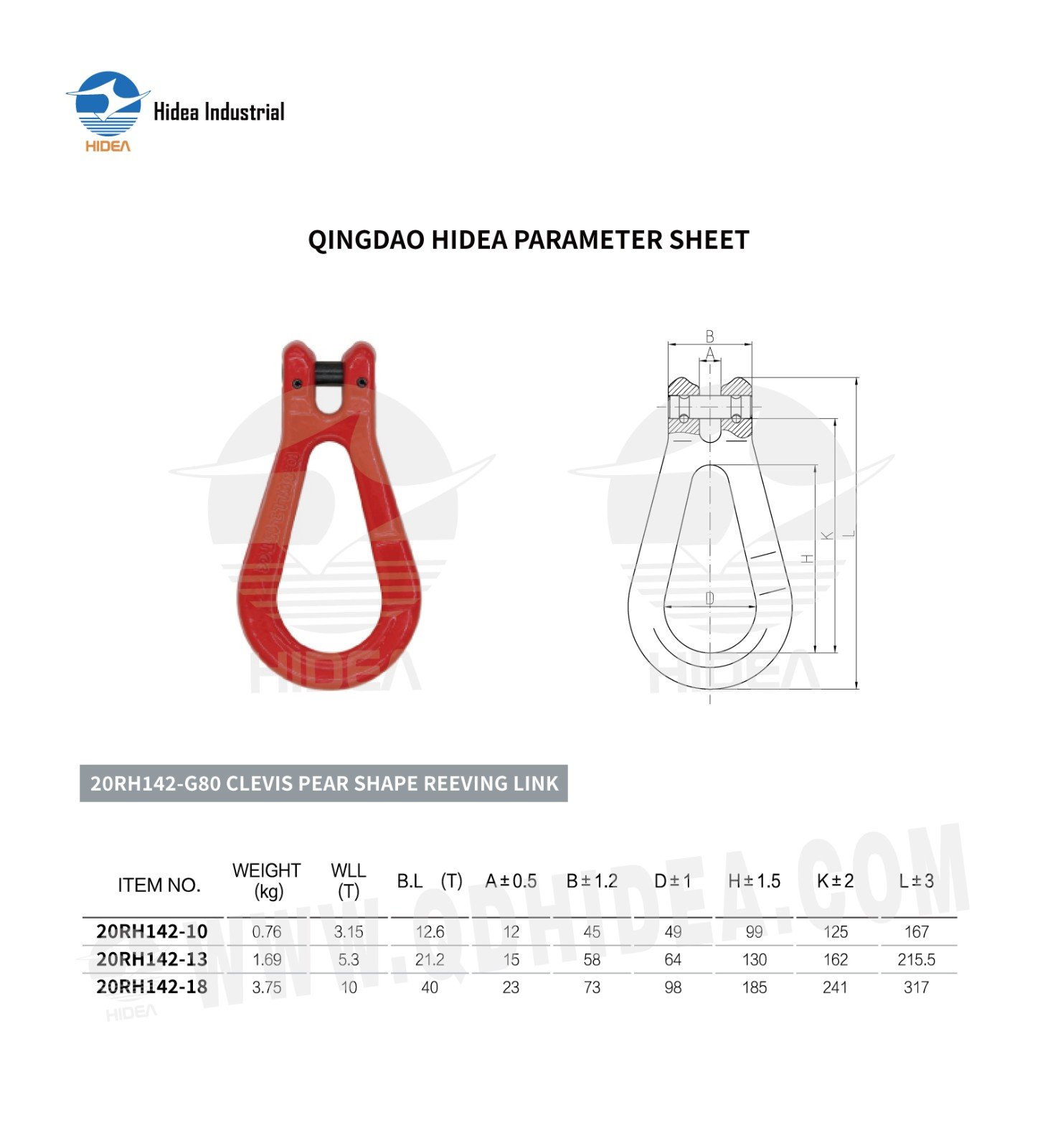

QINGDAO HIDEA PARAMETER SHEET FOR

20RH142-G80 CLEVIS PEAR SHAPE REEVING LINK

ITEM NO.

WEIGHT
(kg)

WLL
(T)

B.L(T)

A±0.5

B±1.2

D±1

H±1.5

K±2

L±3

20RH142-10

0.76

3.15

12.6

12

45

49

99

125

167

20RH142-13

1.69

5.3

21.2

15

58

64

130

162

215.5

20RH142-18

3.75

10

40

23

73

98

185

241

317
