HIDEA Australia Short Open Link Chain: Perfect for Safe Anchoring and Mooring

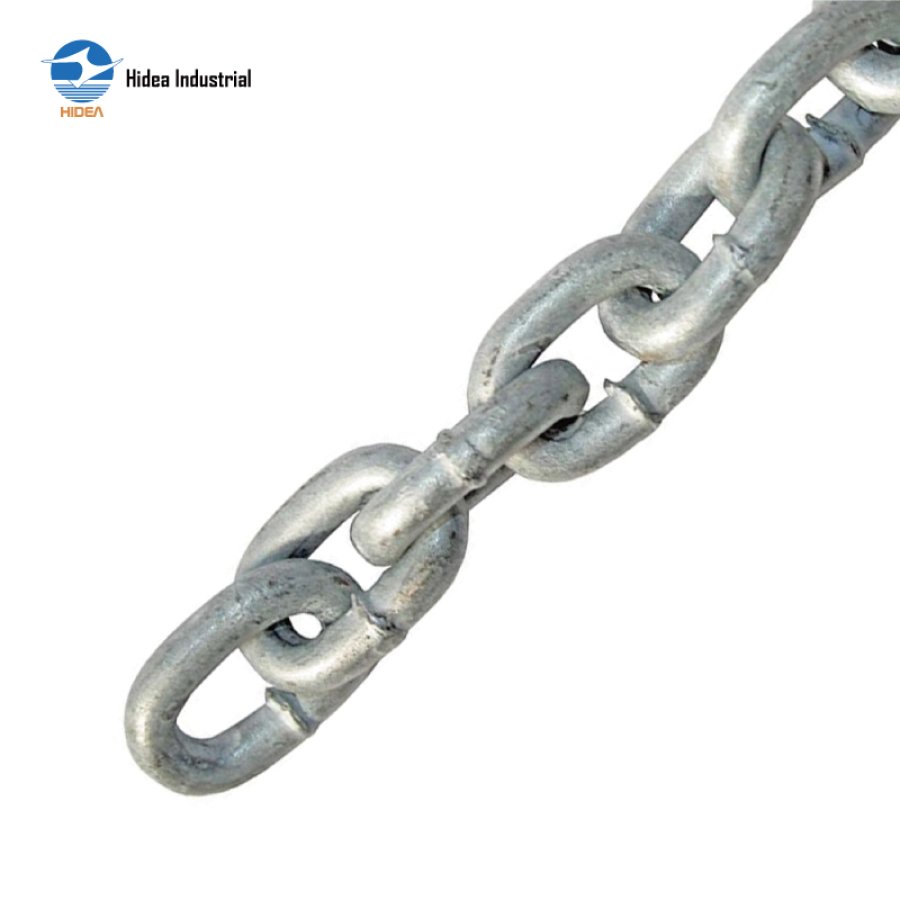

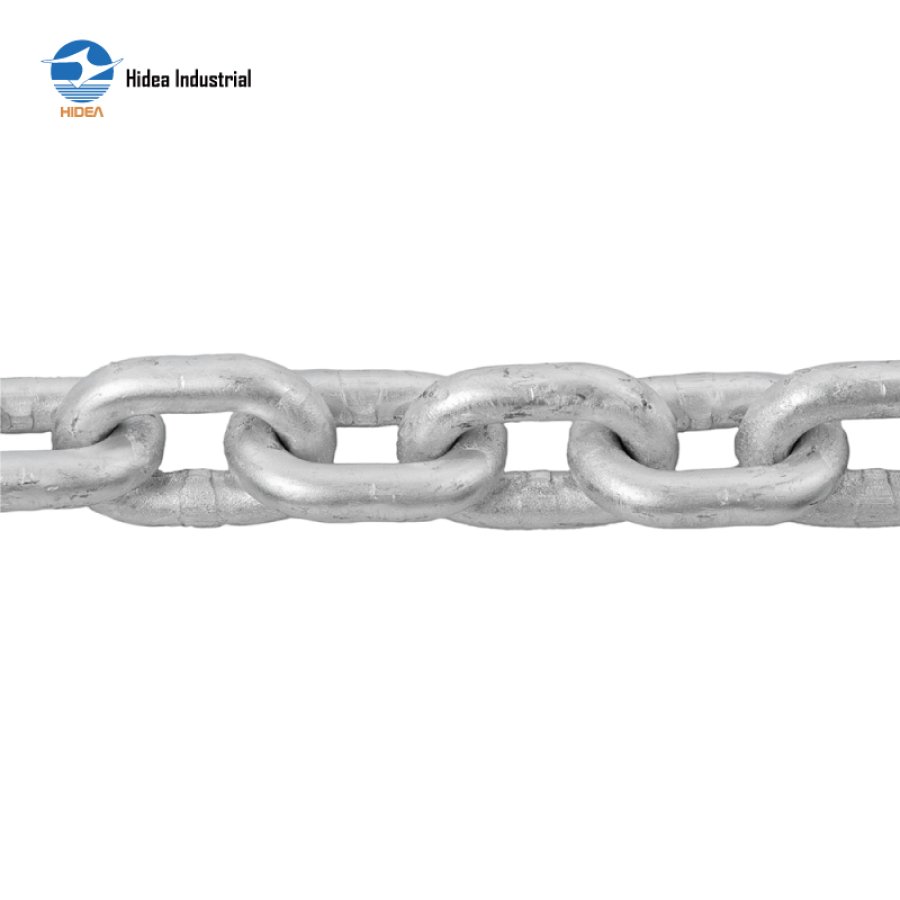

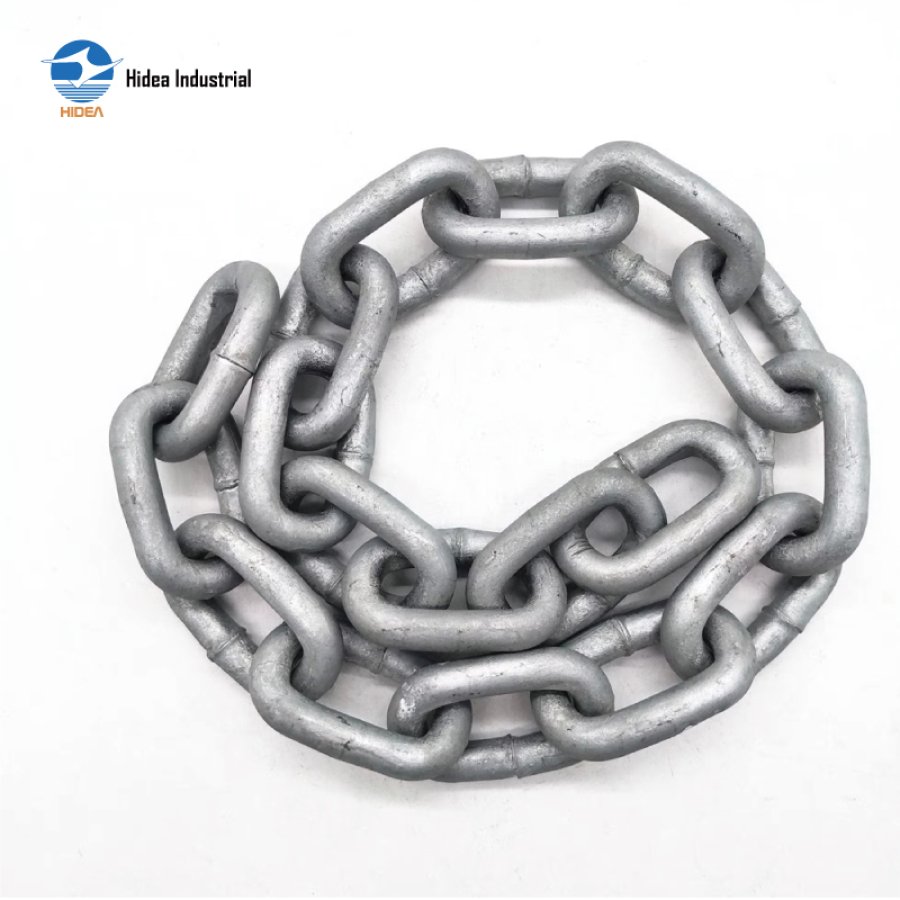

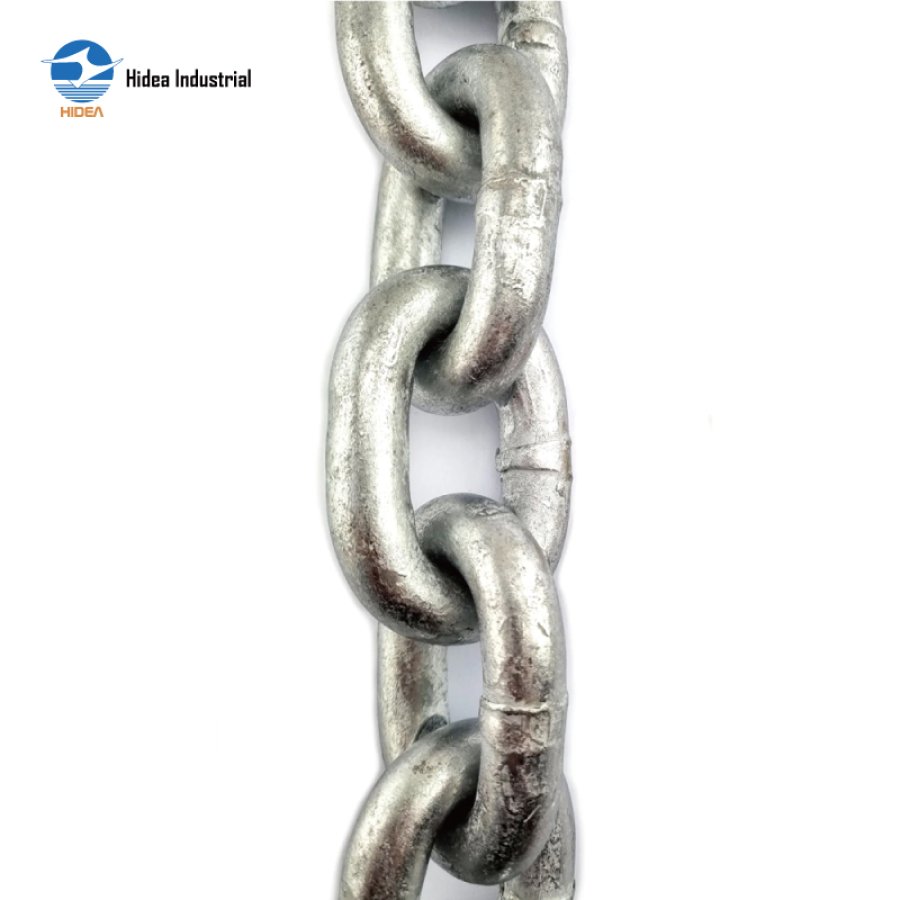

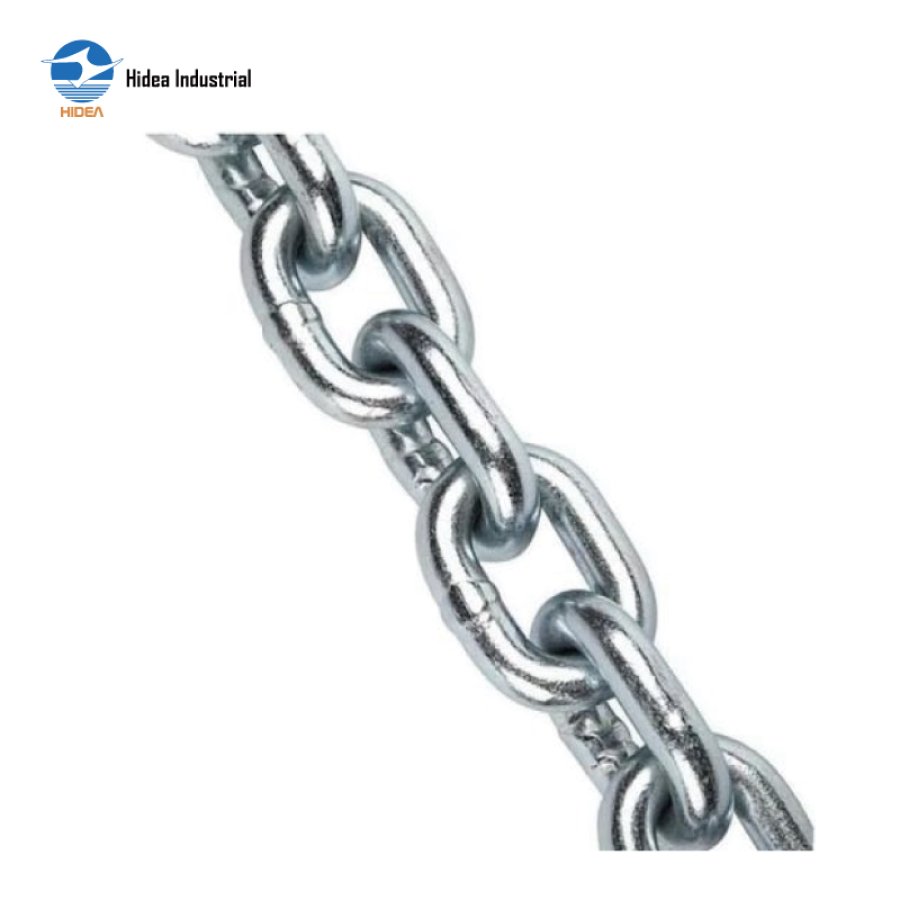

AUSTRALIA STANDARD SHORT LINK CHAIN

Material: Carbon Steel Mild Steel
Surface Treatment: Electro OR Hot Dip galvanized, Blackened or as requested
Australia Standard Short Link Chain

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

30SC137 Australia Standard Short Link Chain

Size	Working Load	Inside Length	Outside Width	Links Per m	Length Per 100kg		B.F weight
Size	Working Load	Inside Length	Outside Width	Links Per m	B.F	H.D.G	B.F weight
mm	mt	mm	mm	pc	m	m	kg/m	kg/m
5	0.24	14.60	17.20	68.30	174.00	167.00	0.57	0.60
6	0.32	18.90	21.50	52.90	114.00	108.00	0.88	0.93
8	0.53	24.00	27.50	41.70	70.50	67.00	1.42	1.49
10	0.83	29.50	33.50	33.90	45.20	42.90	2.21	2.33
12	1.50	37.50	40.60	26.70	29.50	28.00	3.39	3.57
13	1.60	38.80	44.60	25.80	26.90	26.30	3.72	3.80
16	2.31	47.00	54.00	21.30	17.60	16.70	5.68	5.99
20	3.45	59.20	68.50	16.90	11.30	11.10	8.85	9.01
22	4.55	64.90	77.00	15.40	9.50	9.20	10.53	10.87
24	5.43	71.00	82.20	14.10	7.80	7.60	12.82	13.16
