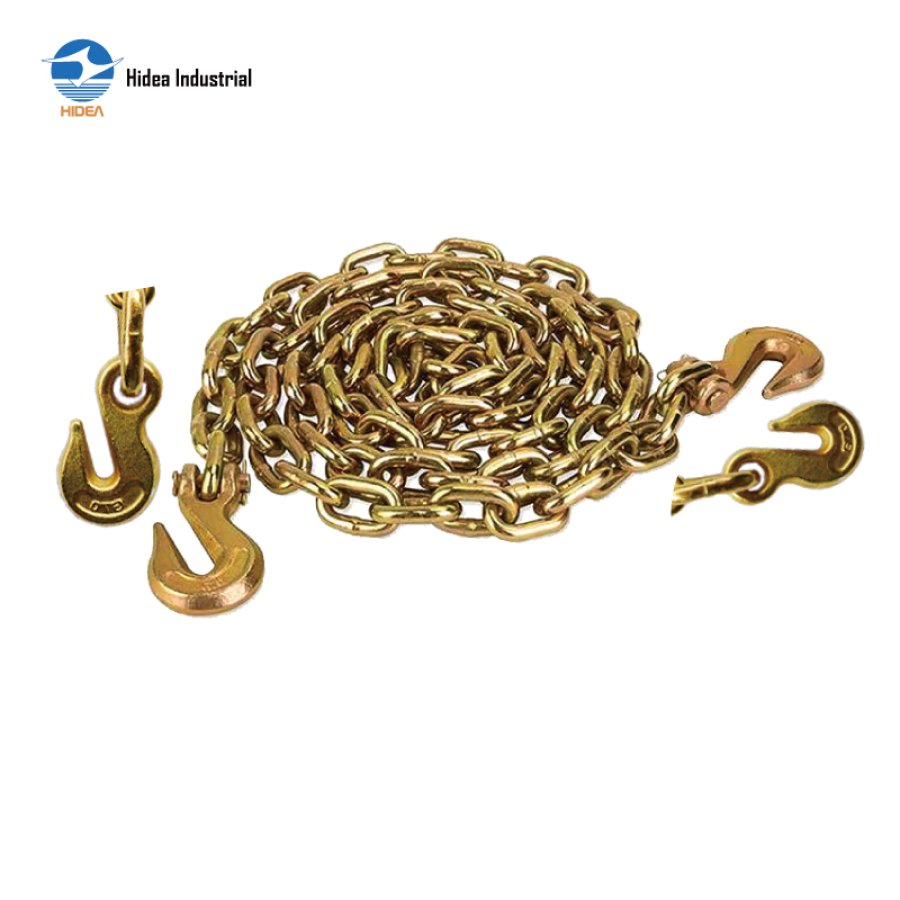

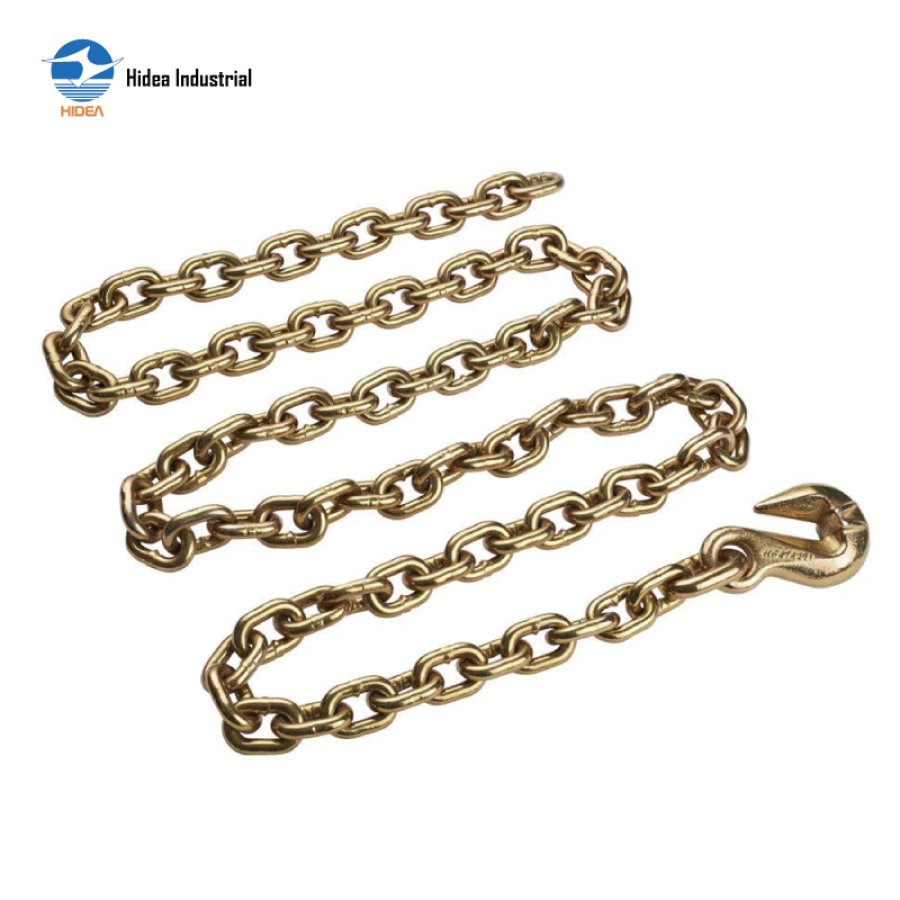

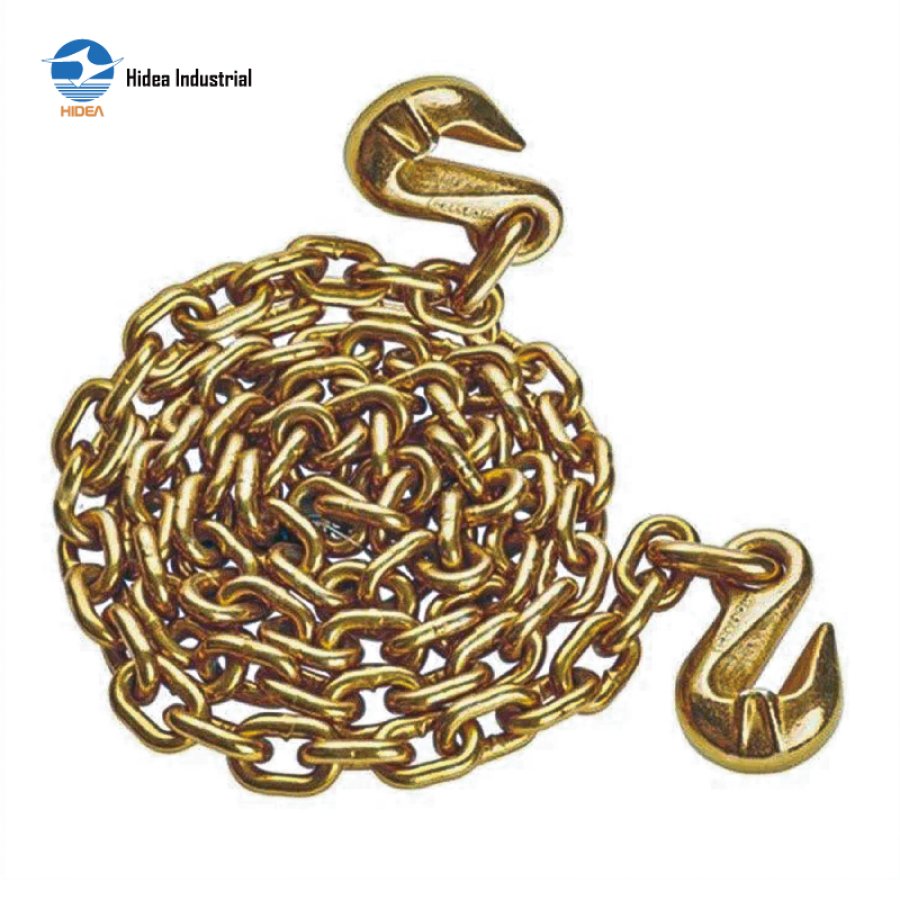

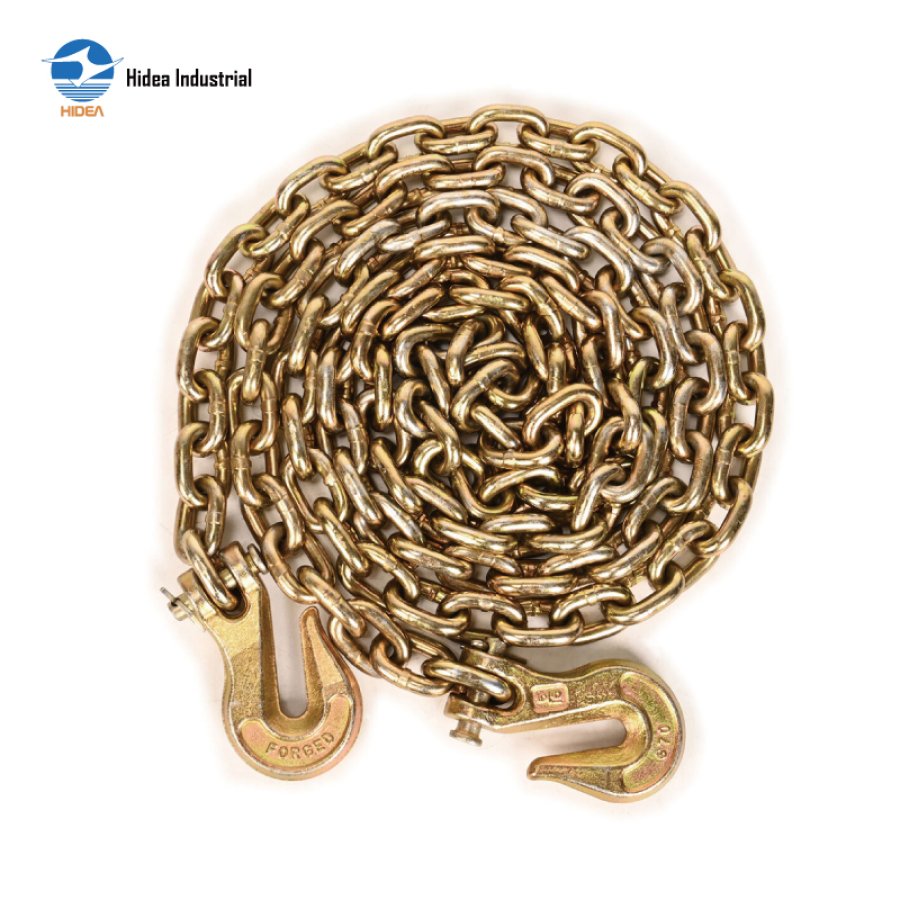

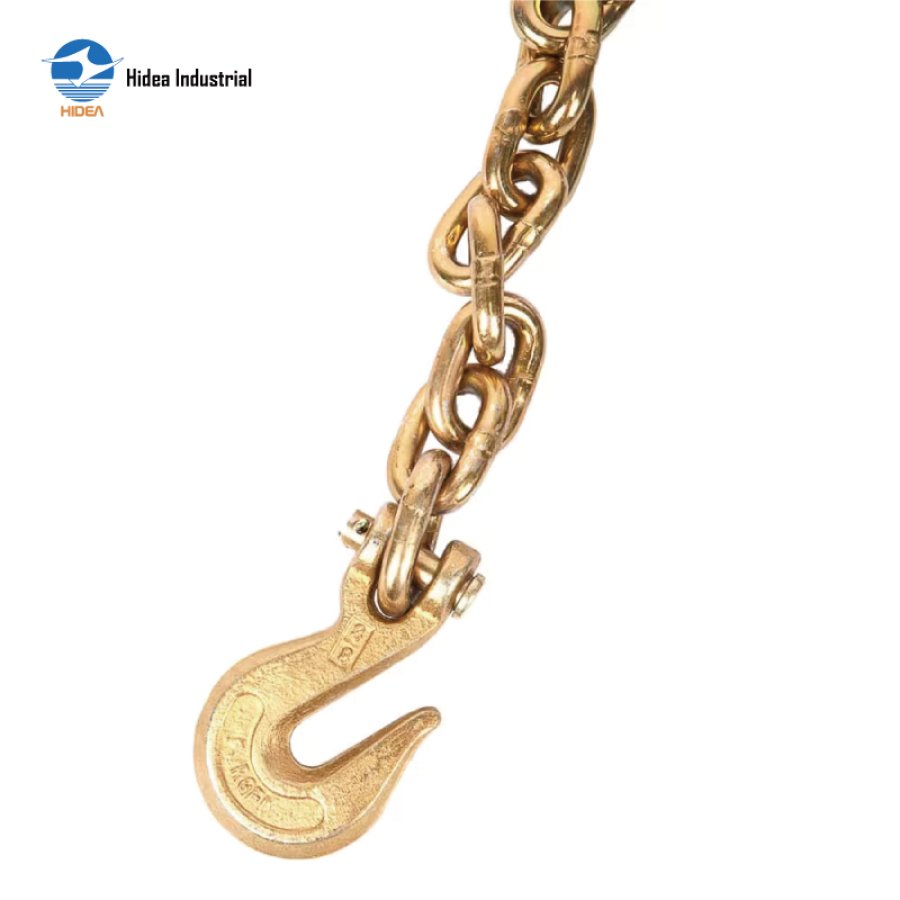

G70/G43 Tie Down Chain Assembly

G70/G43 CHAINS WITH CLEVIS/EYE GRAB HOOKS

Material Carbon Steel OR Alloy Steel
Mold Injected Treatment: Electro golden galvanized or as requested
Chain with Clevis / Eye Grab Hooks on Both Ends rated G43 or G70
Lashing Chain, Tiedown Chain & Transport Chain

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

30SC162 G70/G43 Chains with Clevis/Eye Grab Hooks at Both Ends

Size	ASTM80			NACM90			NACM96			PCS per Drum
Size	WT. (kg)	W.L.L. (Ibs)	MBS(Ibs)	WT. (kg)	W.L.L. (Ibs)	MBS (Ibs)	WT.(kg) W.LL.(Ibs) MBS(lbs)			PCS per Drum
Grade 43
1/4"x14'	5.0	2,600	7,500	4.5	2,600	7,500	4.5	2,600	7,800	50
1/4"x16'	6.0	2,600	7,500	5.0	2,600	7,500	5.0	2,600	7,800	40
5/16"×14	7.5	3,900	11,600	6.0	3,900	9,700	7.0	3,900	11,700	35
5/16"×16'	8.5	3,900	11,600	6.8	3,900	9,700	8.0	3,900	11,700	30
5/16"x18	9.5	3,900	11,600	7.5	3,900	9,700	9.0	3,900	11,700	30
5/16"x20	10.5	3,900	11,600	8.0	3,900	9,700	9.5	3,900	11,700	25
5/16"x25'	13.0	3,900	11,600	10.0	3,900	9,700	12.0	3,900	11,700	20
5/16"x30	15.5	3,900	11,600	12.0	3,900	9,700	14.0	3,900	11,700	20
3/8"x14'	10.5	5,400	16,200	9.5	5,400	15,200	10.0	5,400	16,200	25
3/8"×16'	12.0	5,400	16,200	11.0	5,400	15,200	11.5	5,400	16,200	25
3/8"x20'	15.0	5,400	16,200	13.5	5,400	15,200	13.5	5,400	16,200	20
3/8"x25'	18.5	5,400	16,200	16.5	5,400	15,200	17.5	5,400	16,200	20
Grade 70
1/4"×14'	5.0	3,150	12,600	4.5	3,150	12,100	4.0	3,150	12,600	50
1/4"x16'	6.0	3,150	12,600	5.0	3,150	12,100	5.0	3,150	12,600	40
5/16"×14	7.5	4,700	18,800	7.0	4,700	18,800	7.0	4,700	18,800	35
5/16"x16'	8.5	4,700	18,800	8.0	4,700	18,800	8.0	4,700	18,800	30
5/16"×18	95	4,700	18,800	9.0	4,700	18,800	9.0	4,700	18,800	30
5/16"×20	10.5	4,700	18,800	10.0	4,700	18,800	10.0	4,700	18,800	25
5/16"x25	13.0	4,700	18,800	12.0	4,700	18,800	12.0	4,700	18,800	20
5/16"x×30'	15.5	4,700	18,800	14.5	4,700	18,800	14.5	4,700	18,800	20
3/8"×14'	10.5	6,600	26,400	9.5	6,600	24,700	10.0	6,600	26,400	25
3/8"×16'	12.0	6,600	26,400	11.0	6,600	24,700	11.5	6,600	26,400	20
3/8"×20'	15.0	6,600	26,400	13.5	6,600	24,700	14.5	6,600	26,400	20
3/8"x25'	18.5	6,600	26,400	16.5	6,600	24,700	18.0	6,600	26,400	15
