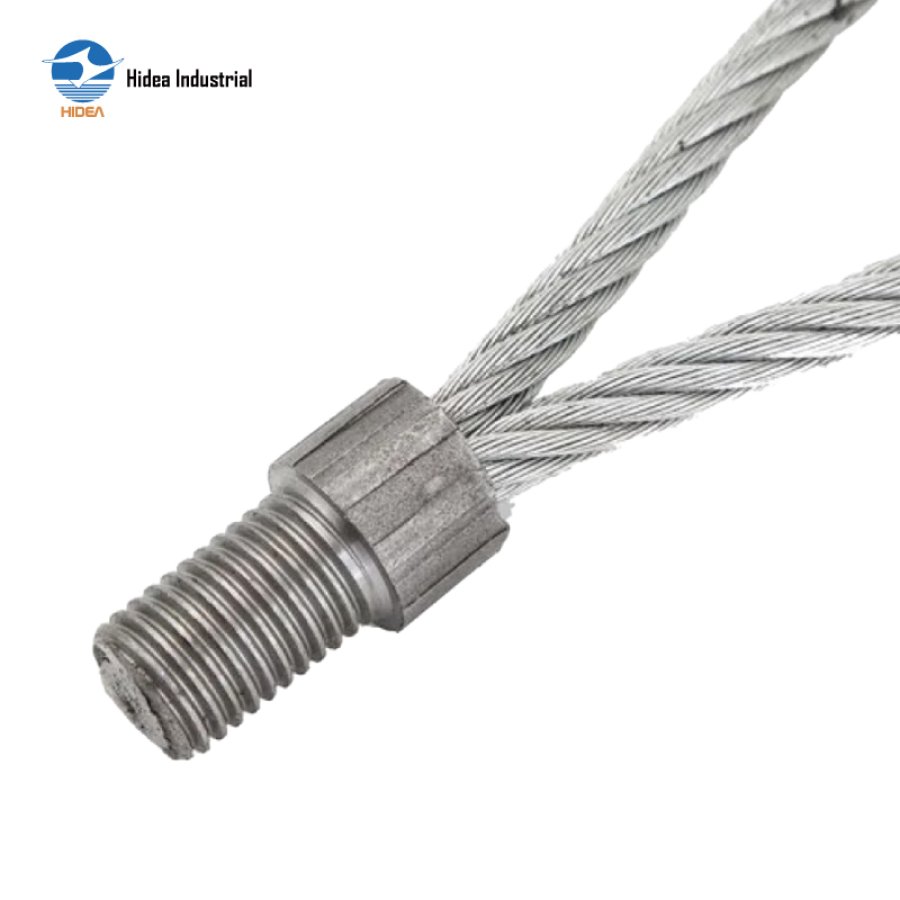

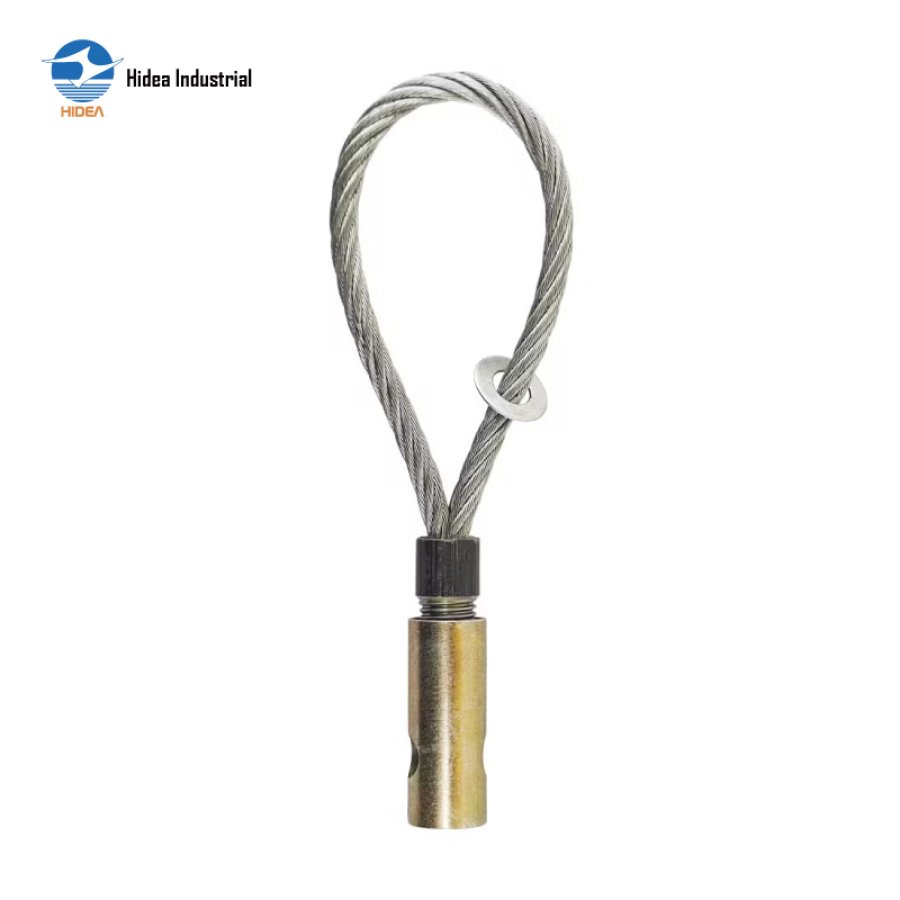

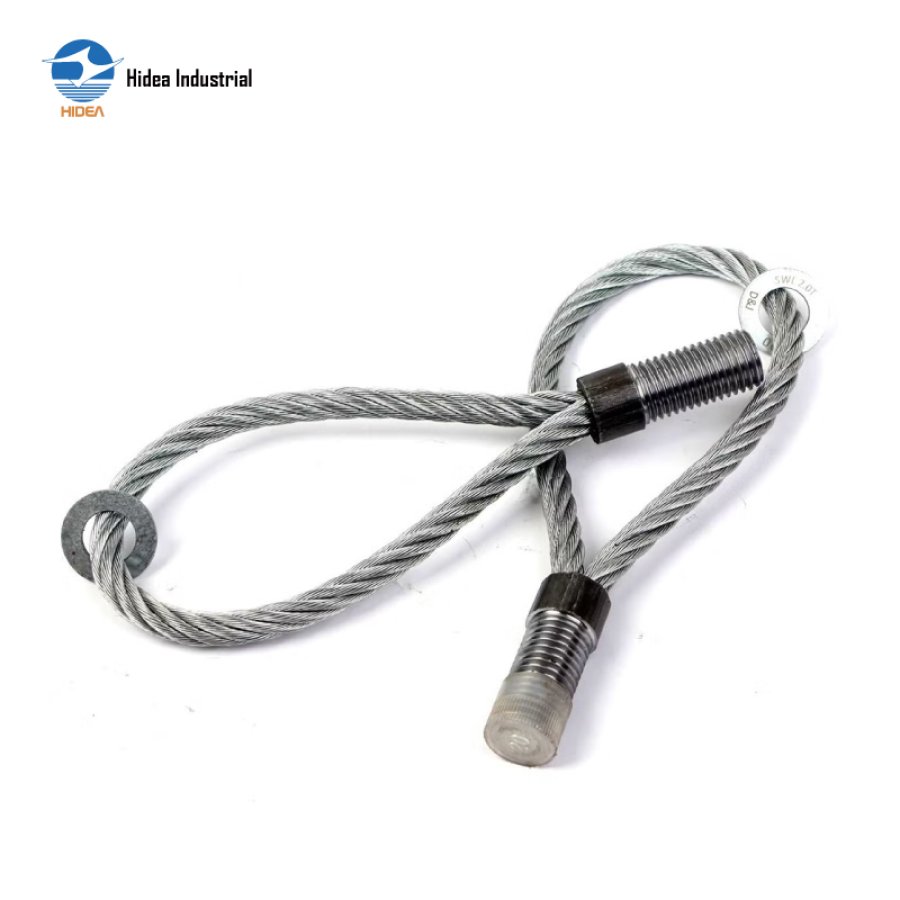

Prestressed / precast concrete elements lifting device lifting Loop with Threaded Socket
Thread lifting loops are used as lifting device for the lifting anchors (Bar Sockets,Waved Sockets and Thread Sockets)

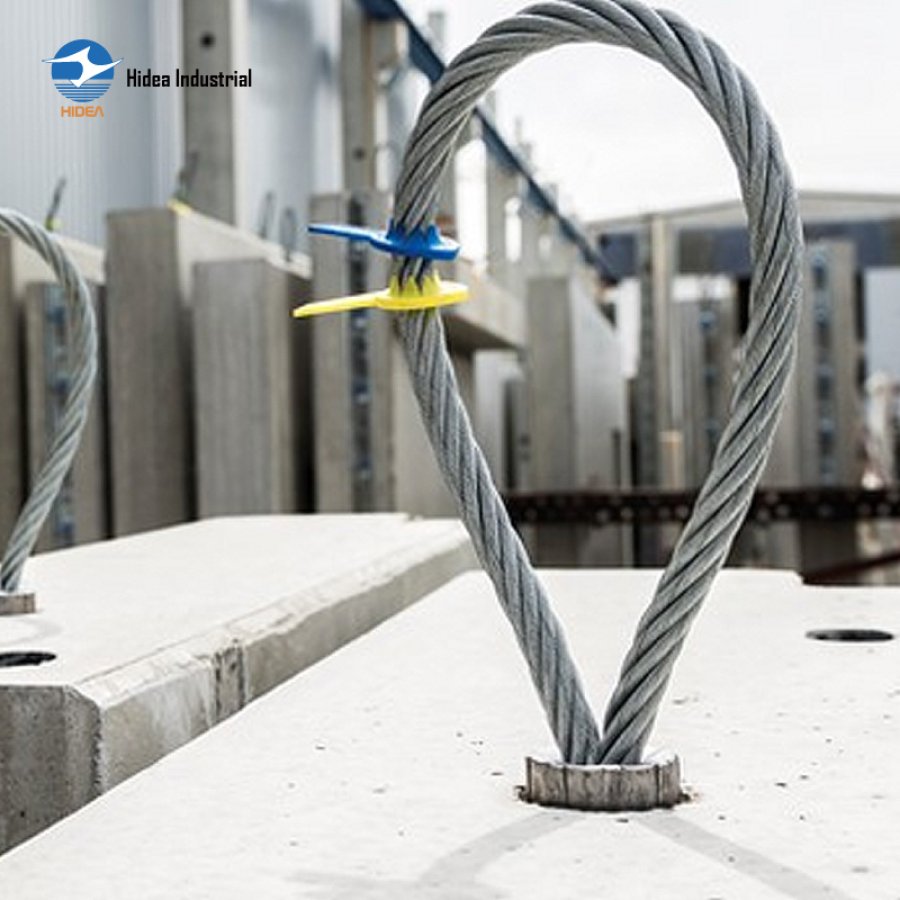

The most economic lifting loop and suitable for most applications, particularly site operations; But not suitable for turning or pitching.

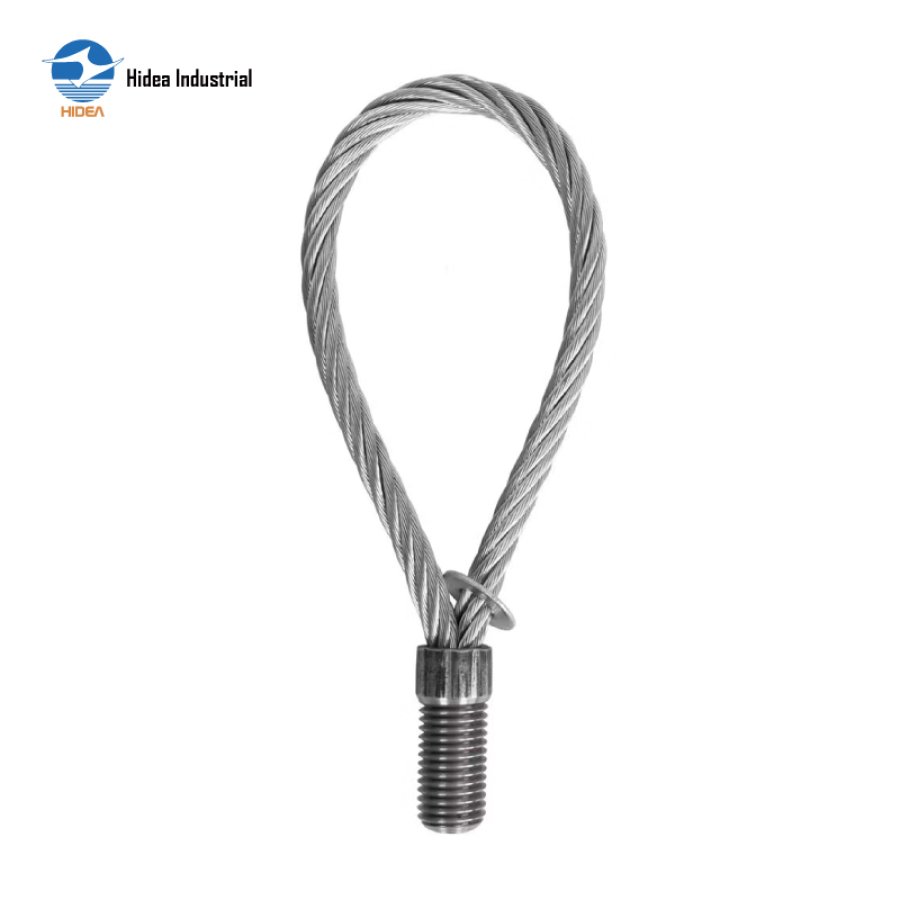

Thread lifting loops can be applied with the threaded anchor with appropriate metric or RD thread.
ID label marked with size of thread, maximum working load and various loop sizes available upon request.
QINGDAO HIDEA PARAMETER SHEET FOR
PRESTRESSED/PRECAST CONCRETE ELEMENTS LIFTING DEVICE
| Loop | Threaded socket | Label | |||||||
| Load (t) | d (mm) | H (mm) | Ib (mm) | M/Rd (mm) | e (mm) | F (mm) | D (mm) | d (mm) | φ (mm) |
| 0.5 | 6 | 155 | 60 | 12 | 21 | 32 | 37 | 23 | 20 |
| 0.8 | 7 | 155 | 60 | 14 | 24 | 35 | 37 | 23 | 20 |
| 1.2 | 8 | 165 | 60 | 16 | 26 | 41 | 37 | 23 | 20 |
| 1.6 | 9 | 190 | 70 | 18 | 33 | 48 | 37 | 23 | 20 |
| 2 | 10 | 215 | 90 | 20 | 34 | 49 | 37 | 23 | 20 |
| 2.5 | 12 | 255 | 100 | 24 | 42 | 59 | 37 | 23 | 20 |
| 4 | 16 | 300 | 120 | 30 | 54 | 74 | 37 | 23 | 20 |
| 6.3 | 18 | 360 | 140 | 36 | 67 | 87 | 52 | 38 | 40 |
| 8 | 20 | 425 | 60 | 42 | 75 | 105 | 52 | 38 | 40 |
| 12.5 | 26 | 530 | 180 | 52 | 95 | 125 | 52 | 38 | 40 |
