Hidea Grade 80 Lifting Eye Points: Designed for Maximum Load Capacity and Safety

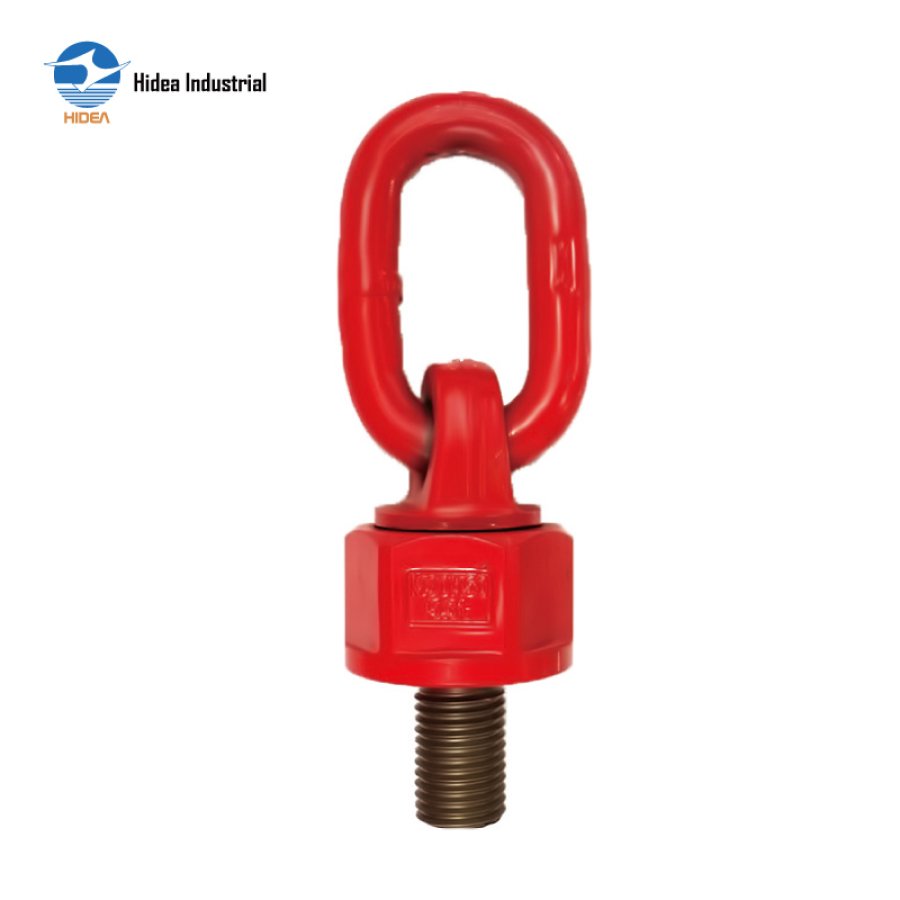

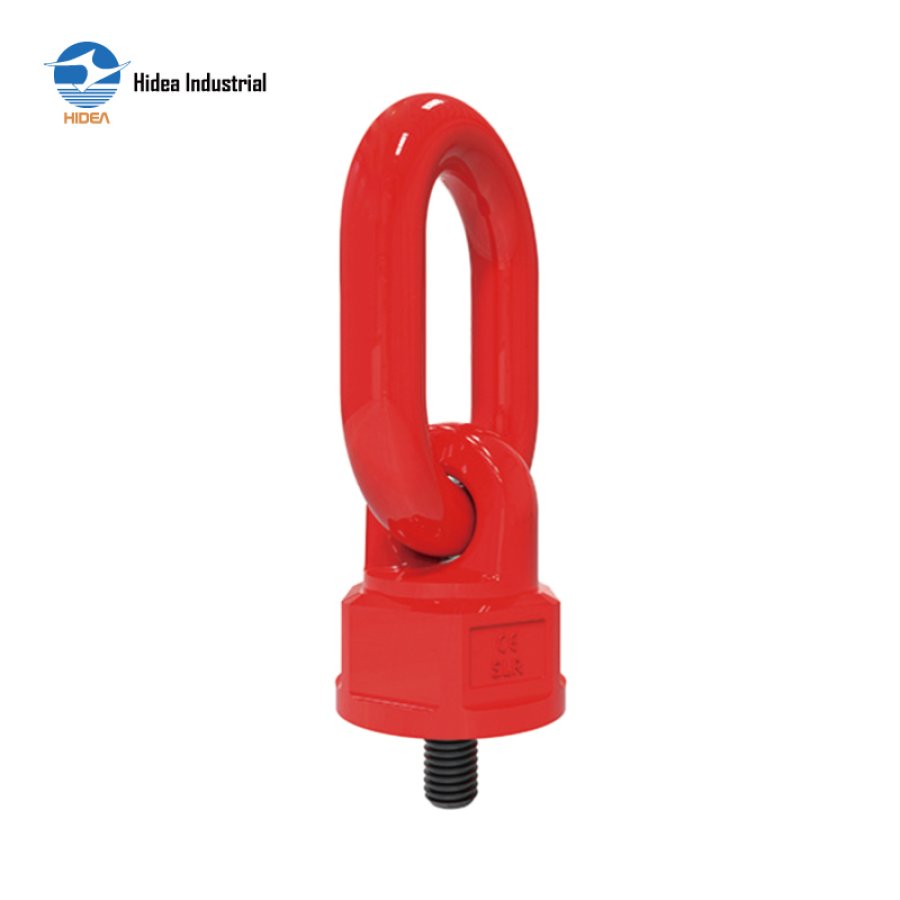

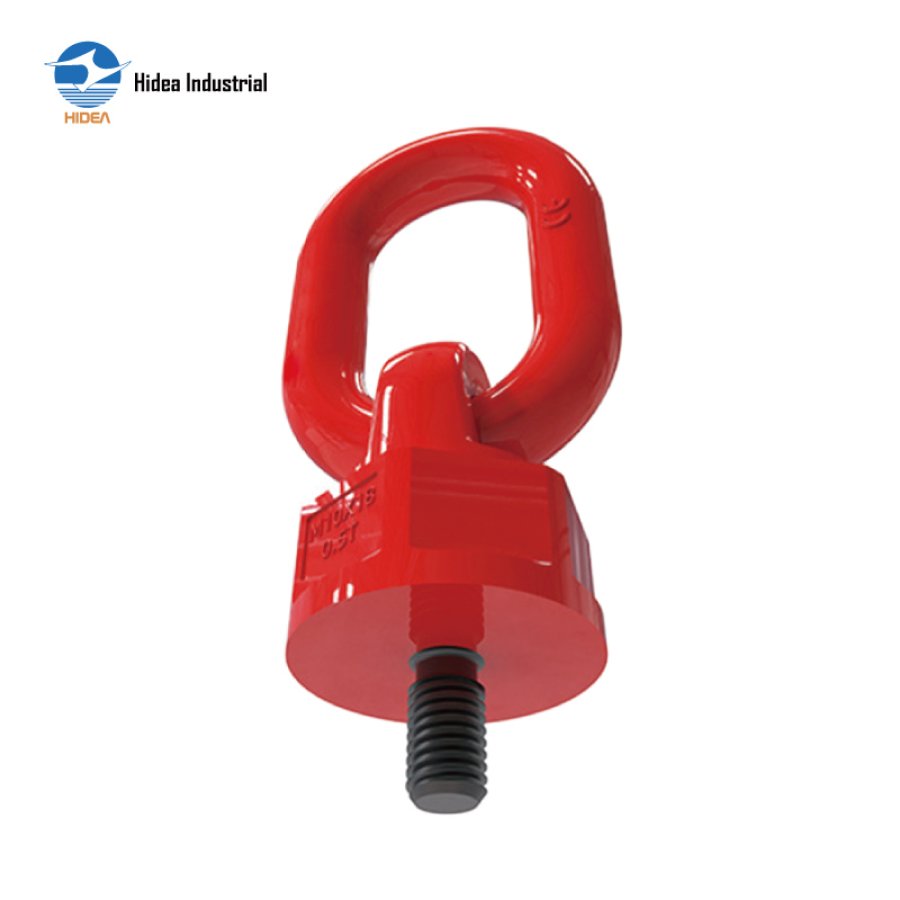

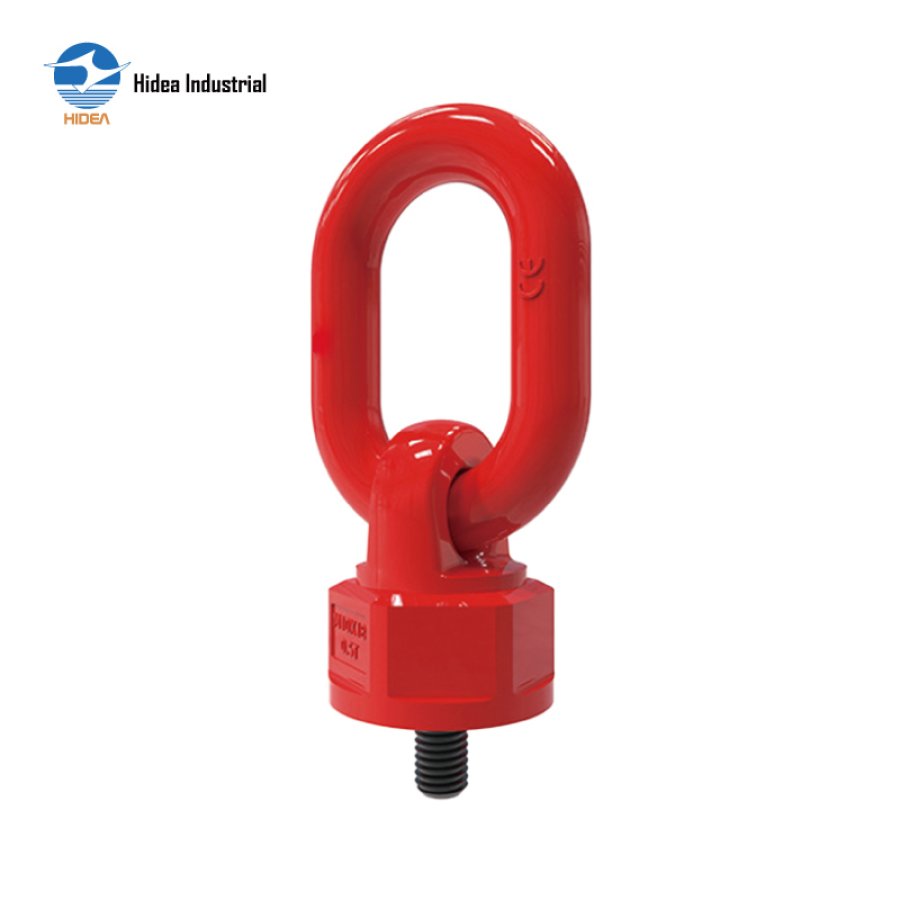

G80 LIFTING SCREW POINT HEXAGONAL BODY

Forged super alloy steel-Quenched and Tempered
Breakage test
100% magnaflux crack detection
Surface finish: powder plastifed
Colour code: Red RAL3020/Yellow RAL1003

Inquire Now

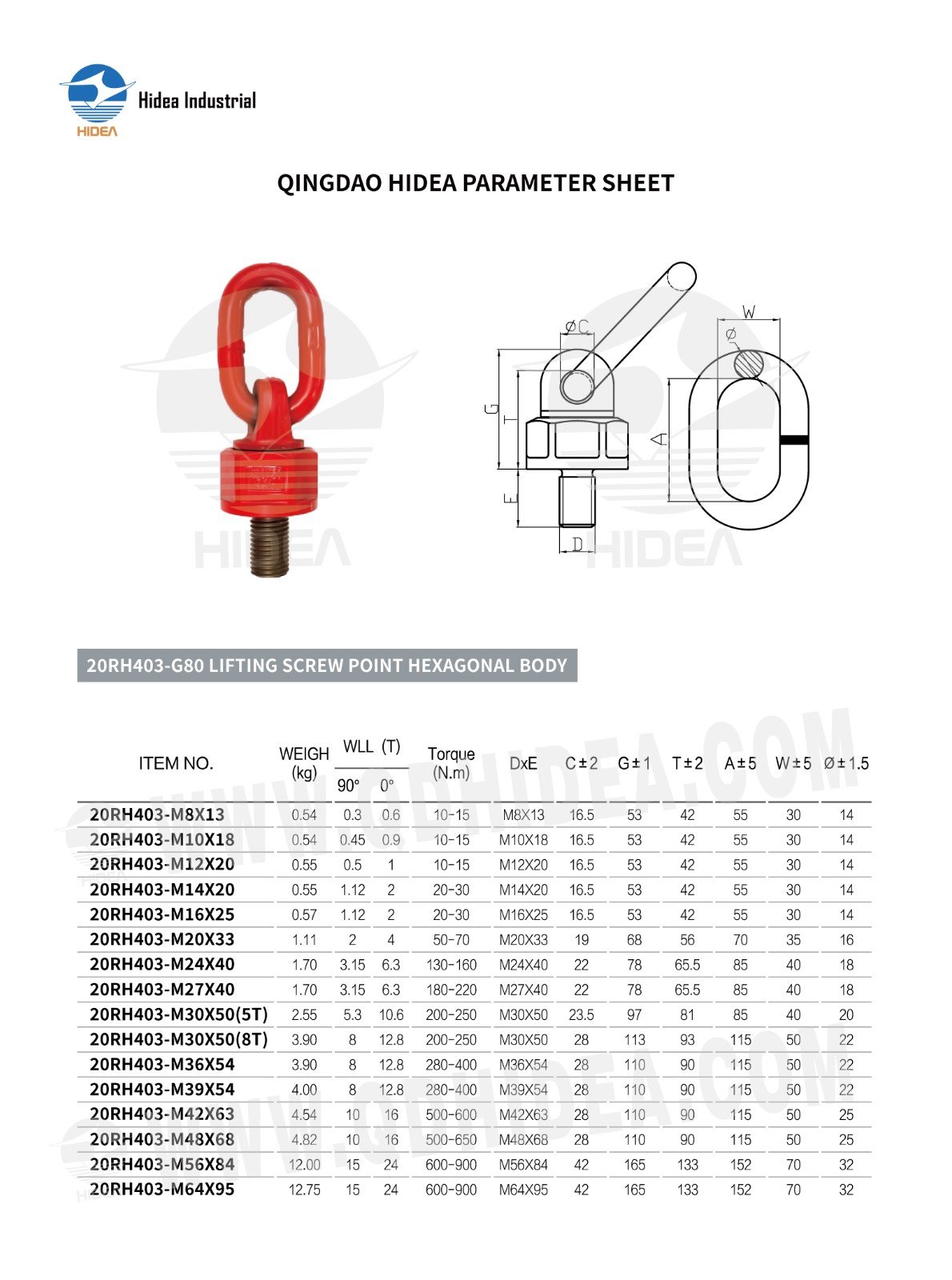

QINGDAO HIDEA PARAMETER SHEET FOR

20RH403-G80 LIFTING SCREW POINT HEXAGONAL BODY

ITEM NO.	WEIGH (kg)	WLL(T)		Torque (N.m)	DxE	C±2	G±1	T±2	A±5	W±5	Ø±1.5
		90°	0°
		90°	0°
20RH403-M8X13	0.54	0.3	0.6	10-15	M8X13	16.5	53	42	55	30	14
20RH403-M10X18	0.54	0.45	0.9	10-15	M10X18	16.5	53	42	55	30	14
20RH403-M12X20	0.55	0.5	1	10-15	M12X20	16.5	53	42	55	30	14
20RH403-M14X20	0.55	1.12	2	20-30	M14X20	16.5	53	42	55	30	14
20RH403-M16X25	0.57	1.12	2	20-30	M16X25	16.5	53	42	55	30	14
20RH403-M20X33	1.11	2	4	50-70	M20X33	19	68	56	70	35	16
20RH403-M24X40	1.70	3.15	6.3	130-160	M24X40	22	78	65.5	85	40	18
20RH403-M27X40	1.70	3.15	6.3	180-220	M27X40	22	78	65.5	85	40	18
20RH403-M30X50(5T)	2.55	5.3	10.6	200-250	M30X50	23.5	97	81	85	40	20
20RH403-M30X50(8T)	3.90	8	12.8	200-250	M30X50	28	113	93	115	50	22
20RH403-M36X54	3.90	8	12.8	280-400	M36X54	28	110	90	115	50	22
20RH403-M39X54	4.00	8	12.8	280-400	M39X54	28	110	90	115	50	22
20RH403-M42X63	4.54	10	16	500-600	M42X63	28	110	90	115	50	25
20RH403-M48X68	4.82	10	16	500-650	M48X68	28	110	90	115	50	25
20RH403-M56X84	12.00	15	24	600-900	M56X84	42	165	133	152	70	32
20RH403-M64X95	12.75	15	24	600-900	M64X95	42	165	133	152	70	32
