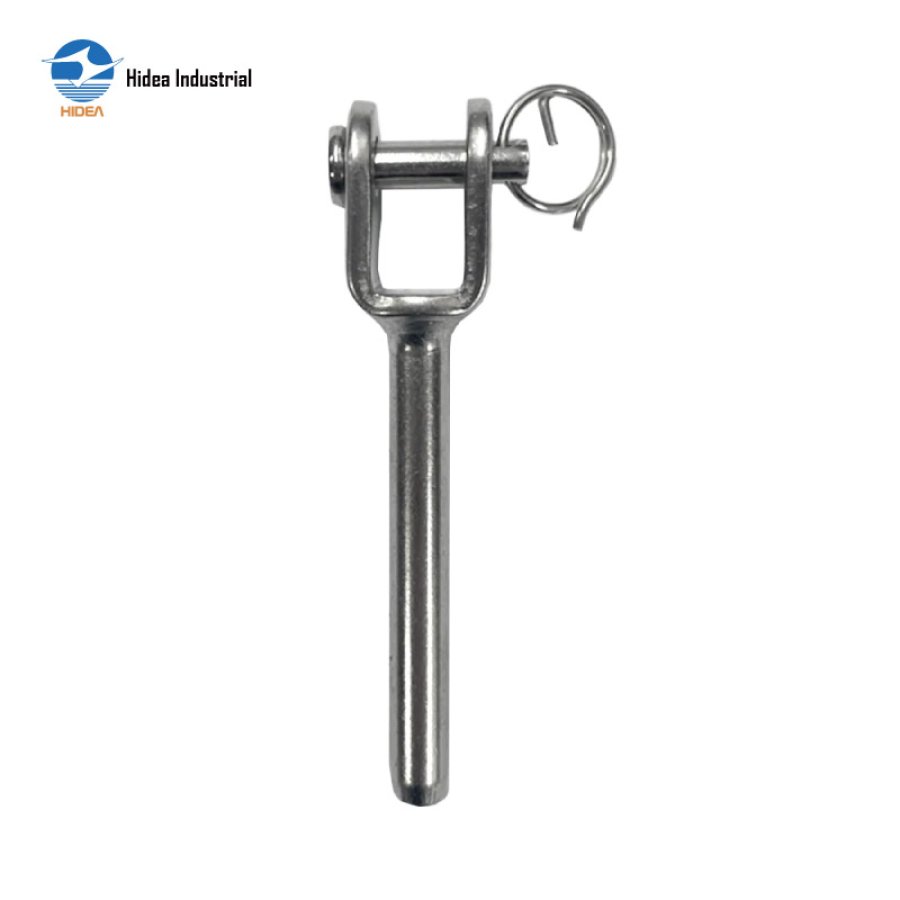

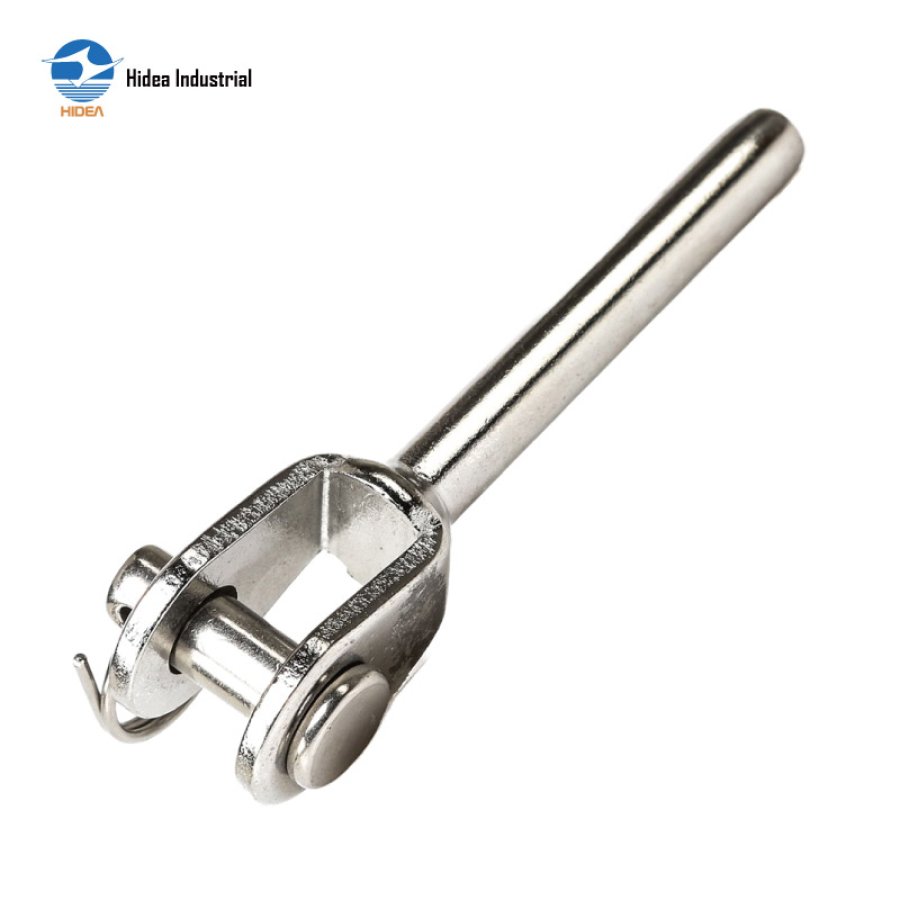

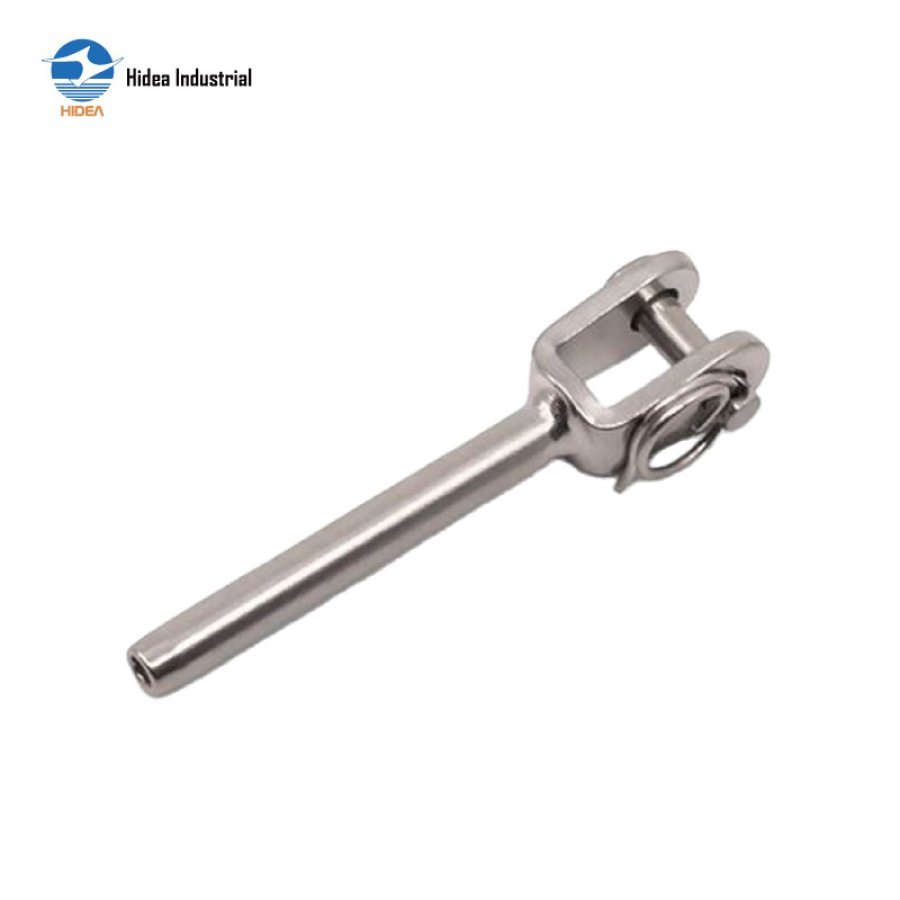

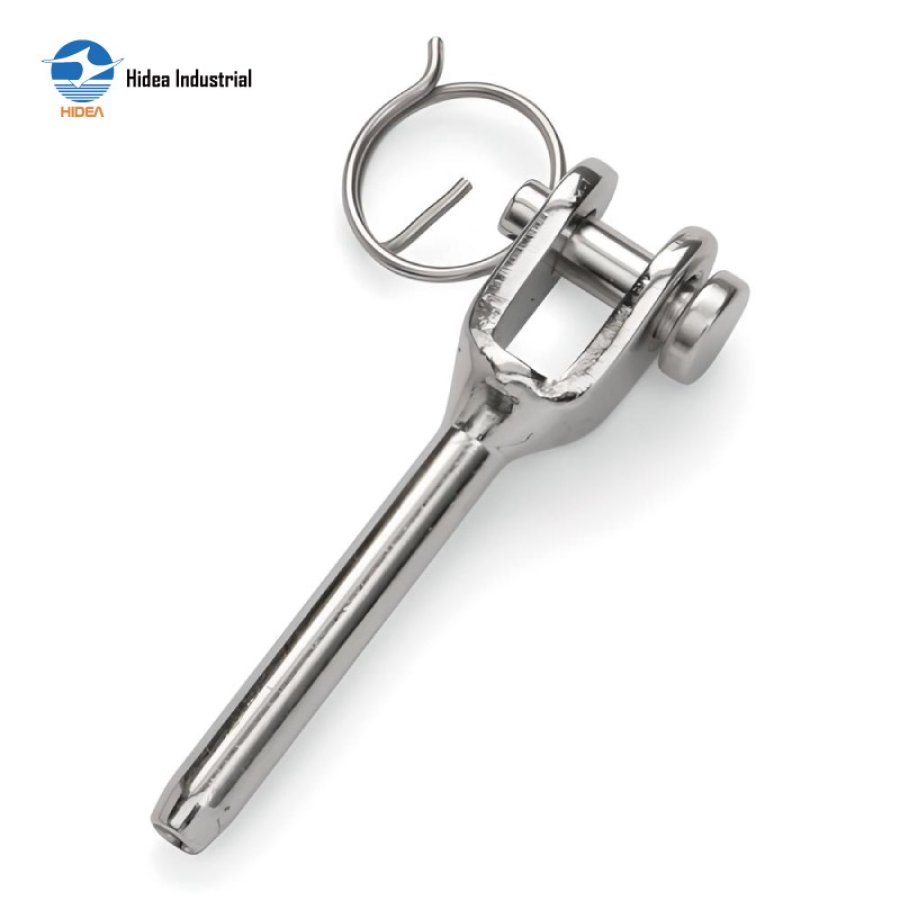

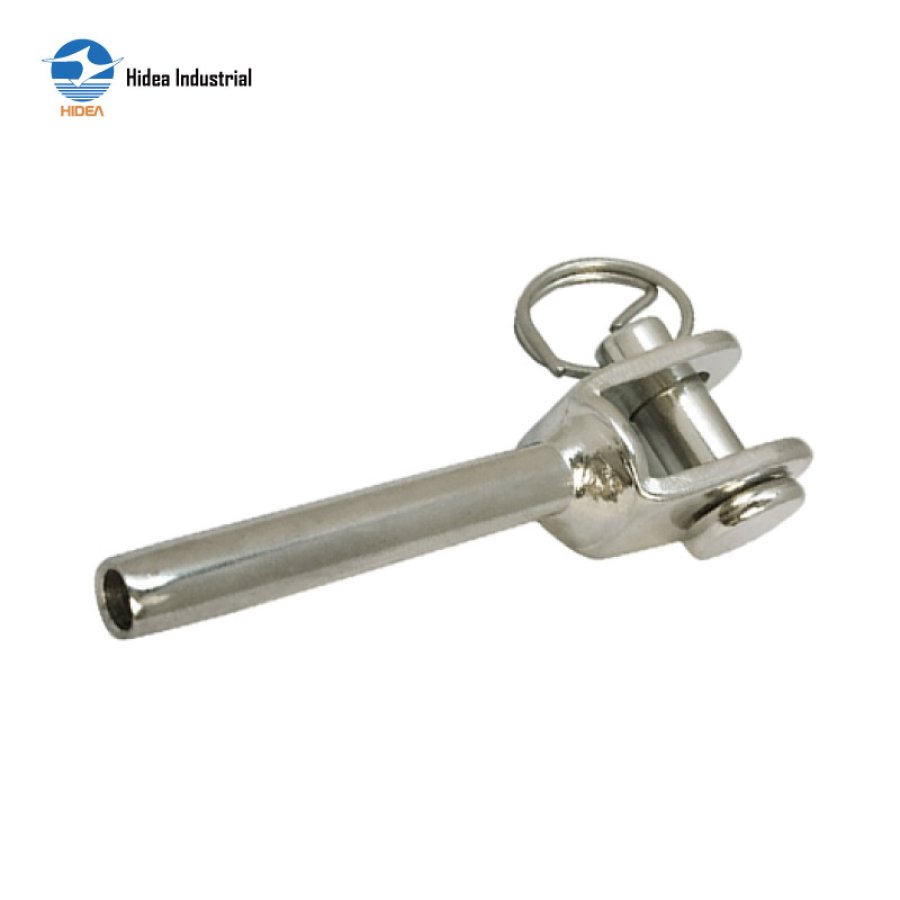

Durable Hidea Stainless Steel Swage Jaw End Fork Terminal for High-Tensile Wire Rope Connections

FORK TERMINAL CAST

Technical Data: Investment Casting/Forged
Material: AISI 304/INOX A2, AISI 316/INOX A4
Surface Treatment: Electro Polished/Passivated

Inquire Now

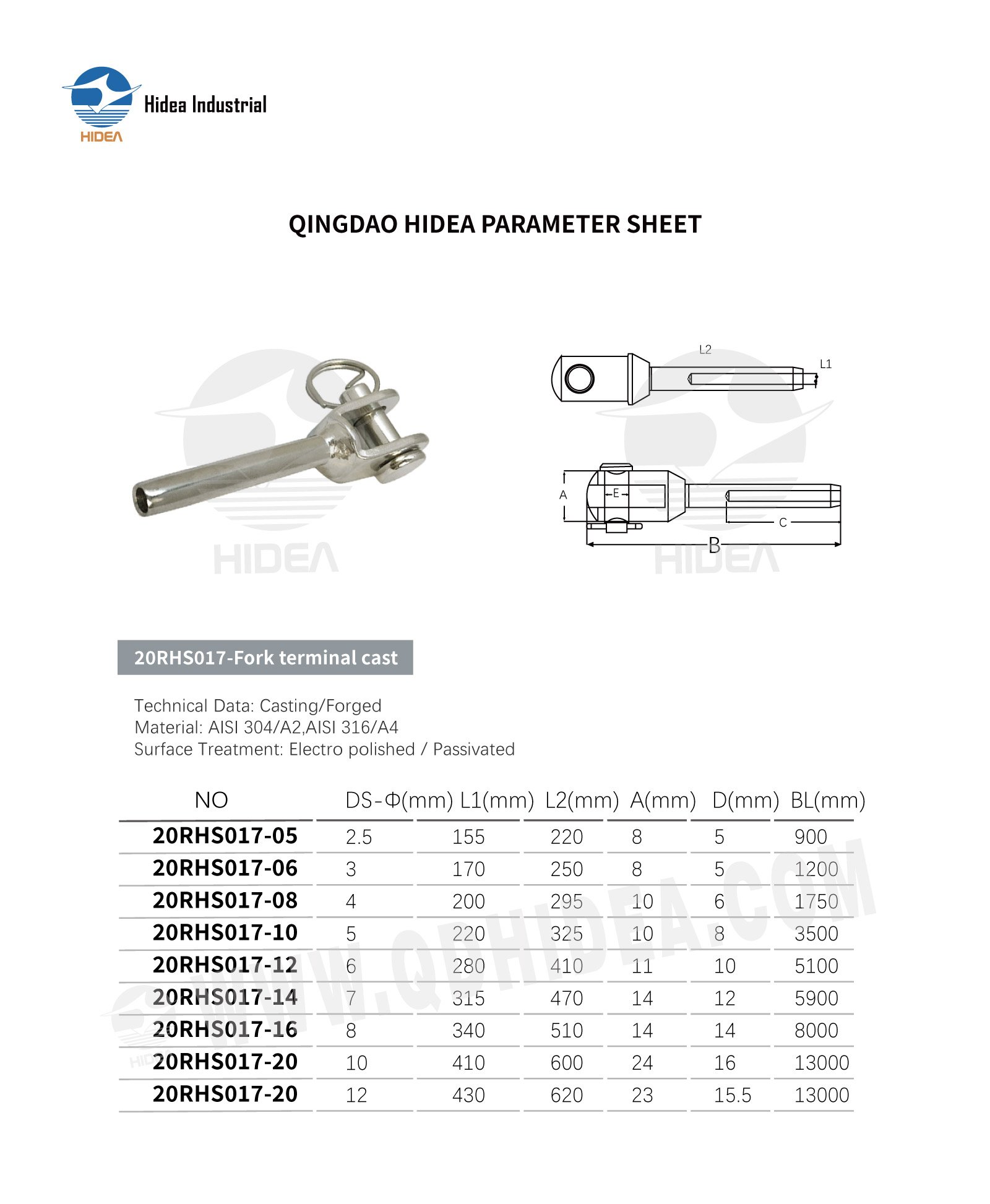

QINGDAO HIDEA PARAMETER SHEET FOR

20RHS017-Fork terminal cast

NO	DS-Φ(mm)	L1(mm)	L2(mm)	A(mm)	D(mm)	BL(mm)
20RHS017-05	2.5	155	220	8	5	900
20RHS017-06	3	170	250	8	5	1200
20RHS017-08	4	200	295	10	6	1750
20RHS017-10	5	220	325	10	8	3500
20RHS017-12	6	280	410	11	10	5100
20RHS017-14	7	315	470	14	12	5900
20RHS017-16	8	340	510	14	14	8000
20RHS017-20	10	410	600	24	16	13000
20RHS017-20	12	430	620	23	15.5	13000
