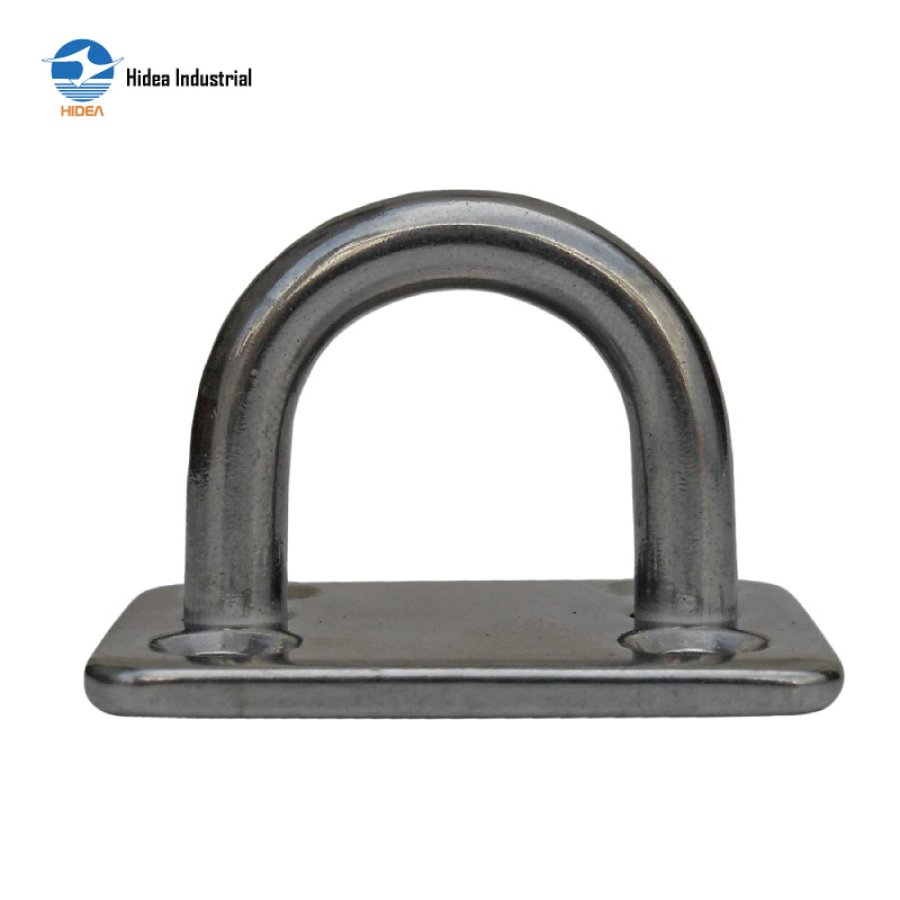

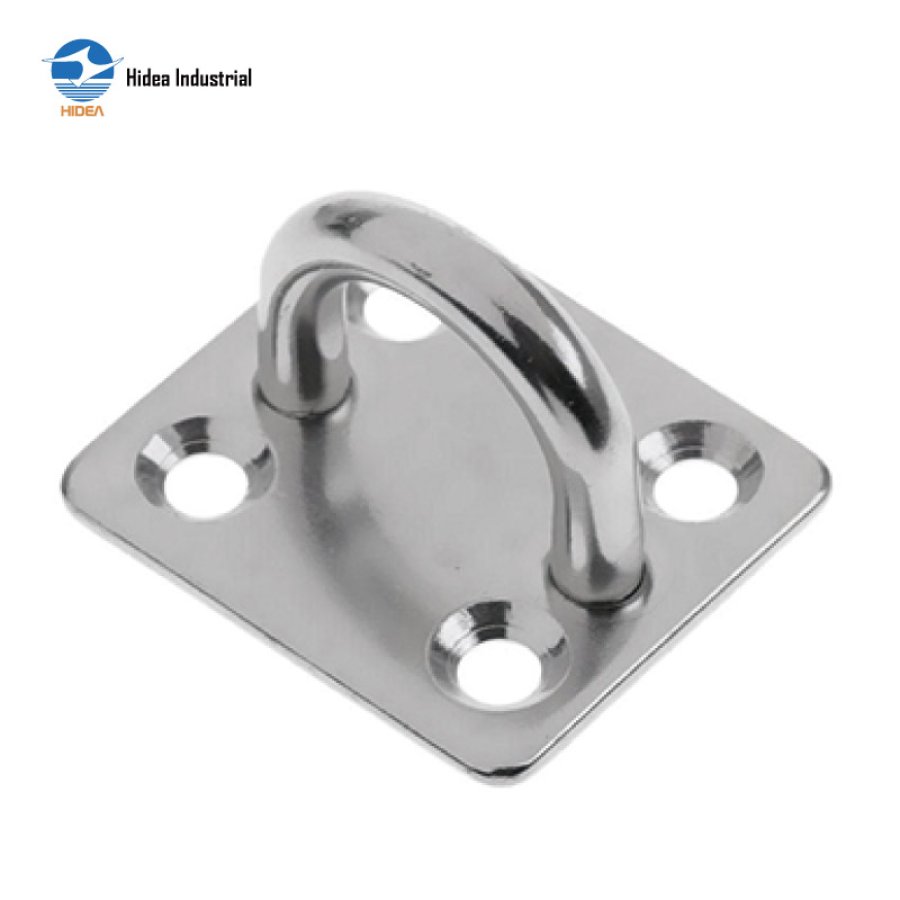

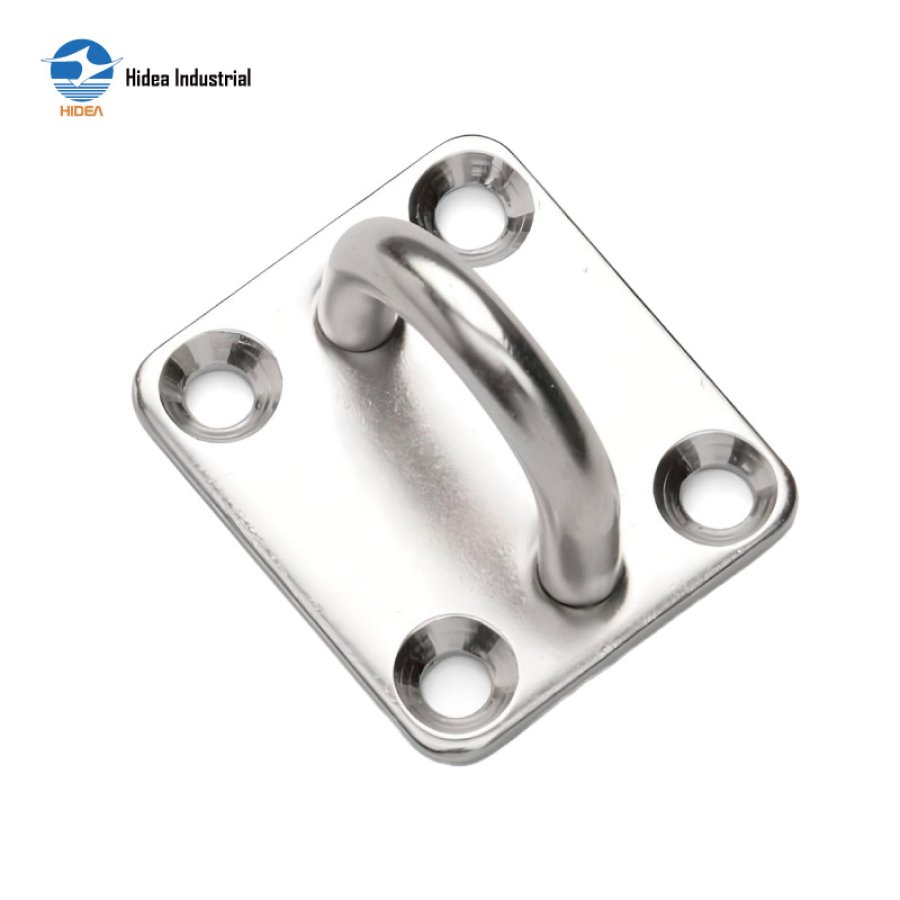

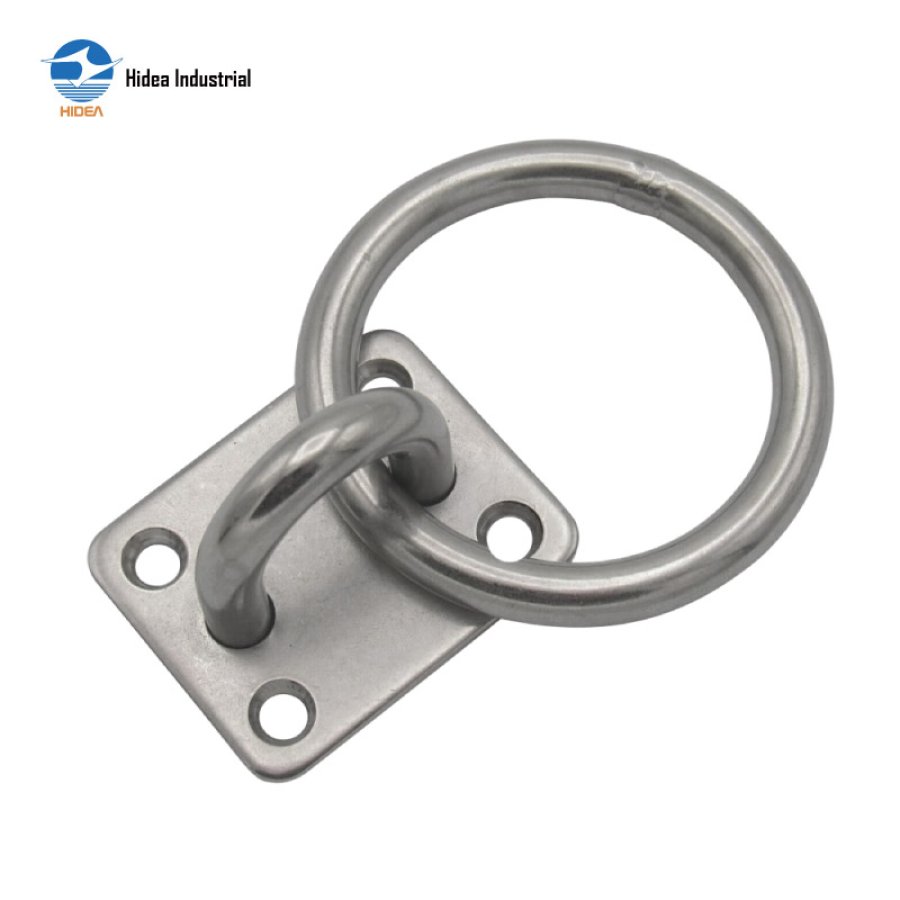

Corrosion-Resistant Hidea Stainless Steel Square Eye Plate for Harsh Environments

SQUARE EYE PLATE

Technical Data: Investment Casting/Forged
Material: AISI 304/INOX A2, AISI 316/INOX A4
Surface Treatment: Electro Polished/Passivated

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

Square Eye Plate

D(mm)	A(mm)	B(mm)	H(mm)	h(mm)	w(mm) d(mm)		WT(kgs)
5	30	35	20	12	13	4.5	0.025
6	35	40	26	17	17	4.5	0.041
8	40	50	32	21	21	6.2	0.068
10	48	60	39	26	26	6.2	0.11
