Hidea DIN1478 Pipe Turnbuckle with Stub Ends – Durable Tensioning for Heavy-Duty Applications

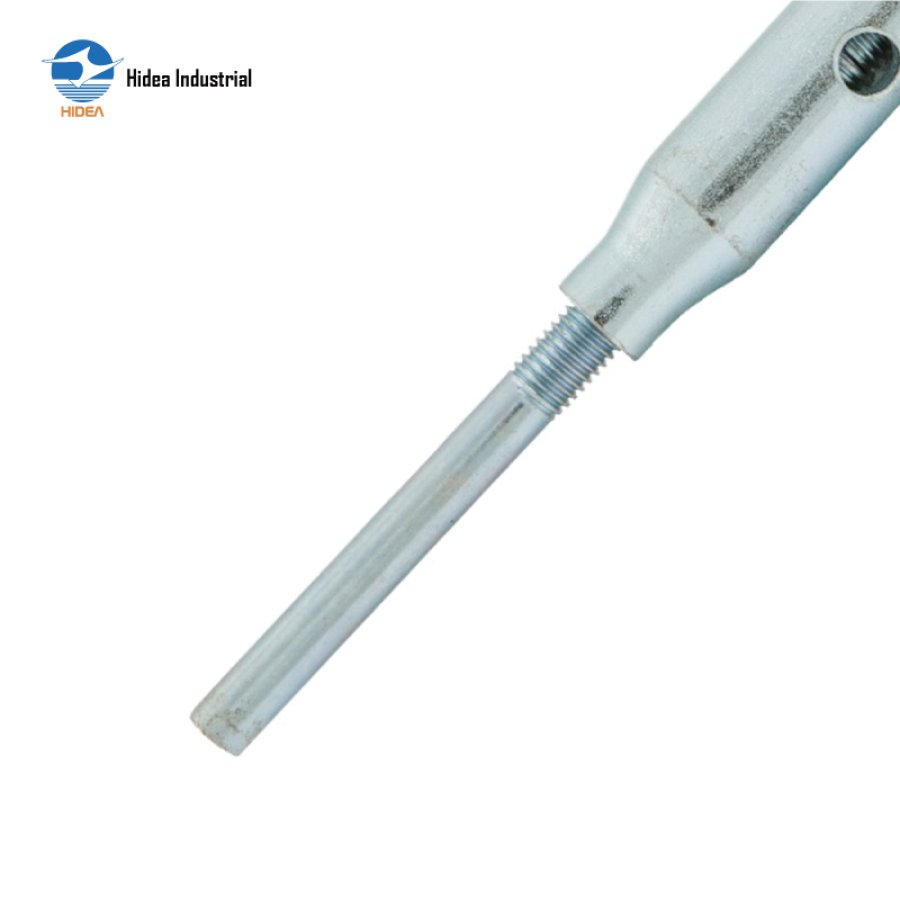

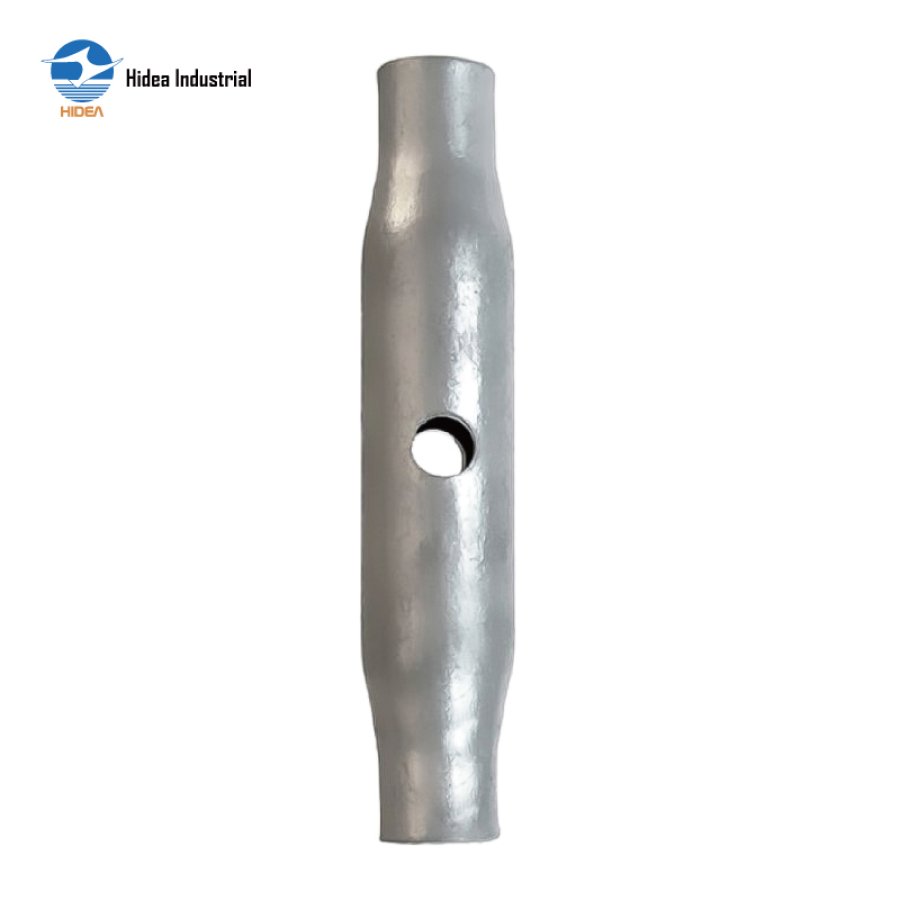

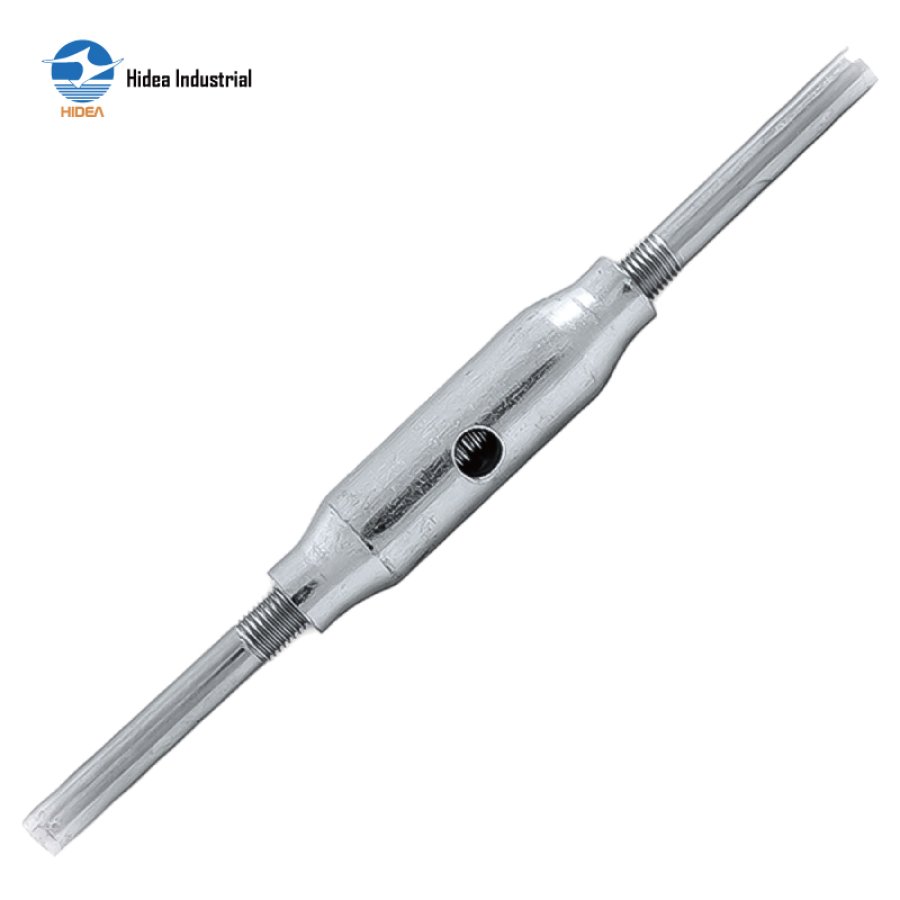

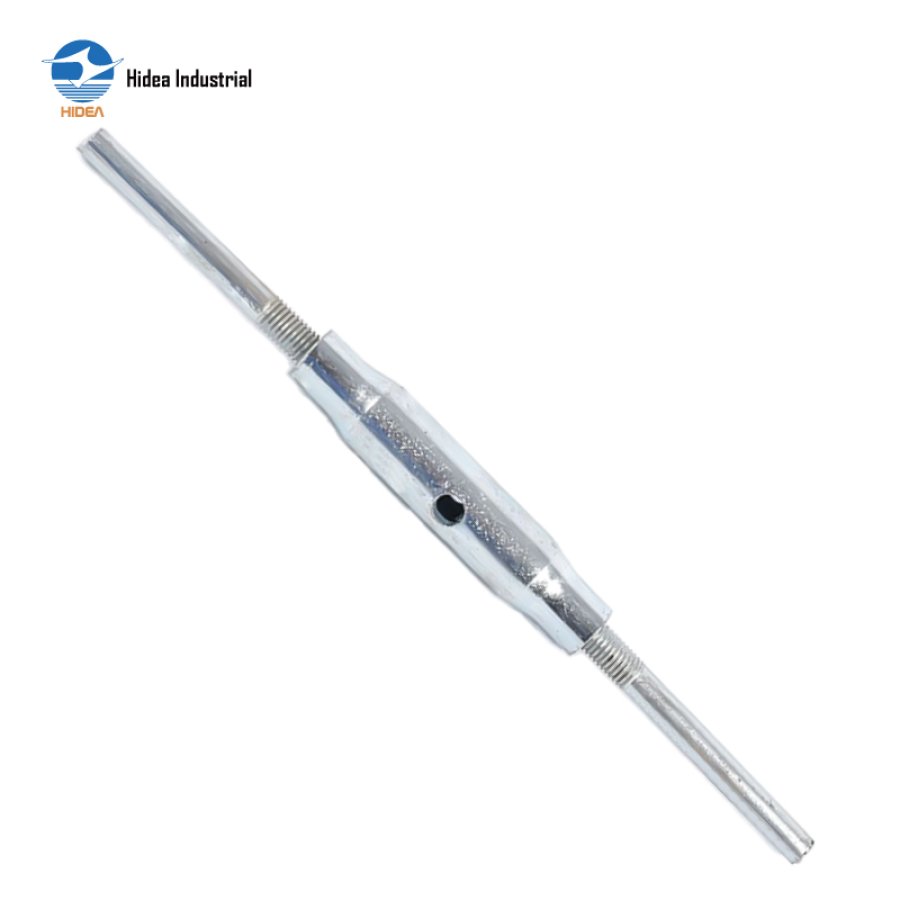

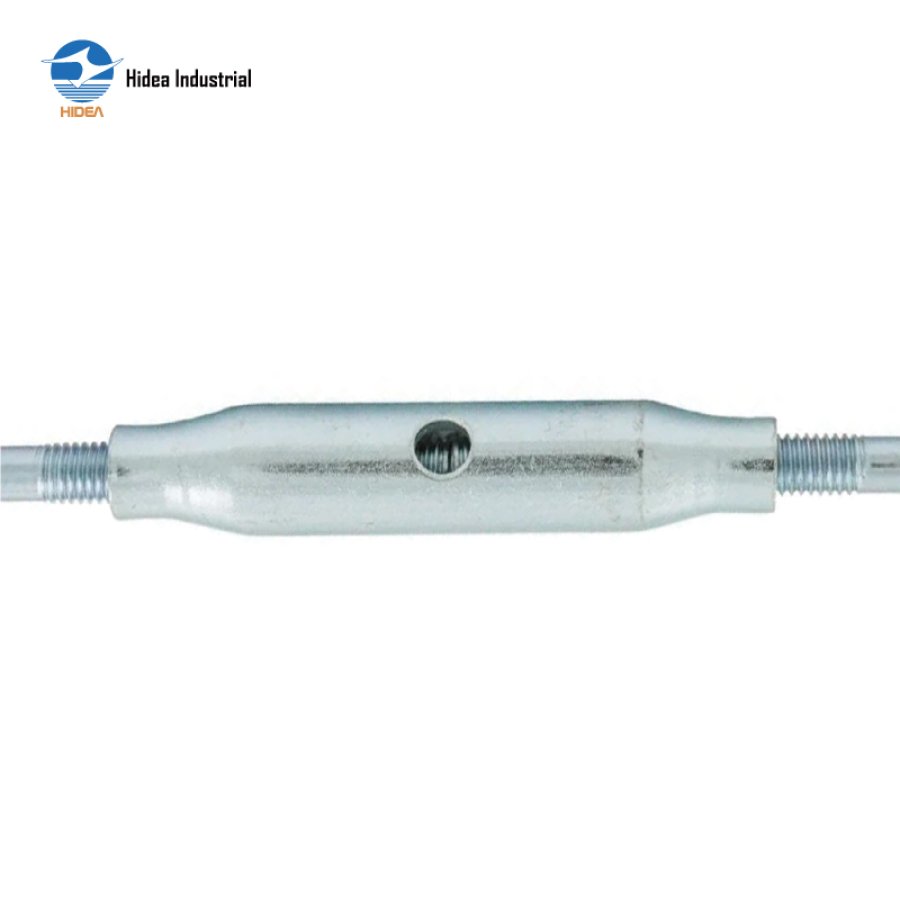

DIN1478 TUBULAR TURNBUCKLE WITH STUB ENDS

Material High tensile seamless steel tubes
Contracted pipe both ends & forged end fittings, quenched & tempered
Proof tested individually & certificate available
Surface hot dip galvanized, electro galv. / zinc plated OR as requested
Din1478 tublar rigging screws tublar / pipe turnbuckles stub ends type

Inquire Now

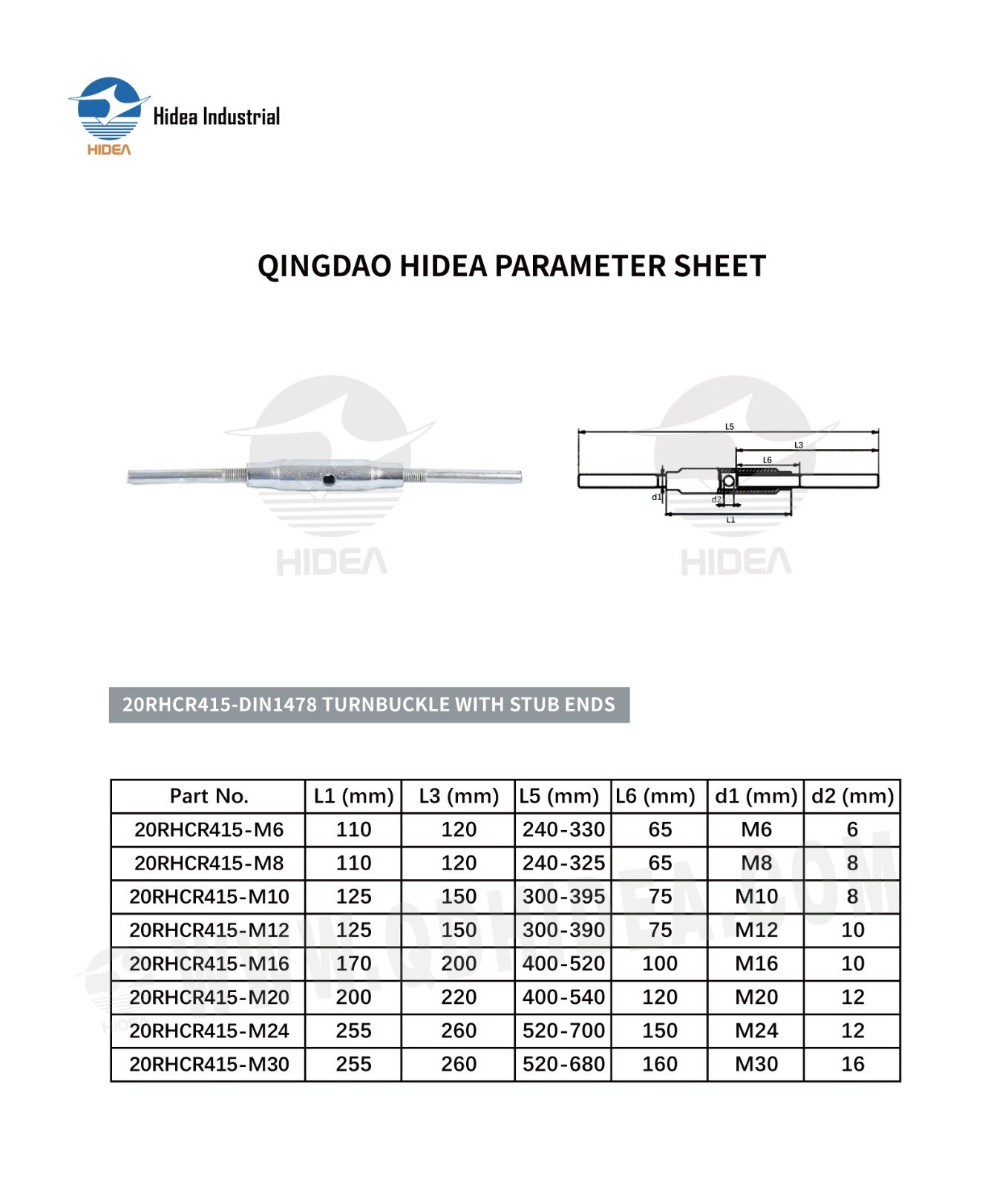

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR415-DIN1478 TURNBUCKLE WITH STUB ENDS

Part No.	L1(mm)	L3(mm)	L5(mm)	L6(mm)	d1(mm)	d2(mm)
20RHCR415-M6	110	120	240-330	65	M6	6
20RHCR415-M8	110	120	240-325	65	M8	8
20RHCR415-M10	125	150	300-395	75	M10	8
20RHCR415-M12	125	150	300-390	75	M12	10
20RHCR415-M16	170	200	400-520	100	M16	10
20RHCR415-M20	200	220	400-540	120	M20	12
20RHCR415-M24	255	260	520-700	150	M24	12
20RHCR415-M30	255	260	520-680	160	M30	16
