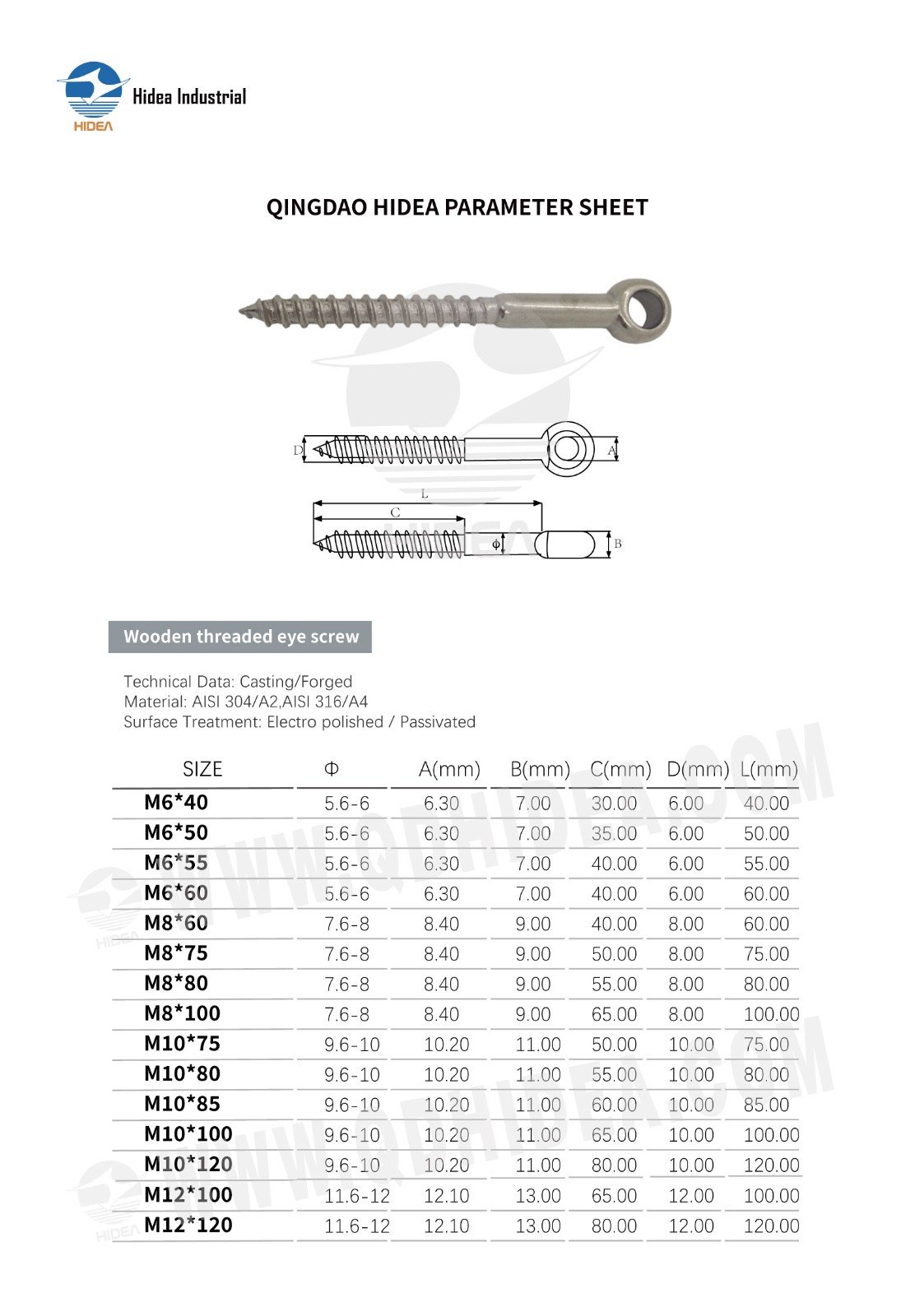

QINGDAO HIDEA PARAMETER SHEET FOR

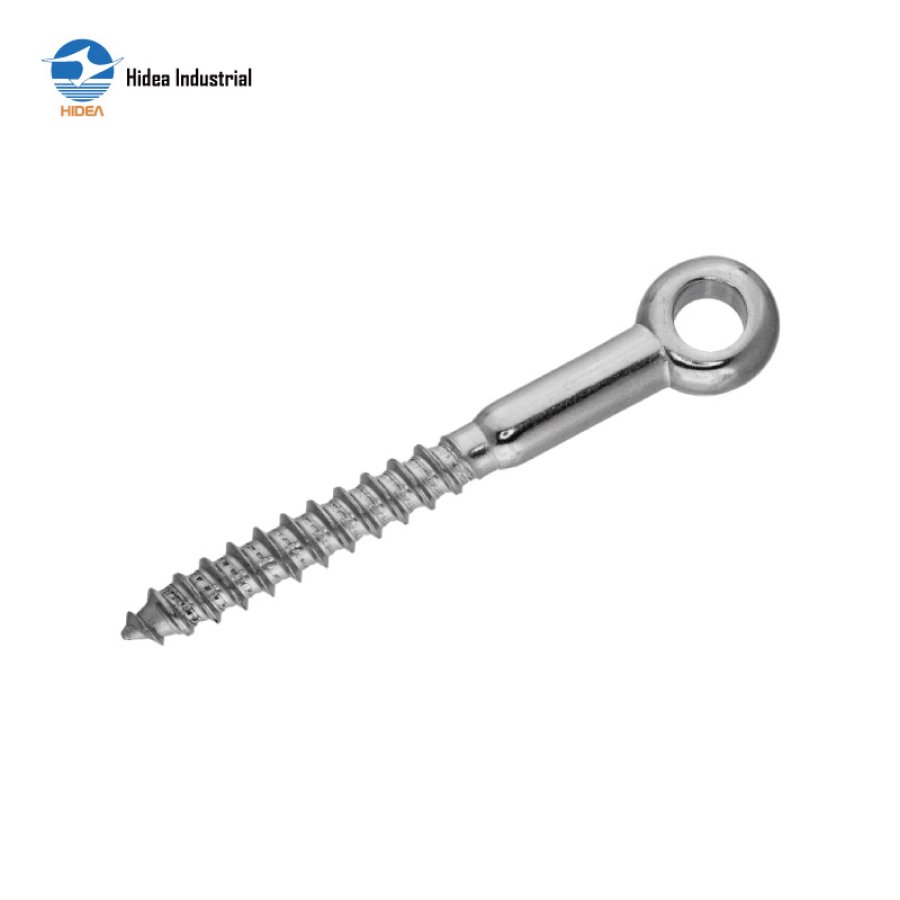

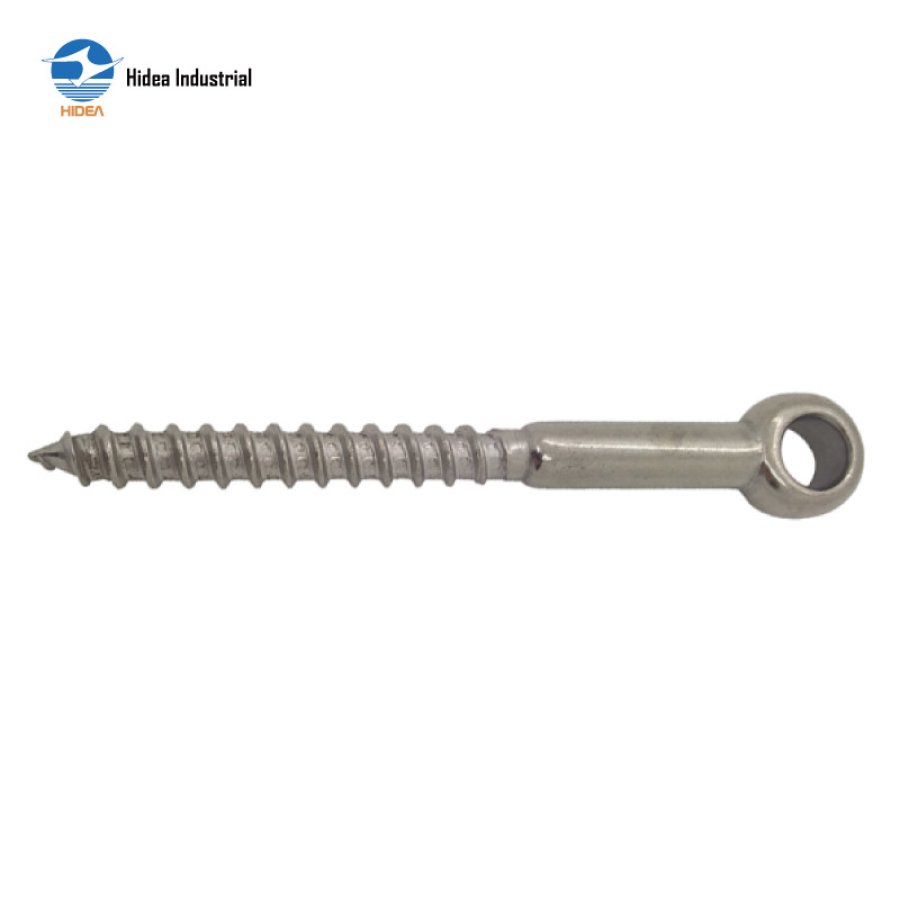

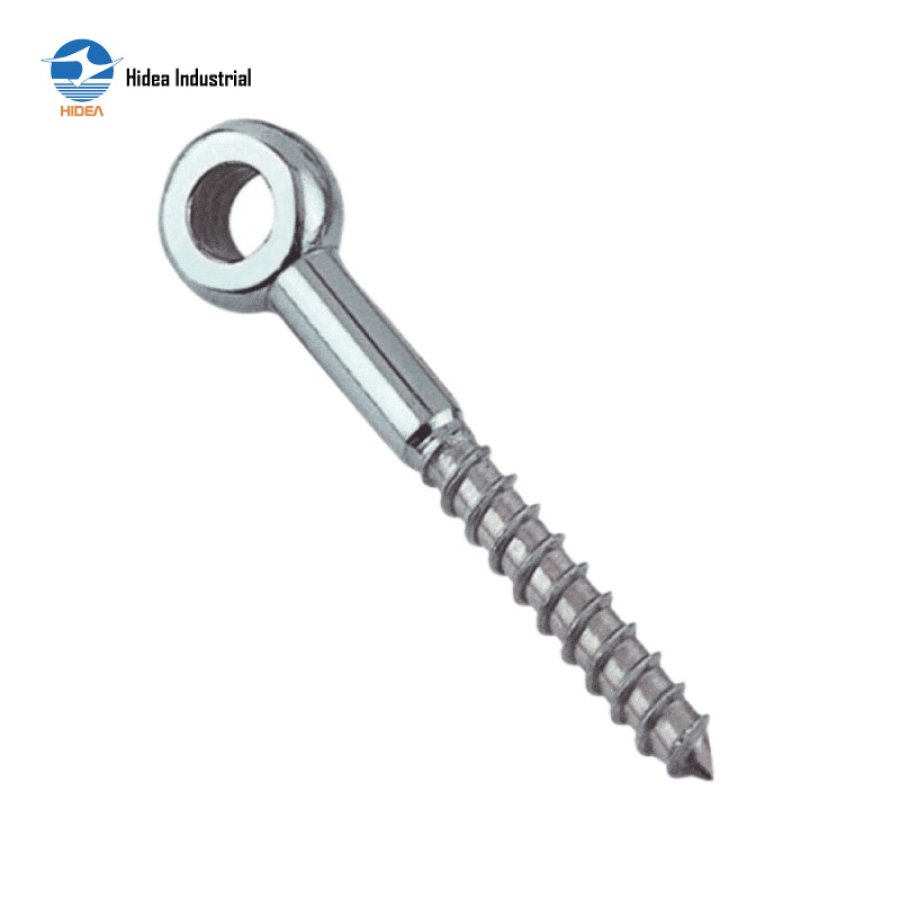

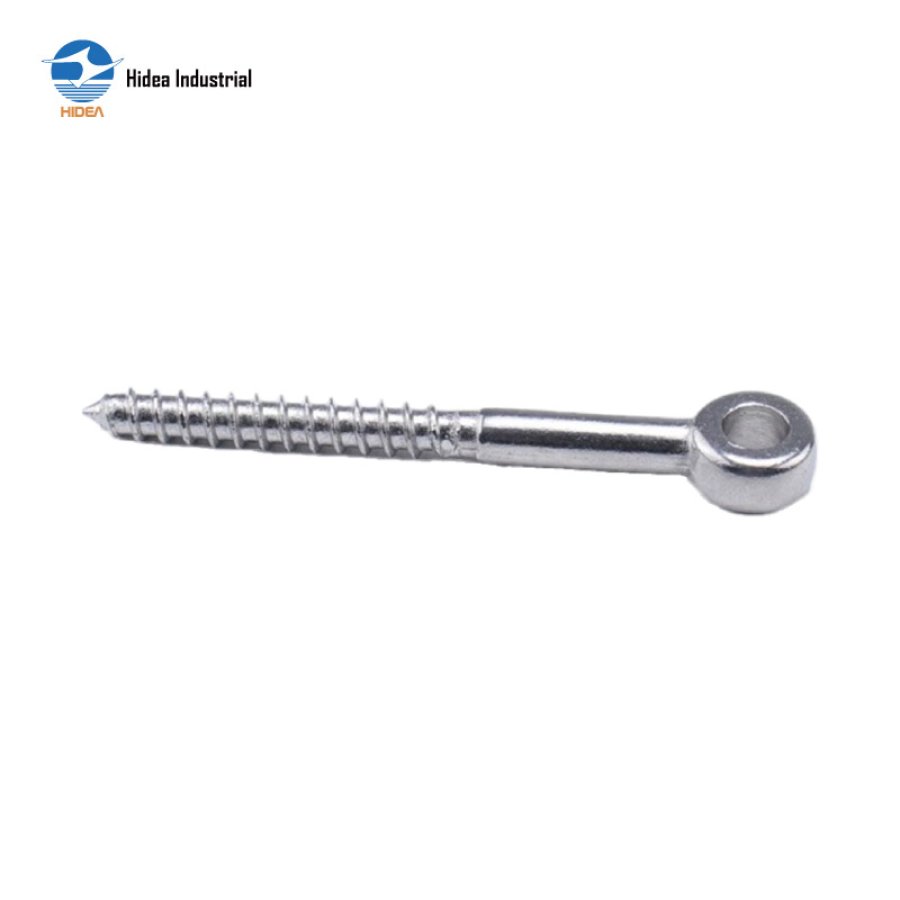

Wooden threaded eye screw
| SIZE | Φ | A(mm) | B(mm) | C(mm) | D(mm) | L(mm) | |
| M6*40 | 5.6-6 | 6.30 | 7.00 | 30.00 | 6.00 | 40.00 | |
| M6*50 | 5.6-6 | 6.30 | 7.00 | 35.00 | 6.00 | 50.00 | |
| M6*55 | 5.6-6 | 6.30 | 7.00 | 40.00 | 6.00 | 55.00 | |
| M6*60 | 5.6-6 | 6.30 | 7.00 | 40.00 | 6.00 | 60.00 | |
| M8*60 | 7.6-8 | 8.40 | 9.00 | 40.00 | 8.00 | 60.00 | |
| M8*75 | 7.6-8 | 8.40 | 9.00 | 50.00 | 8.00 | 75.00 | |
| M8*80 | 7.6-8 | 8.40 | 9.00 | 55.00 | 8.00 | 80.00 | |
| M8*100 | 7.6-8 | 8.40 | 9.00 | 65.00 | 8.00 | 100.00 | |
| M10*75 | 9.6-10 | 10.20 | 11.00 | 50.00 | 10.00 | 75.00 | |
| M10*80 | 9.6-10 | 10.20 | 11.00 | 55.00 | 10.00 | 80.00 | |
| M10*85 | 9.6-10 | 10.20 | 11.00 | 60.00 | 10.00 | 85.00 | |
| M10*100 | 9.6-10 | 10.20 | 11.00 | 65.00 | 10.00 | 100.00 | |
| M10*120 | 9.6-10 | 10.20 | 11.00 | 80.00 | 10.00 | 120.00 | |
| M12*100 | 11.6-12 | 12.10 | 13.00 | 65.00 | 12.00 | 100.00 | |
| M12*120 | 11.6-12 | 12.10 | 13.00 | 80.00 | 12.00 | 120.00 | |
