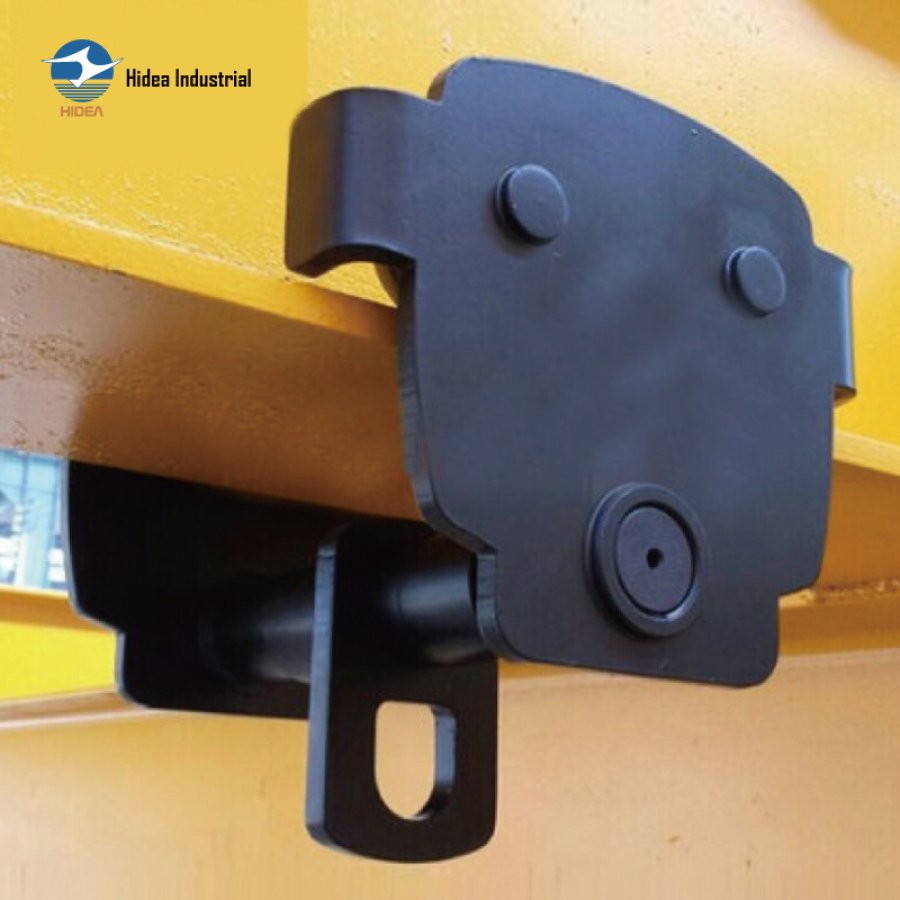

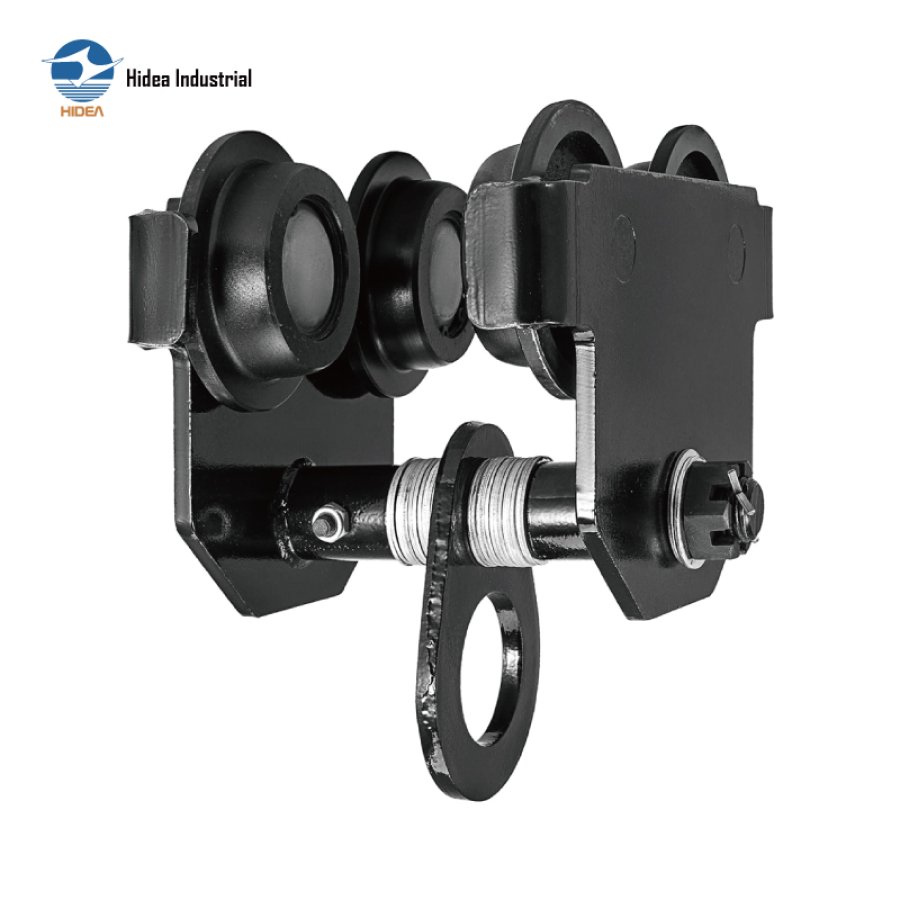

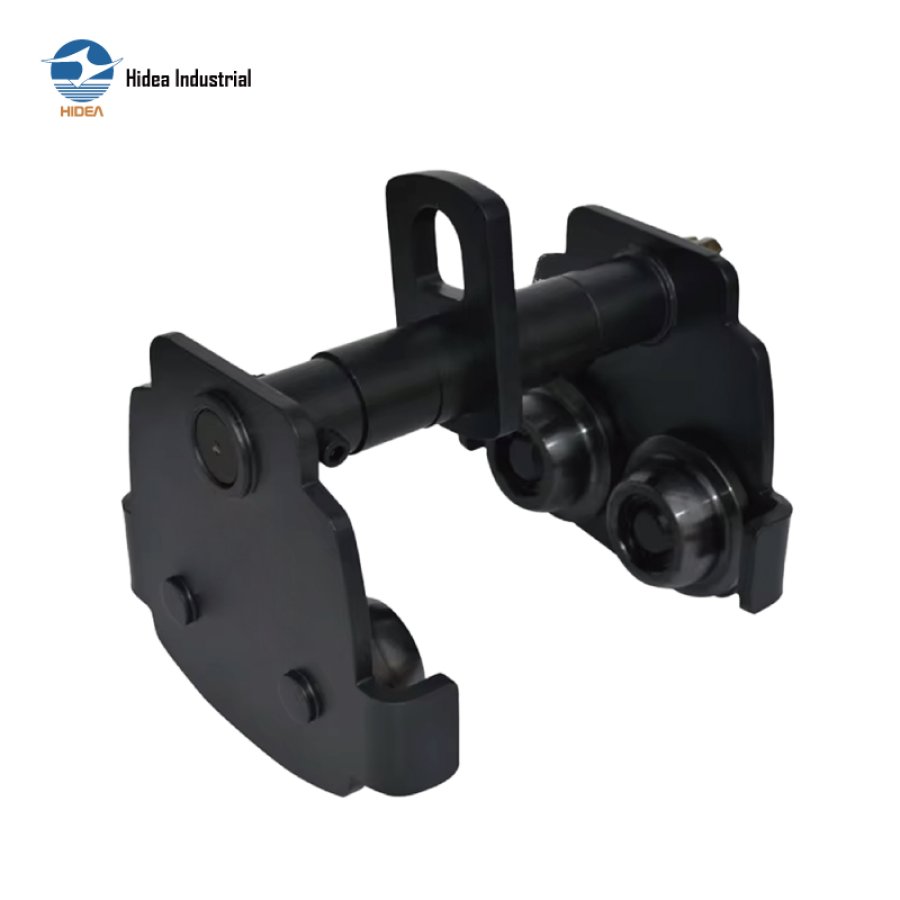

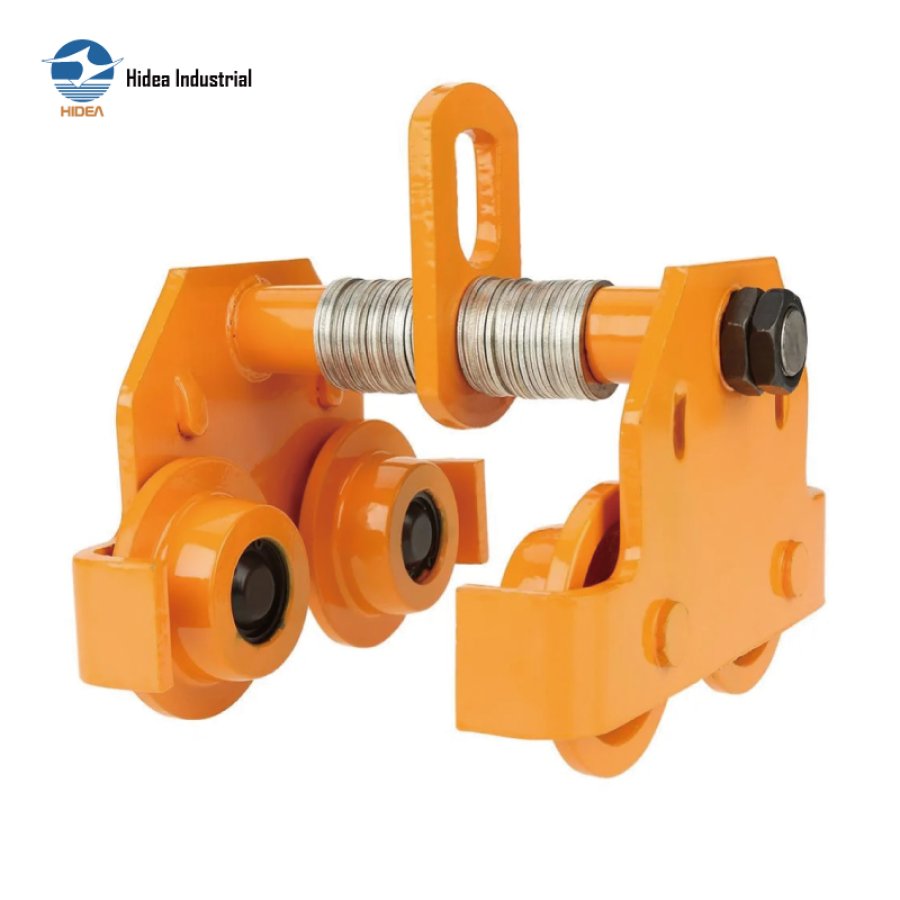

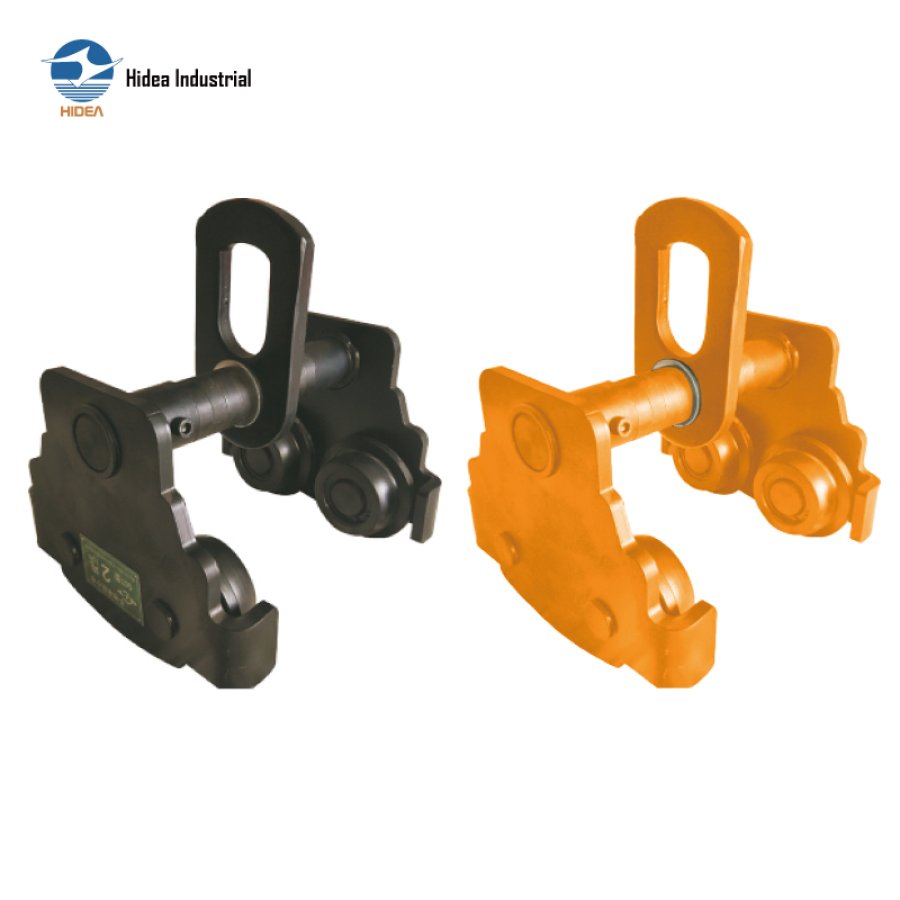

The GCT-E type I beam plain trolleys, featured staired baffle plates at both ends with protective jaws, are designed to be used in industrial settings for moving heavy loads horizontally along an I-beam track with hoists equipment
The GCT-E I-beam plain trolleys come in various weight capacities from 0.5T to 5T or more and to fit different beam widths from 68mm to 180mm
The GCT-E I-beam plain trolleys are typically made of high quality steel materials and can be manually operated or powered by electric or pneumatic hoists, and used in a wide range of industries such as manufacturing, construction, and transportation
The GCT-E I-beam trolleys meeting standards of and in conformity with European Norm (EN) 13155, Machinery Directive 2006/42/EC & ASME B30.20
QINGDAO HIDEA PARAMETER SHEET FOR
I-BEAM PLAIN TROLLEY GCT-E TYPE
| WLL (tons) | I-BEAM Width (mm) | Weight (kg) | |||
| 0.5 | 68-126mm | 5.5 | |||
| 1.0 | 80-146mm | 9.0 | |||
| 2.0 | 80-168mm | 13.0 | |||
| 3T | 88-168mm | 22.0 | |||
| 5.0 | 100-180mm | 35.0 | |||
