Enhance Logging Operations with Hidea G80 Clevis Forest Hook C Hook

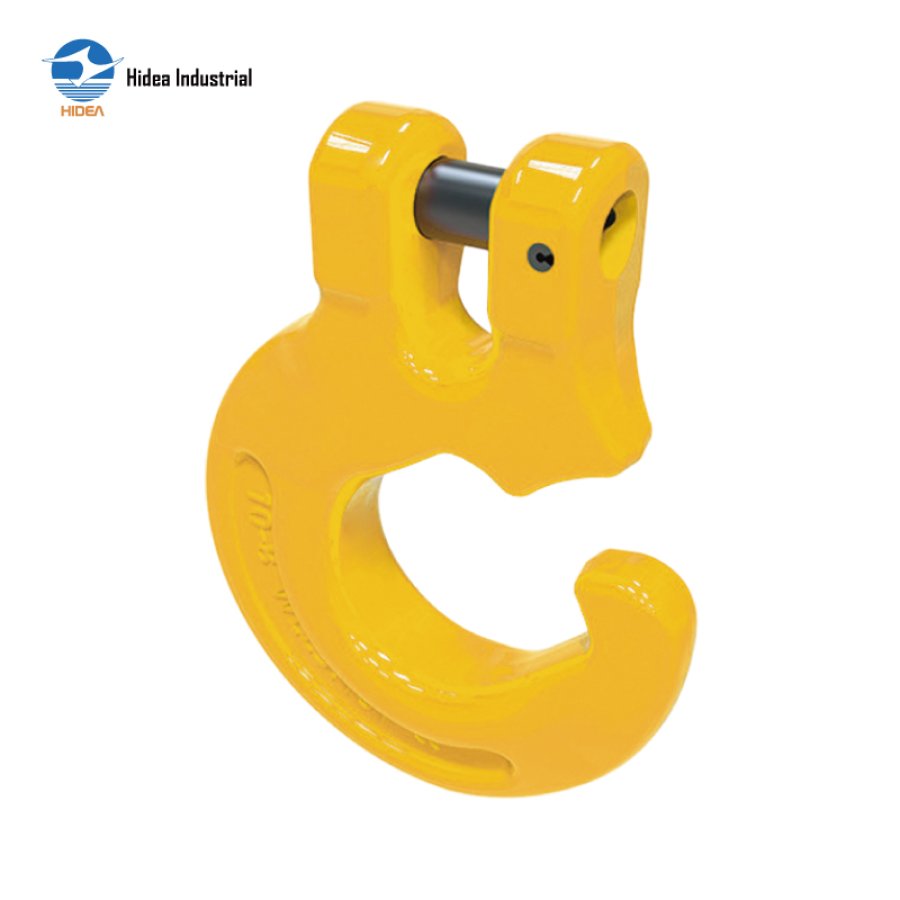

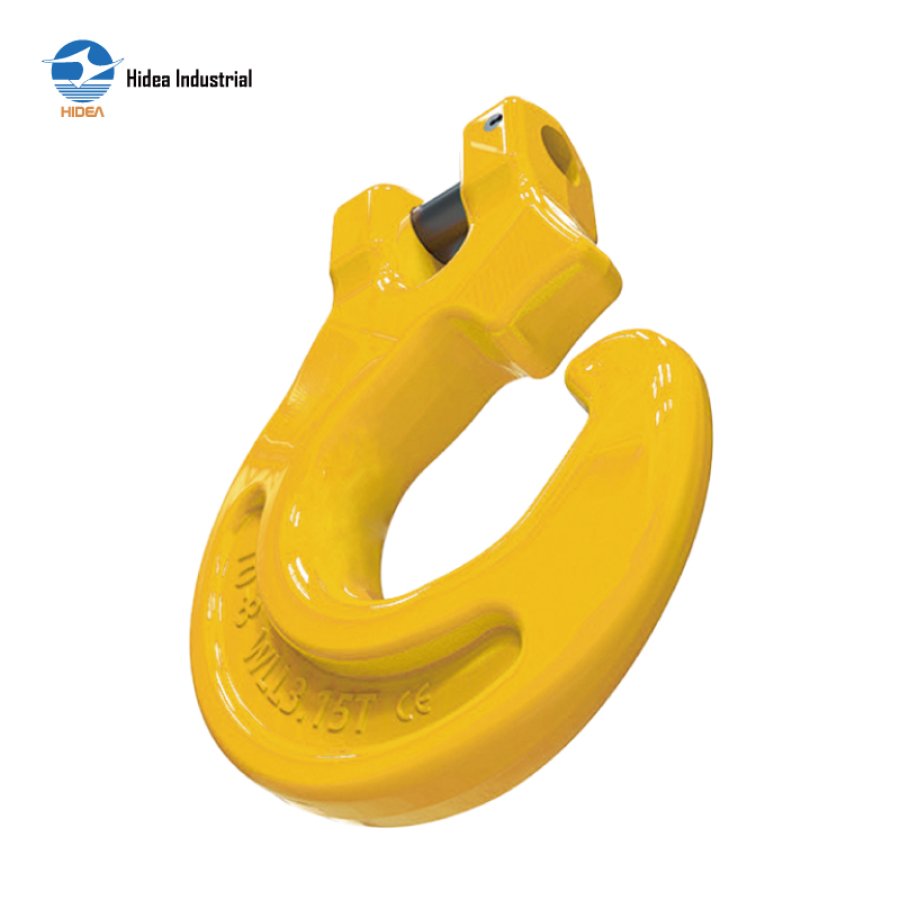

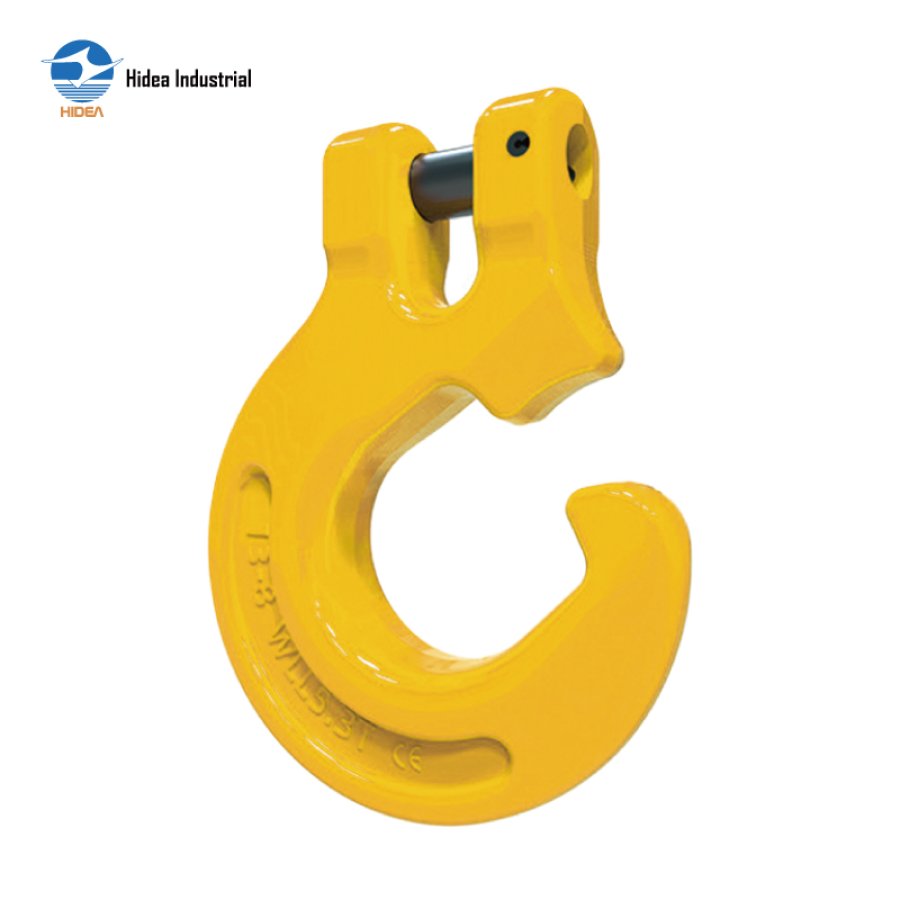

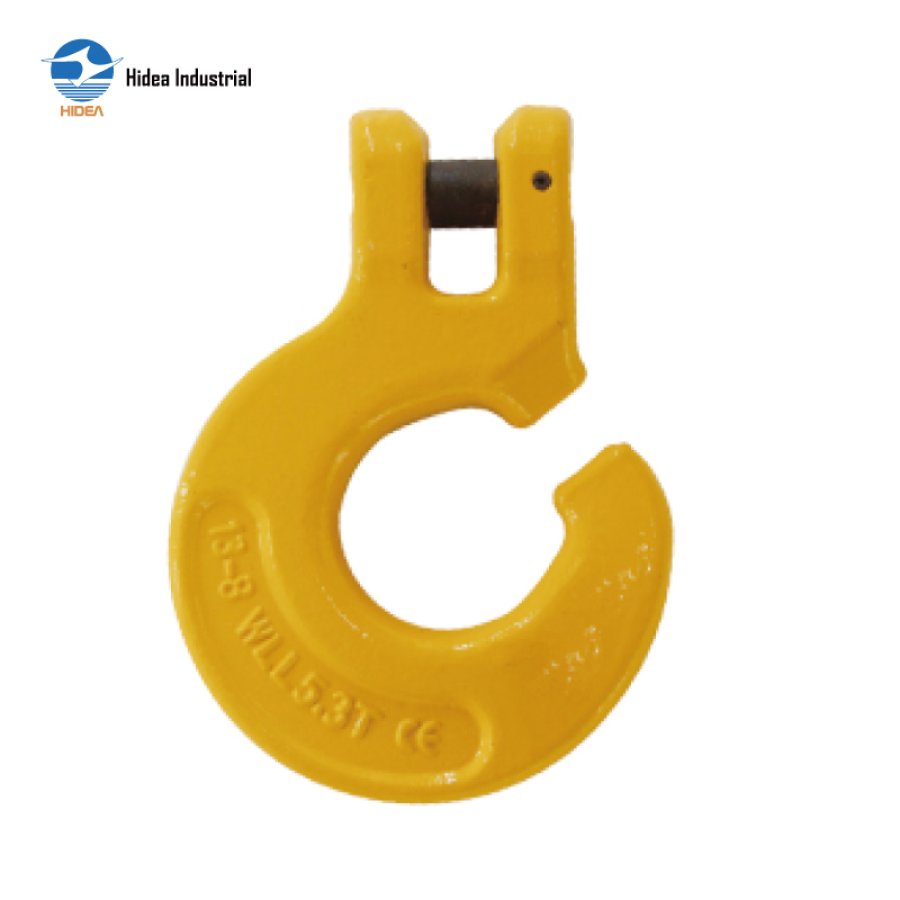

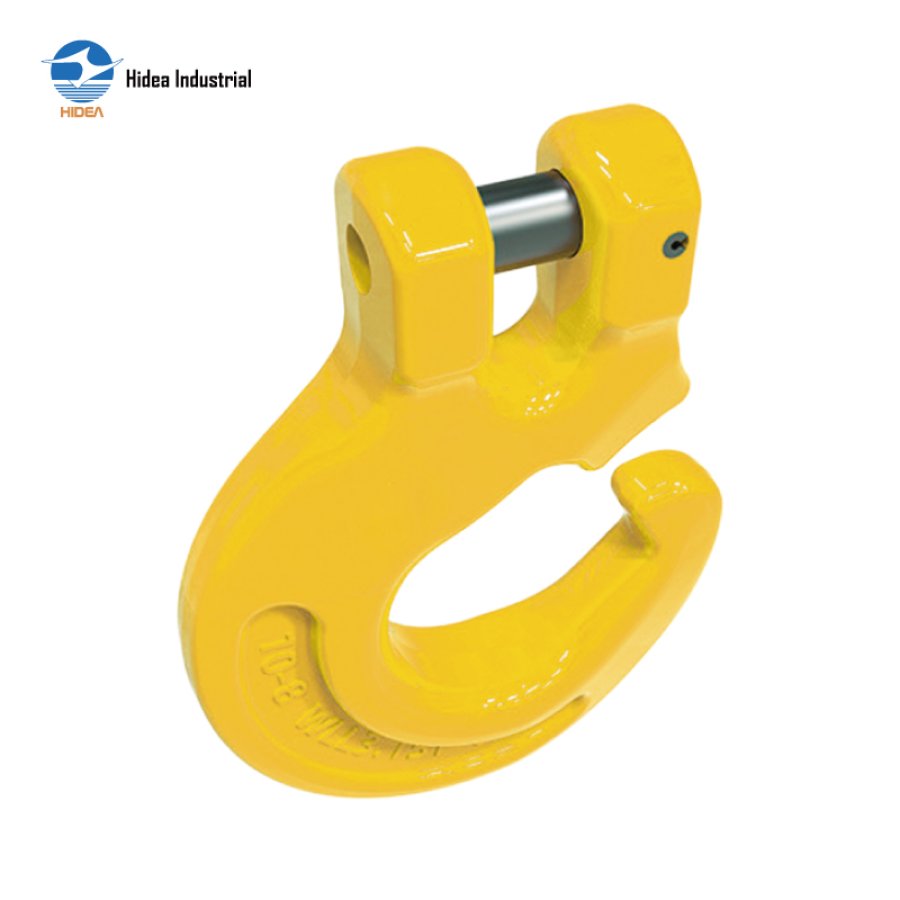

G80 CLEVIS FOREST HOOK C HOOK

Forged super alloy steel-Quenched and Tempered
Suitable for EN818-2 G80 chain
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection
Surface finish: Powder plastified
Colour code: Red RAL3020/Yellow RAL1003

Inquire Now

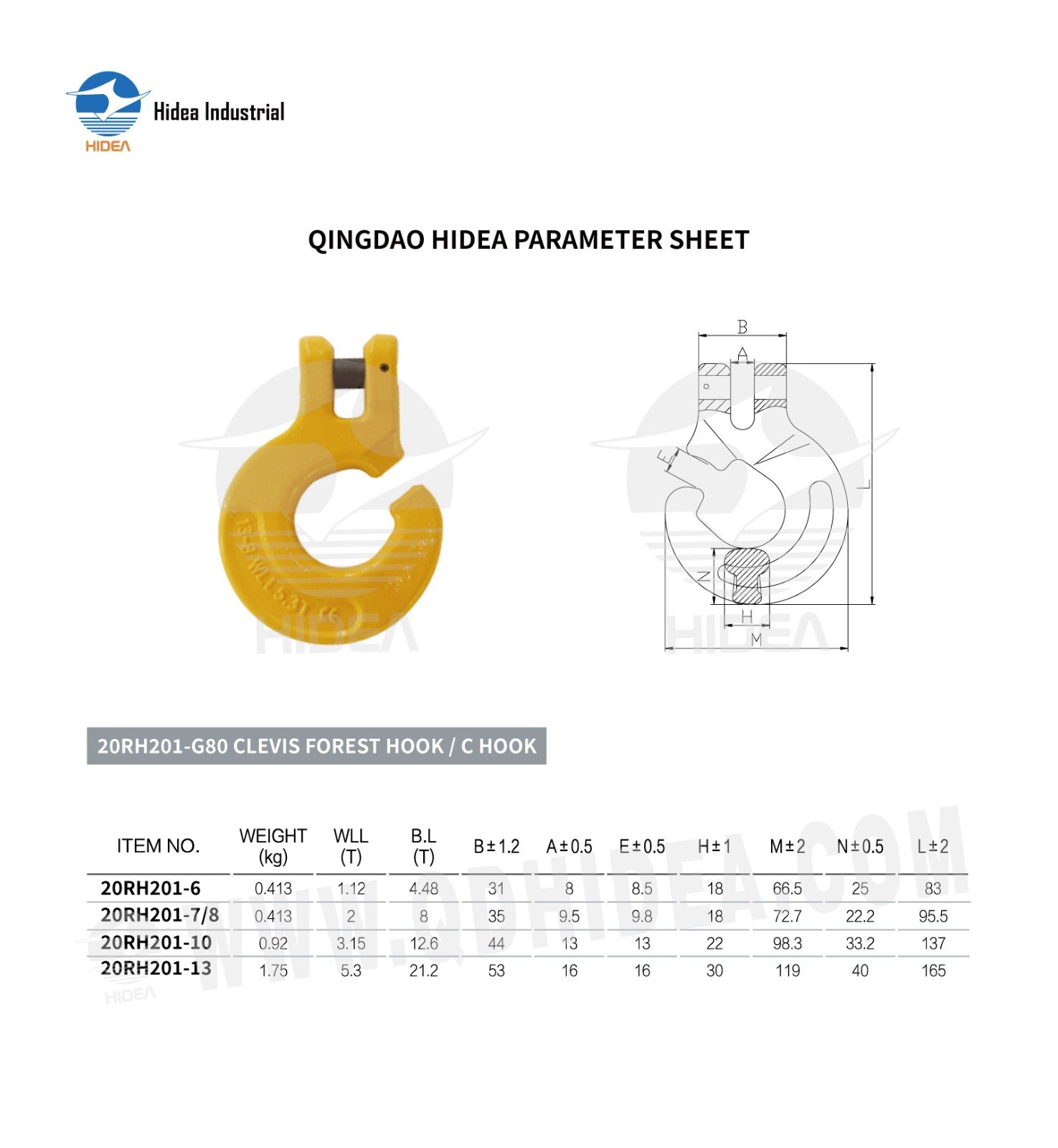

QINGDAO HIDEA PARAMETER SHEET FOR

20RH201-G80 CLEVIS FOREST HOOK/CHOOK

ITEM NO.	WEIGHT (kg)	WLL (T)	B.L (T)	B±1.2	A±0.5	E±0.5	H±1	M±2	N±0.5	L±2
20RH201-6	0.413	1.12	4.48	31	8	8.5	18	66.5	25	83
20RH201-7/8	0.413	2	8	35	9.5	9.8	18	72.7	22.2	95.5
20RH201-10	0.92	3.15	12.6	44	13	13	22	98.3	33.2	137
20RH201-13	1.75	5.3	21.2	53	16	16	30	119	40	165
