Raw Material 100% high tenacity & high tensile strength polyester yarns of low elongation for Ratchet Tiedown Lashing Straps with normal colors of blue,o range, red, yellow etc.
European Standard EN12195-2 Webbing Material 25mm to 100mm wide normally for Ratchet Tiedown Lashing Strap units, also meeting standards AS/NZS 4380 and ASME B30.9
US Standard ASME B30.9 Webbing Material 1 inch to 4 inches wide normally for Ratchet Tiedown Lashing Straps, also meeting standards EN12195-2 and AS/NZS 4380

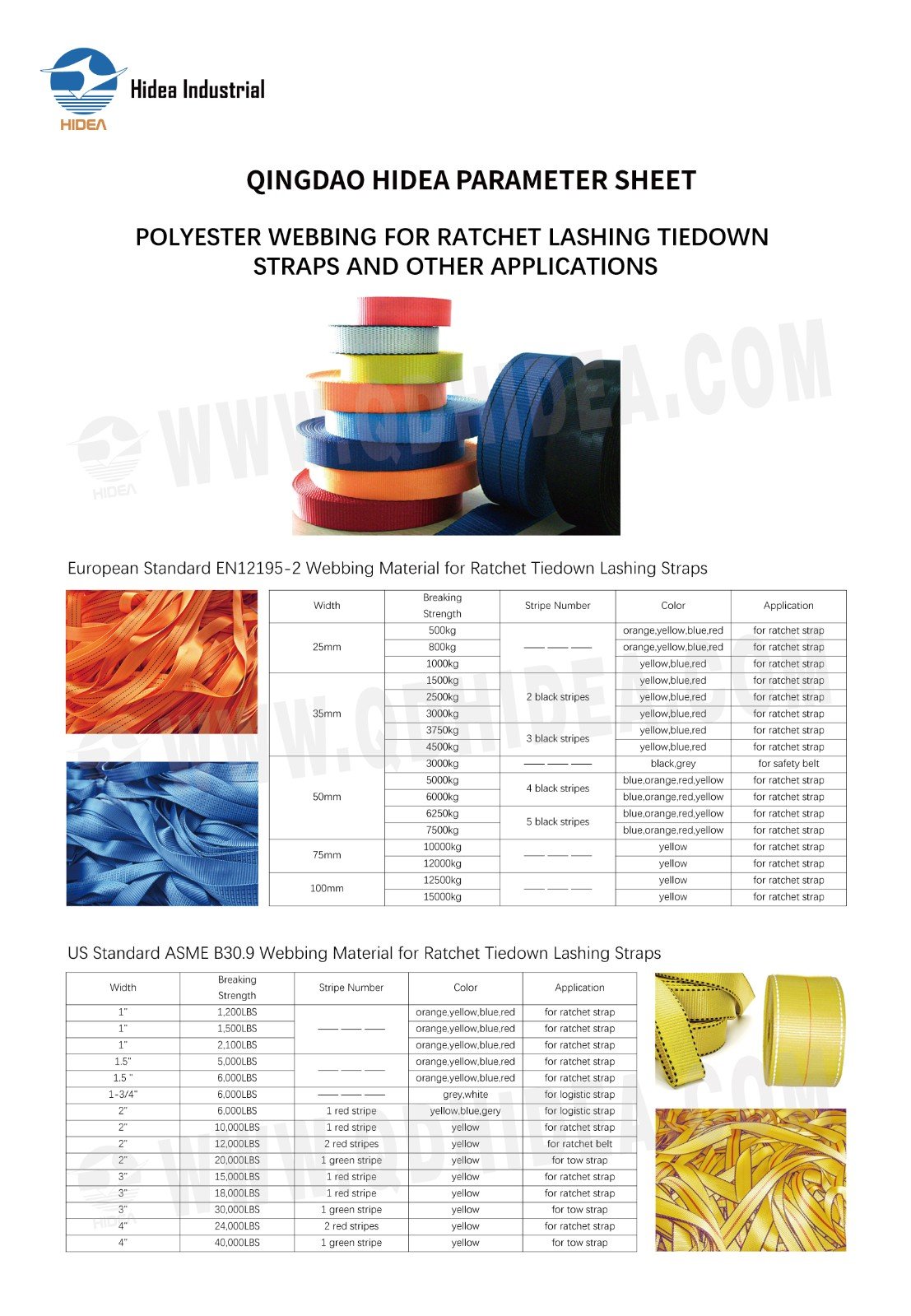

QINGDAO HIDEA PARAMETER SHEET FOR
POLYESTER WEBBING FOR RATCHET LASHING TIEDOWN
STRAPS AND OTHER APPLICATIONS
| European Standard EN12195-2 Webbing Material for Ratchet Tiedown Lashing Straps | ||||||||
| Width | Breaking Strength | Stripe Number | Color | Application | ||||
| 25mm | 500kg | — | orange,yellow.blue.red | for ratchet strap | ||||
| 800kg | orange,yellow.blue,red | for rateheTtan | ||||||
| 1000kg | yellow,blue,red | for ratchet strap | ||||||
| 35mm | 1500kg | 2 black stripes | yellow,blue,red | for ratchet strap | ||||
| 2500kg | yellow,blue,red | for ratchet strap | ||||||
| 3000kg | yellow,blue,red | for ratchet strap | ||||||
| 3750kg | 3 black stripes | yellow,blue,red | for ratchet strap | |||||
| 4500kg | yellow,blue,red | for ratchet strap | ||||||
| 50mm | 3000kg | black.grey | for safety belt | |||||
| 5000kg | 4 black stripes | blue,orange,red.yellow | for ratchet strap | |||||
| 6000kg | blue,orange,red,yellow | for ratchet strap | ||||||
| 6250kg | 5 black stripes | blue,orangered,yellow | for ratchet strap | |||||
| 7500kg | blue,orange,red.yellow | for ratchet strap | ||||||
| 75mm | 10000kg | — — | yellow | for ratchet strap | ||||
| 12000kg | yellow | for ratchet strap | ||||||
| 100mm | 12500kg | — — — | yellow | for ratchet strap | ||||
| 15000kg | yellow | for ratchet strap | ||||||
US Standard ASME B30.9 Webbing Material for Ratchet Tiedown Lashing Straps
| Width | Breaking Strength | Stripe Number | Color | Application |
| 1" | 1,200LBS | ——— | orange,yellow,blue,red | for ratchet strap |
| 1" | 1,500LBS | orange,yellow,blue,red | for ratchet strap | |
| 1” | 2,100LBS | orange yellow,blue,red | for ratchet strap | |
| 1.5" | 5,000LBS | orange,yellow,blue,red | for ratchet strap | |
| 1.5" | 6,000LBS | — | orange,yellow.blue,red | for ratchet strap |
| 1-3/4 | 6,000LBS | —— —— | grey,white | for logistic strap |
| 2" | 6,000LBS | 1 red stripe | yellow.blue,.gery | for logistic strap |
| 2" | 10,000LBS | 1 red stripe | yellow | for ratchet strap |
| 2" | 12,000LBS | 2 red stripes | yellow | for ratchet belt |
| 2" | 20,000LBS | 1 green stripe | yellow | for tow strap |
| 3" | 15,000LBS | 1 red stripe | yellow | for ratchet strap |
| 3" | 18,000LBS | 1 red stripe | yellow | for ratchet strap |
| 3" | 30,000LBS | 1 green stripe | yellow | for tow strap |
| 4" | 24,000LBS | 2 red stripes | yellow | for ratchet strap |
| 4" | 40,000LBS | 1 green stripe | yellow | for tow strap |
