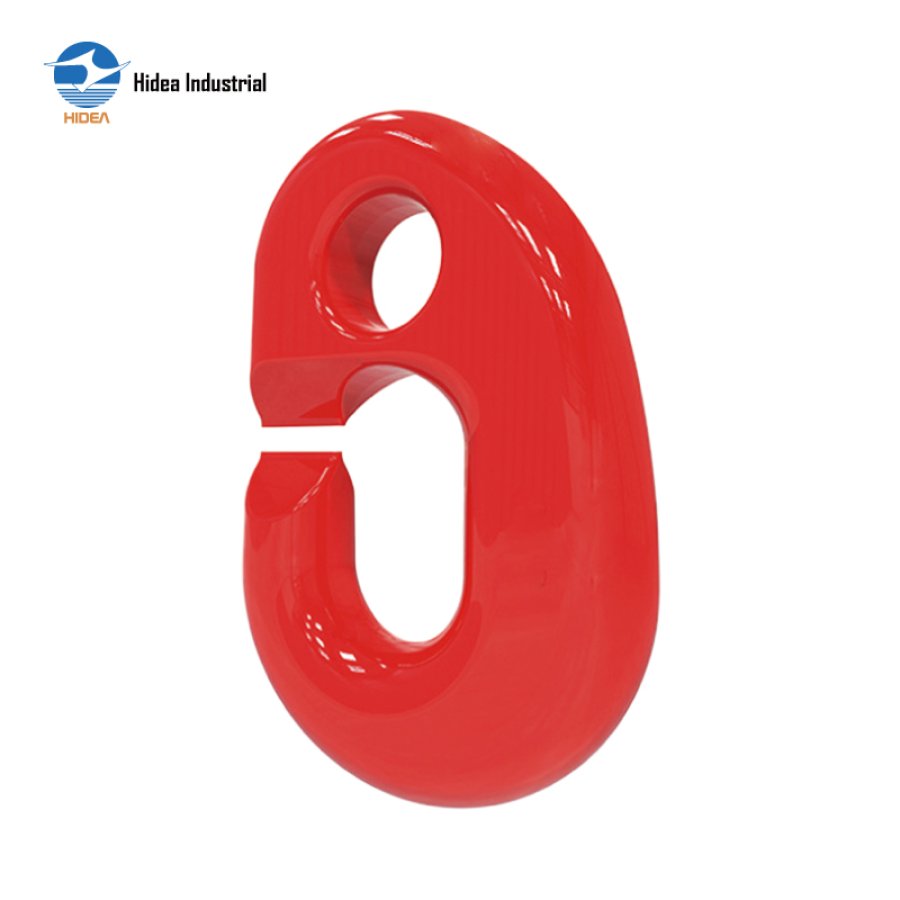

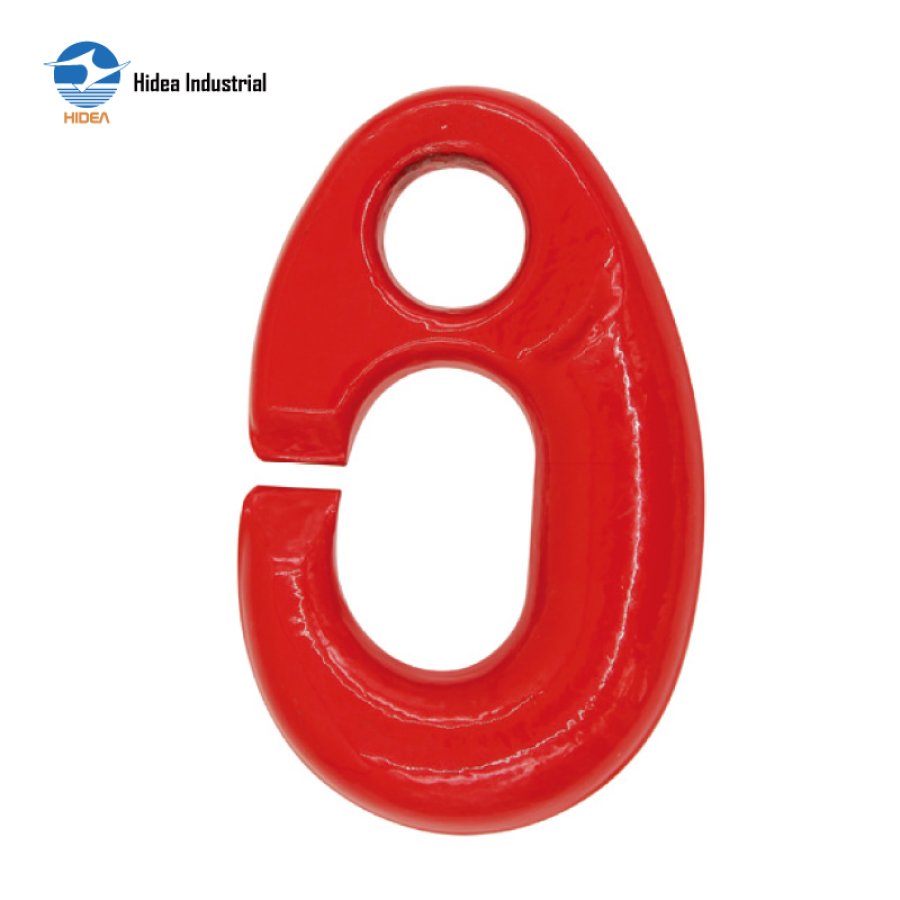

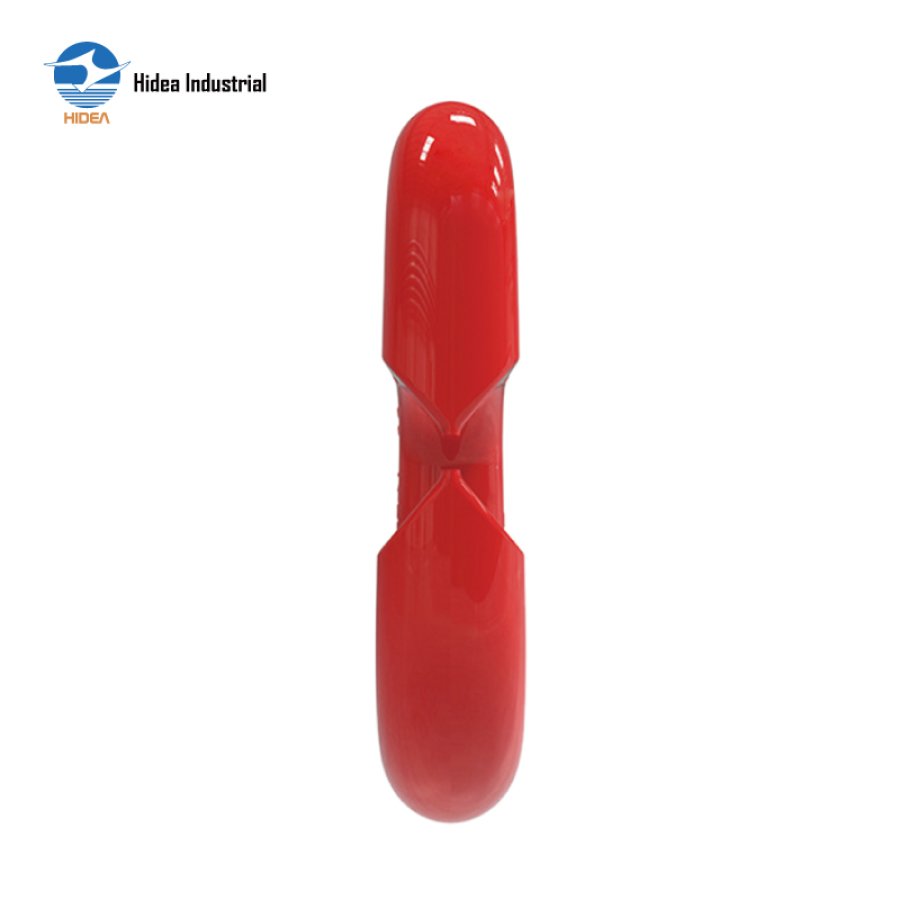

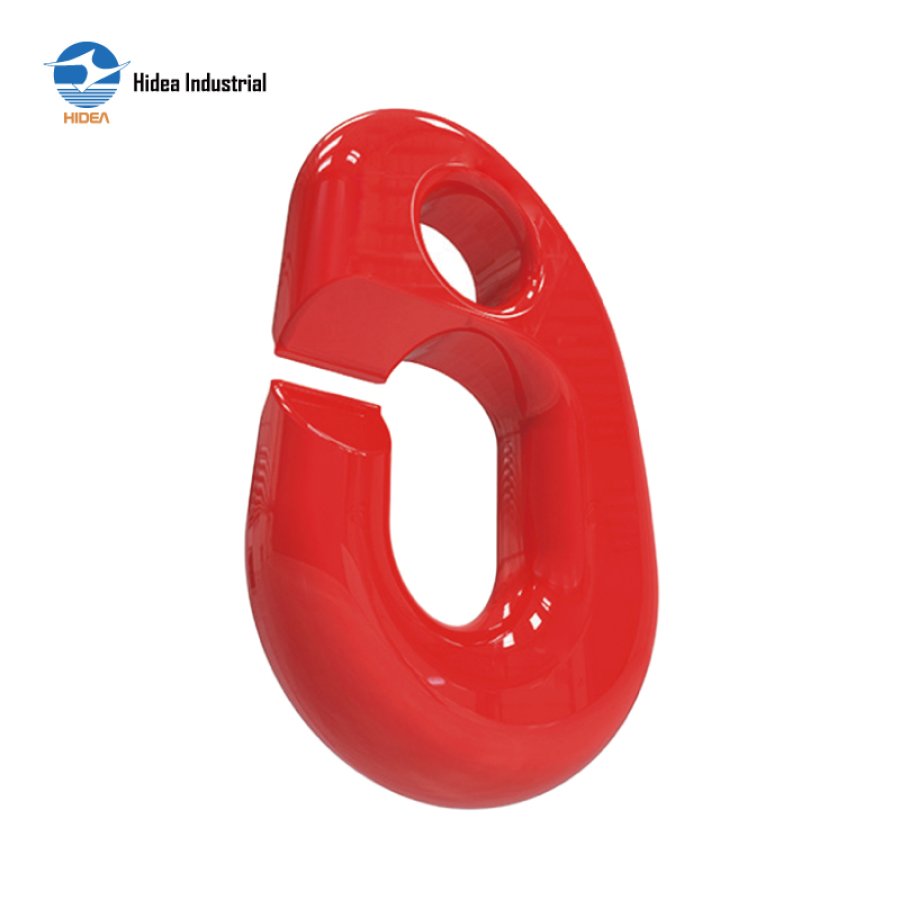

Strong and Secure G80 Fishing & Trawling Gear Hook

G80 FISHING AND OVERSEAS RIGGING

Forged super alloy steel-Quenched and Tempered
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection

Inquire Now

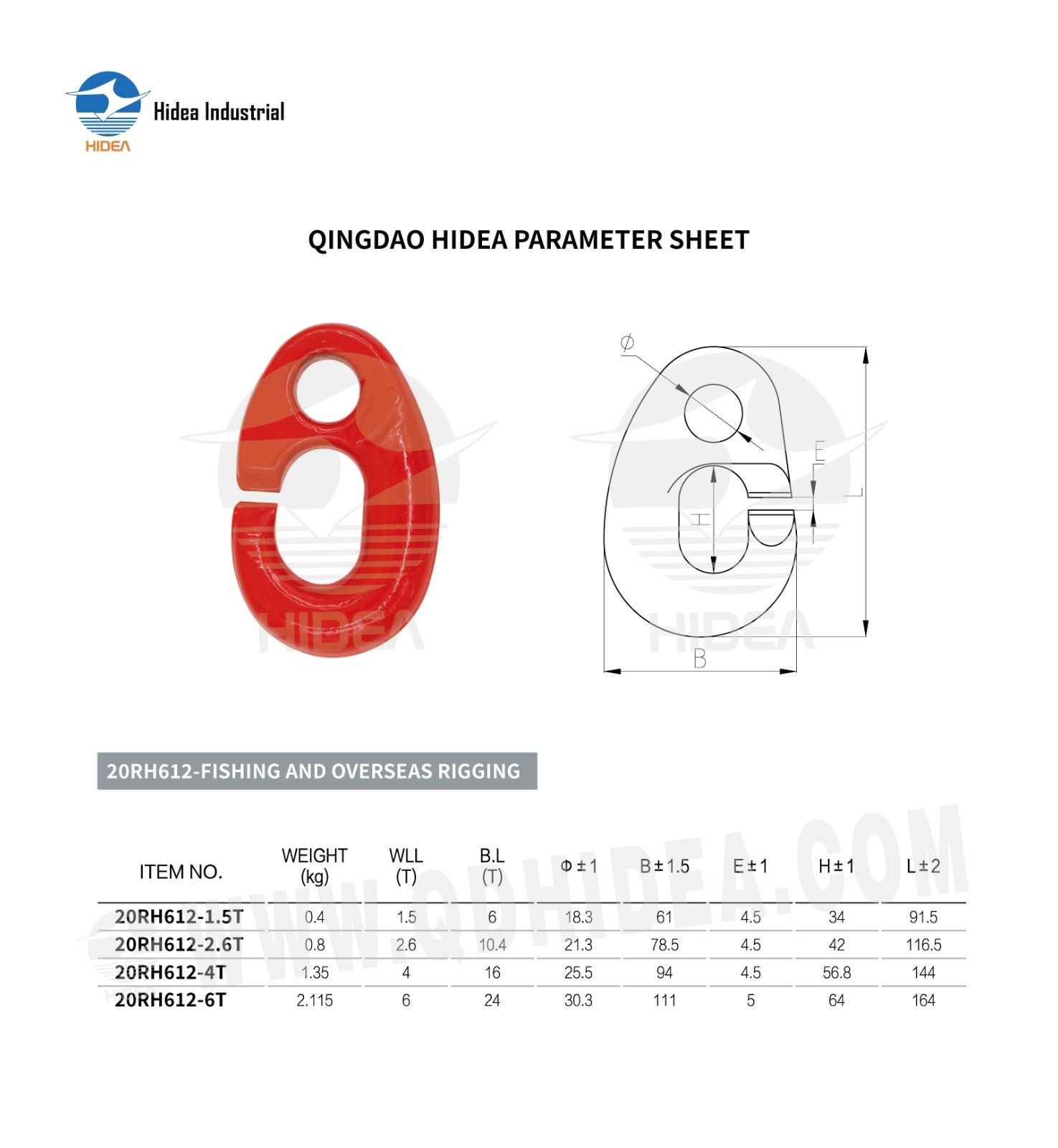

QINGDAO HIDEA PARAMETER SHEET FOR

20RH612-FISHING AND OVERSEAS RIGGING

ITEM NO.	WEIGHT （kg)	WLL (T)	B.L (T)	φ±1	B±1.5	E±1	H±1	L±2
ITEM NO.	WEIGHT （kg)	WLL (T)	B.L (T)	φ±1	B±1.5	E±1	H±1	L±2
20RH612-1.5T	0.4	1.5	6	18.3	61	4.5	34	91.5
20RH612-2.6T	0.8	2.6	10.4	21.3	78.5	4.5	42	116.5
20RH612-4T	1.35	4	16	25.5	94	4.5	56.8	144
20RH612-6T	2.115	6	24	30.3	111	5	64	164
