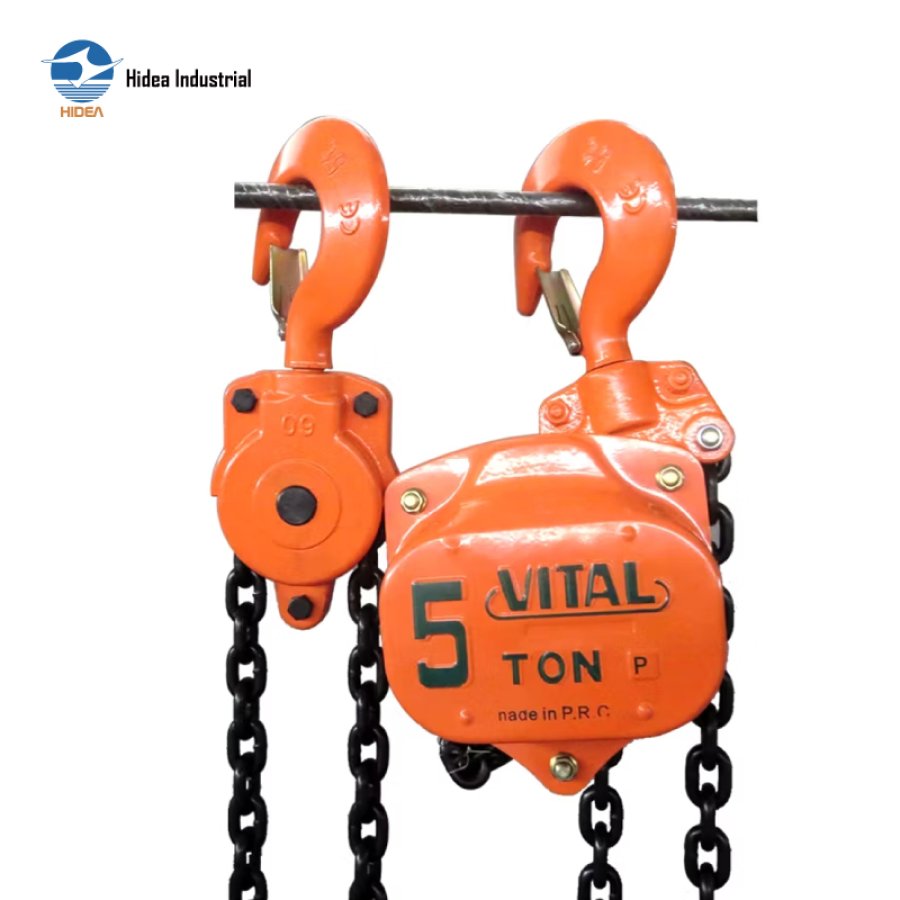

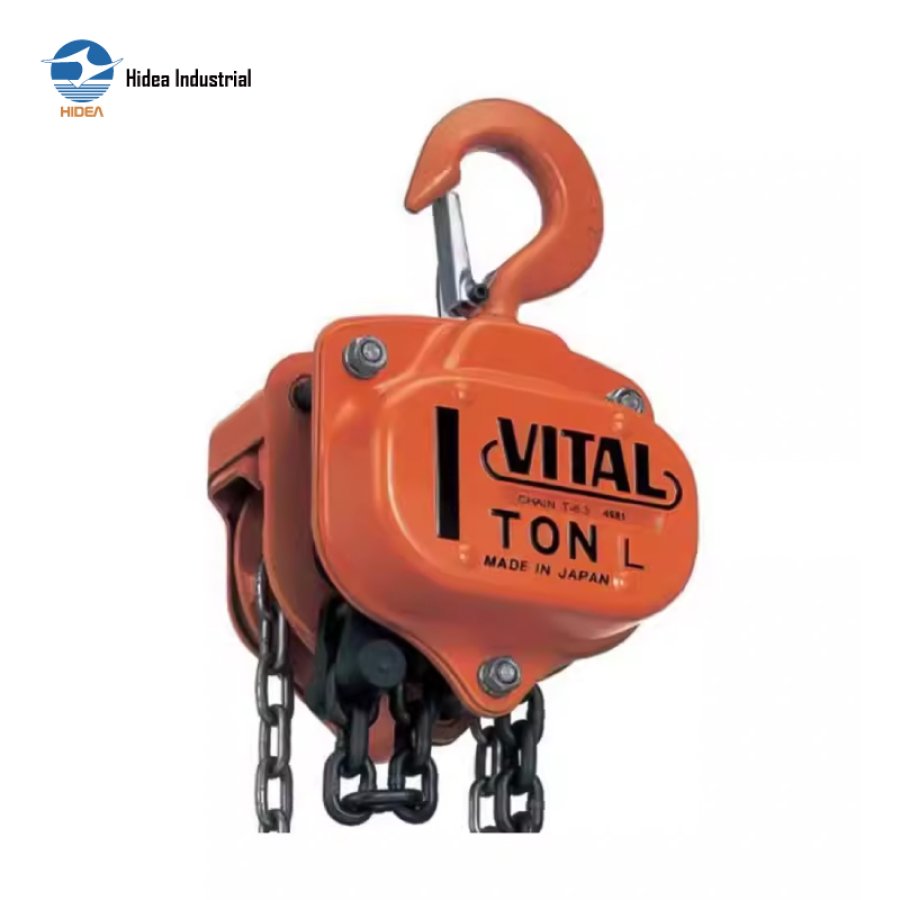

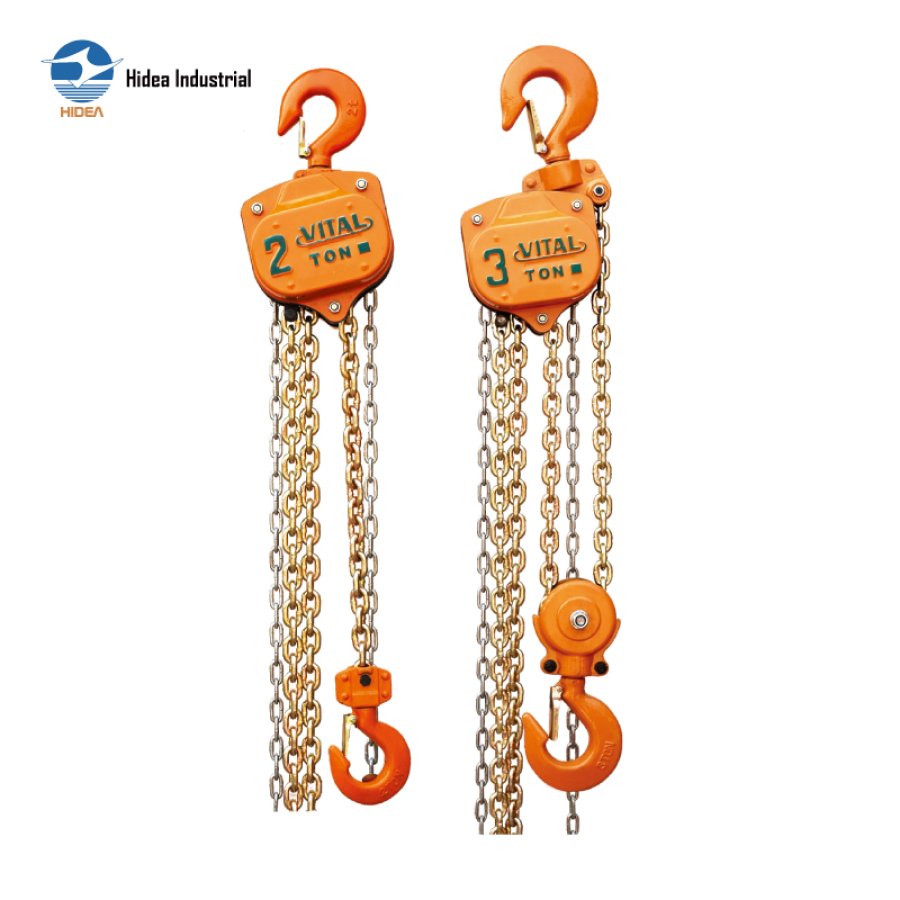

HS-VT type chain block hoist is a kind of safe, reliable, durable hoist, and with advantages of compact structure, low noise, and high safety
The HS-VT series hand chain hoist can be used with various manual monorail trolleys to form a manual lifting and transporting system, applicable to monorail overhead transportation and hand-operated single beam bridge cranes and cantilever cranes

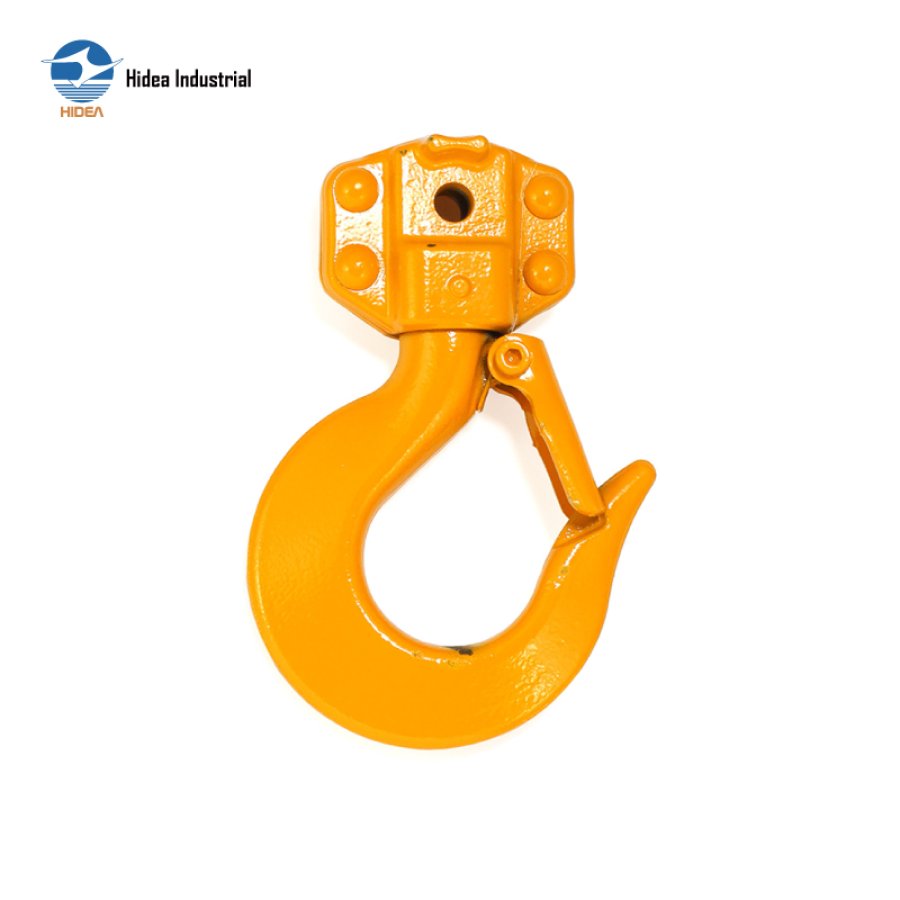

High quality alloy steel body & forged alloy hooks, supper G80 lifting chains and hand chains, rated load range from 0.5 tons to 20 tons
The HS-VT chain hoists meeting standards ASME B30.16, ANSI/ASME HST-5 and EN14901

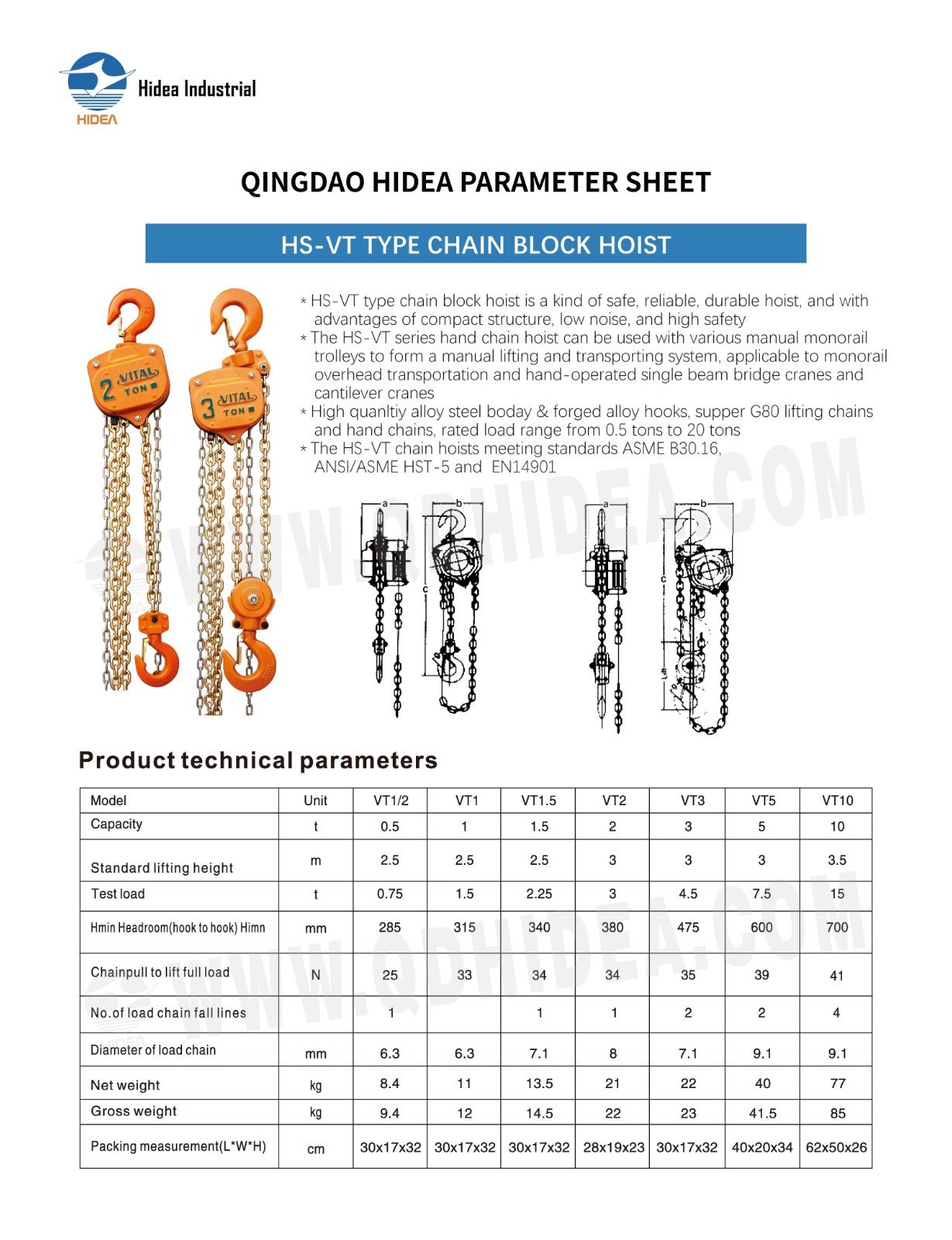

QINGDAO HIDEA PARAMETER SHEET FOR
HS-VT TYPE CHAIN BLOCK HOIST
| Model | Unit | VT1/2 | VT1 | VT1.5 | VT2 | VT3 | VT5 | VT10 | ||
| Capacity | t | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | ||
| Standard lifting height | m | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3.5 | ||
| Test load | t | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 15 | ||
| Hmin Headroom(hook to hook)Himn | mm | 285 | 315 | 340 | 380 | 475 | 600 | 700 | ||
| Chainpull to lift fullload | N | 25 | 33 | 34 | 34 | 35 | 39 | 41 | ||
| No.of load chain fall lines | 1 | 1 | 1 | 2 | 2 | 4 | ||||
| Diameter of load chain | mm | 6.3 | 6.3 | 7.1 | 8 | 7.1 | 9.1 | 9.1 | ||
| Net weight | kg | 8.4 | 11 | 13.5 | 21 | 22 | 40 | 77 | ||
| Gross weight | kg | 9.4 | 12 | 14.5 | 22 | 23 | 41.5 | 85 | ||
| Packing measurement(L*W*H) | cm | 30x17x32 | 30x17x32 | 30x17x32 | 28x19x23 | 30x17x32 | 40x20x34 | 62x50x26 | ||
