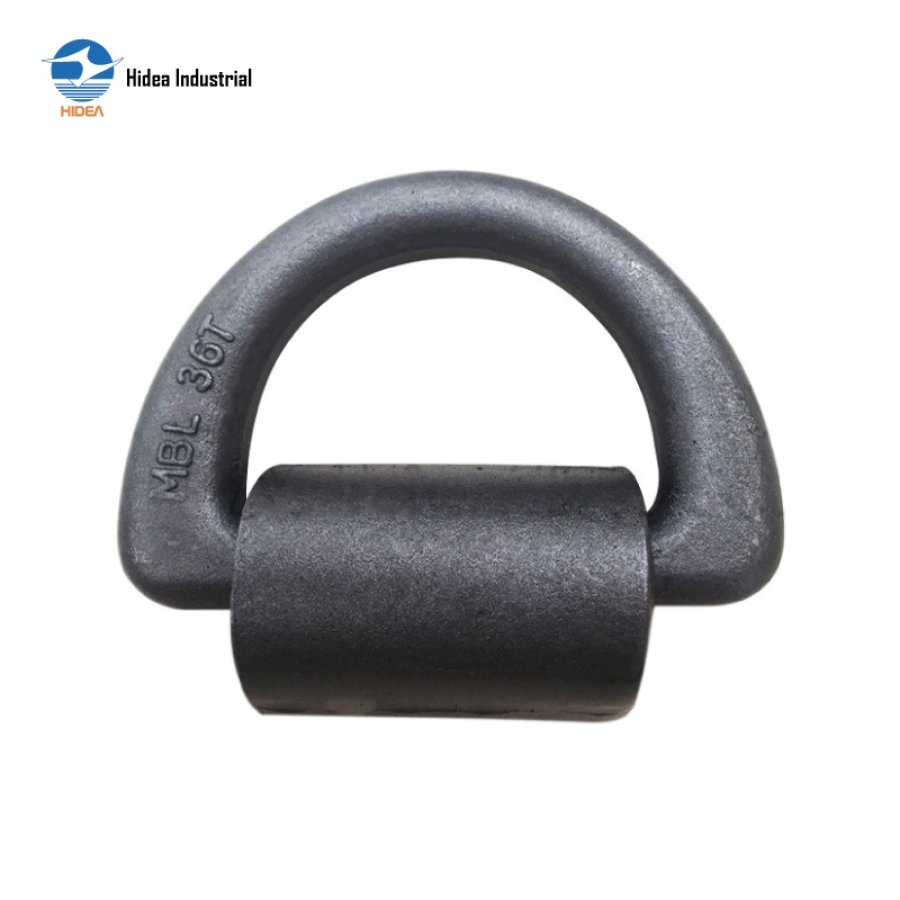

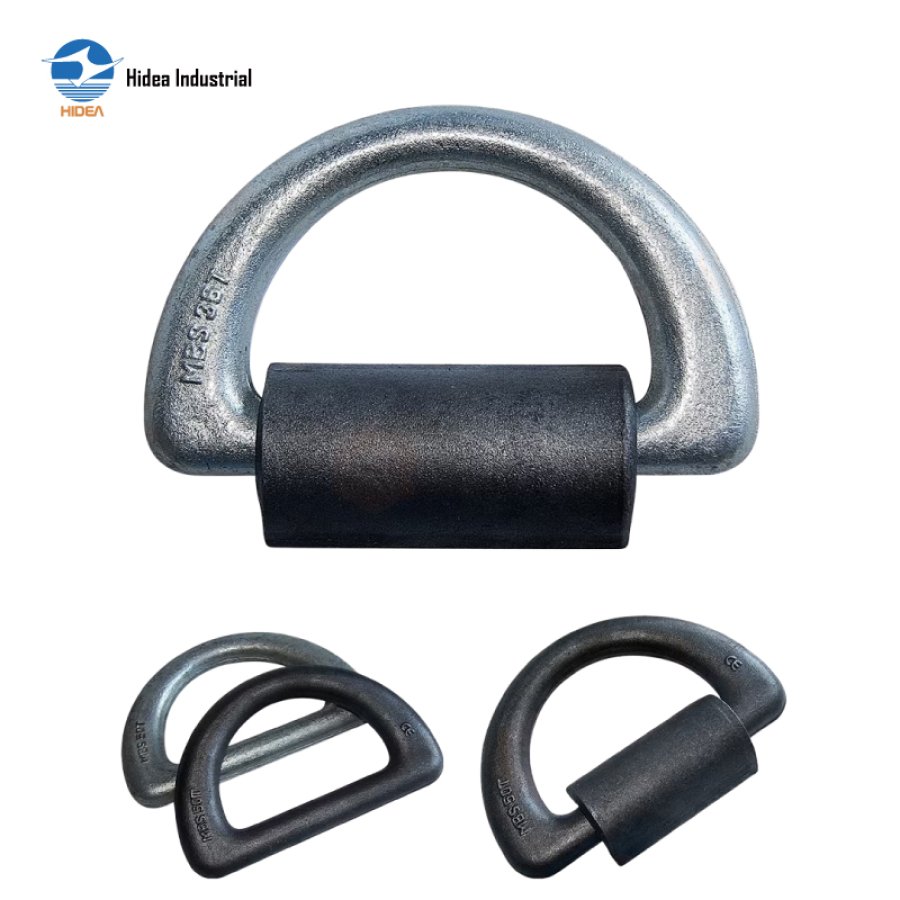

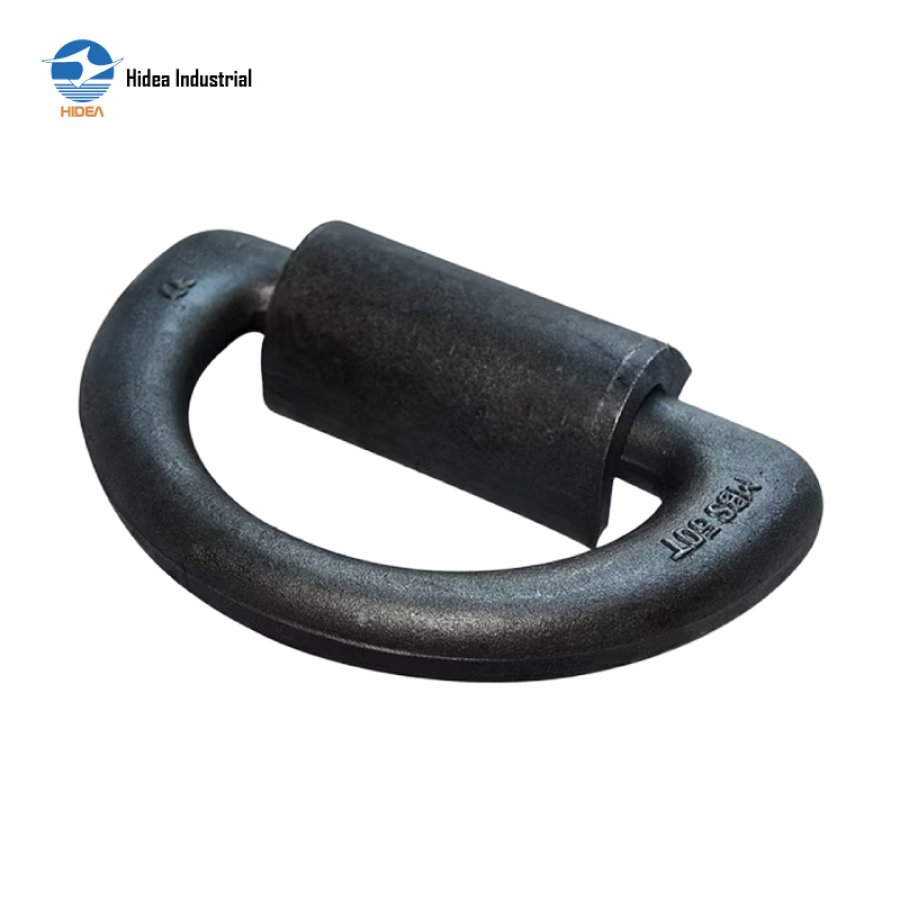

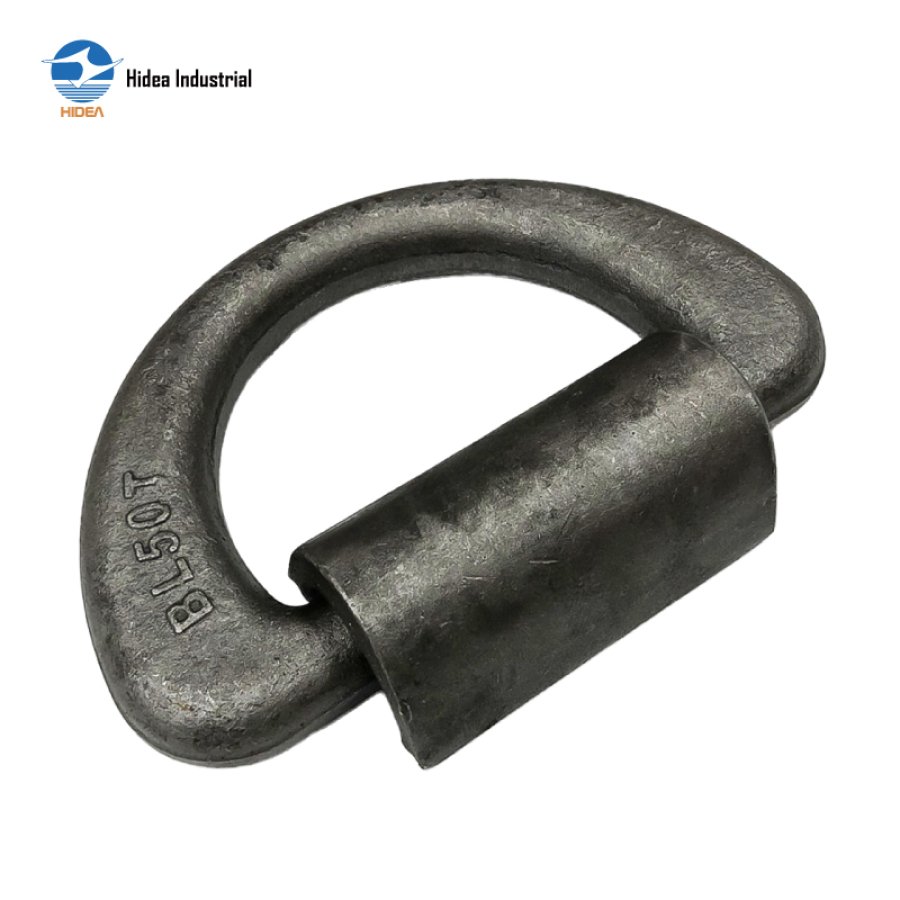

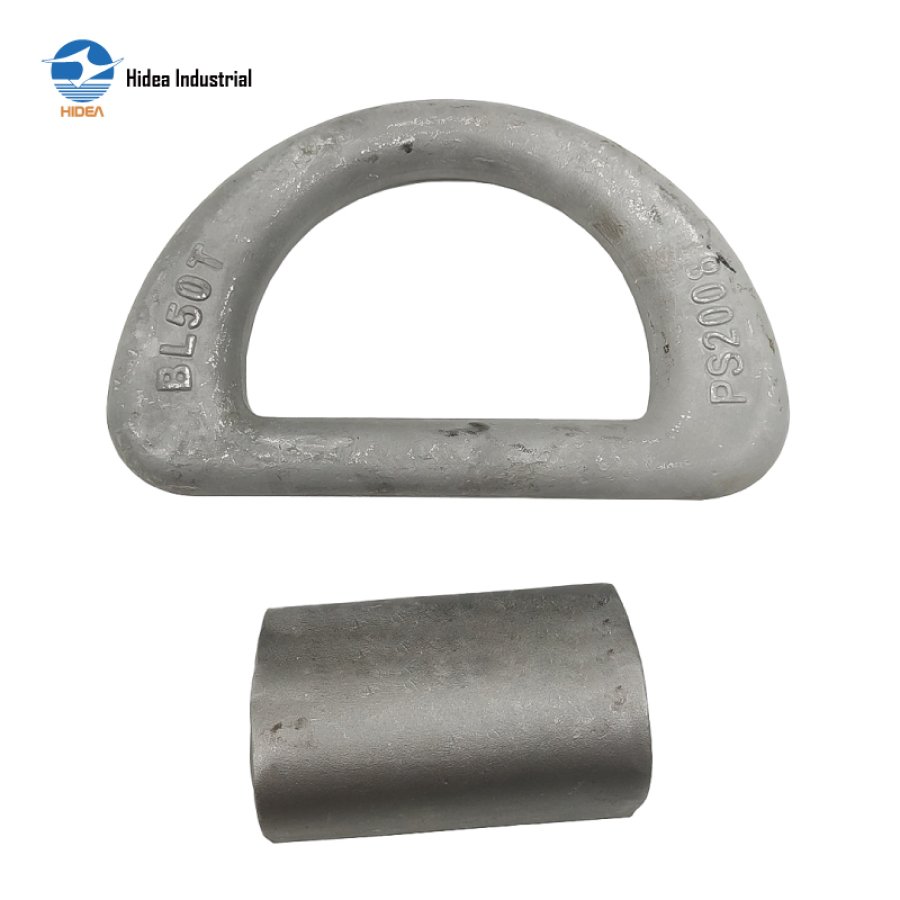

HIDEA Weld-On D-Ring Anchor

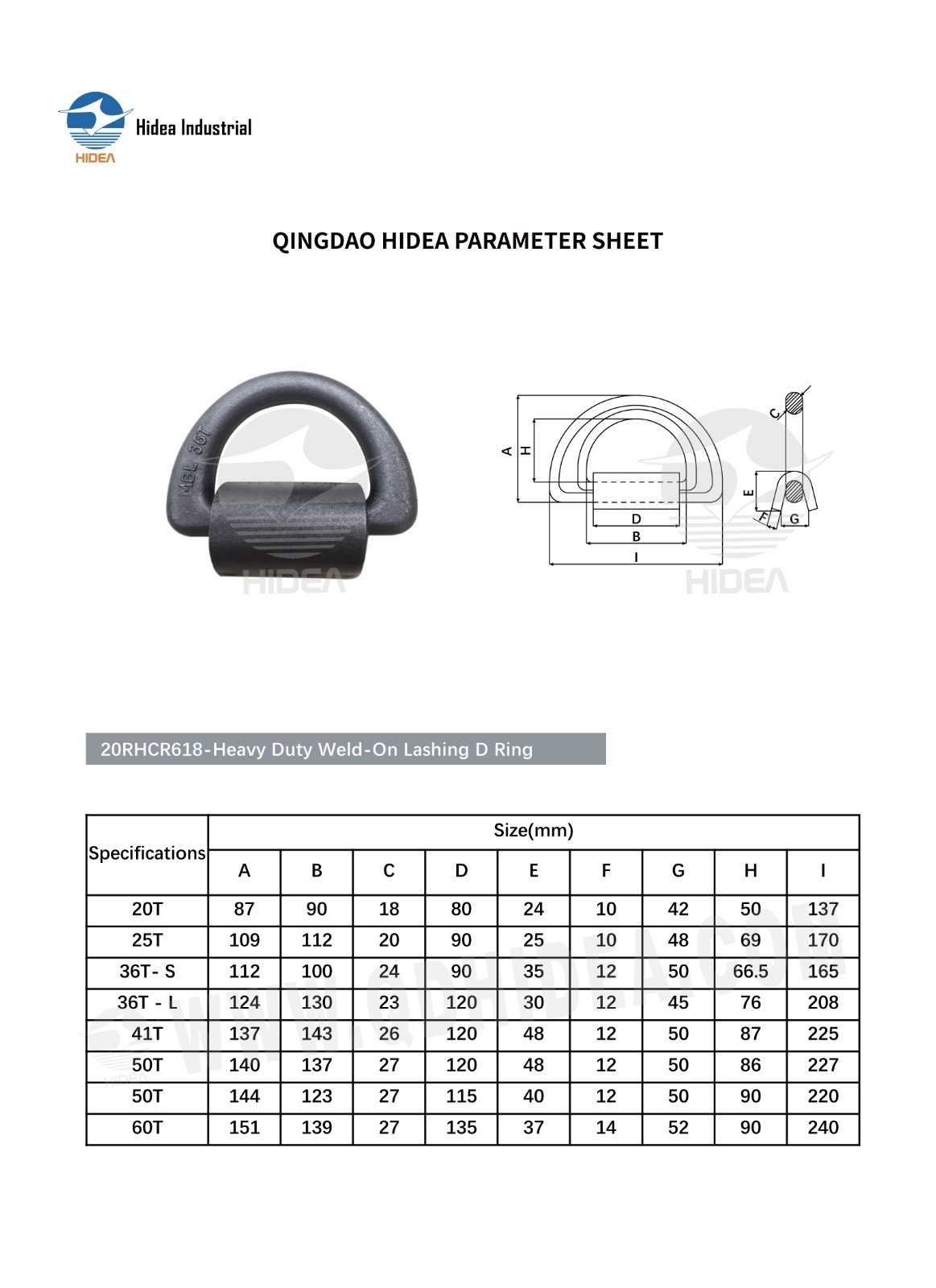

QINGDAO HIDEA PARAMETER SHEET FOR

 20RHCR618-Heavy  Duty Weld-On  Lashing  D  Ring

Specifications                                               Size(mm)
ABCDEFGHI
20T87 90 18 80 24 10 42 50 137
25T109 112 20 90 25 10 48 69 170
36T-S112 100 24 90 35 12 50 66.5 165
36T -L124 130 23 120 30 12 45 76 208
41T137 143 26 120 48 12 50 87 225
50T140 137 27 120 48 12 50 86 227
50T144 123 27 115 40 12 50 90 220
60T151 139 27 135 37 14 52 90 240
