Forged super alloy steel-Quenched and Tempered
Suitable for EN818-2 G80 chain
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection
Surface finish: Powder plastified
Colour code: Red RAL3020/Yellow RAL1003

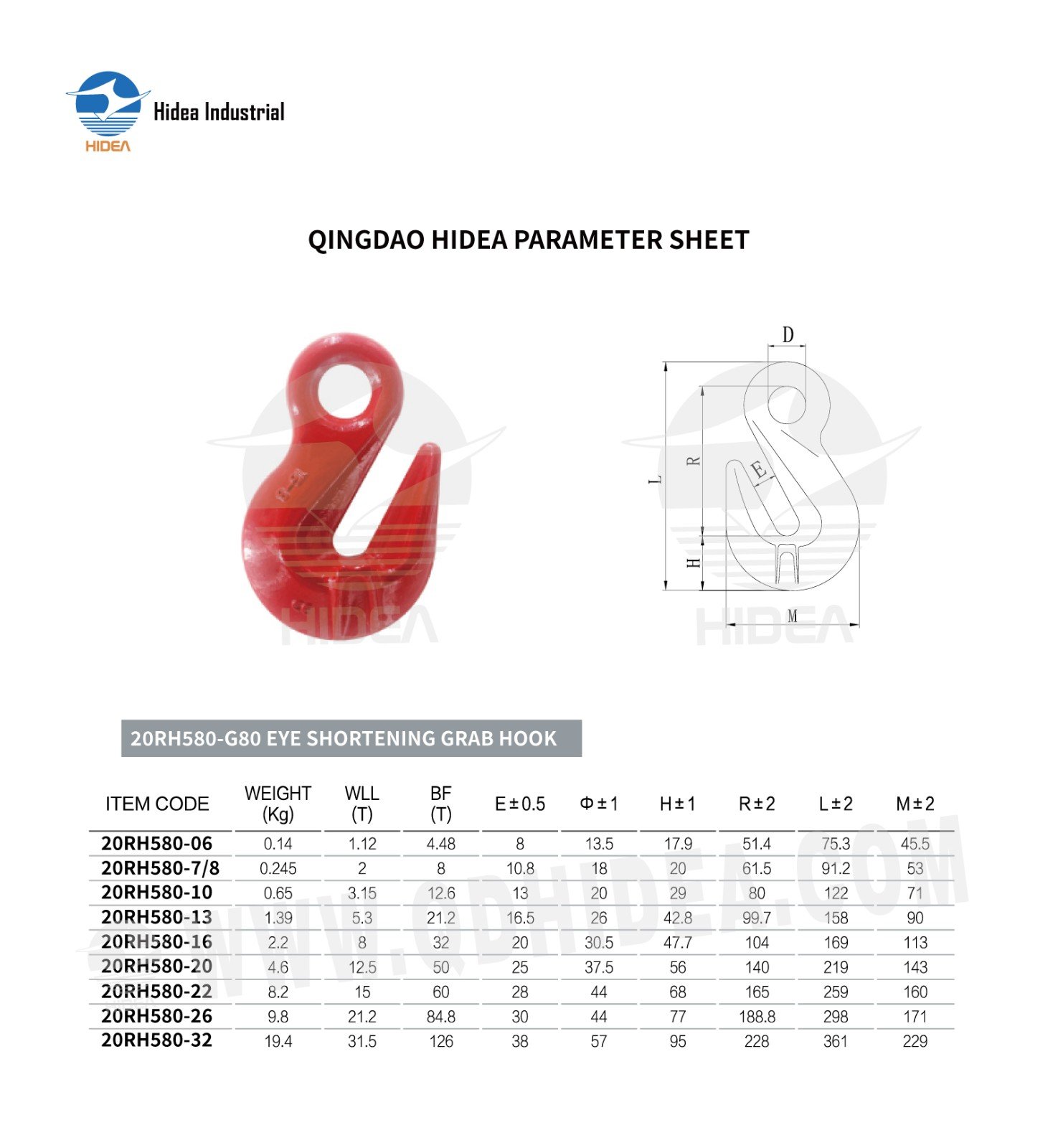

QINGDAO HIDEA PARAMETER SHEET FOR

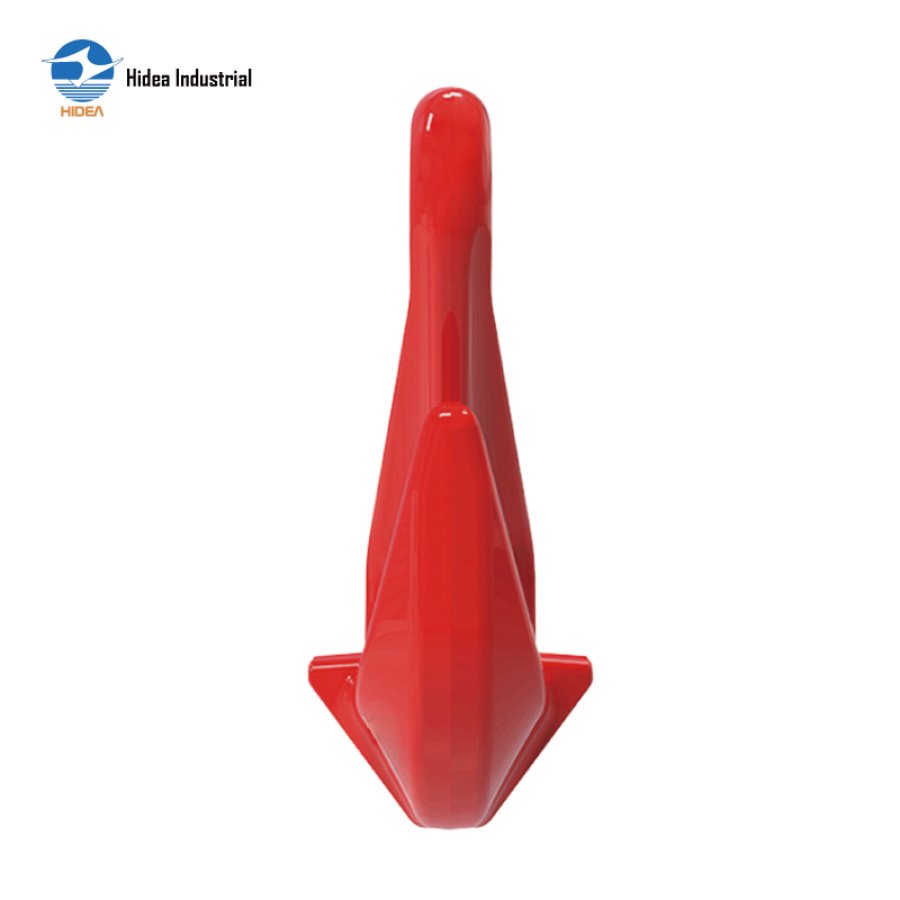

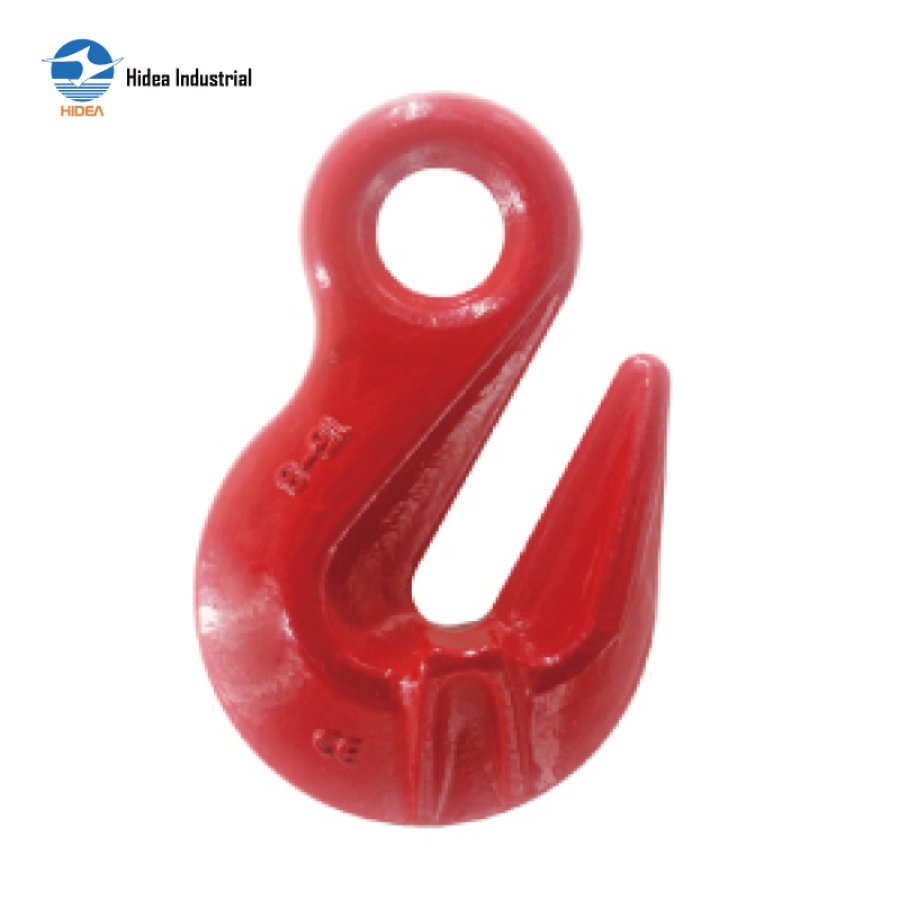

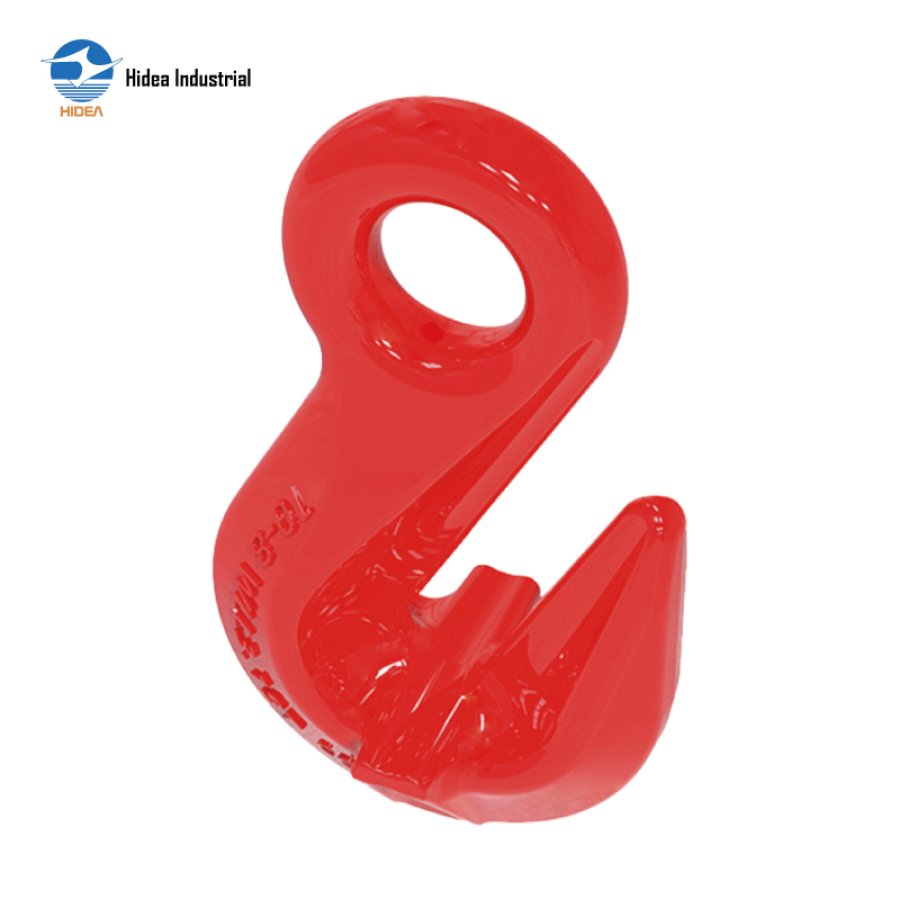

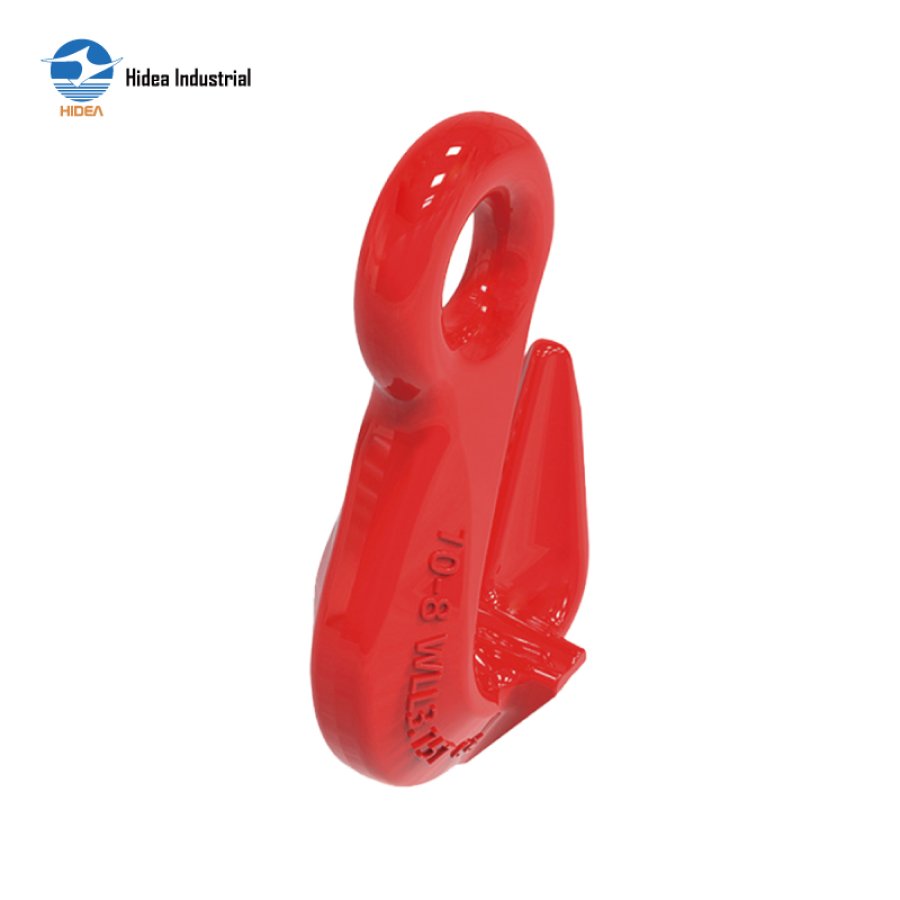

20RH580-G80 EYE SHORTENING GRAB HOOK
| ITEM CODE | WEIGHT (Kg) | WLL (T) | BF (T) | E±0.5 | Ф±1 | H±1 | R±2 | L±2 | M±2 |
| 20RH580-06 | 0.14 | 1.12 | 4.48 | 8 | 13.5 | 17.9 | 51.4 | 75.3 | 45.5 |
| 20RH580-7/8 | 0.245 | 2 | 8 | 10.8 | 18 | 20 | 61.5 | 91.2 | 53 |
| 20RH580-10 | 0.65 | 3.15 | 12.6 | 13 | 20 | 29 | 80 | 122 | 71 |
| 20RH580-13 | 1.39 | 5.3 | 21.2 | 16.5 | 26 | 42.8 | 99.7 | 158 | 90 |
| 20RH580-16 | 2.2 | 8 | 32 | 20 | 30.5 | 47.7 | 104 | 169 | 113 |
| 20RH580-20 | 4.6 | 12.5 | 50 | 25 | 37.5 | 56 | 140 | 219 | 143 |
| 20RH580-22 | 8.2 | 15 | 60 | 28 | 44 | 68 | 165 | 259 | 160 |
| 20RH580-26 | 9.8 | 21.2 | 84.8 | 30 | 44 | 77 | 188.8 | 298 | 171 |
| 20RH580-32 | 19.4 | 31.5 | 126 | 38 | 57 | 95 | 228 | 361 | 229 |
