Wire Rope IPS/EIPS+IWRC

FEDERAL SPEC. RR-W-410 WIRE ROPE IPS/EIPS + IWRC

Federal Spec. RR-W-410 Wire Rope IPS / EIPS

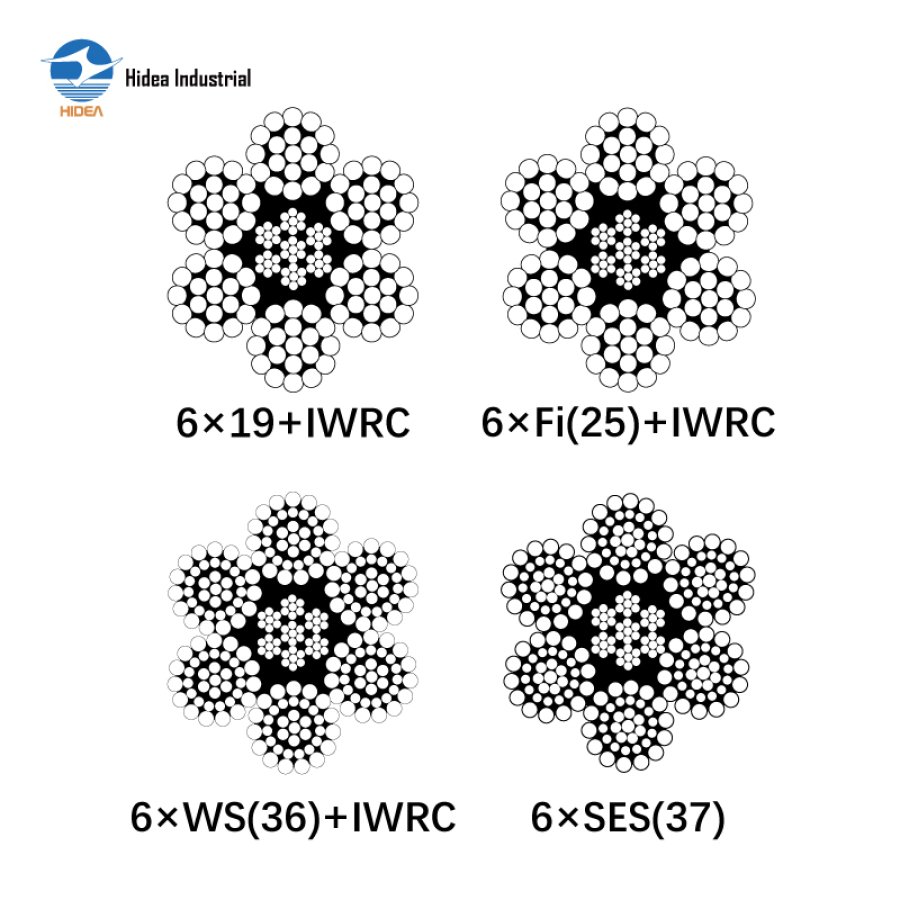

Constructions 6x19+IWRC, 6x19(S)+IWRC, 6x19(W)+IWRC, 6x25(Fi)+IWRC, 6x26(WS)+IWRC, 6xSES(37)+IWRC, 6x36(WS)+IWRC
Improved Plow Steel OR Extra Improved Plow Steel, High Carbon Steel

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

FEDERAL SPEC.RR-W-410 WIRE ROPE IPS/EIPS+IWRC

						Specification:RR-W-410
6×19+IWRC6×S(19)+IWRC6×W(19)+IWRC6×Fi(25)+IWRC6×WS(26)+IWRC6×WS(36)+IWRC6×SES(37)
	Improved Plow Steel(IPS)

	Diameter mm	Min.Breaking Strength		Unit Weight
	Diameter mm	Ungalv	Galvanized	6×19 or 6×37		6×25.6×26 or 6×36
	in	b	Ib	lb/1000	kg/1000	Ib/1000'	kg/1000
	1/4"	5880	5300	103	46.8
	5/16"	9160	8240	161	73.2
	3/8*	13120	11800	234	106	260	118
	7/16"	17780	16000	315	143	350	160
	1/2"	23000	20700	412	187	460	209
	9/16"	29000	26100	522	237	590	265
	5/8"	35800	32200	646	293	720	327
	3/4”	51200	46000	930	421	1040	472
	7/8"	69200	62200	1270	574	1420	642
	1”	89800	80800	1650	750	1850	840
	1-1/8"	113000	101800	2090	950	2340	1060
	1-1/4"	138000	125000	2580	1170	2890	1310
	1-3/8”	167000	150400	3130	1420	3500	1590
	1-1/2"	197000	178000	3730	1690	4160	1890

	Extra Improved Plow Steel (EIPS)

	Diameter mm	Min.Breaking Strength		Unit Weight
	Diameter mm	Ungalv	Galvanized	6×19 or 6×37		6×25,6×26 or 6×36
	in	Ib	Ib	b/1000	kg/1000	Ib/1000	kg/1000'
	1/4"	6800	6120	103	46.8
	5/16"	10540	9480	161	73.2
	3/8"	15100	13600	234	106	260	118
	7/16"	20400	18360	315	143	350	160
	1/2"	26600	24000	412	187	460	209
	9/16"	33600	30200	522	237	590	265
	5/8"	41200	37000	646	293	720	327
	3/4”	58800	53000	930	421	1040	472
	7/8"	79600	71600	1270	574	1420	642
	1	103400	93000	1650	750	1850	840
	1-1/8"	130000	117000	2090	950	2340	1060
	1-1/4”	159800	143800	2580	1170	2890	1310
	1-3/8"	192000	172800	3130	1420	3500	1590
	1-1/2"	228000	206000	3730	1690	4160	1890
