Material: body AND pin super alloy steel
Drop forged, quenched & tempered
Magnaflux crack detection
Safety factor 6:1 & certificates available
Surface hot dip galvanized (H.D.G)
Standard US Federal Specification RR-C-271 Type IVA Class 3, Grade A /ASME B30.26 /EN13889
Temperature range -20 to 200 centigrade degrees

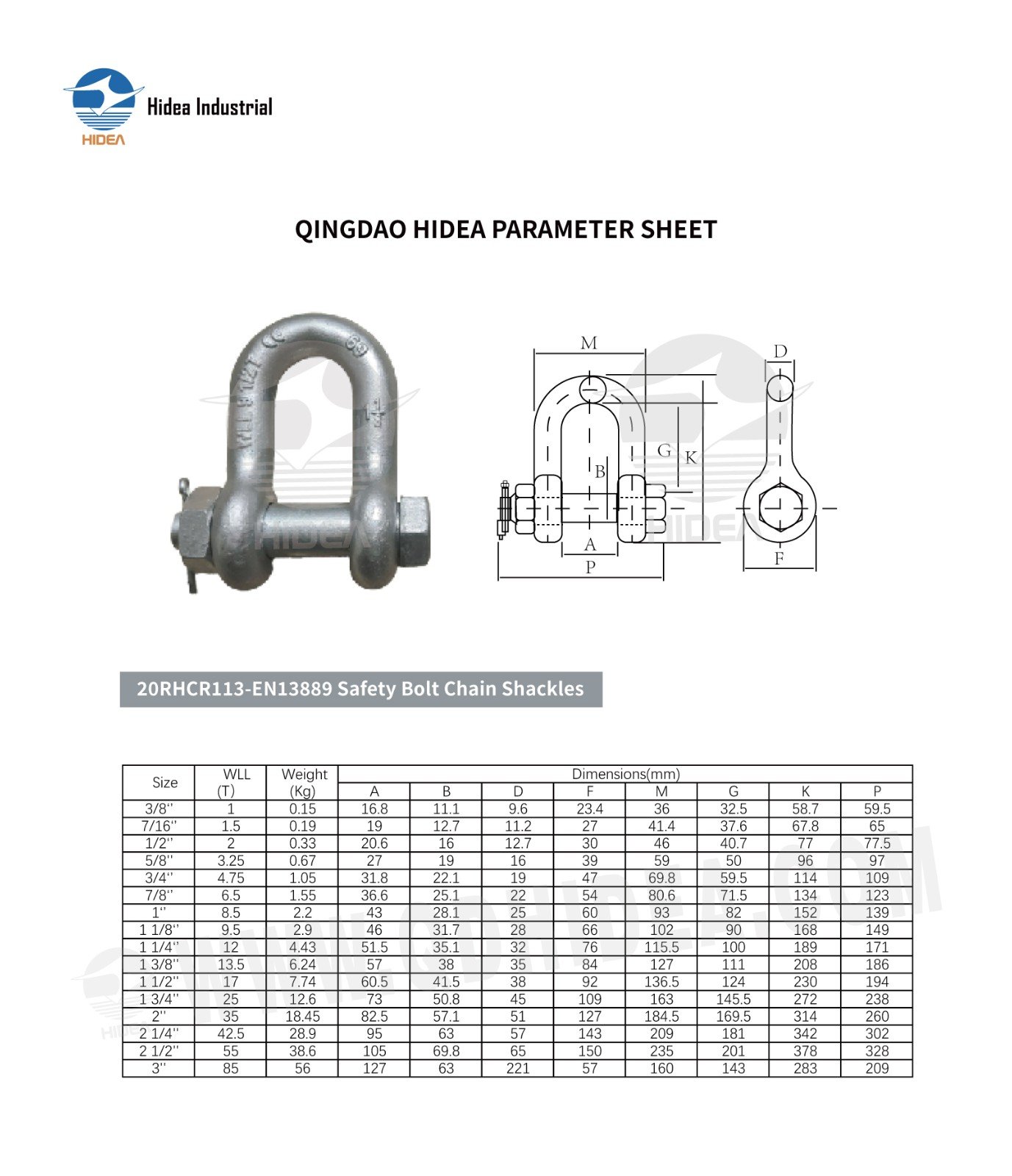

QINGDAO HIDEA PARAMETER SHEET FOR
20RHCR113-EN13889 Safety Bolt Chain Shackles
| Sze | WLL (T) | Weight (Kg) | Dimensions(mm) | |||||||
| A | B | D | F | M | G | K | P | |||
| 3/8" | 1 | 0.15 | 16.8 | 11.1 | 9.6 | 23.4 | 36 | 32.5 | 58.7 | 59.5 |
| 7/16° | 1.5 | 0.19 | 19 | 12.7 | 11.2 | 27 | 41.4 | 37.6 | 67.8 | 65 |
| 1/2' | 2 | 0.33 | 20.6 | 16 | 12.7 | 30 | 46 | 40.7 | 77 | 77.5 |
| 5/8" | 3.25 | 0.67 | 27 | 19 | 16 | 39 | 59 | 50 | 96 | 97 |
| 3/4" | 4.75 | 1.05 | 31.8 | 22.1 | 19 | 47 | 69.8 | 59.5 | 114 | 109 |
| 7/8" | 6.5 | 1.55 | 36.6 | 25.1 | 22 | 54 | 80.6 | 71.5 | 134 | 123 |
| 1" | 8.5 | 2.2 | 43 | 28.1 | 25 | 60 | 93 | 82 | 152 | 139 |
| 11/8" | 9.5 | 2.9 | 46 | 31.7 | 28 | 66 | 102 | 90 | 168 | 149 |
| 11/4" | 12 | 4.43 | 51.5 | 35.1 | 32 | 76 | 115.5 | 100 | 189 | 171 |
| 13/8" | 13.5 | 6.24 | 57 | 38 | 35 | 84 | 127 | 111 | 208 | 186 |
| 11/2" | 17 | 7.74 | 60.5 | 41.5 | 38 | 92 | 136.5 | 124 | 230 | 194 |
| 13/4" | 25 | 12.6 | 73 | 50.8 | 45 | 109 | 163 | 145.5 | 272 | 238 |
| 2" | 35 | 18.45 | 82.5 | 57.1 | 51 | 127 | 184.5 | 169.5 | 314 | 260 |
| 21/4" | 42.5 | 28.9 | 95 | 63 | 57 | 143 | 209 | 181 | 342 | 302 |
| 21/2" | 55 | 38.6 | 105 | 69.8 | 65 | 150 | 235 | 201 | 378 | 328 |
| 3" | 85 | 56 | 127 | 63 | 221 | 57 | 160 | 143 | 283 | 209 |
