Hidea G80 Forged Triangle Ring for Maximum Load Capacity

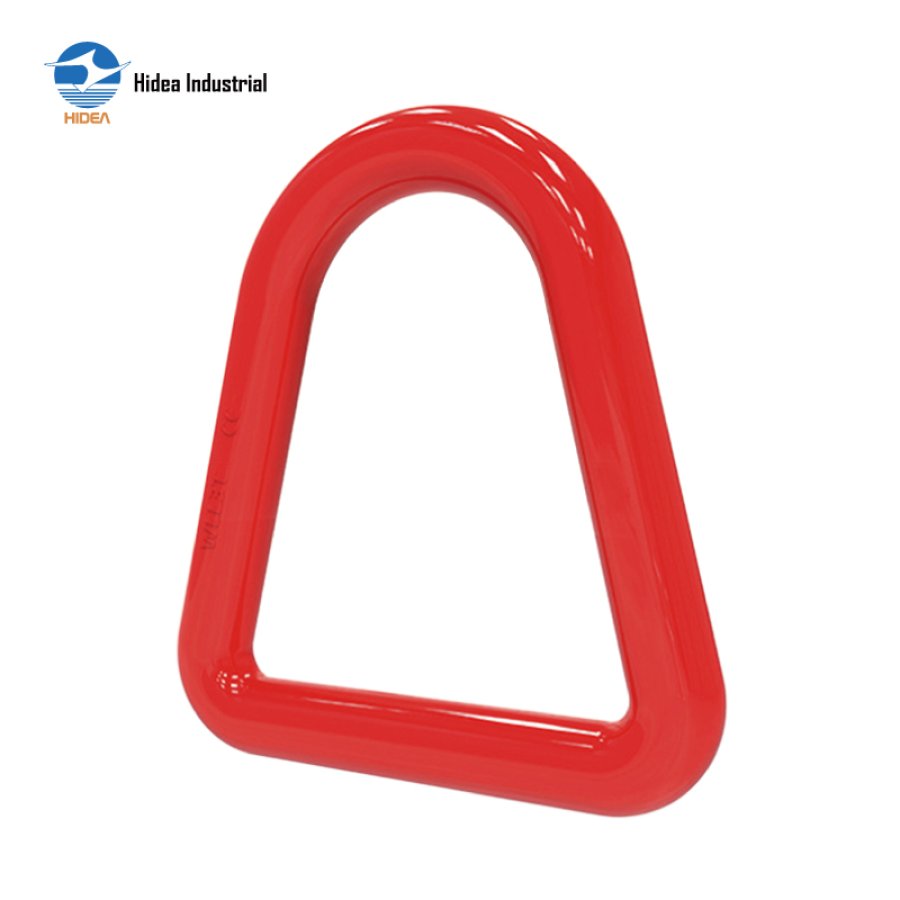

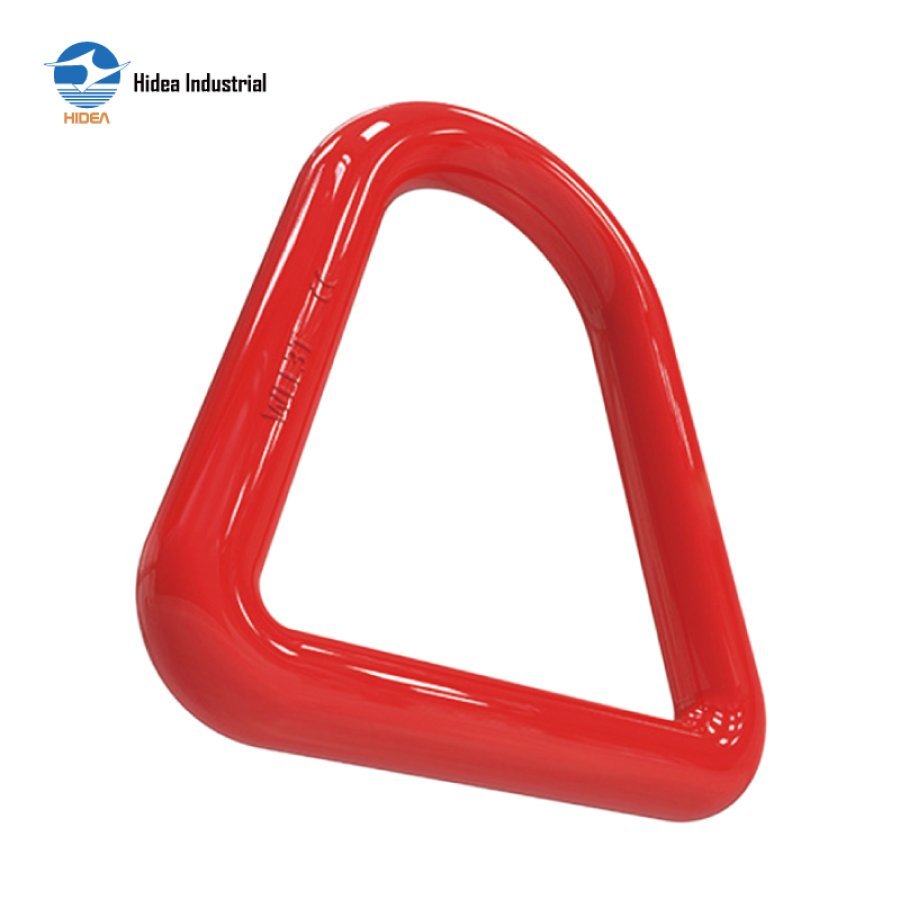

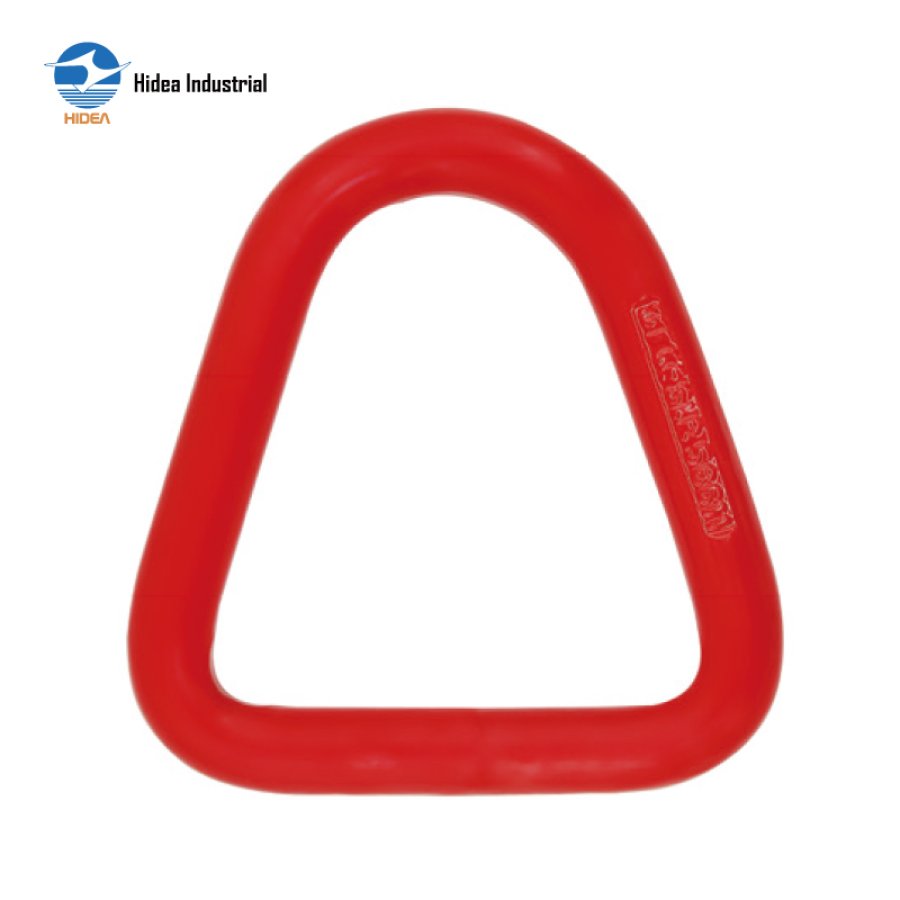

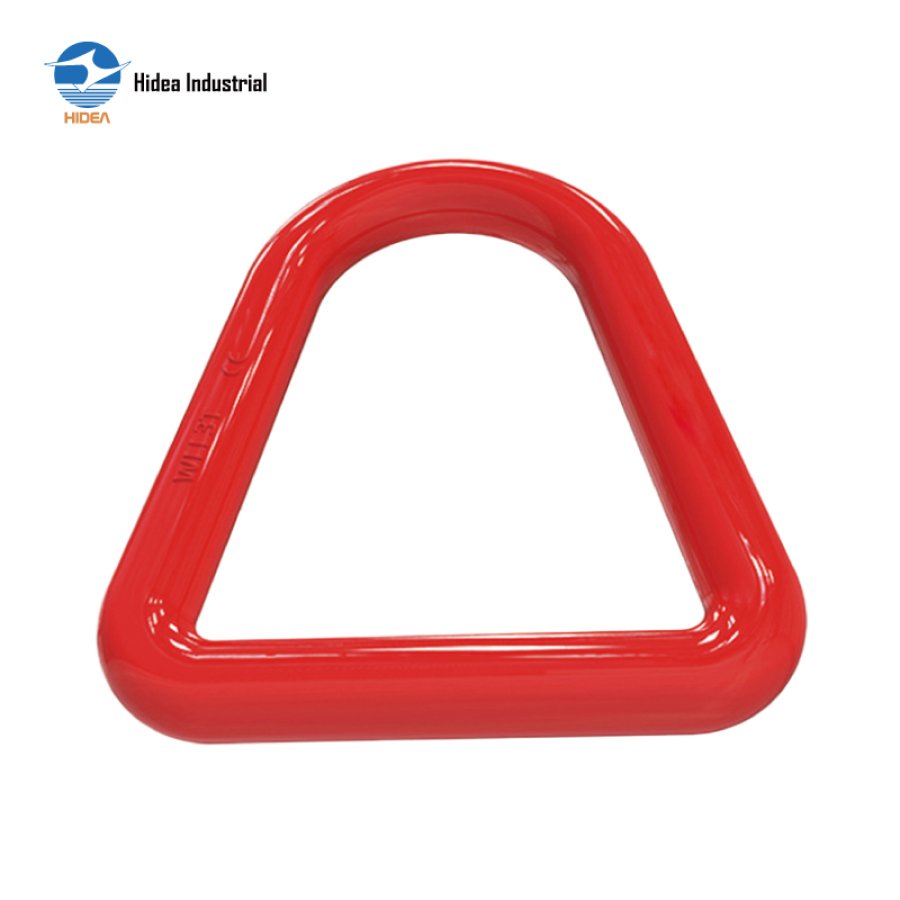

G80 FORGED ALLOY TRIANGLE RING

Super alloy steel-Quenched and Tempered
Breakage test
100% magnaflux crack detection
Surface finish: powder plastifed
Colour code: Red RAL3020/Yellow RAL1003

Inquire Now

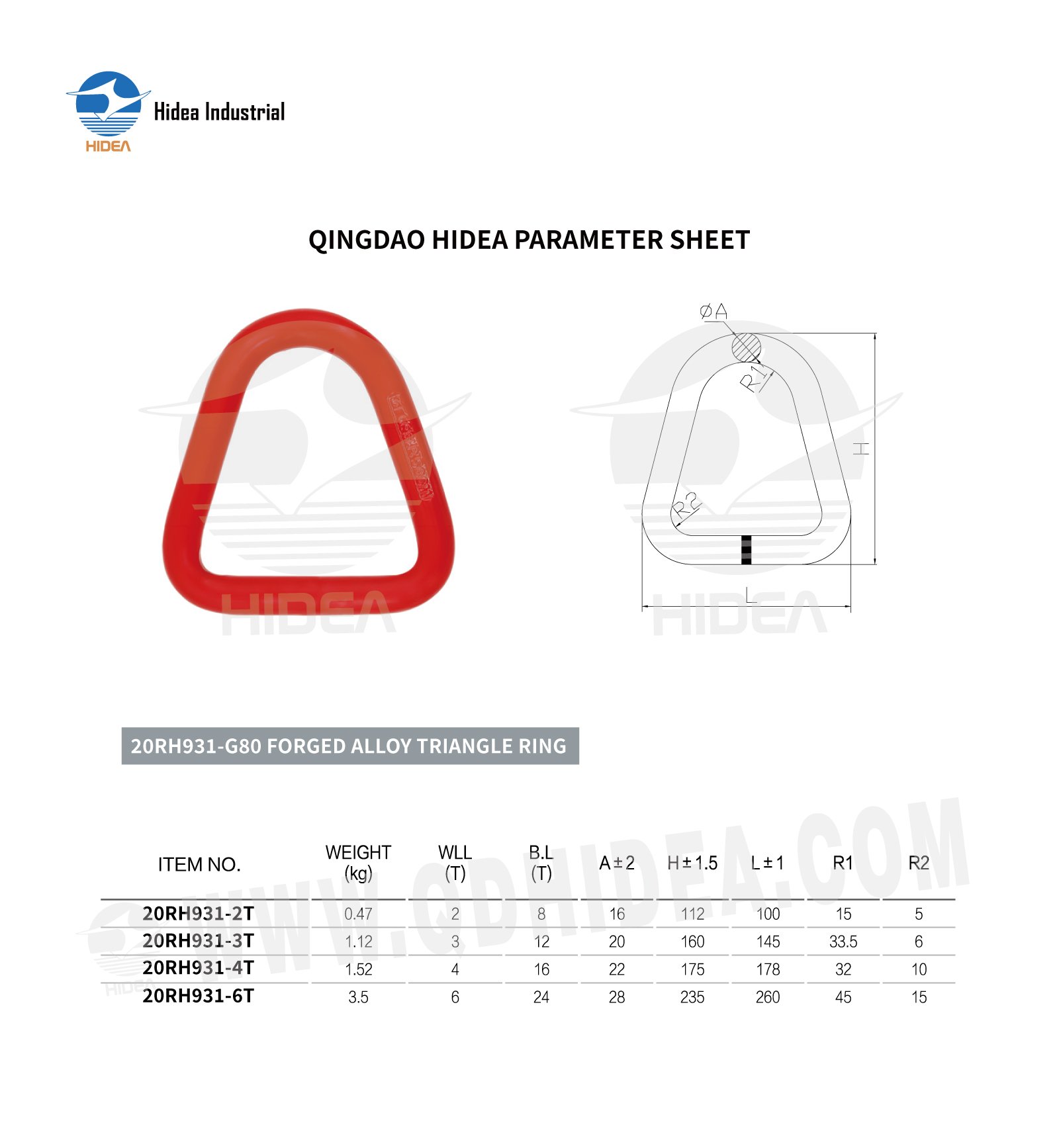

QINGDAO HIDEA PARAMETER SHEET FOR

20RH931-G80 FORGED ALLOY TRIANGLE RING

ITEM NO.	WEIGHT (kg)	WLL (T)	B L (T)	A±2	H±1.5	L±1	R1	R2
20RH931-2T	0.47	2	8	16	112	100	15	5
20RH931-3T	1.12	3	12	20	160	145	33.5	6
20RH931-4T	1.52	4	16	22	175	178	32	10
20RH931-6T	3.5	6	24	28	235	260	45	15
