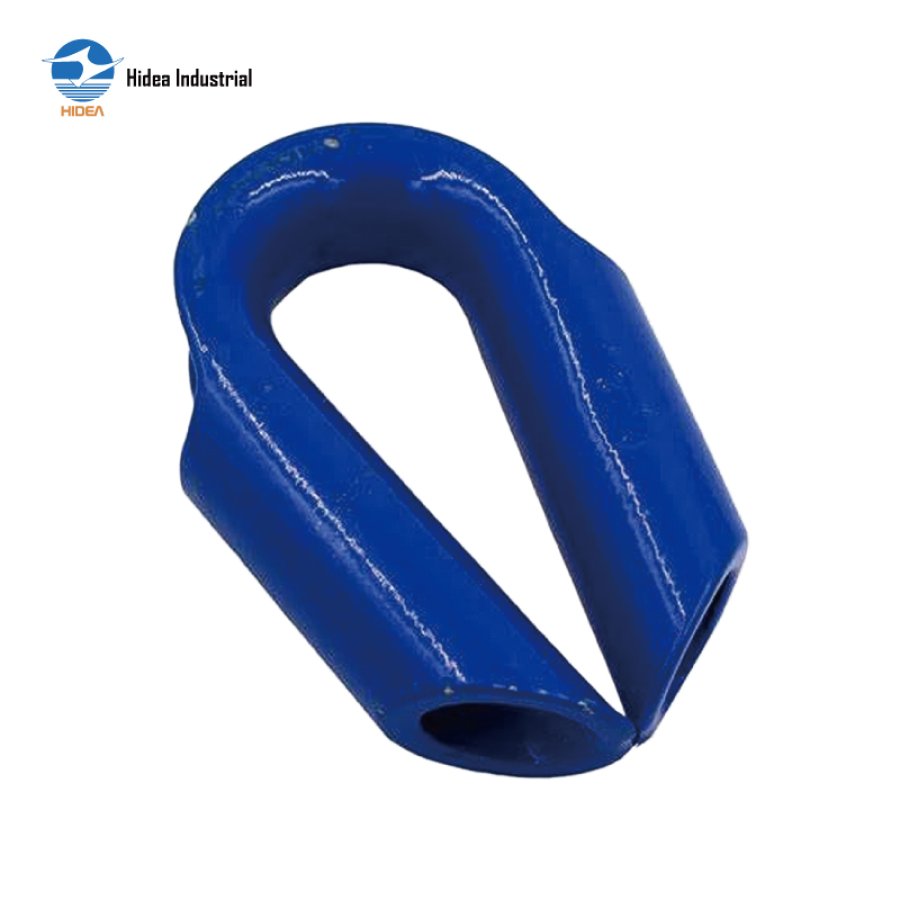

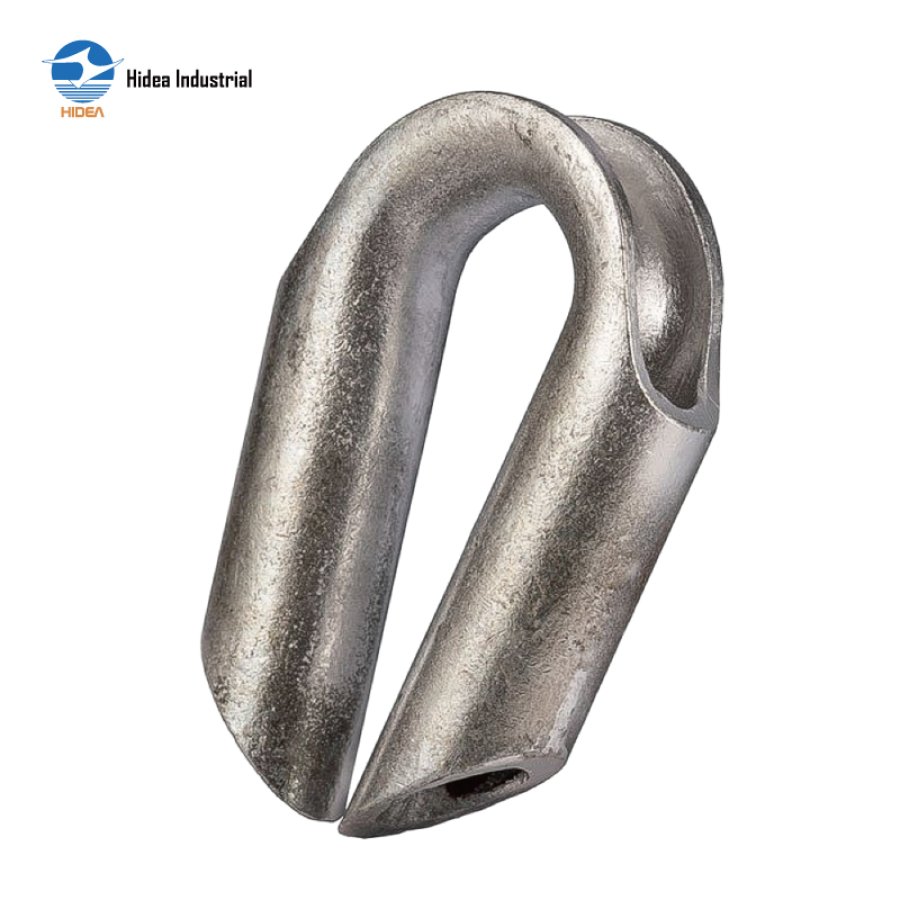

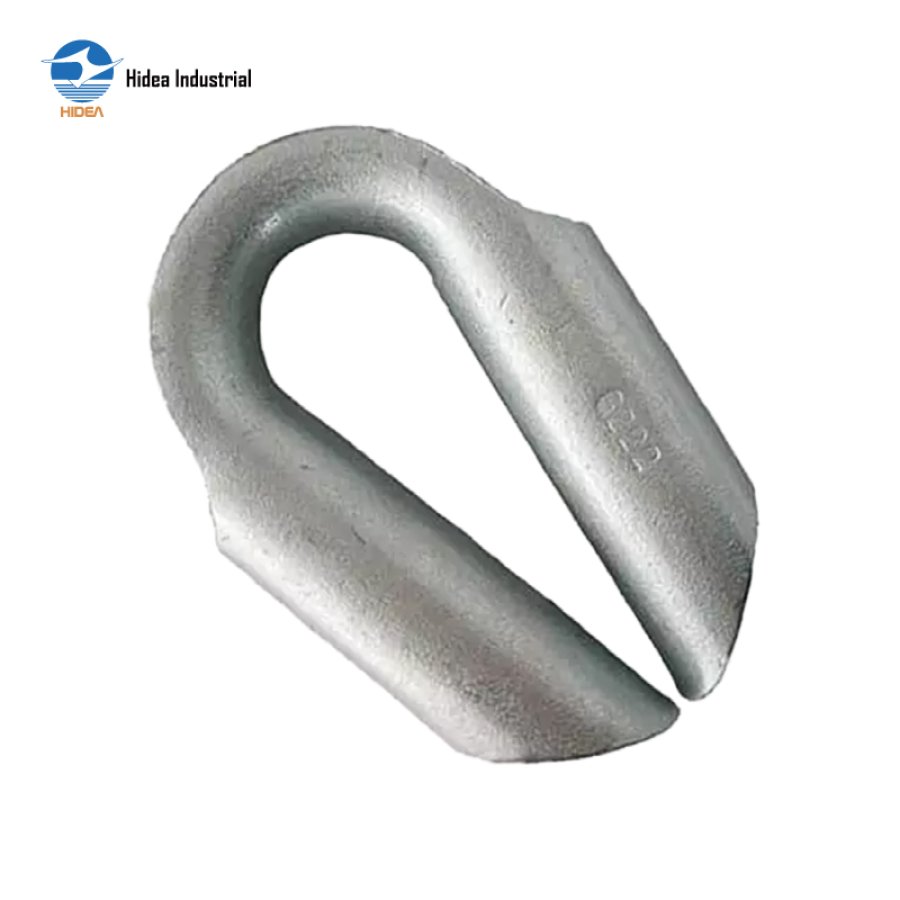

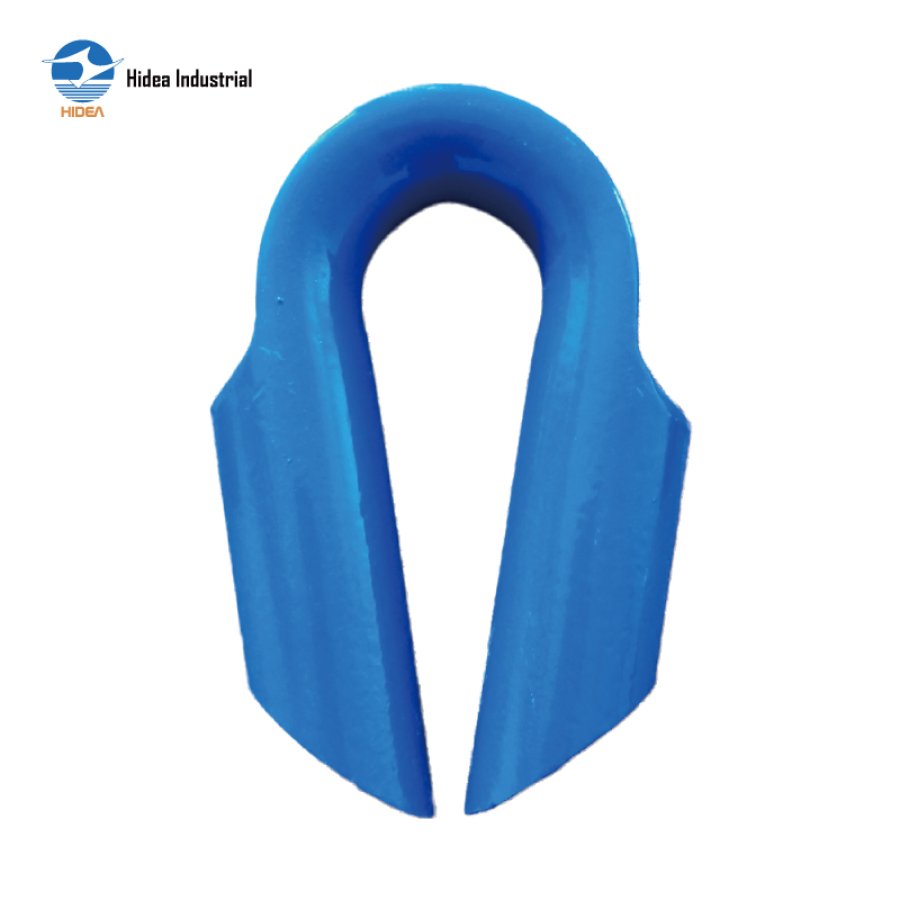

HIDEA Semi-Closed Tube Thimble without Gusset Tilt: Strong & Stable Protection for Wire Rope

TUBE TUBULAR THIMBLE WITHOUT GUSSET TILT

Material Seamless Mild Steel Tube
Stamped & Bent to shape, Machined & polished
Surface powder coated OR painted blue, black etc., OR Hot Dip Galv., Electro Galv. Or as requested
Temperature range -20°C up to +200°C
Tubular Thimble without Gusset / Stub Tilt mouths

Inquire Now

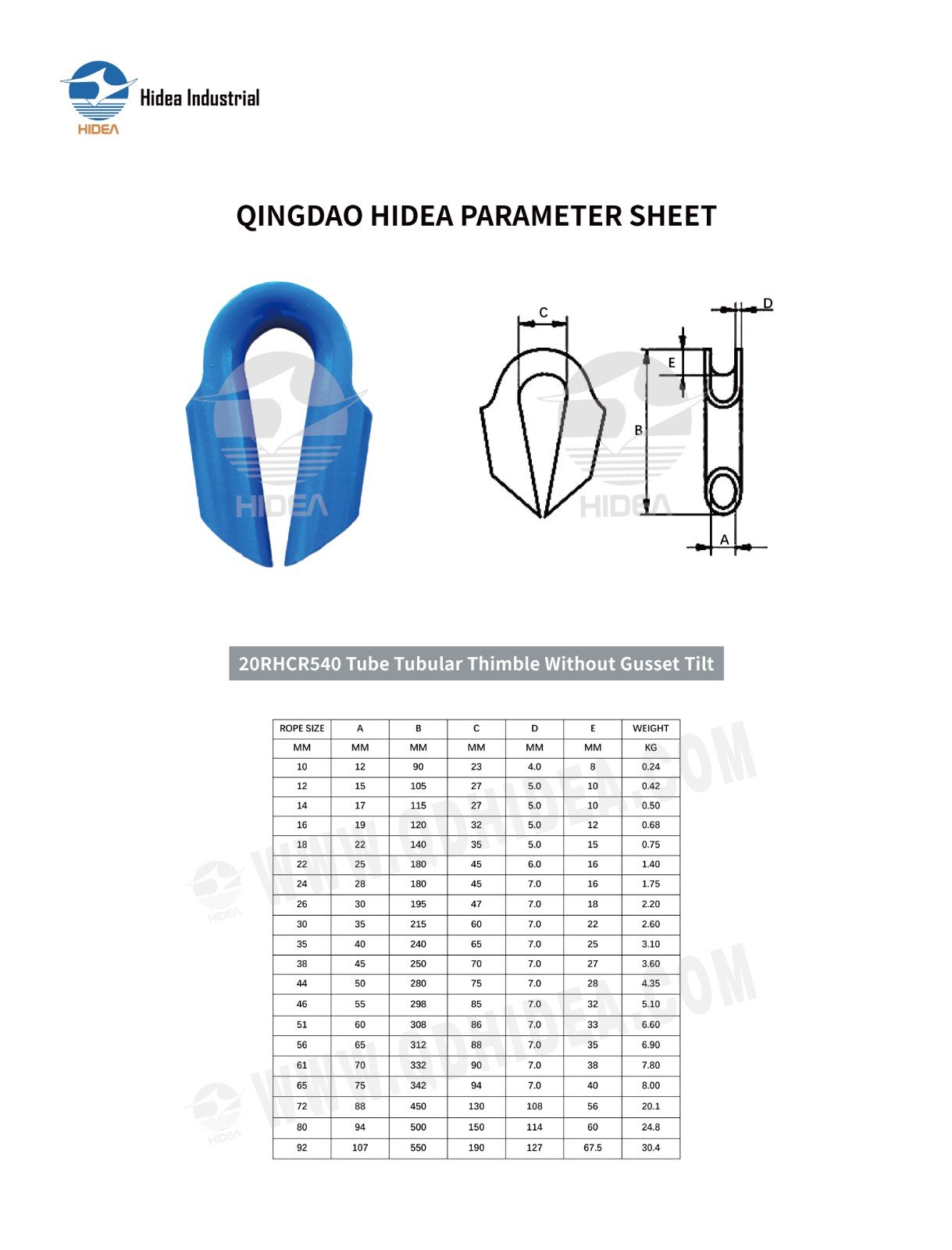

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR540 Tube Tubular Thimble Without Gusset Tilt

ROPE SIZE	A	B	C	D	E	WEIGHT
MM	MM	MM	MM	MM	MM	KG
10	12	90	23	4.0	8	0.24
12	15	105	27	5.0	10	0.42
14	17	115	27	5.0	10	0.50
16	19	120	32	5.0	12	0.68
18	22	140	35	5.0	15	0.75
22	25	180	45	6.0	16	1.40
24	28	180	45	7.0	16	1.75
26	30	195	47	7.0	18	2.20
30	35	215	60	7.0	22	2.60
35	40	240	65	7.0	25	3.10
38	45	250	70	7.0	27	3.60
44	50	280	75	7.0	28	4.35
46	55	298	85	7.0	32	5.10
51	60	308	86	7.0	33	6.60
56	65	312	88	7.0	35	6.90
61	70	332	90	7.0	38	7.80
65	75	342	94	7.0	40	8.00
72	88	450	130	108	56	20.1
80	94	500	150	114	60	24.8
92	107	550	190	127	67.5	30.4
