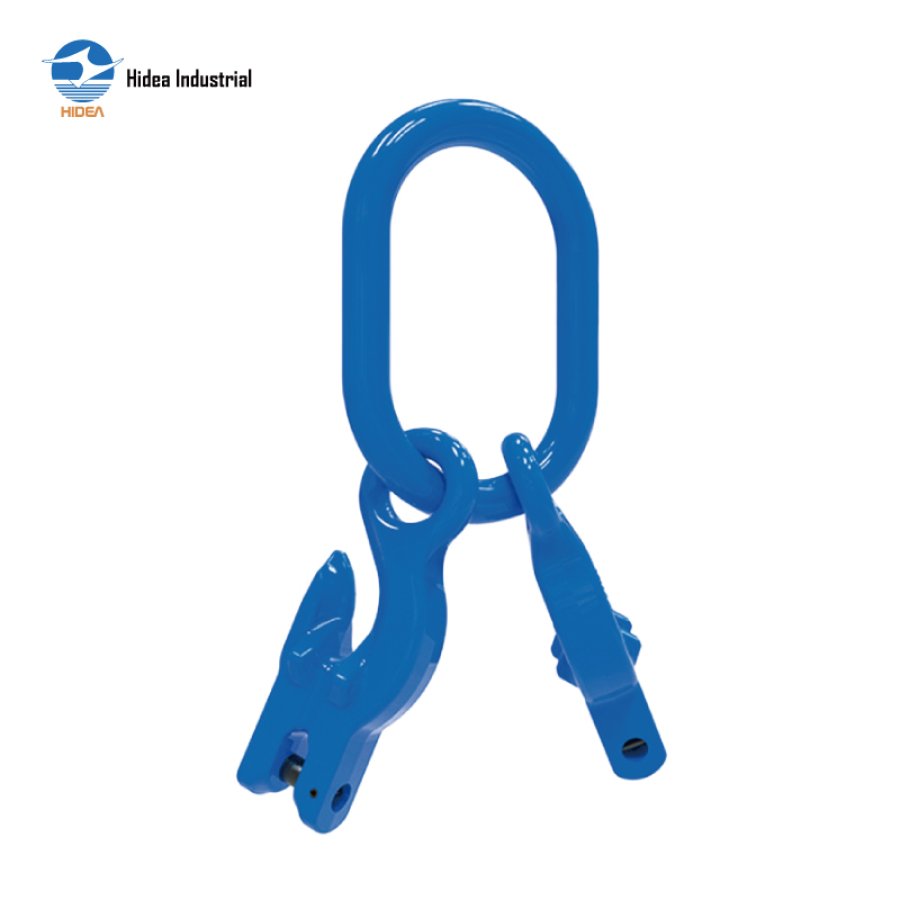

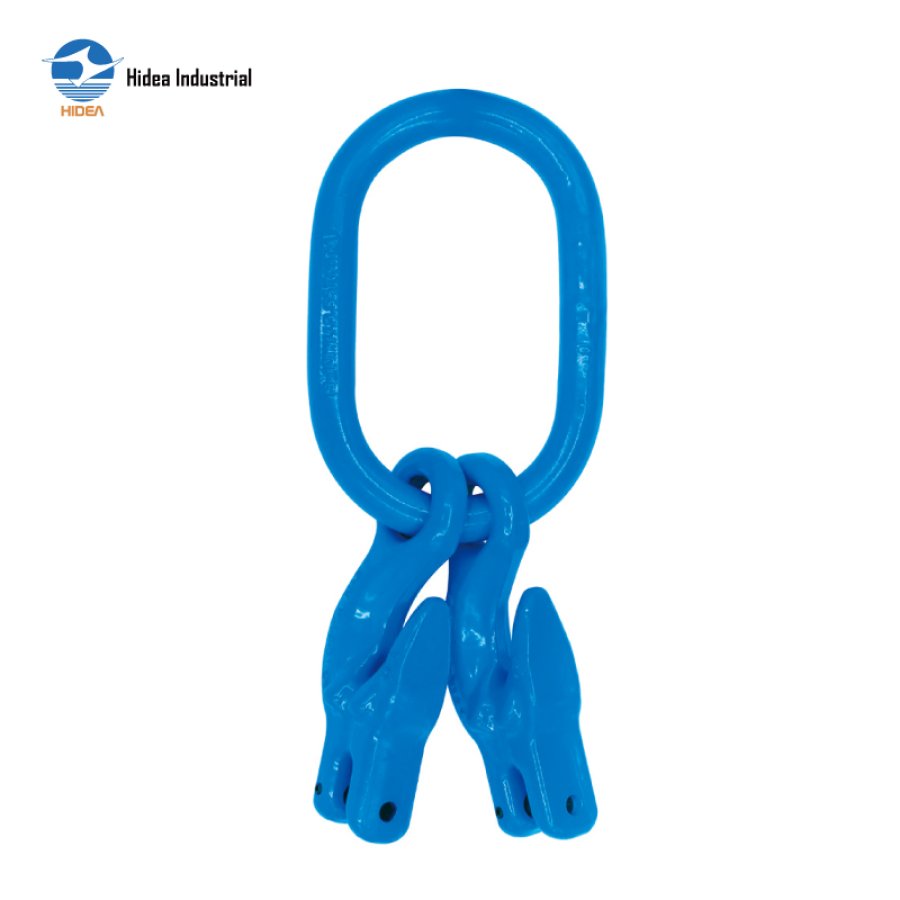

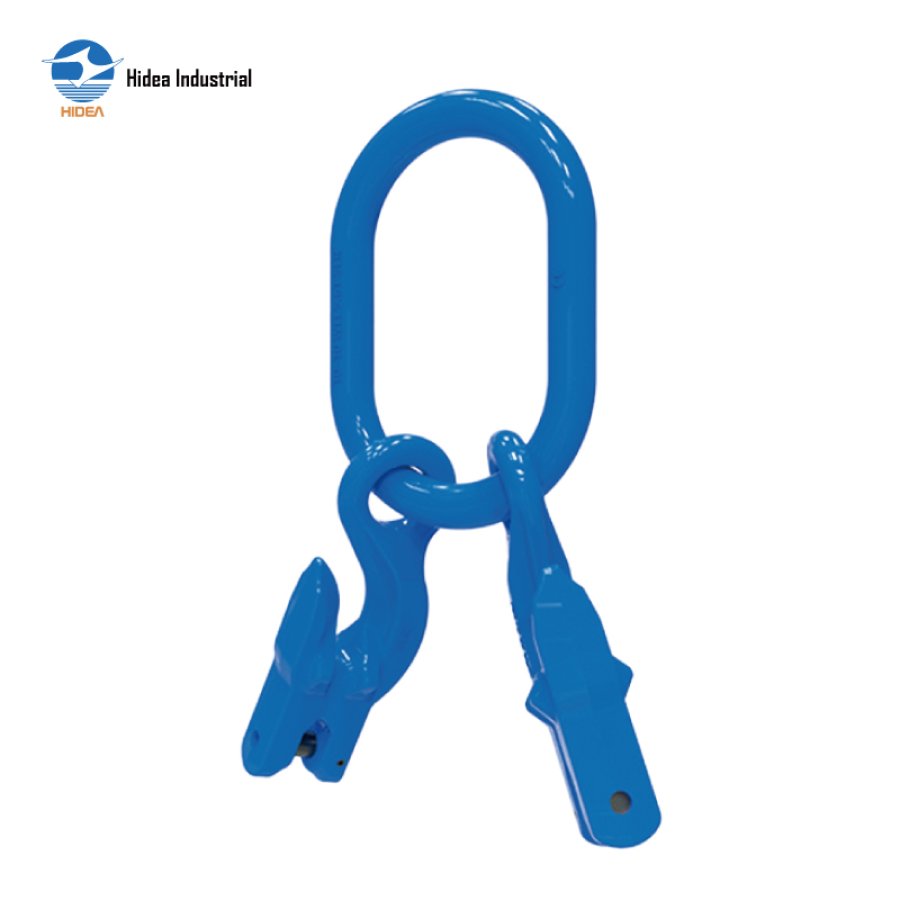

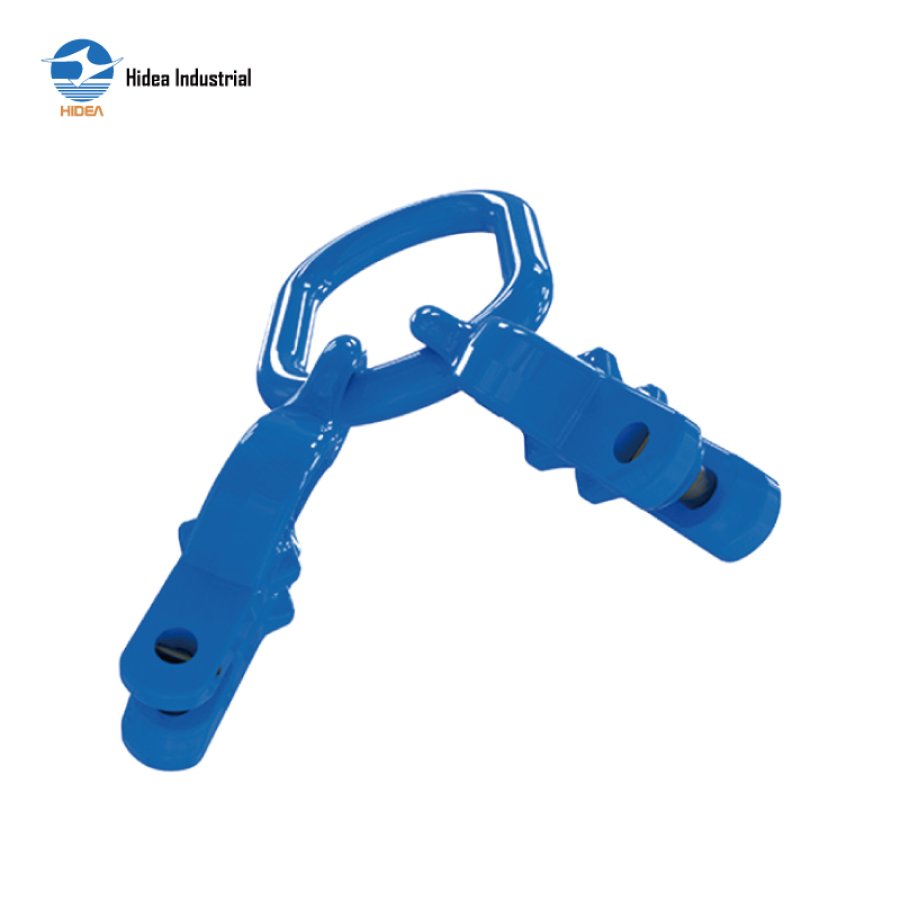

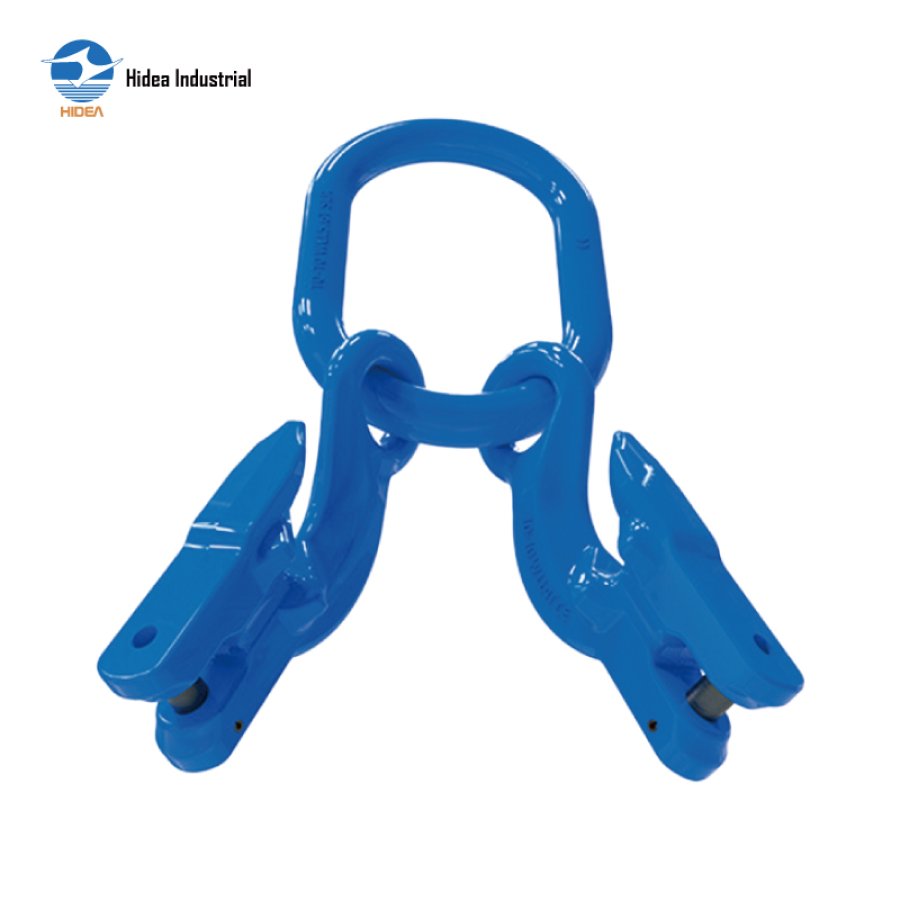

Hidea Grade 100 Master Link with Double Grab Hook for Heavy Lifting Operations

G100 MASTER LINK WITH DOUBLE GRAB HOOKS

Forged super alloy steel-Quenched and Tempered
Suitable for G80/100 chain
25% stronger than G80
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load for 20000 cycles
Breakage test
100% magnaflux crack detection
All load pins are 100% individually inspected and tested
Surface finish: Powder liastified
Color code: Blue RAL5015

Inquire Now

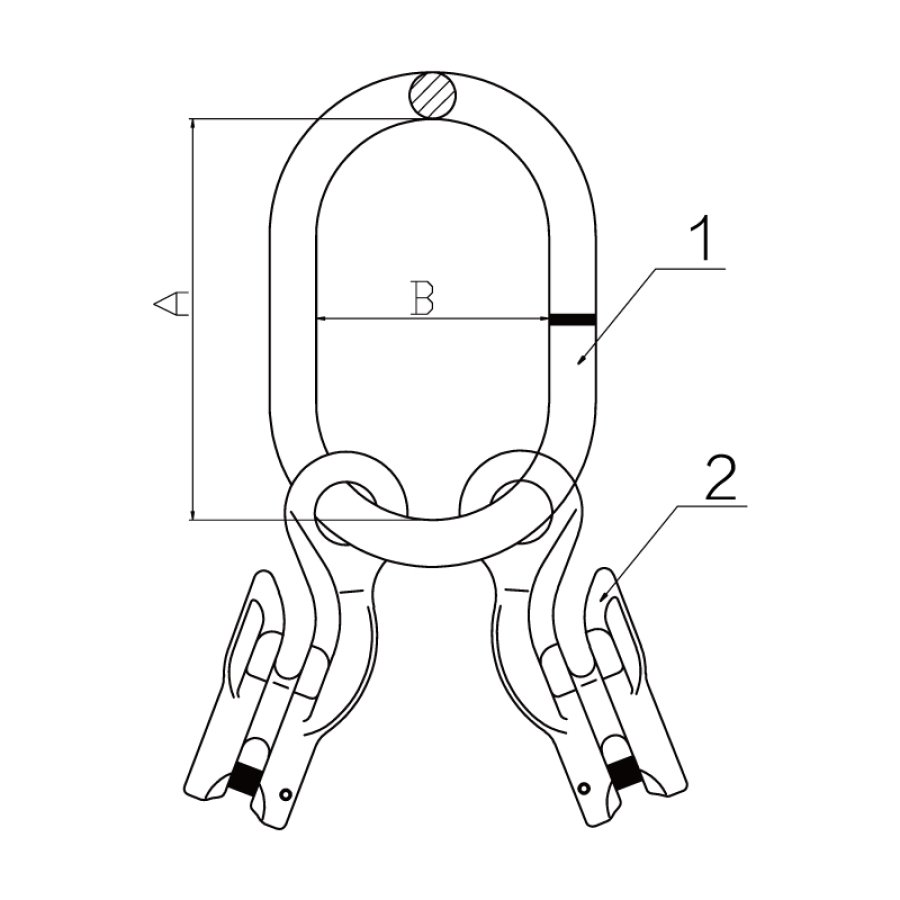

QINGDAO HIDEA PARAMETER SHEET FOR

20RH7601-G100 MASTER LINK WITH DOUBLE GRAB HOOK

ITEM CODE	WEIGHT	WLL	BF	A	B	ΦD
ITEM CODE	(Kg)	(T)	(T)	A	B	ΦD
20RH7601-06	1.04	2	8	120	70	14
20RH7601-08	2.12	3.55	14.2	140	80	17
20RH7601-10	4.15	5.6	22.4	160	95	22
20RH7601-13	7	9.5	38	190	110	25
20RH7601-16	13.48	14	56	230	130	32
