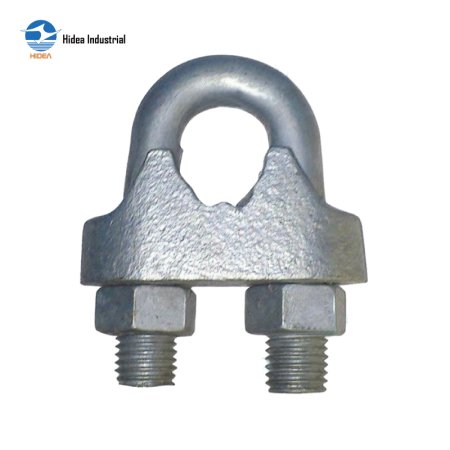

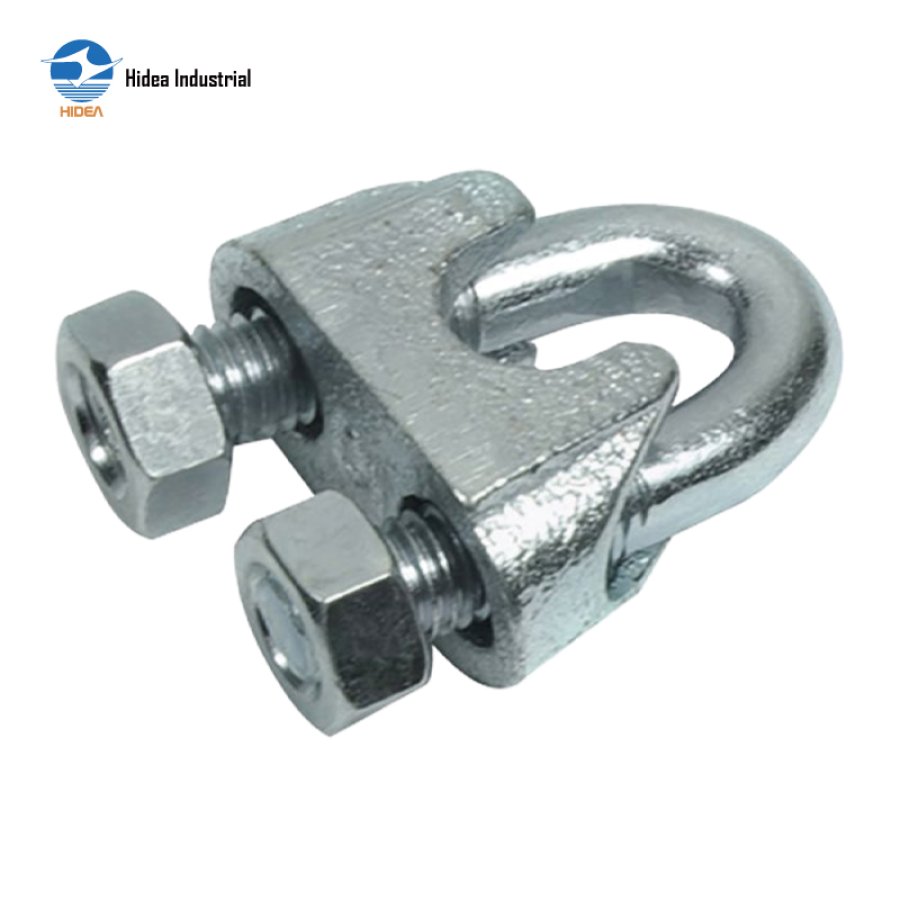

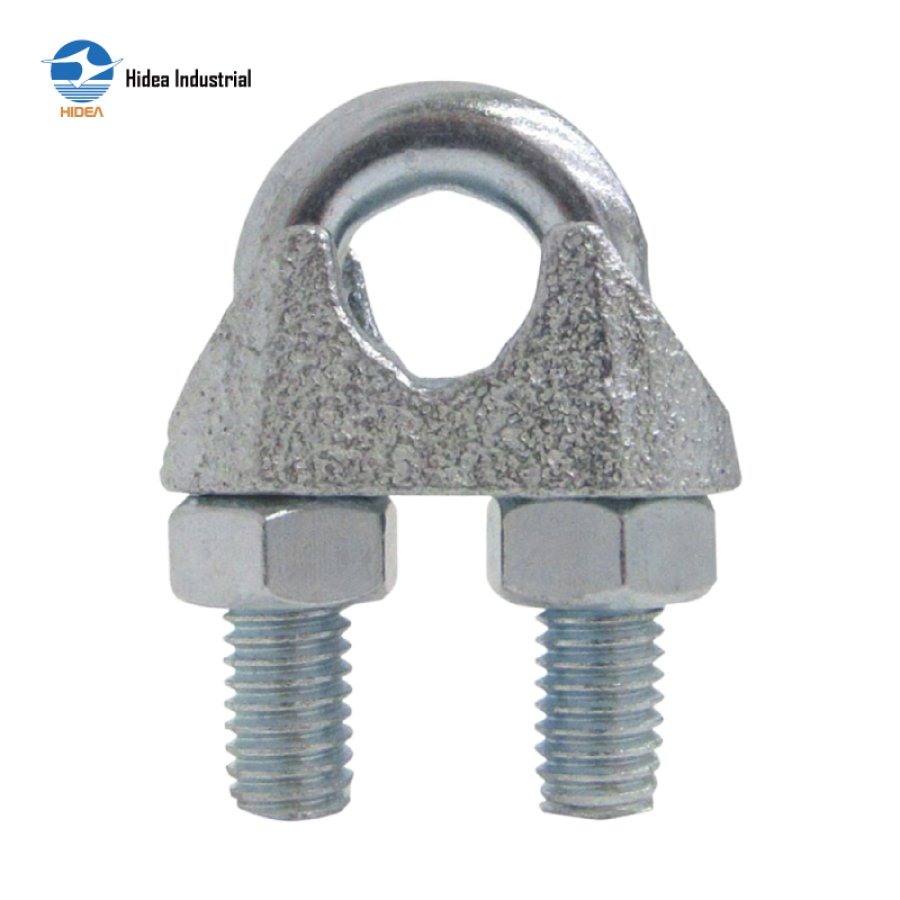

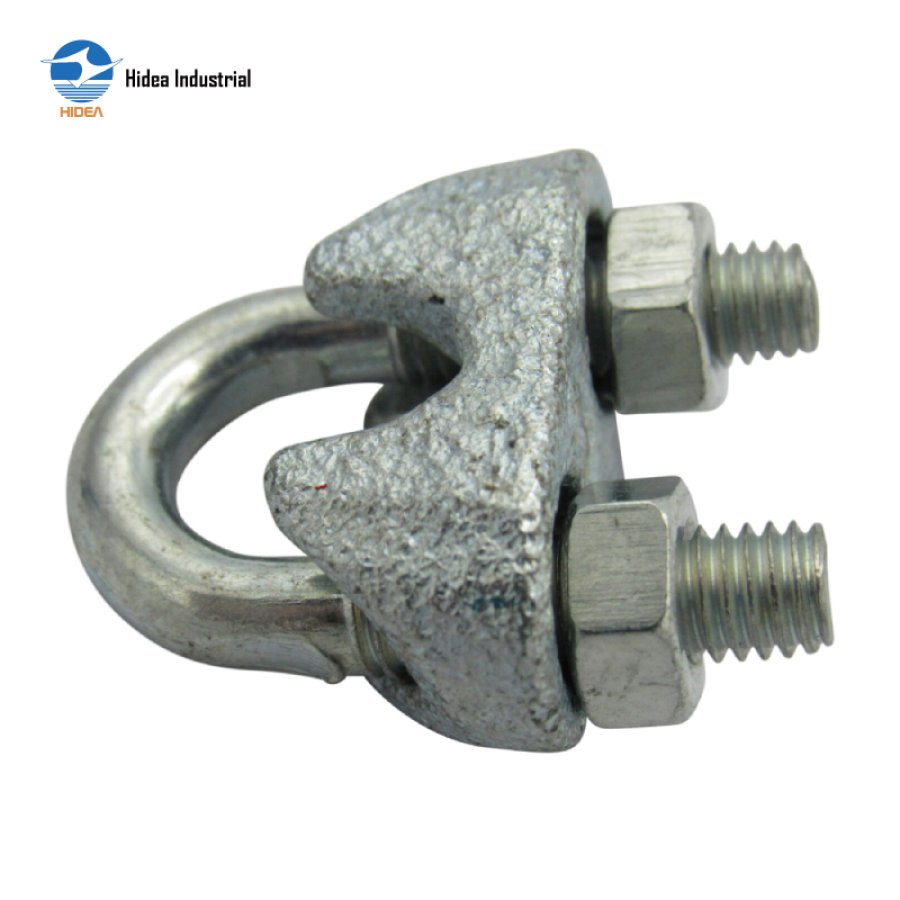

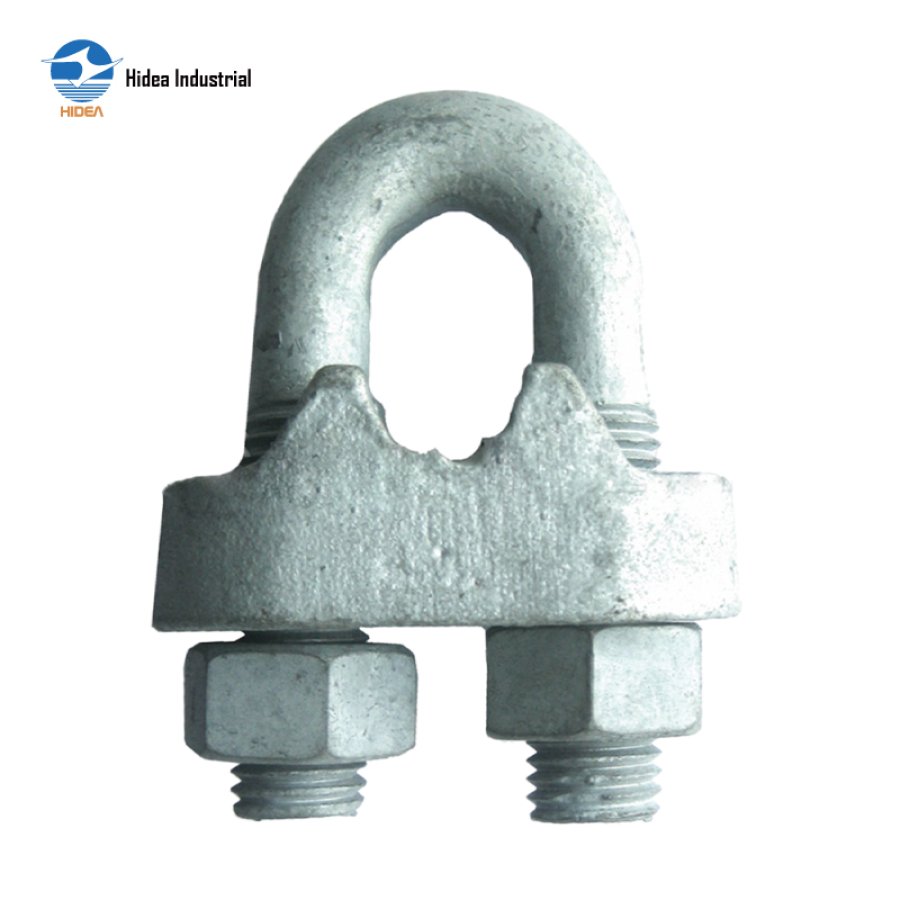

HIDEA Australia Type Malleable Wire Rope Clip for Secure Cable Termination

AUSTRALIA TYPE HOT DIP GALV. MALLEABLE WIRE ROPE CLIPS

Casted Malleable Steel
Casted,quenched & tempered
Surface Hot Dip Galvanized OR as requested
Casted Malleable Wire Rope Clip Hot Dip Galvanized Australia Type

Inquire Now

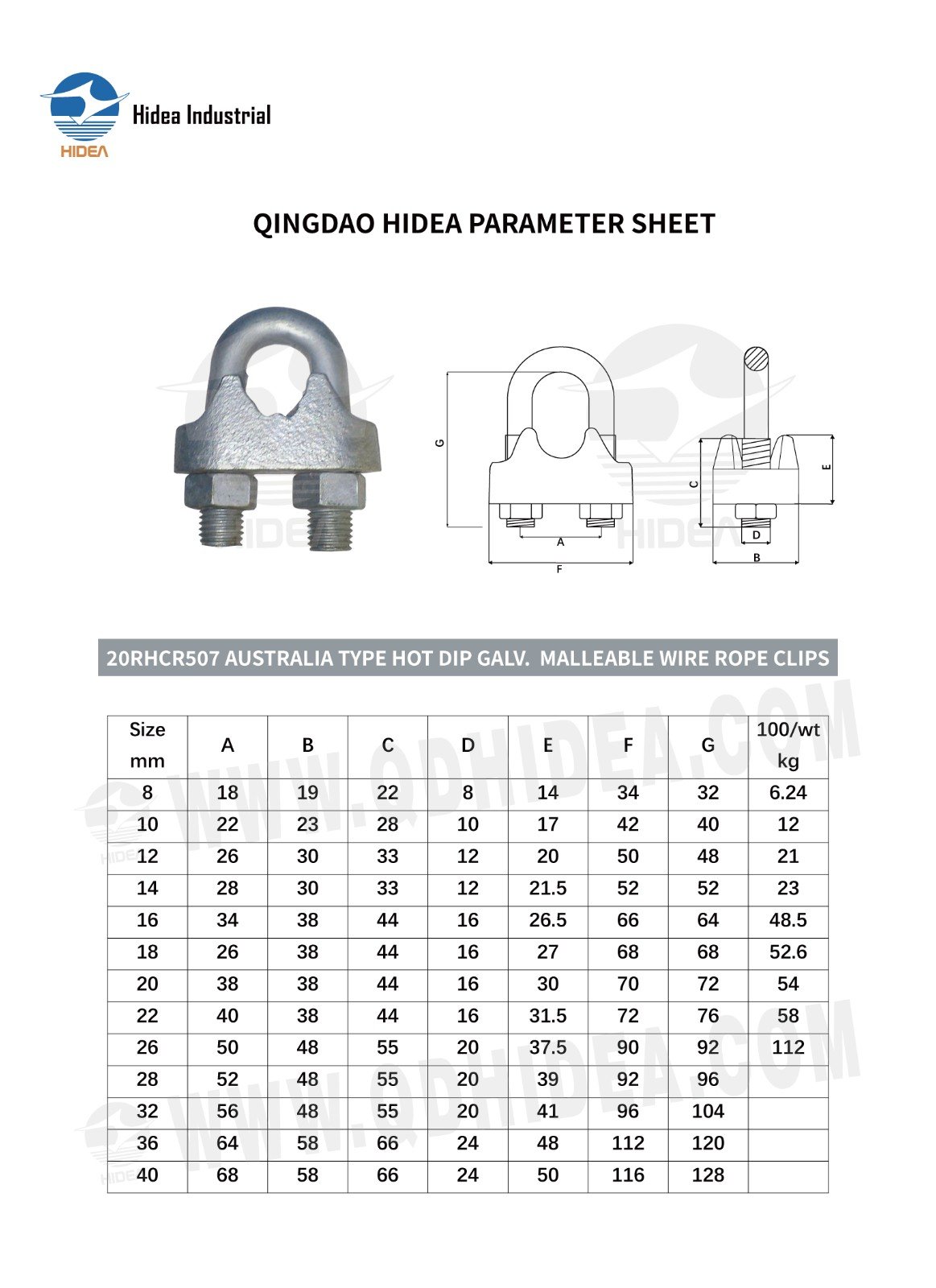

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR507 AUSTRALIA TYPE HOT DIP GALV.MALLEABLE WIRE ROPE CLIPS

Size mm	A	B	C	D	E	F	G	100/wt kg
8	18	19	22	8	14	34	32	6.24
10	22	23	28	10	17	42	40	12
12	26	30	33	12	20	50	48	21
14	28	30	33	12	21.5	52	52	23
16	34	38	44	16	26.5	66	64	48.5
18	26	38	44	16	27	68	68	52.6
20	38	38	44	16	30	70	72	54
22	40	38	44	16	31.5	72	76	58
26	50	48	55	20	37.5	90	92	112
28	52	48	55	20	39	92	96
32	56	48	55	20	41	96	104
36	64	58	66	24	48	112	120
40	68	58	66	24	50	116	128
