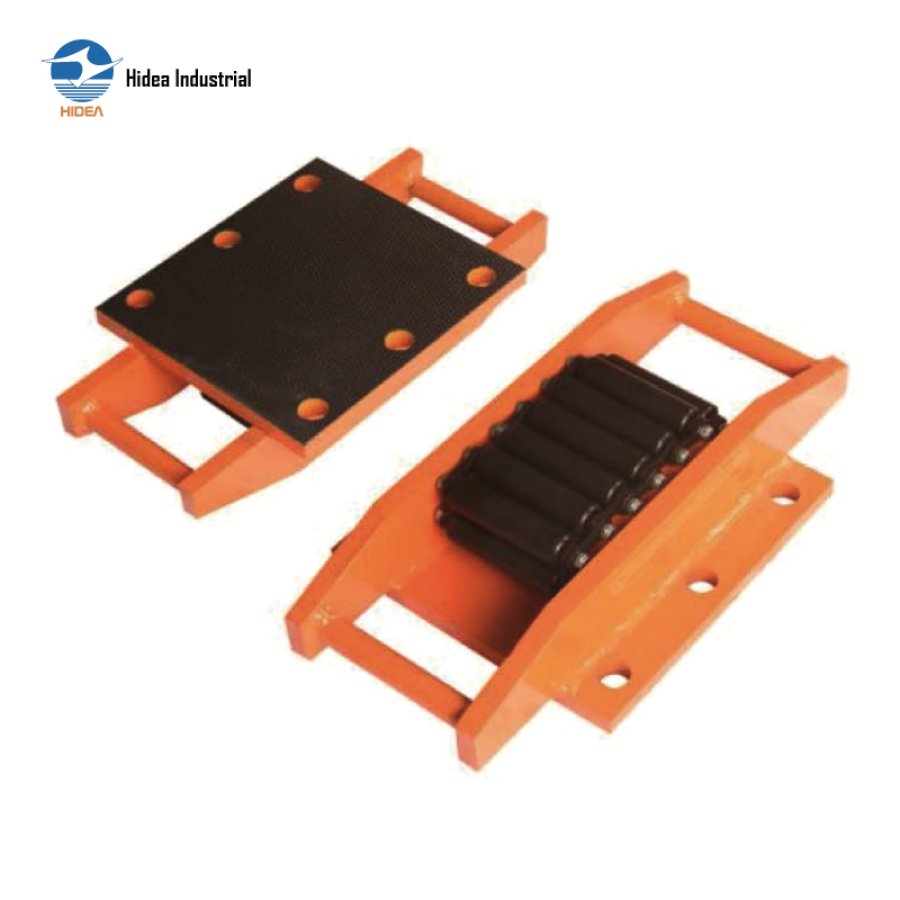

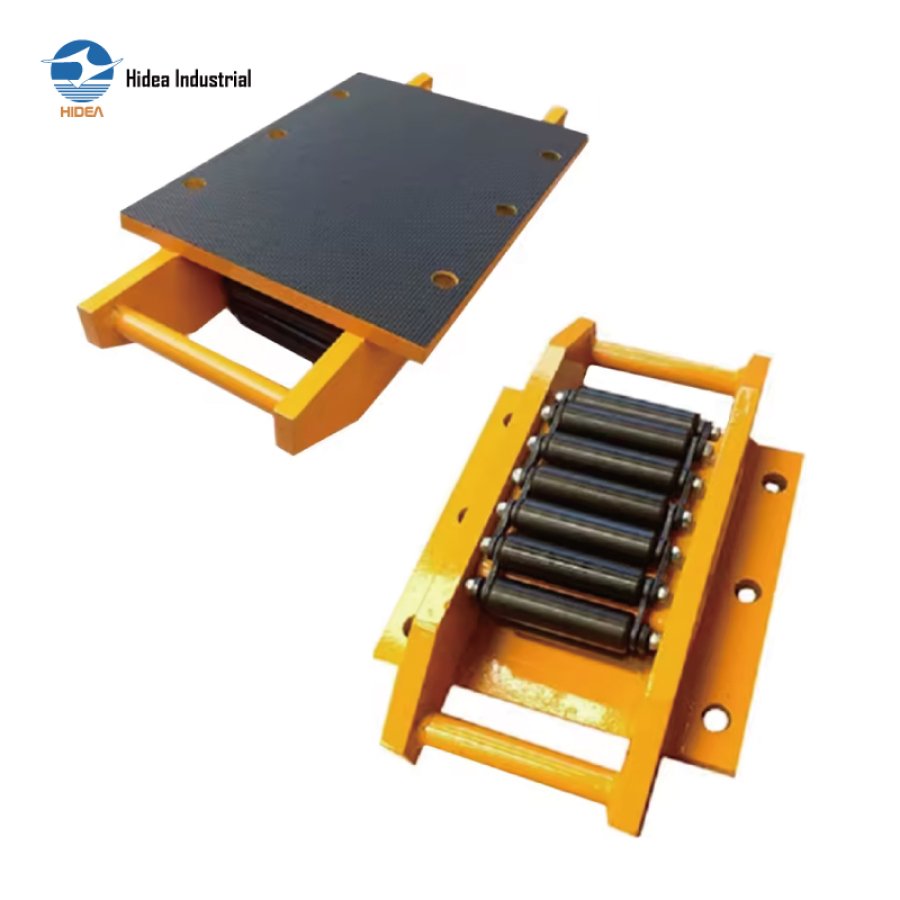

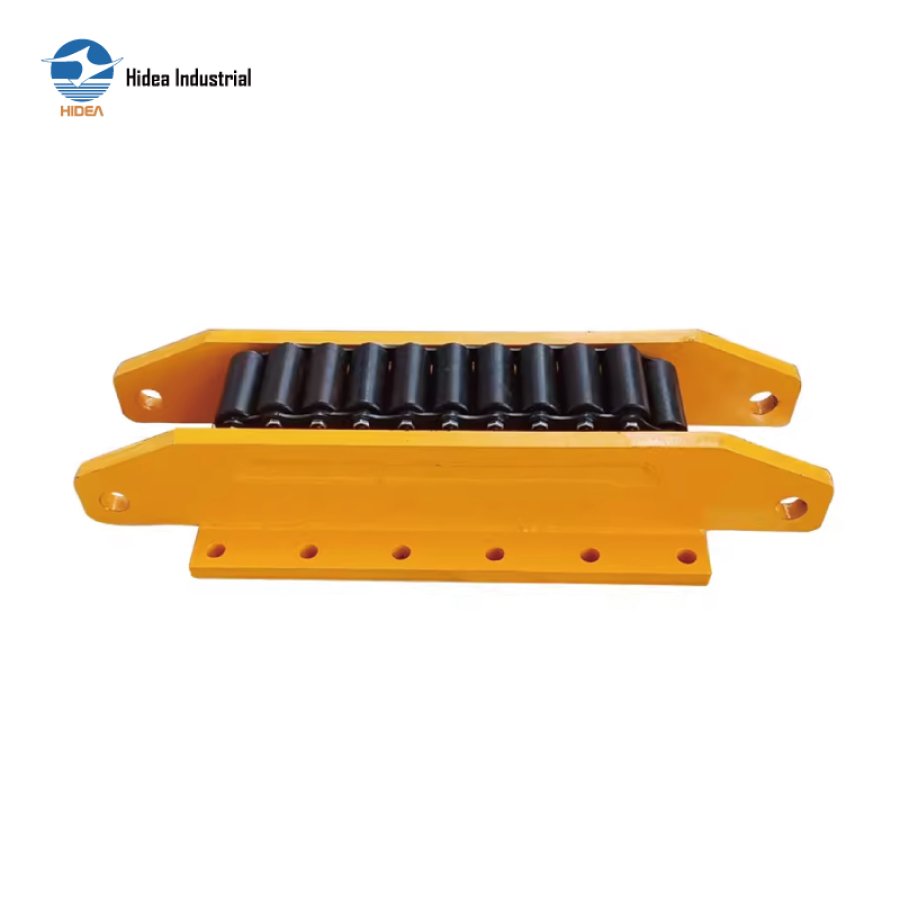

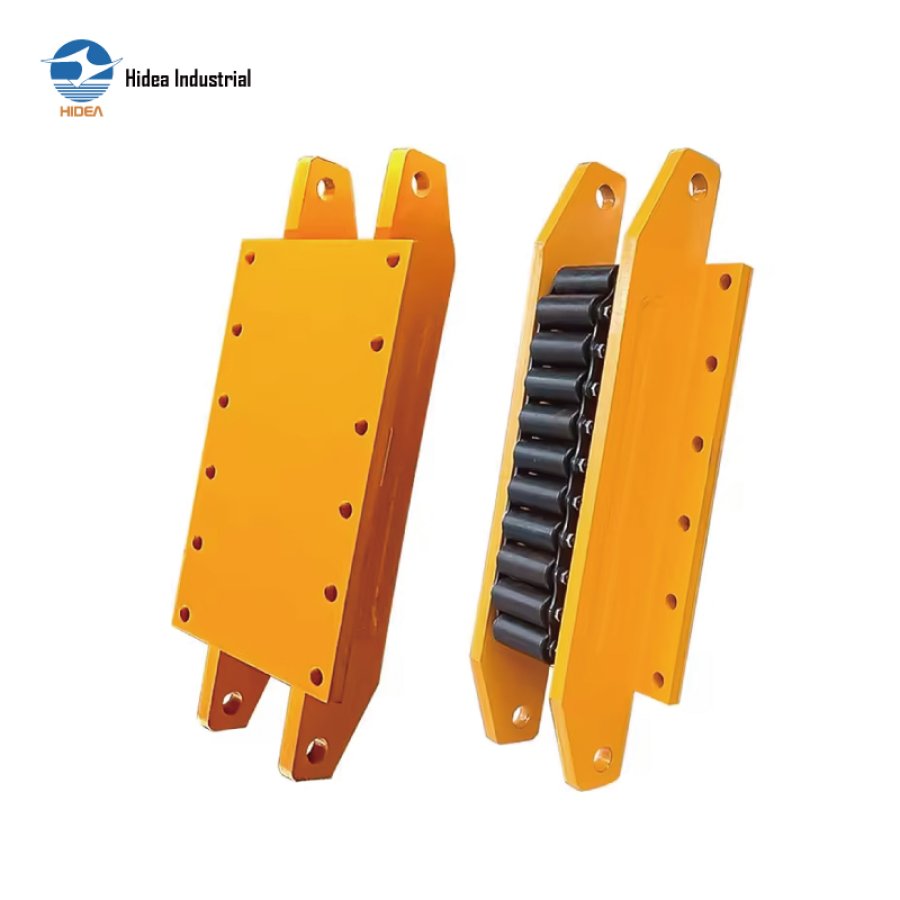

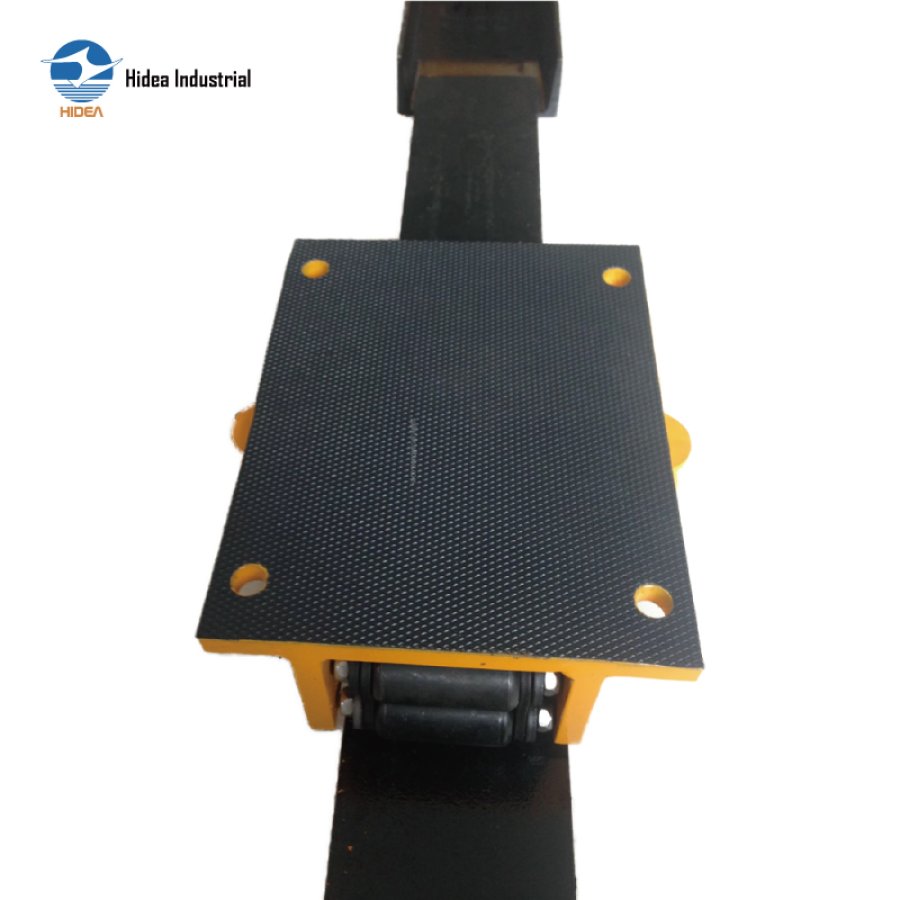

The CRM tracked tanks are generally applicable to steel channel and steel I-beams for straight running, safe, stable and durable
The CRM tanks can be customized to meet customer requirements for different sizes and types of crawler trucks
Multiple universal tanks can be used simultaneously to distribute heavy loads evenly, ensuring better and safer movement of loads
Important Note: DO NOT try to turn or rotate the track tank!
QINGDAO HIDEA PARAMETER SHEET FOR
CRM SERIES TRACKED TANKS
| Model | Maximum load bearing TON | Lang MM(A) | Wide MM(B) | High MM(C) | Total weight KG | The distance(D) | ||
| CRM8 | 8 | 370 | 230 | 90 | 17 | 152 | ||
| CRM10 | 10 | 400 | 230 | 90 | 20 | 152 | ||
| CRM15 | 15 | 415 | 240 | 110 | 28 | 160 | ||
| CRM20 | 20 | 450 | 240 | 110 | 30 | 160 | ||
| CRM25 | 25 | 490 | 240 | 110 | 35 | 160 | ||
| CRM30 | 30 | 530 | 300 | 140 | 60 | 205 | ||
| CRM40 | 40 | 580 | 300 | 145 | 70 | 205 | ||
| CRM50 | 50 | 625 | 300 | 150 | 80 | 230 | ||
| CRM60 | 60 | 660 | 340 | 165 | 105 | 230 | ||
| CRM80 | 80 | 710 | 340 | 170 | 120 | 250 | ||
| CRM100 | 100 | 760 | 340 | 175 | 135 | 250 | ||
| CRM120 | 120 | 870 | 365 | 190 | 180 | 250 | ||
| CRM150 | 150 | 930 | 365 | 195 | 200 | 278 | ||
| CRM200 | 200 | 920 | 393 | 220 | 230 | 278 | ||
| CRM250 | 250 | 990 | 393 | 225 | 260 | 288 | ||
| CRM300 | 300 | 1060 | 393 | 230 | 290 | 288 | ||
| CRM350 | 350 | 1190 | 423 | 255 | 400 | 300 | ||
| CRM400 | 400 | 1270 | 423 | 260 | 440 | 300 | ||
| CRM450 | 450 | 1355 | 423 | 265 | 490 | 320 | ||
| CRM500 | 500 | 1440 | 423 | 270 | 530 | 320 | ||
