Heavy-Duty HIDEA Oblique Angle Spring Snap with Eyelet & Spring Pin for Reliable Connections

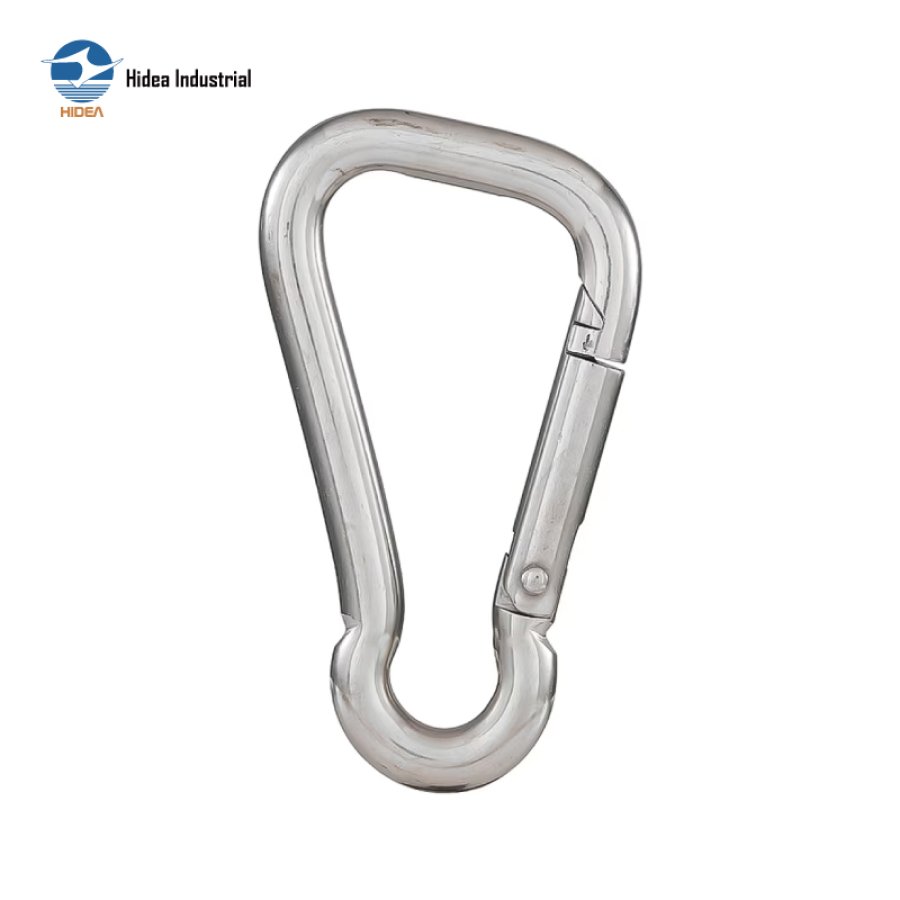

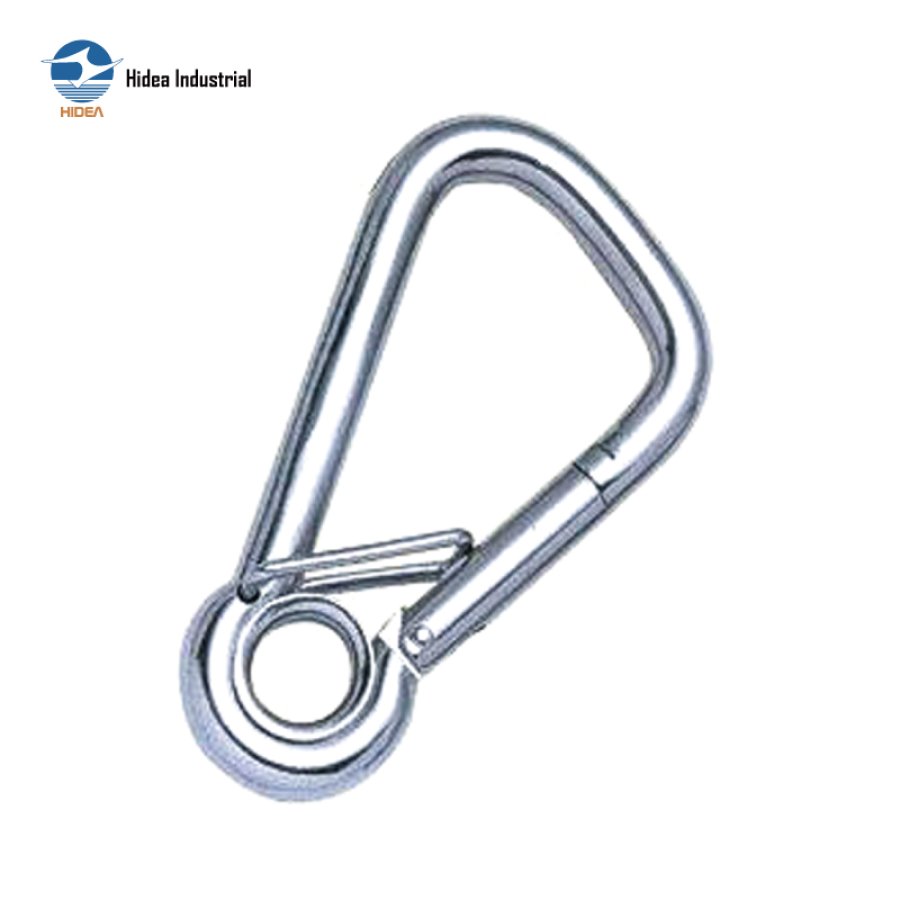

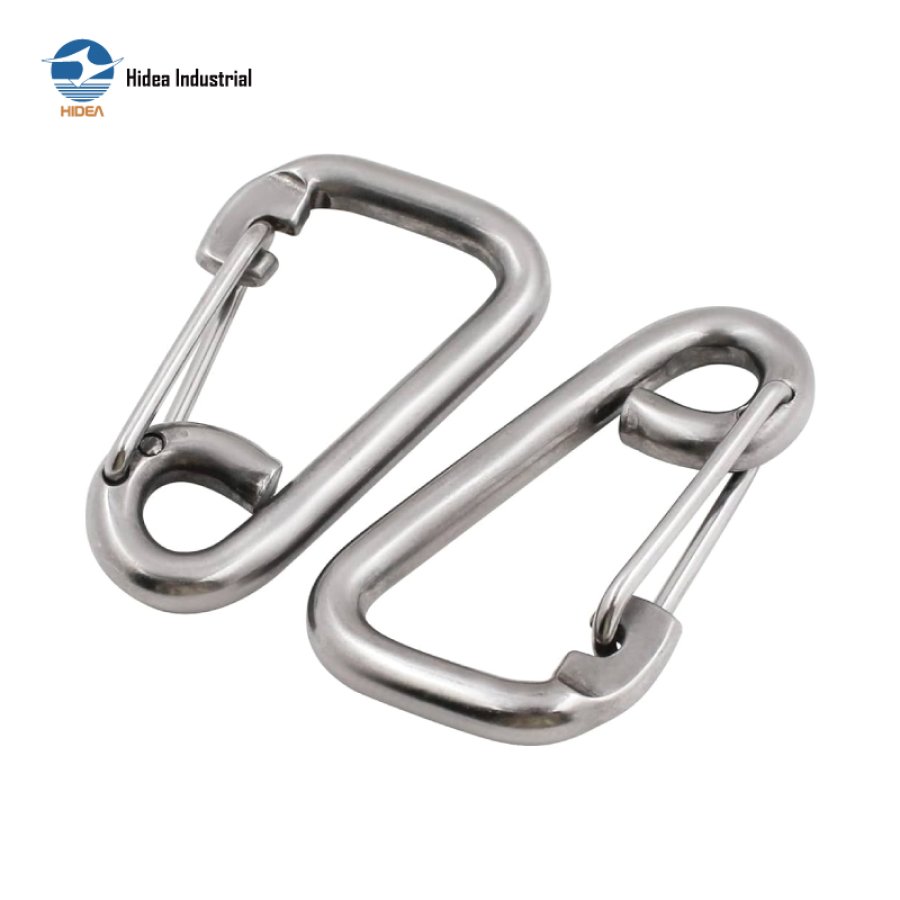

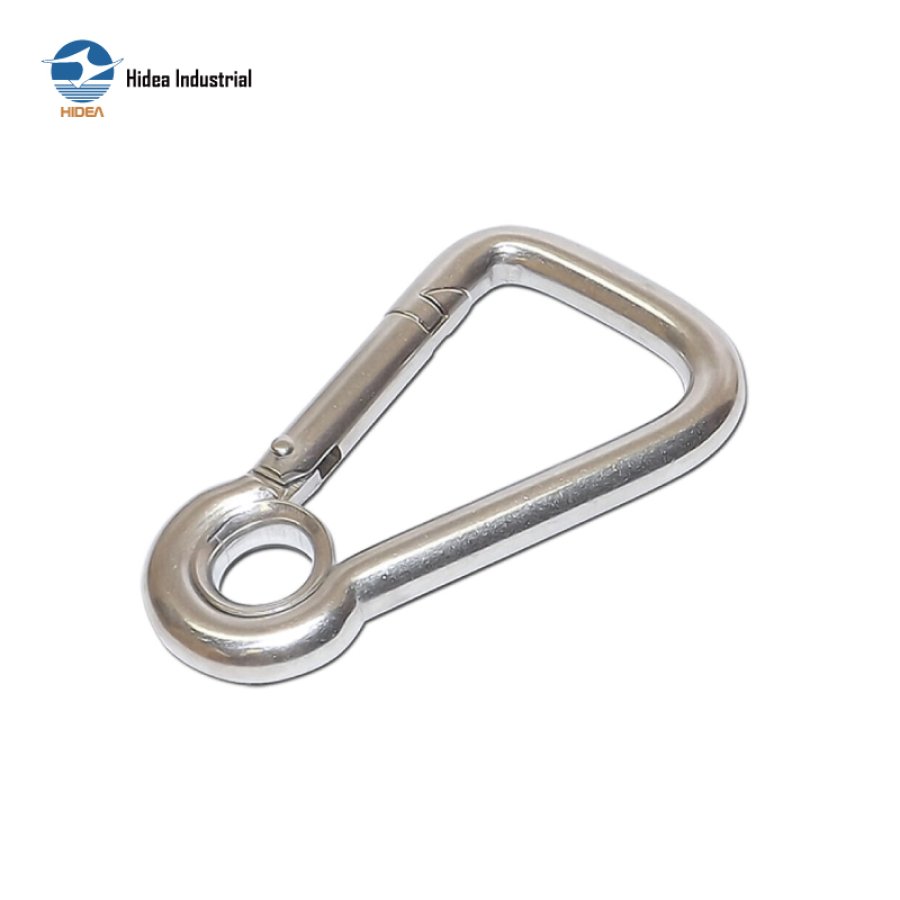

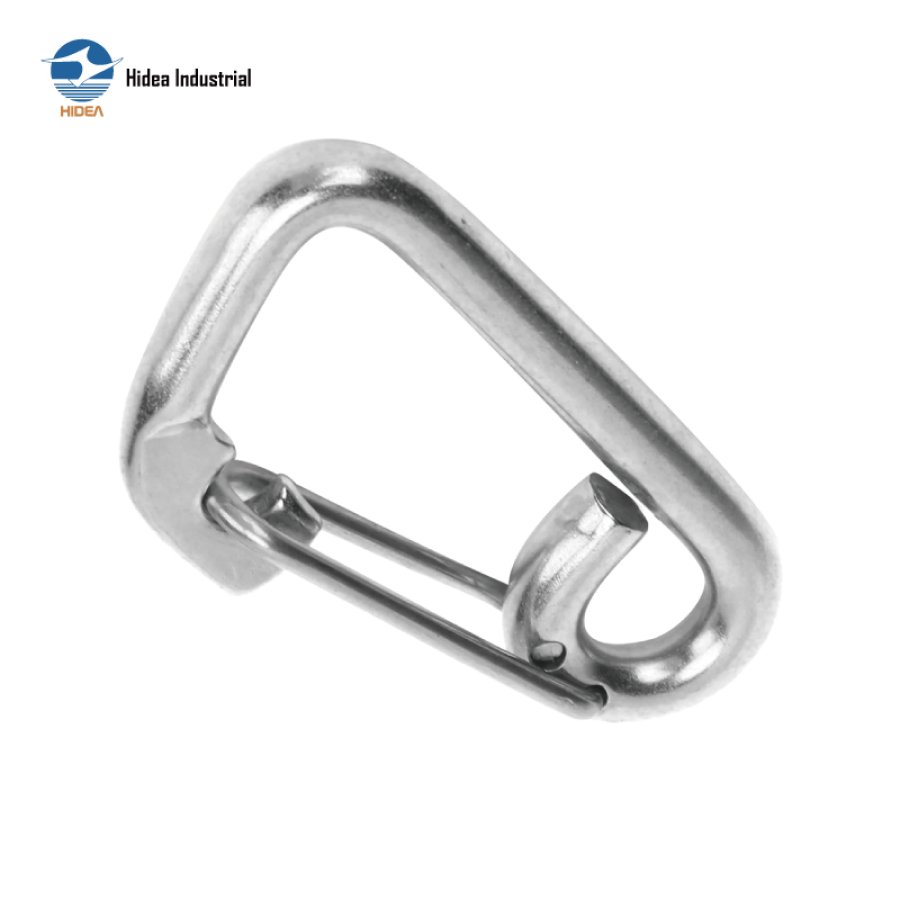

OBLIQUE ANGLE SNAP HOOK WITH EYELET AND SPRING PIN

Material & Surface: Carbon Steel Electro-Galvanized, OR Stainless Steel AISI304 / AISI316 Polished
Oblique Angle Snap Hook with Eyelet & Spring Pin, Carabiner Hook, Carbine Hook

Inquire Now

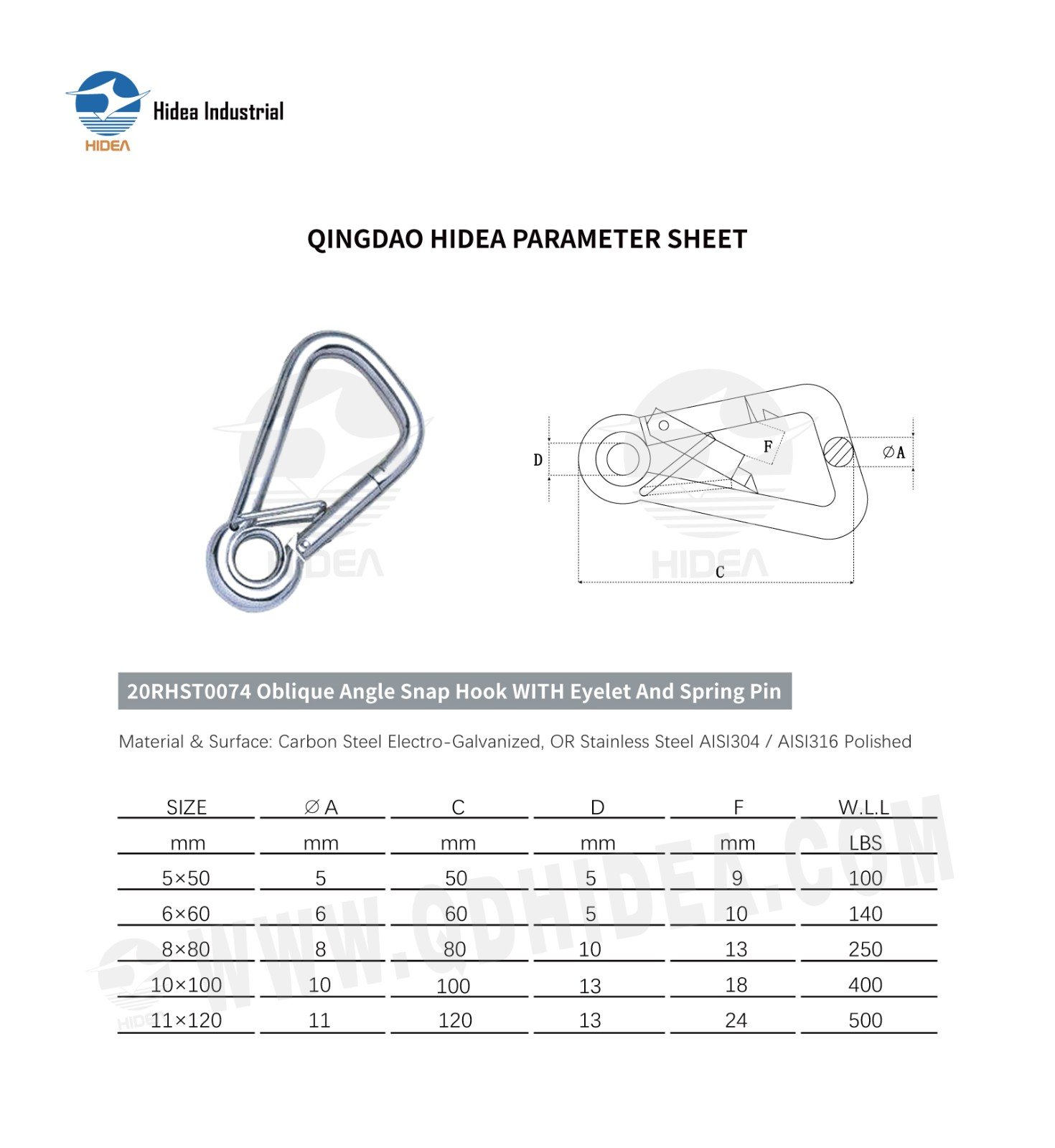

QINGDAO HIDEA PARAMETER SHEET FOR

20RHST0074 Oblique Angle Snap Hook WITH Eyelet And Spring Pin

SIZE	ØA	C	D	F	W.L.L
mm	mm	mm	mm	mm	LBS
5×50	5	50	5	9	100
6×60	6	60	5	10	140
8×80	8	80	10	13	250
10×100	10	100	13	18	400
11×120	11	120	13	24	500
