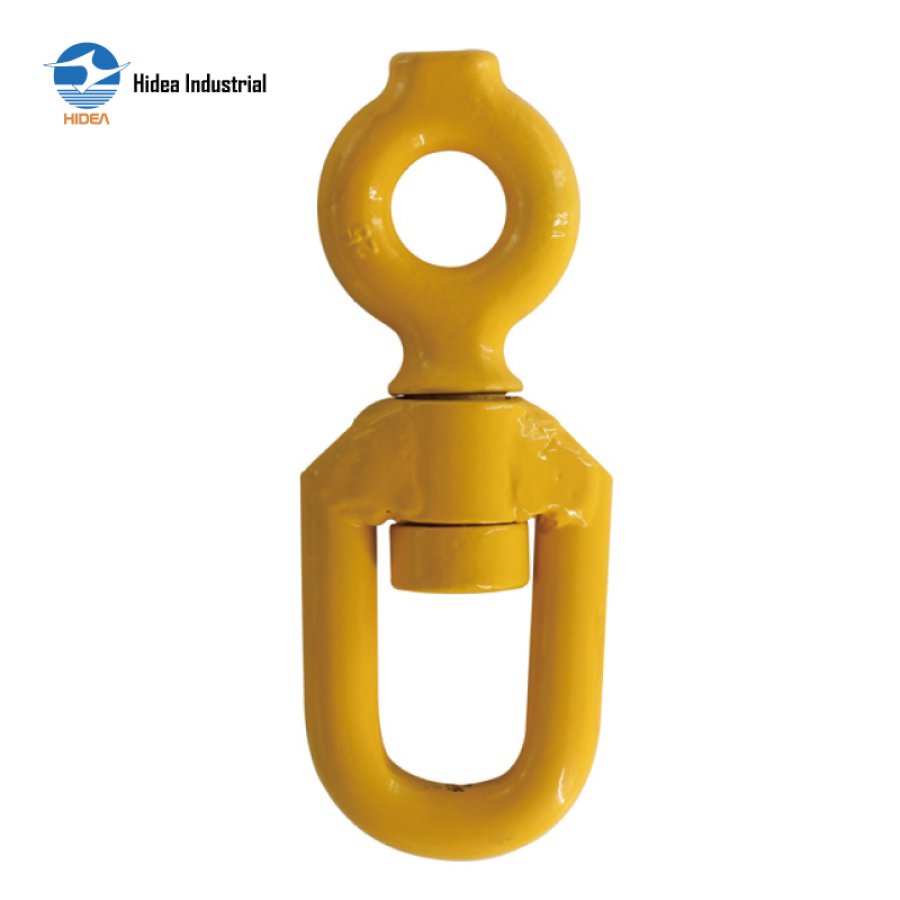

Hidea G80 Chain Swivel Link: Forged Steel Swivel Link for Smooth and Safe Lifting

G80 WELDED CHAIN SWIVEL

Forged carbon steel-Quenched and Tempered
Breakage test
100% magnaflux crack detection
Can be Rotated under Non-load Conditions

Inquire Now

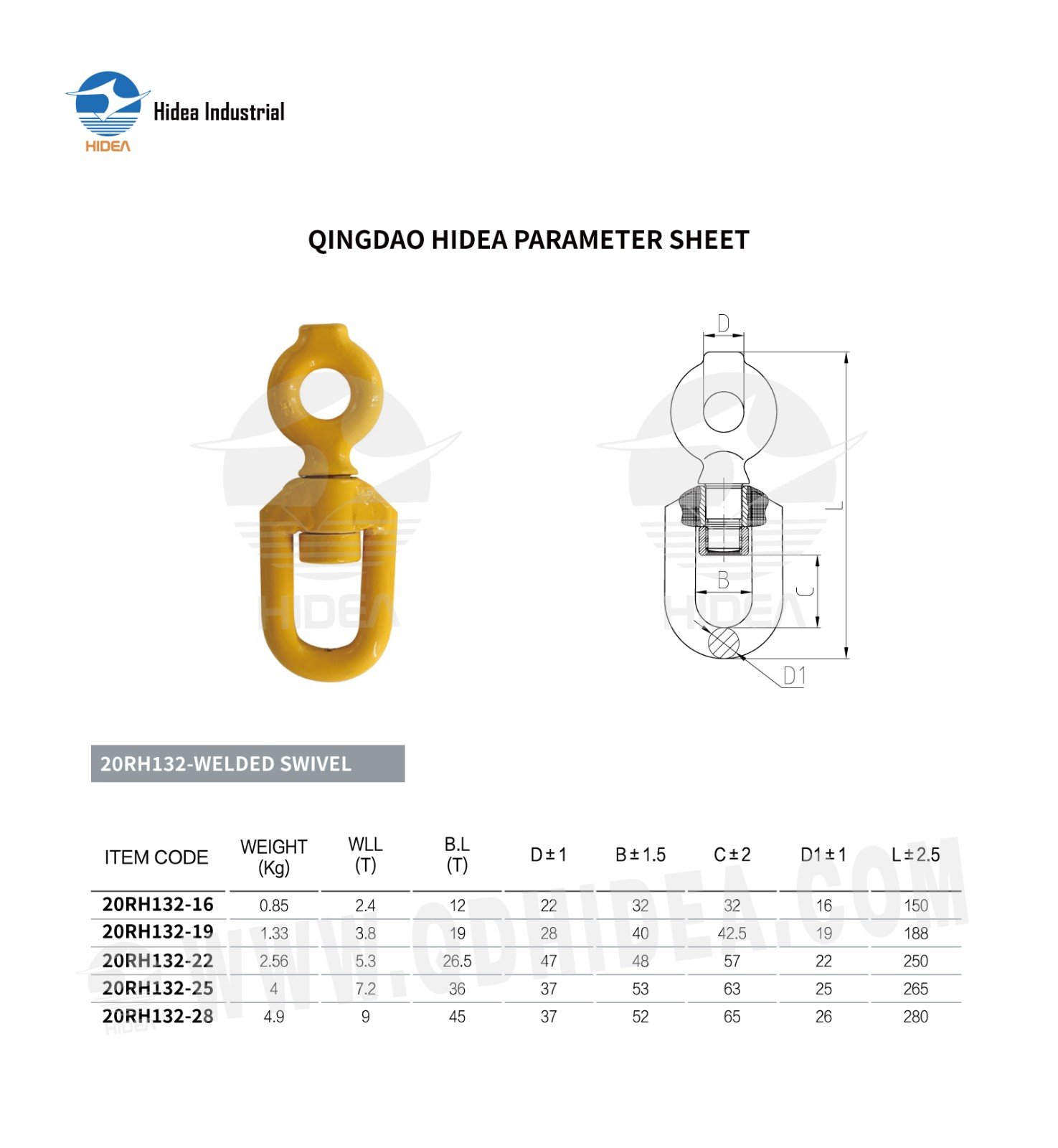

QINGDAO HIDEA PARAMETER SHEET FOR

20RH132-WELDED SWIVEL

ITEM CODE	WEIGHT (Kg)	WLL (T)	B.L (T)	D±1	B±1.5	C±2	D1±1	L±2.5
20RH132-16	0.85	2.4	12	22	32	32	16	150
20RH132-19	1.33	3.8	19	28	40	42.5	19	188
20RH132-22	2.56	5.3	26.5	47	48	57	22	250
20RH132-25	4	7.2	36	37	53	63	25	265
20RH132-28	4.9	9	45	37	52	65	26	280
