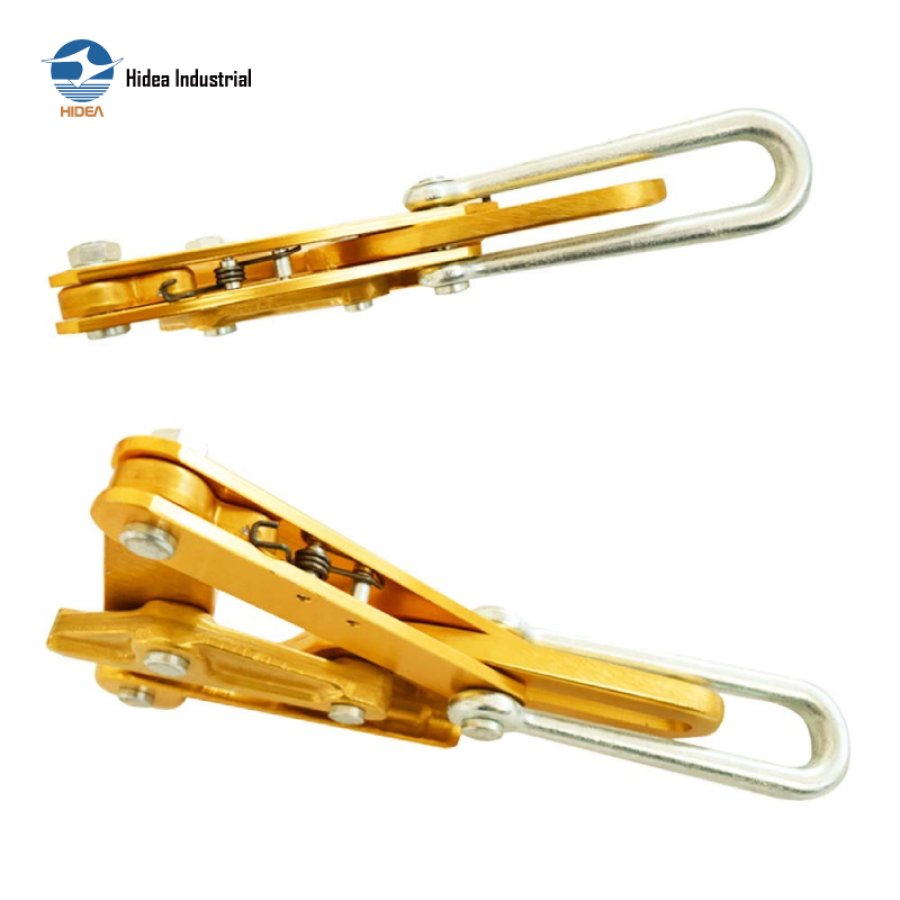

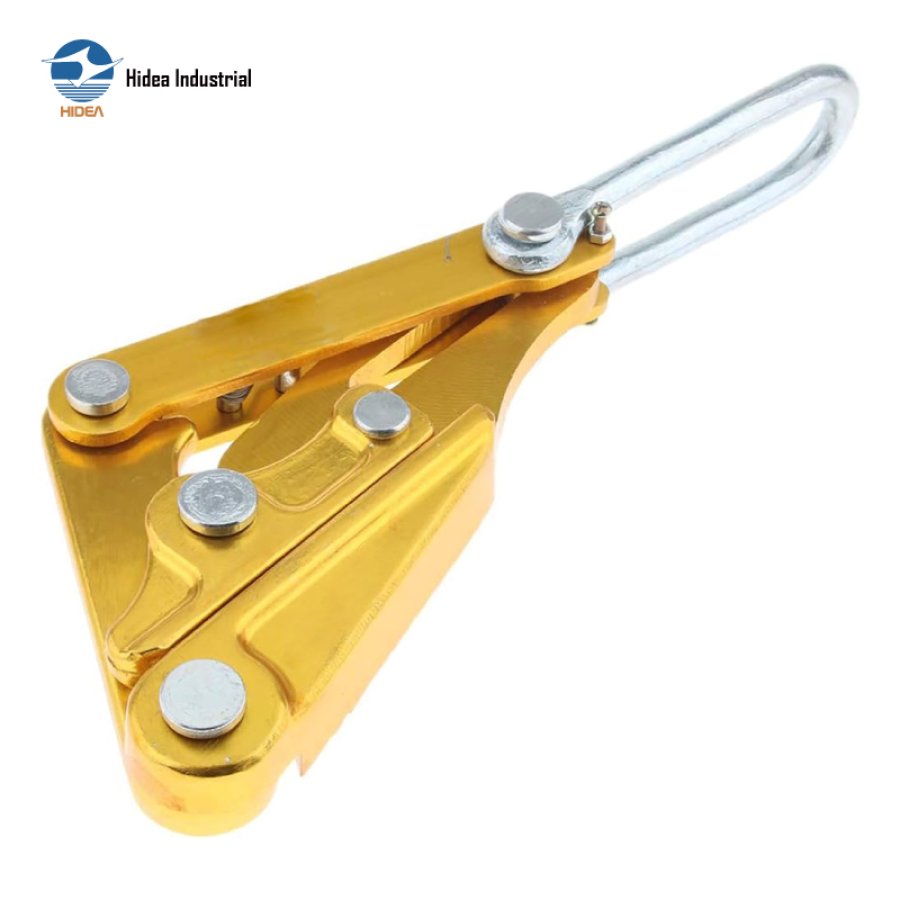

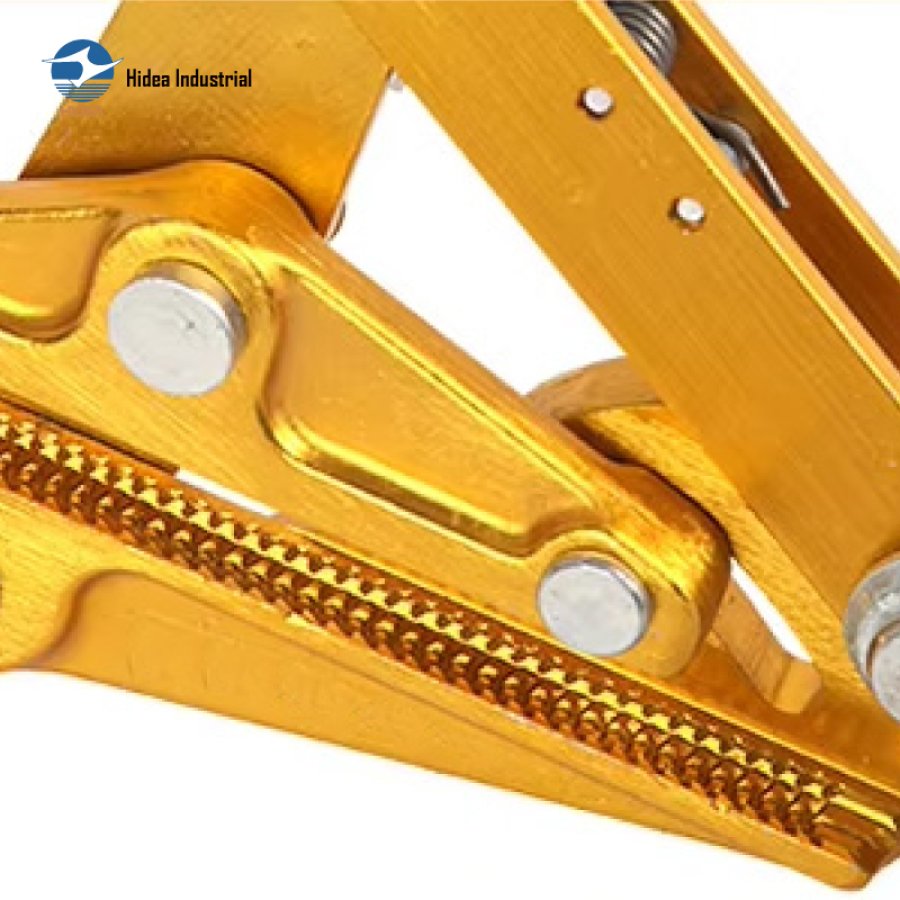

The aluminium-magnesium alloy wire rope insulation grip with jaw teeth, also known grounding cable adapter or come along clamp, can be used to connect grounding cables or wires to other conductors or grounding components, it can be used widely in industries such as construction, telecommunications and power engineering etc.
The insulation grips are manufactured from aluminium-magnesium alloy and die forged; the material properties make it lighter as the lowest density among widely used metals while still high tensile and of excellent hardness; rated from 10kN up to 50kN, and with a strand cable application range of GJ25-630 for different sizes

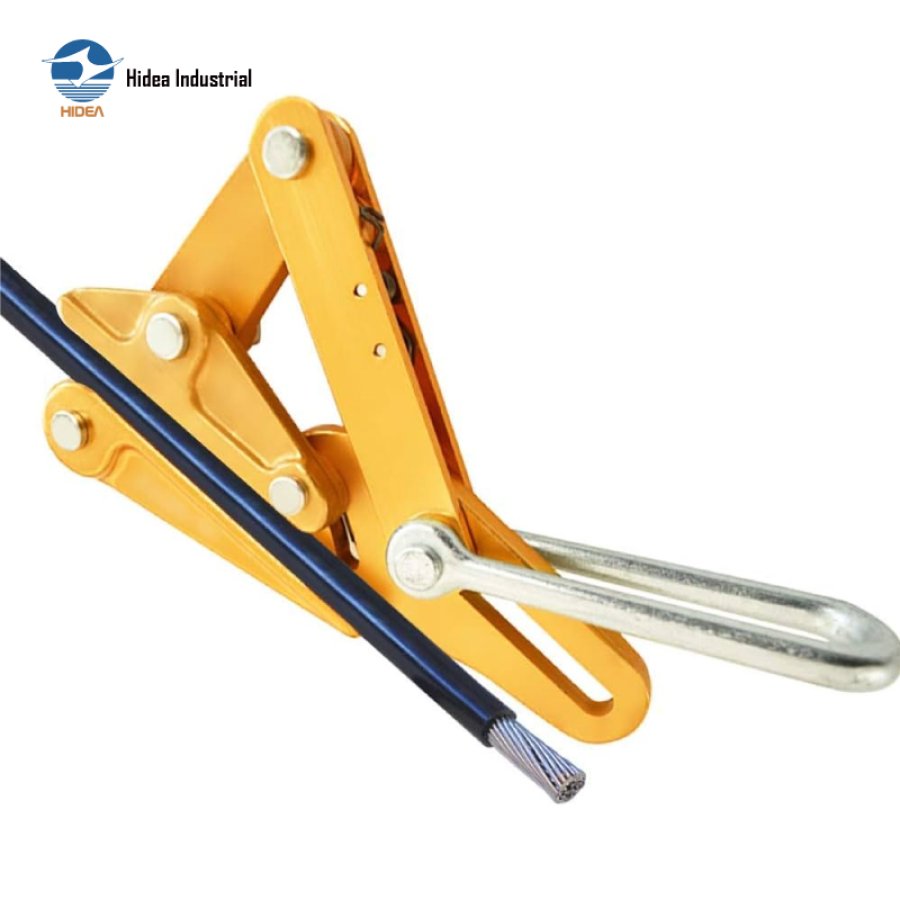

This type of aluminium-magnesium insulation alloy grips with jaw teeth are normally use with conductor wires & cables with insulating layer outside
This type of aluminium-magnesium alloy insulation grips meeting standards of and in conformity with IEC 60900:2004, DIN EN 50143 and other IEC and IEEE norms
QINGDAO HIDEA PARAMETER SHEET FOR
ALUMINIUM-MAGNESIUM ALLOY WIRE ROPE INSULATION
GRIP WITH JAW TEETH

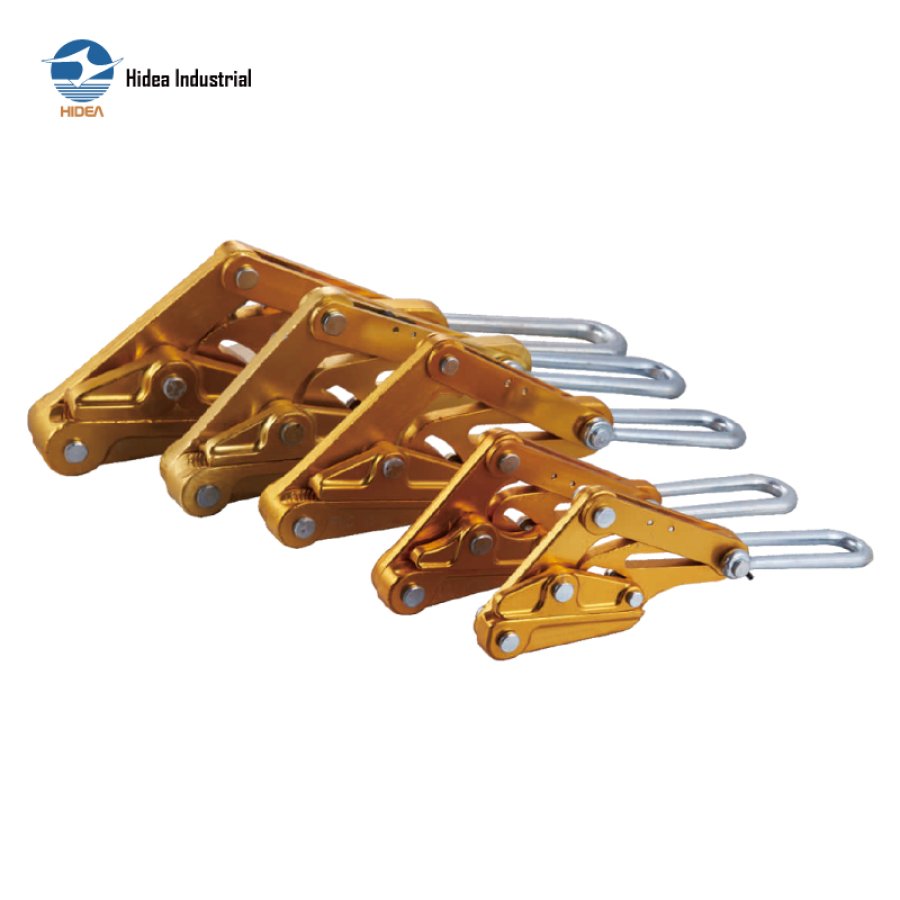

| Part No. | Applied Cable(GJ) | Rated Load(KN) | Grip Range(mm) | N.W. (kg) | ||||
| 60MT-CGT1 | GJ25-70 | 10 | 14 | 1.5 | ||||
| 60MT-CGT2 | GJ95-120 | 15 | 18 | 2.3 | ||||
| 60MT-CGT3 | GJ150-240 | 25 | 24 | 3.4 | ||||
| 60MT-CGT4 | GJ300-400 | 40 | 32 | 5.15 | ||||
| 60MT-CGT5 | GJ500-630 | 50 | 37 | 7 | ||||
