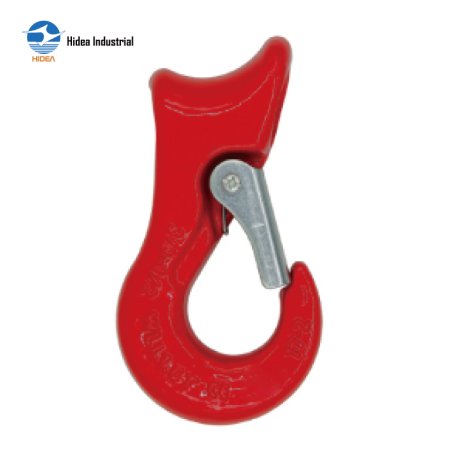

Durable Hidea Grade 80 Sliding Eye Choker Hook for Heavy-Duty Rigging and Securing

G80 SLIDING EYE CHOKER HOOK

Forged super alloy steel-Quenched and Tempered
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection

Inquire Now

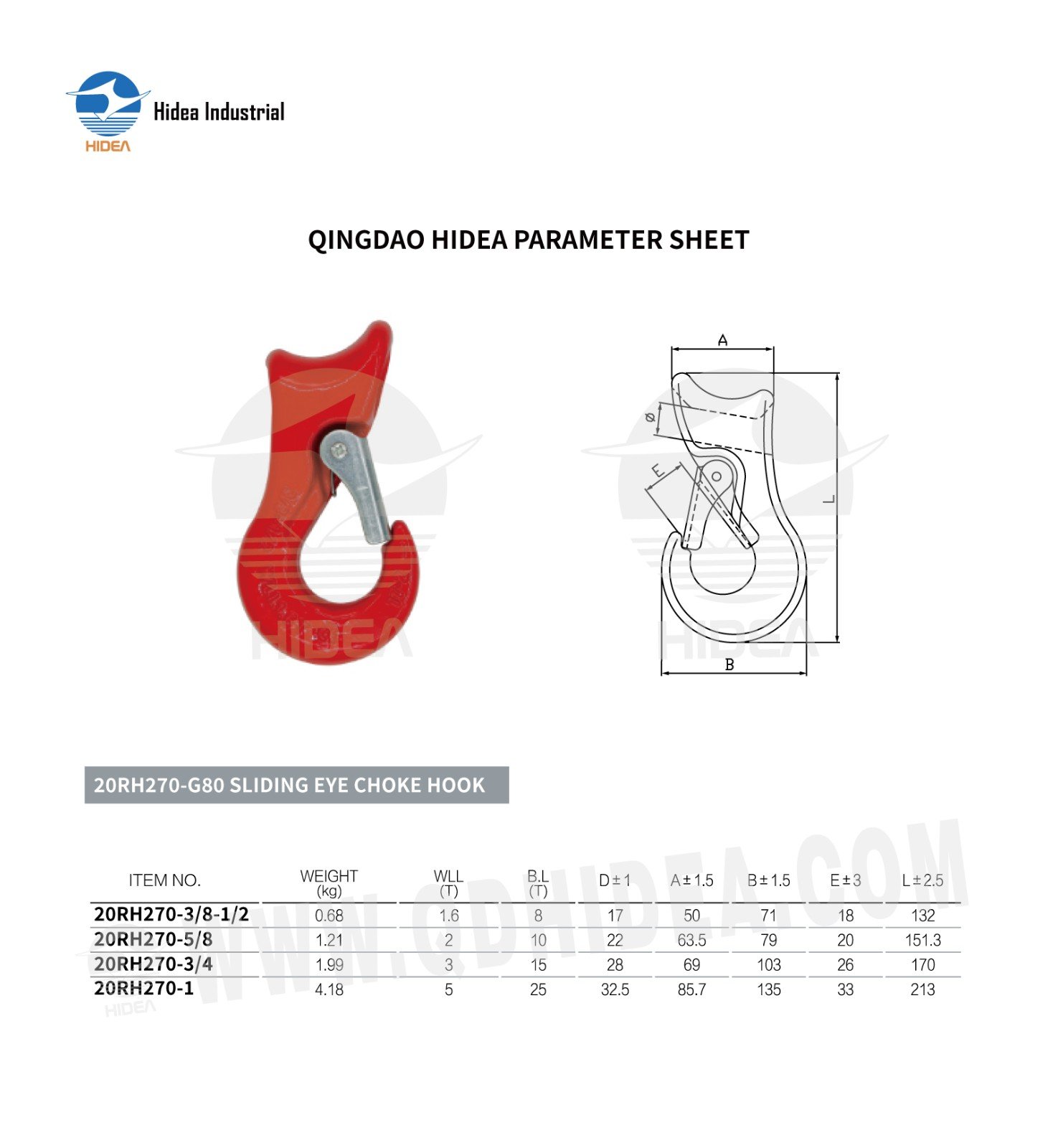

QINGDAO HIDEA PARAMETER SHEET FOR

20RH270-G80 SLIDING EYE CHOKE HOOK

ITEM NO.	WEIGHT (kg)	WLL (T)	B.L (T)	D±1	A±1.5	B±1.5	E±3	L±2.5
20RH270-3/8-1/2	0.68	1.6	8	17	50	71	18	132
20RH270-5/8	1.21	2	10	22	63.5	79	20	151.3
20RH270-3/4	1.99	3	15	28	69	103	26	170
20RH270-1	4.18	5	25	32.5	85.7	135	33	213
