Hidea DIN1478 Hook & Hook Pipe Body Turnbuckle – Perfect for Adjustable Tensioning

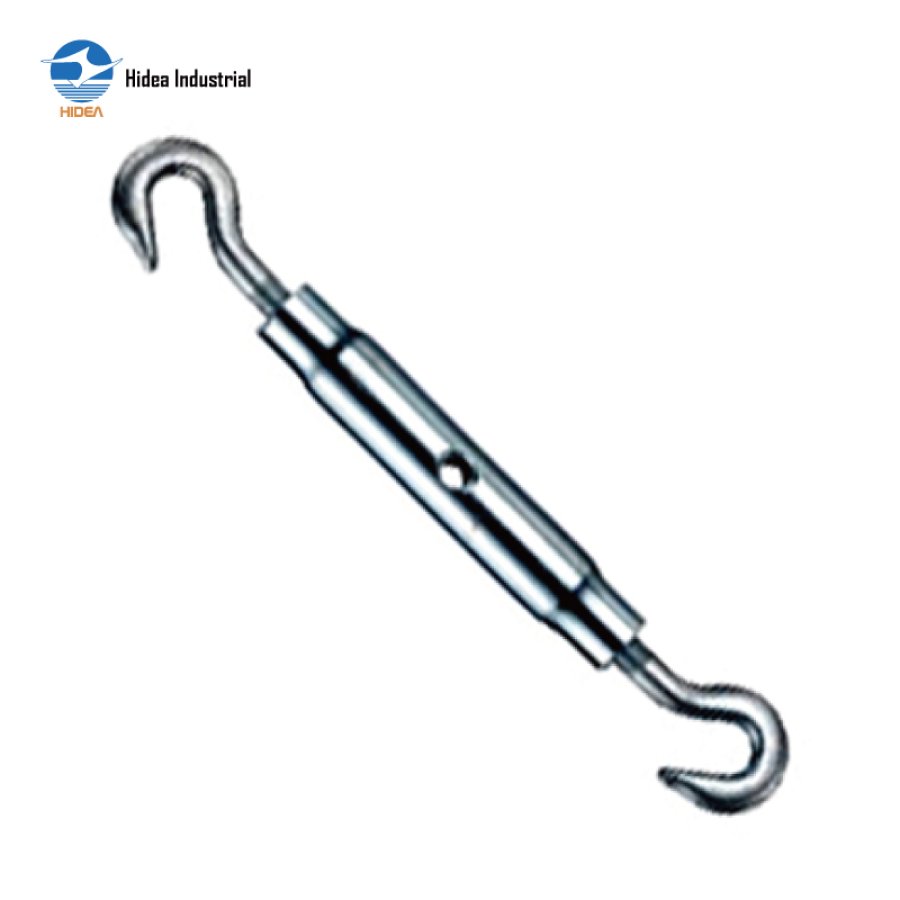

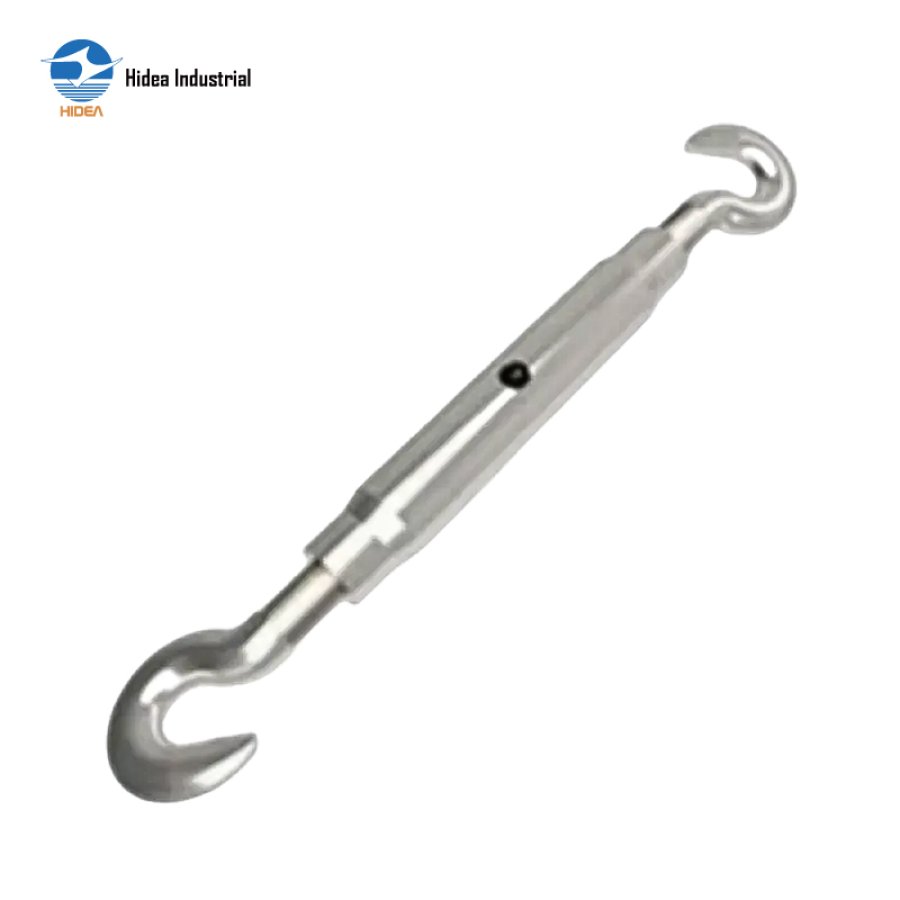

DIN1478 TUBULAR TURNBUCKLE HOOK & HOOK

Material: High tensile seamless steel tube body
Contracted pipe both ends & forged end fittings, quenched & tempered
Proof tested individually & certificate available
Surface hot dip galvanized, electro galv. / zinc plated OR as requested
Din1478 tublar rigging screws tublar / pipe turnbuckles hook & hook type

Inquire Now

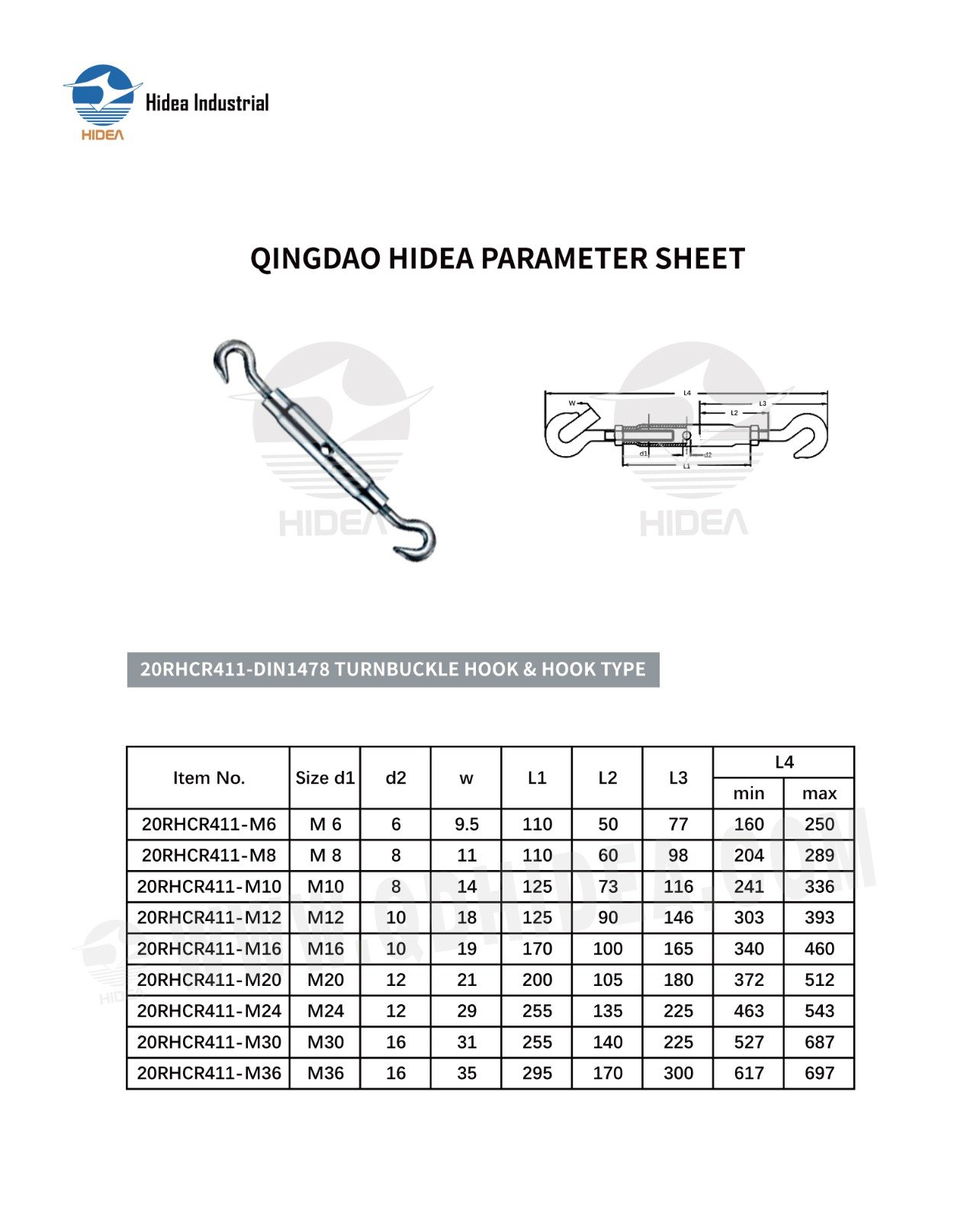

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR411-DIN1478 TURNBUCKLE HOOK&HOOK TYPE

Item No.	Size d1	d2	W	L1	L2	L3	L4
Item No.	Size d1	d2	W	L1	L2	L3	min	max
20RHCR411-M6	M6	6	9.5	110	50	77	160	250
20RHCR411-M8	M8	8	11	110	60	98	204	289
20RHCR411-M10	M10	8	14	125	73	116	241	336
20RHCR411-M12	M12	10	18	125	90	146	303	393
20RHCR411-M16	M16	10	19	170	100	165	340	460
20RHCR411-M20	M20	12	21	200	105	180	372	512
20RHCR411-M24	M24	12	29	255	135	225	463	543
20RHCR411-M30	M30	16	31	255	140	225	527	687
20RHCR411-M36	M36	16	35	295	170	300	617	697
