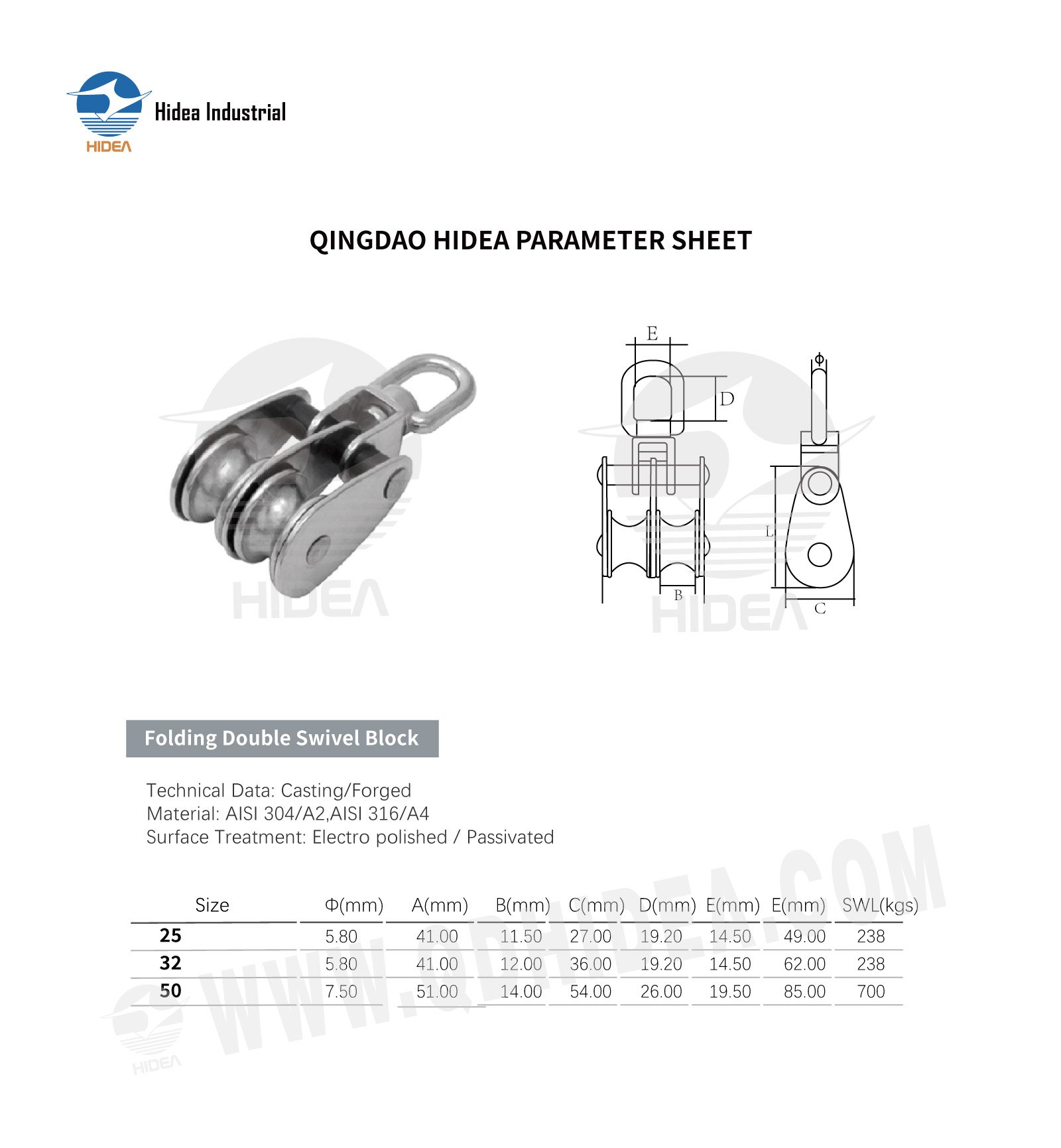

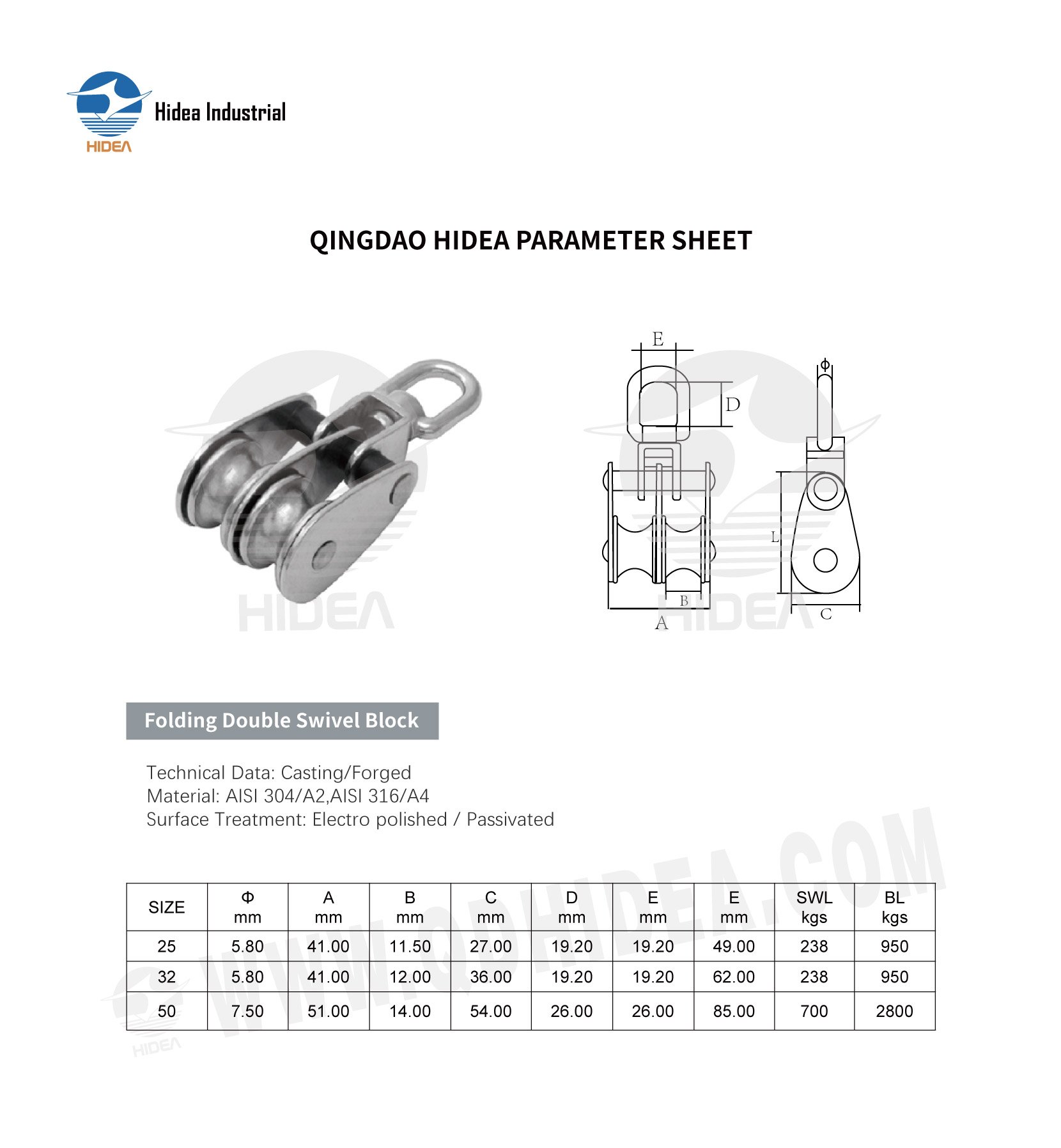

QINGDAO HIDEA PARAMETER SHEET FOR

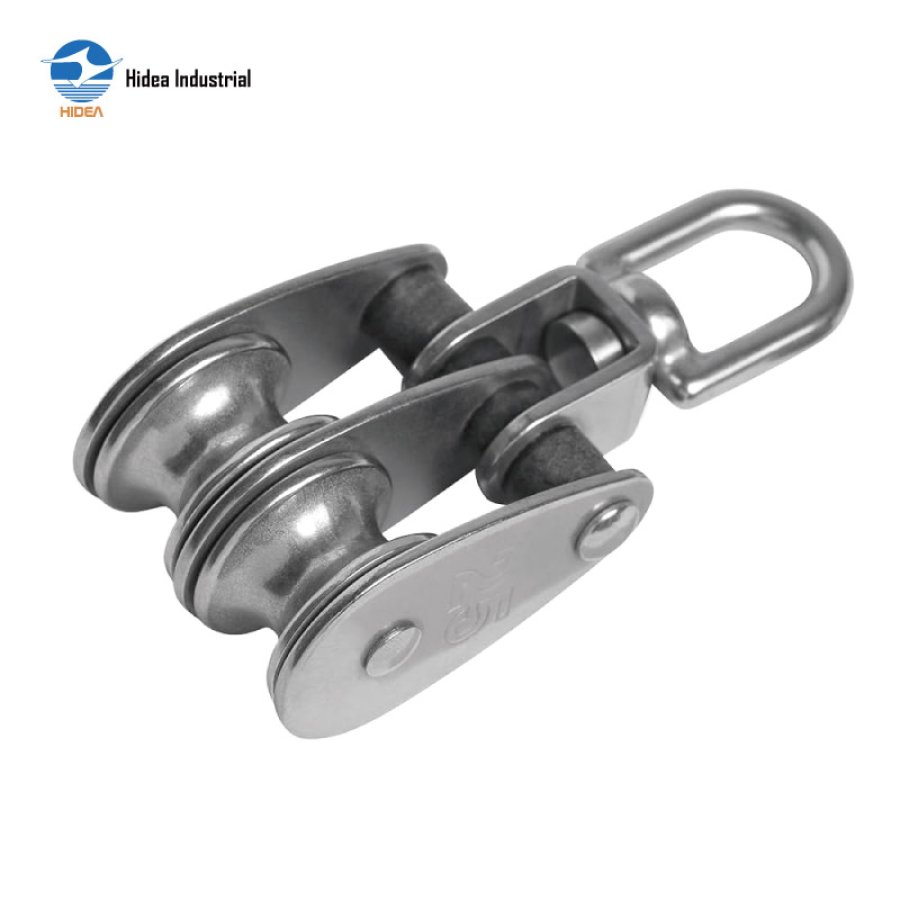

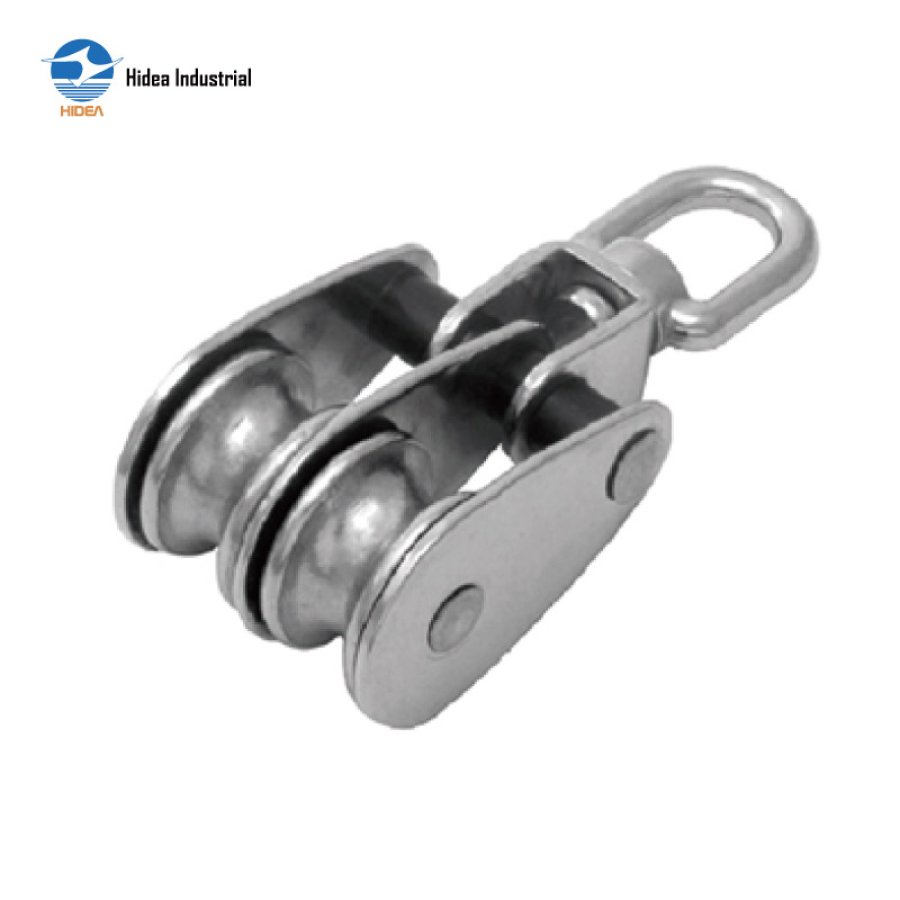

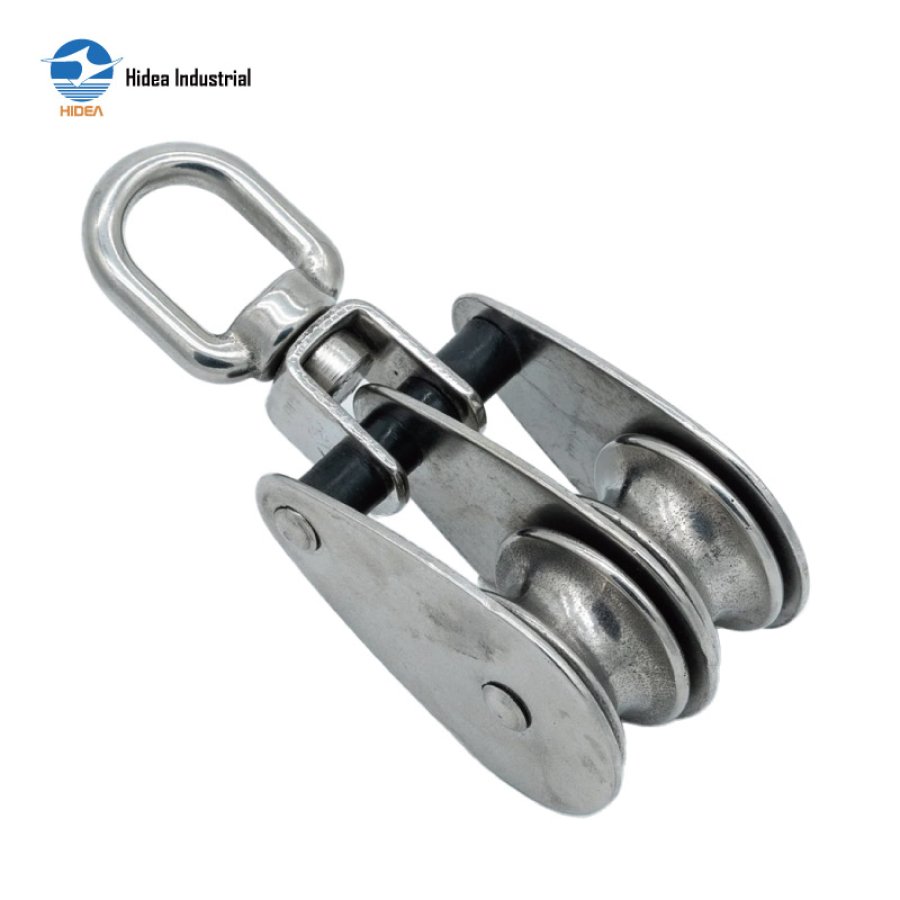

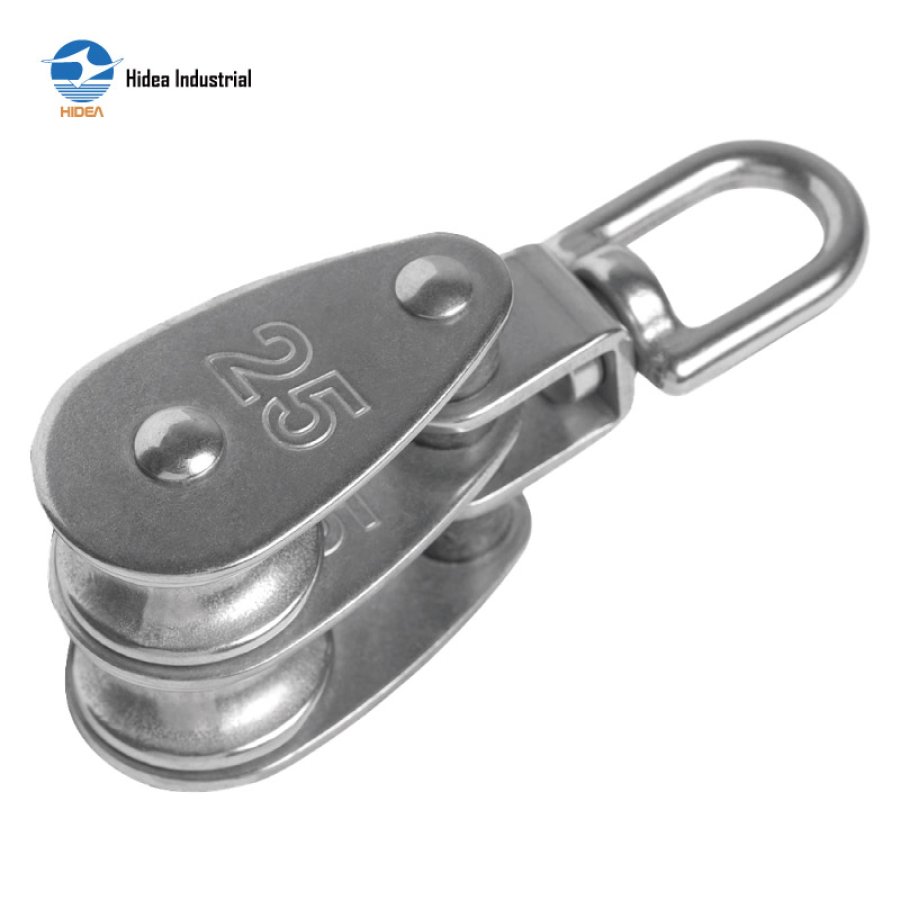

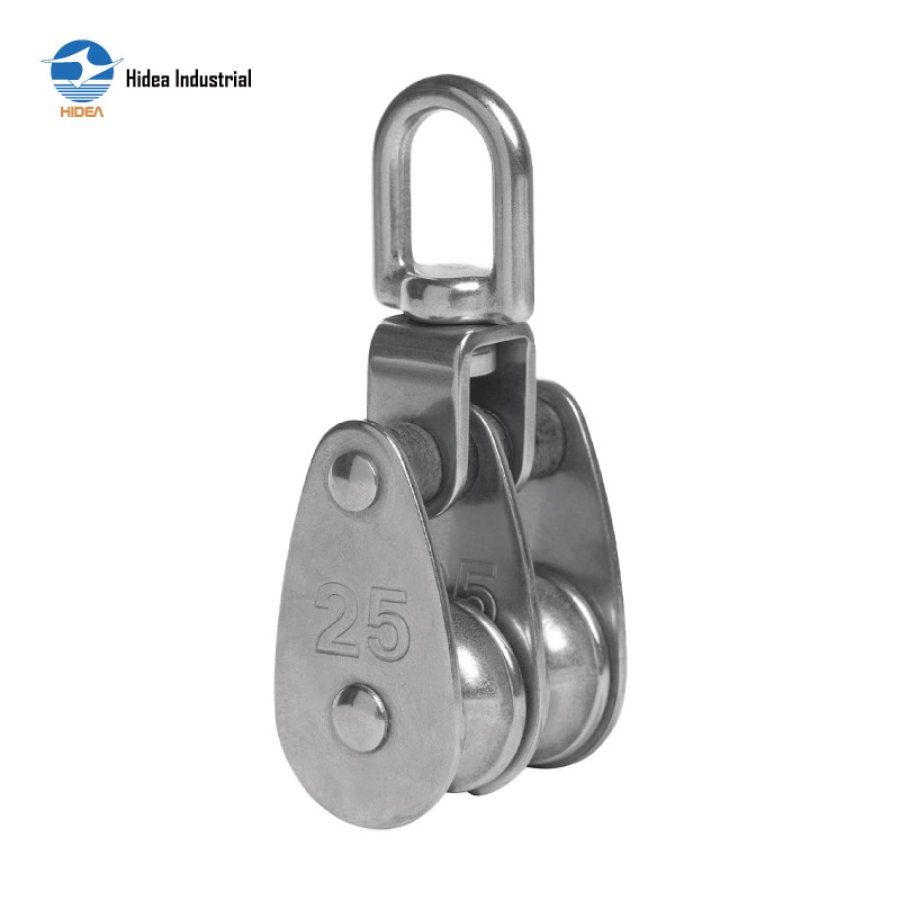

Folding Double Swivel Block
| Size | Φ(mm) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | E(mm) | SWL(kgs) |
| 25 | 5.80 | 41.00 | 11.50 | 27.00 | 19.20 | 14.50 | 49.00 | 238 |
| 32 | 5.80 | 41.00 | 12.00 | 36.00 | 19.20 | 14.50 | 62.00 | 238 |
| 50 | 7.50 | 51.00 | 14.00 | 54.00 | 26.00 | 19.50 | 85.00 | 700 |
