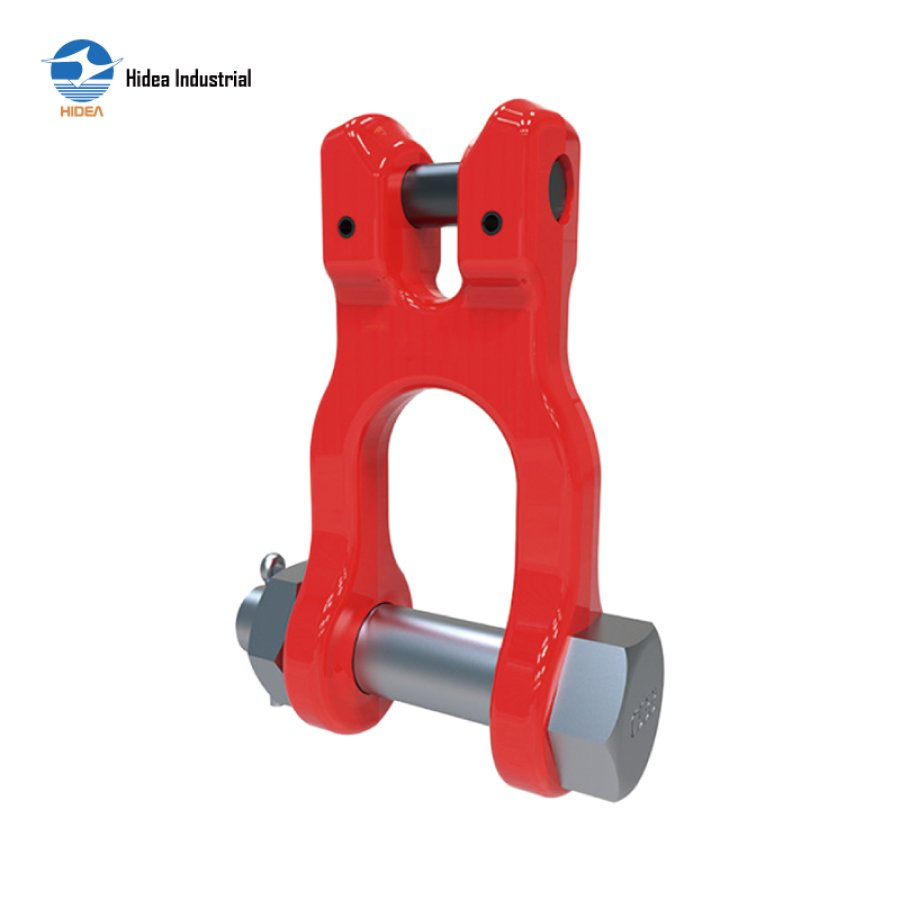

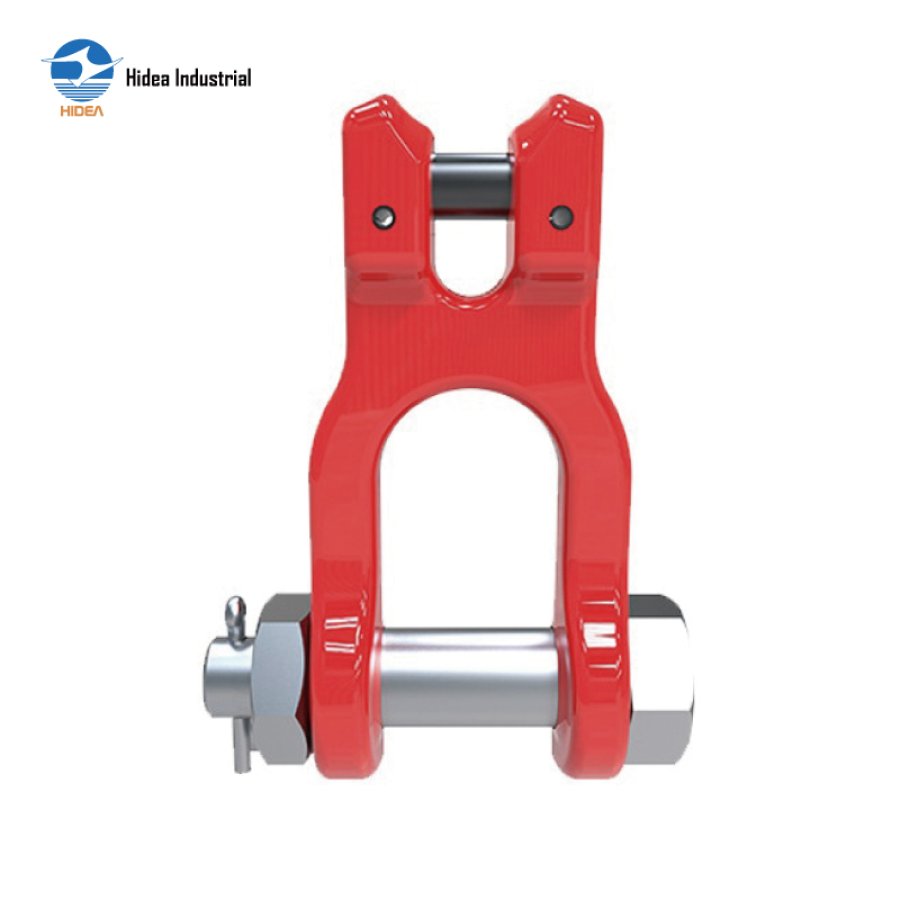

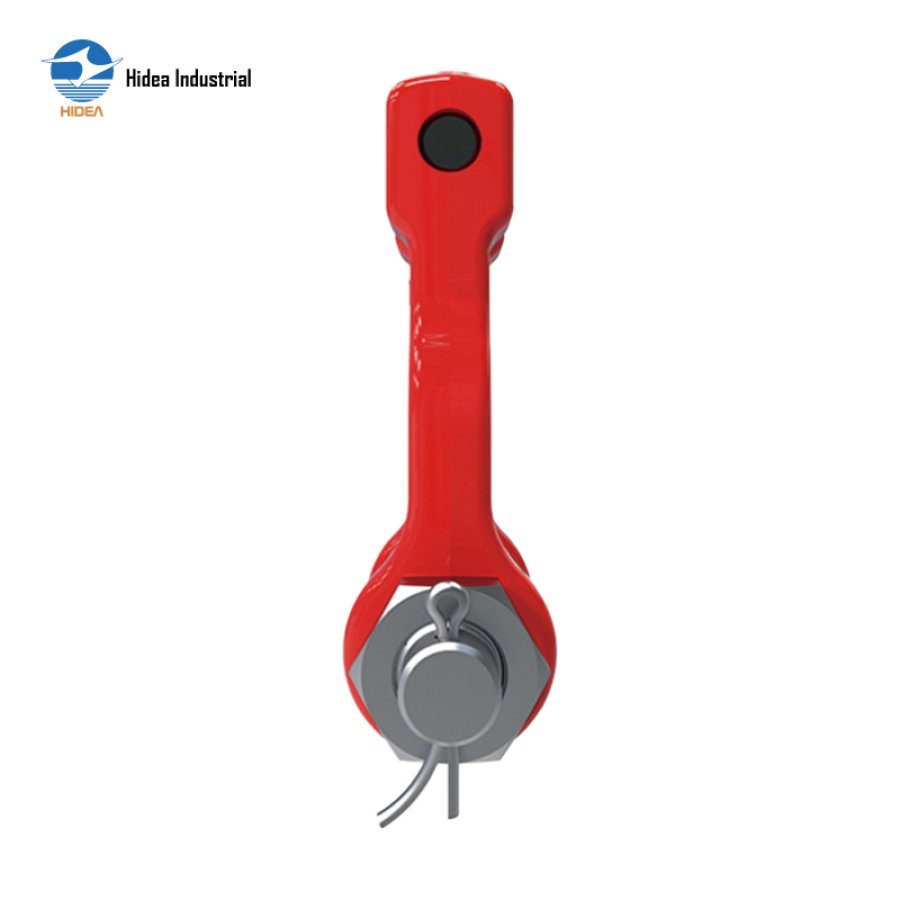

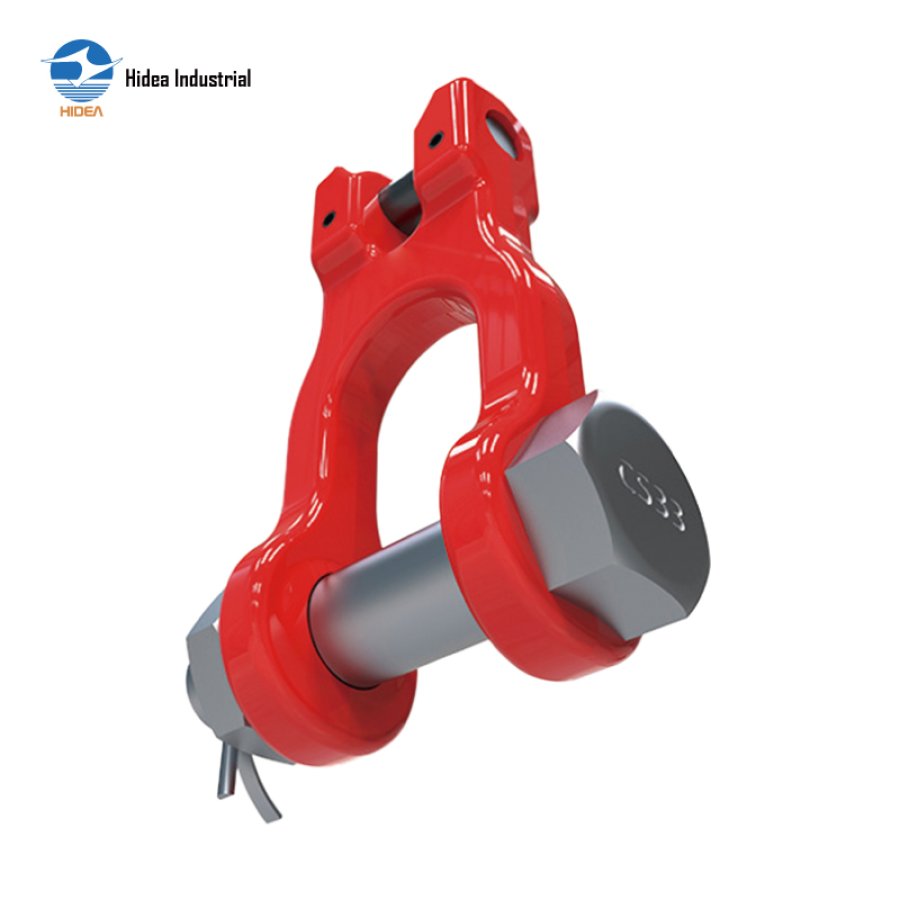

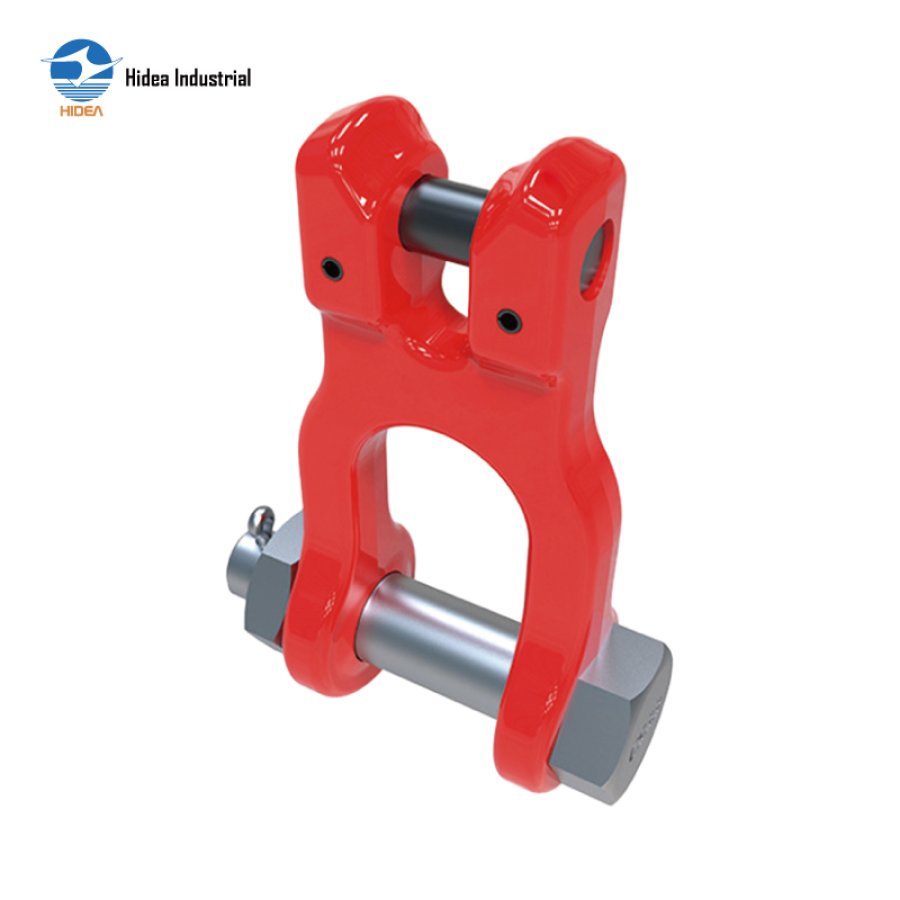

Robust Hidea G80 Double Clevis Chain Link for Safe, High-Strength Load Handling and Rigging

G80 DOUBLE CLEVIS CHAIN LINK

Forged super alloy steel-Quenched and Tempered
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection

Inquire Now

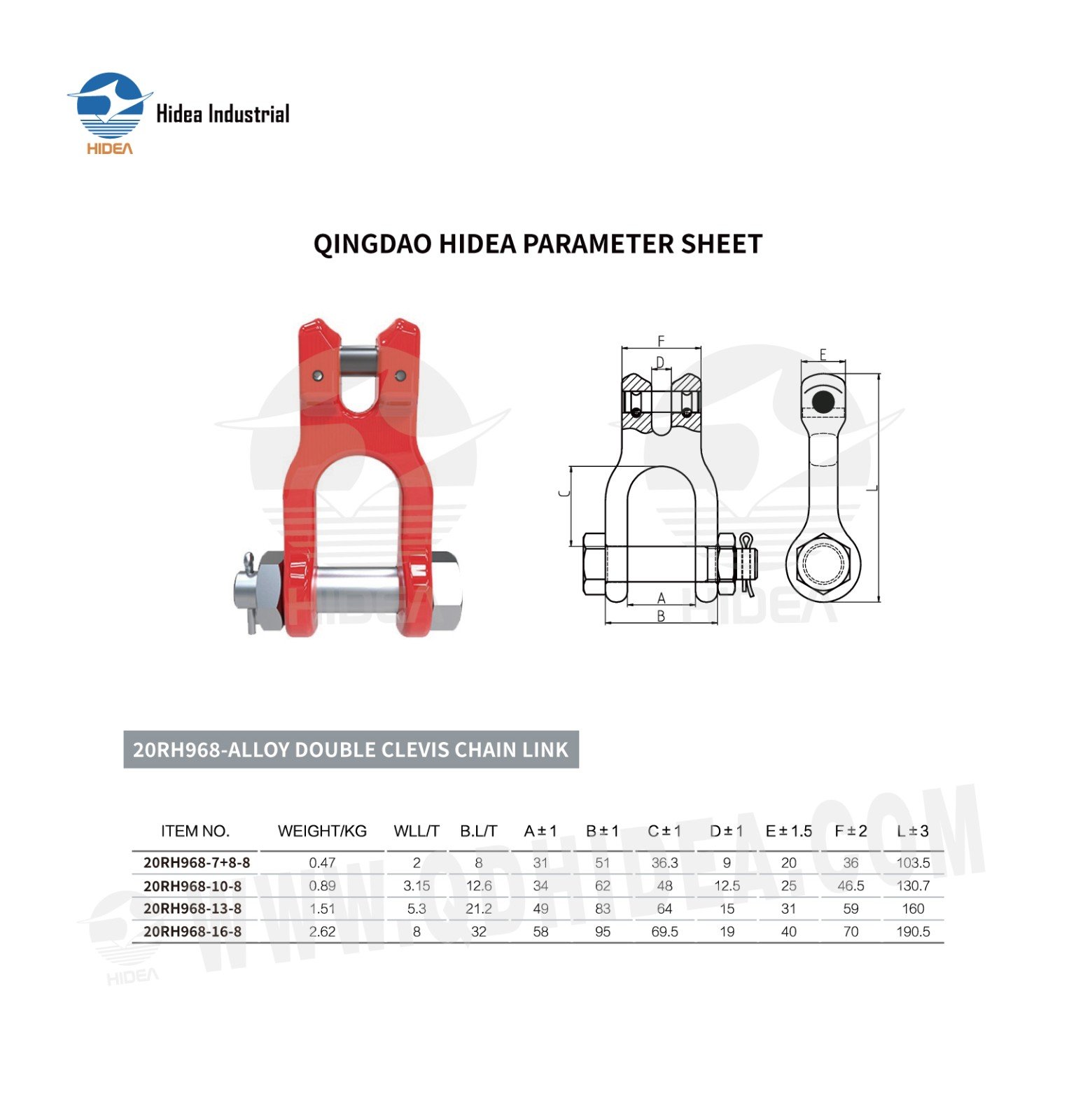

QINGDAO HIDEA PARAMETER SHEET FOR

20RH968-ALLOY DOUBLE CLEVIS CHAIN LINK

ITEM NO.	WEIGHT/KG	WLL/T	B.L/T	A±1	B±1	C±1	D±1	E±1.5	F±2	L±3
20RH968-7+8-8	0.47	2	8	31	51	36.3	9	20	36	103.5
20RH968-10-8	0.89	3.15	12.6	34	62	48	12.5	25	46.5	130.7
20RH968-13-8	1.51	5.3	21.2	49	83	64	15	31	59	160
20RH968-16-8	2.62	8	32	58	95	69.5	19	40	70	190.5
