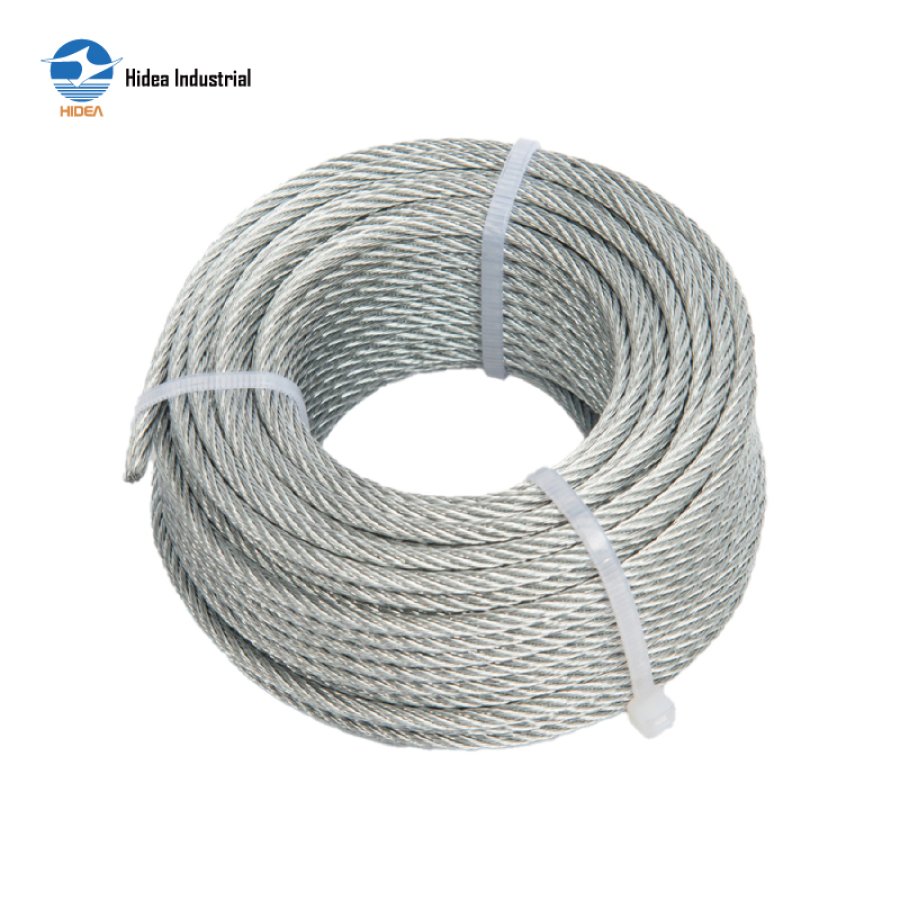

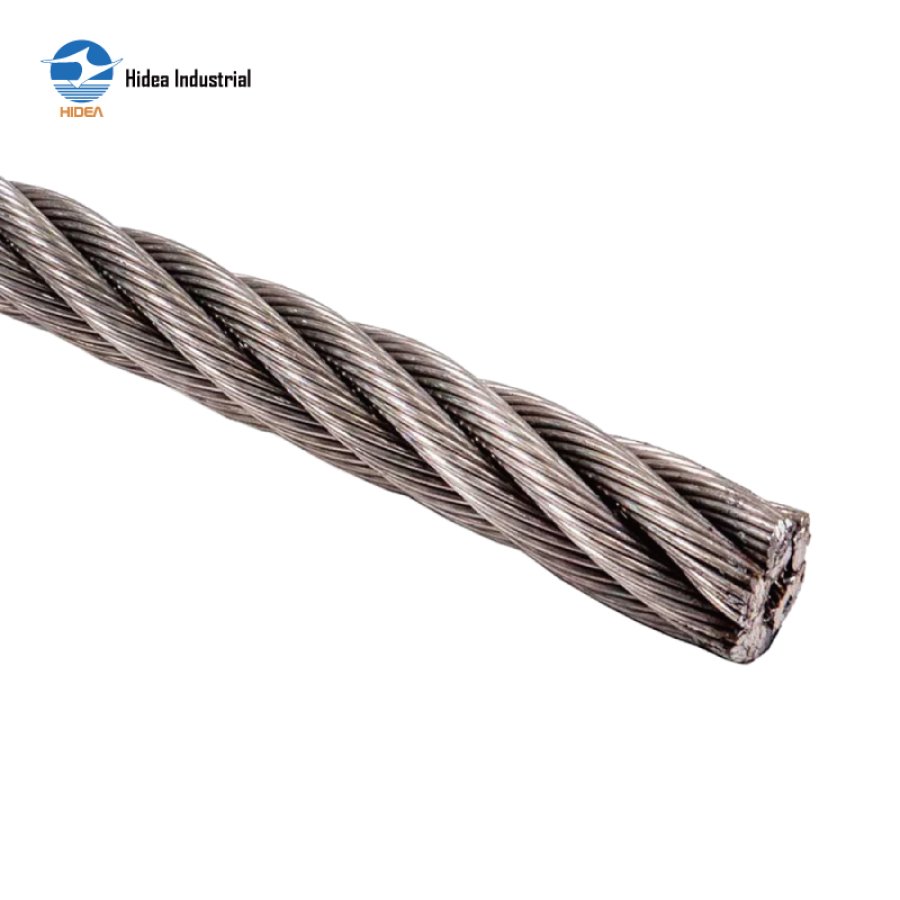

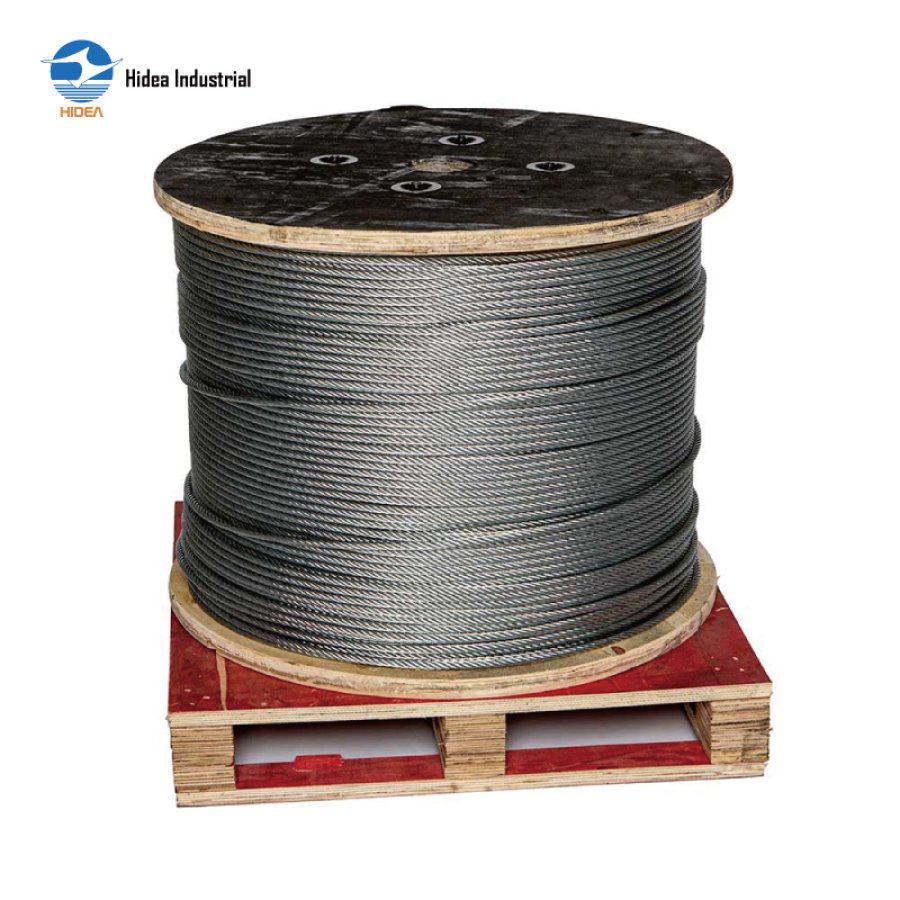

General Purpose Wire Rope 6xS(19)+ FC / 6xW(19)+ FC; 6xS(19)+ IWRC / 6xW(19)+ IWRC
Surface Electro Galv. / zinc plated OR as requested
Standard GB/T 20118-2006/GB 8918-2006 / BS EN 12385-4

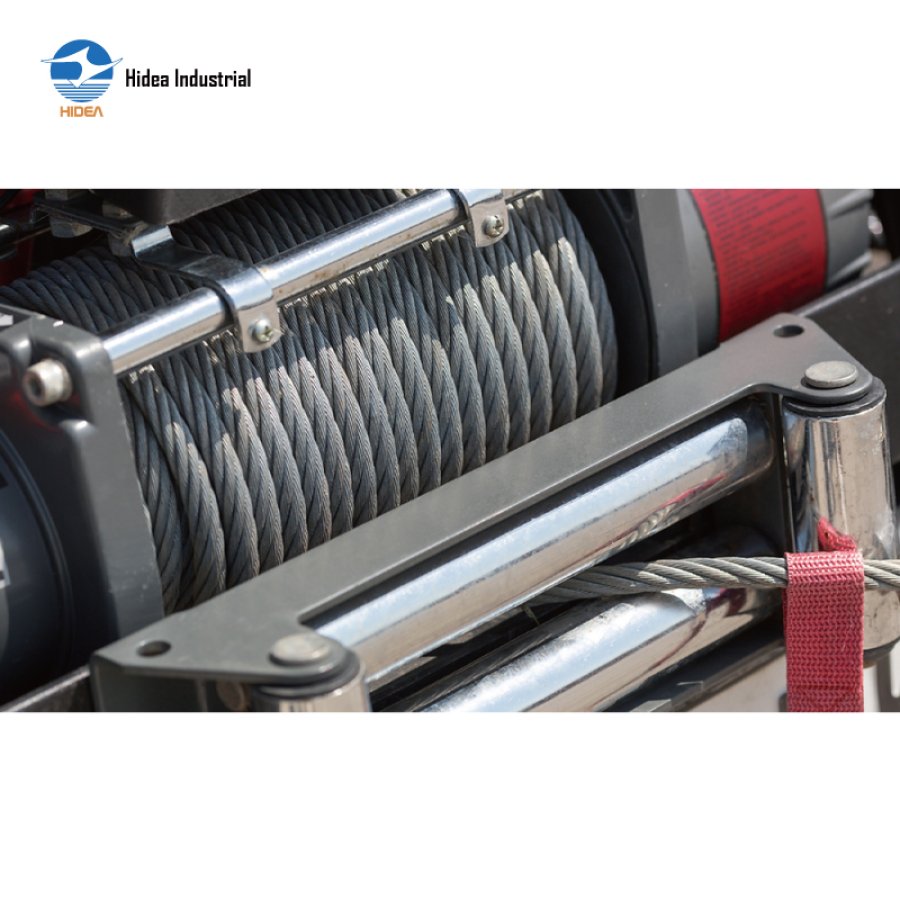

Application / Usage: Hoist, General Industry, Crane, Mine Lifting, High-furnace Hoisting, Oil Drilling, Excavator, Marine
QINGDAO HIDEA PARAMETER SHEET FOR
GENERAL PURPOSE WIRE ROPES 6xS(19)/6xW(19)

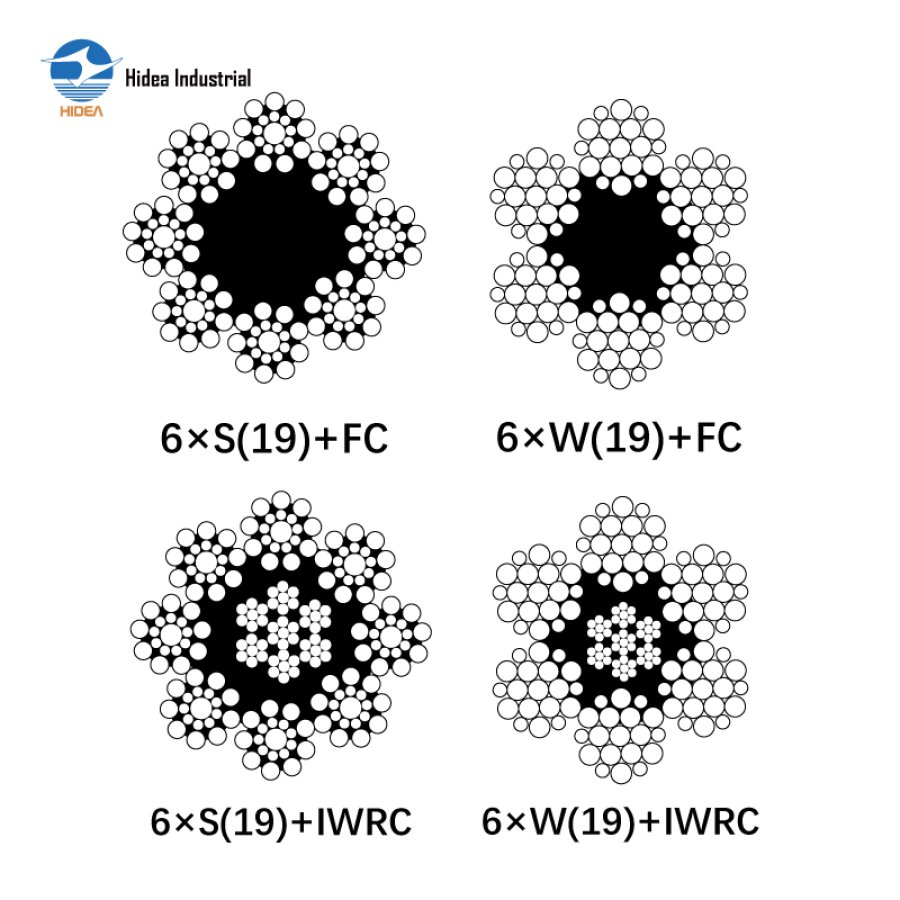

| 6×S(19)+FC 6×W(19)+FC | ||||||||||
| Diameter mm | GB/T 20118-2006/GB 8918-2006 | EN 12385-4 | ||||||||
| Min.Breaking Load(Kg) | Approx. Weight (Kg/100m) | Min.Breaking Load(Kg) | Approx. Weight (Kg/100m) | |||||||
| 1670N/Mmm | 770N/Mmm | 1770N/Mmm | 1960 N/Mmm | |||||||
| 6 | 19.80 | 21.00 | 13.30 | 21.00 | 23.30 | 12.90 | ||||
| 7 | 27.00 | 28.60 | 18.10 | 28.60 | 31.70 | 17.60 | ||||
| 8 | 35.30 | 37.40 | 23.60 | 37.40 | 41.40 | 23.00 | ||||
| 9 | 44.60 | 47.30 | 29.90 | 47.30 | 52.40 | 29.10 | ||||
| 10 | 55.10 | 58.40 | 36.90 | 58.40 | 64.70 | 35.90 | ||||
| 11 | 66.70 | 70.70 | 44.60 | 70.70 | 78.30 | 43.30 | ||||
| 12 | 79.40 | 84.10 | 53.10 | 84.10 | 93.10 | 51.70 | ||||
| 13 | 93.10 | 98.70 | 62.30 | 98.70 | 109.00 | 60.70 | ||||
| 14 | 108.00 | 114.00 | 72.20 | 114.00 | 127.00 | 70.40 | ||||
| 16 | 141.00 | 150.00 | 94.40 | 150.00 | 166.00 | 91.90 | ||||
| 18 | 179.00 | 189.00 | 119.00 | 189.00 | 210.00 | 116.00 | ||||
| Usage: | 20 | 220.00 | 234.00 | 147.00 | 234.00 | 259.00 | 144.00 | |||
| 22 | 267.00 | 283.00 | 178.00 | 283.00 | 313.00 | 174.00 | ||||
| Hoist,General Industry, | 24 | 317.00 | 336.00 | 212.00 | 336.00 | 373.00 | 207.00 | |||
| Crane,Mine Lifting, | 26 | 373.00 | 395.00 | 249.00 | 395.00 | 437.00 | 243.00 | |||
| High-furnace Hoisting, | ||||||||||
| Oil Drilling.Excavator, | 28 | 432.00 | 458.00 | 289.00 | 458.00 | 507.00 | 281.00 | |||
| Marine | 32 | 564.00 | 598.00 | 377.00 | 598.00 | 662.00 | 368.00 | |||
| 6×S(19)+IWRC 6×W(19)+IWRC | ||||||||||
| Diameter mm | GB/T 20118-2006/GB 8918-2006 | EN 12385-4 | ||||||||
| Min.Breaking Load(Kg) | Approx Weight (Kg/100m) | Min.Breaking Load(Kg) | Approx. Weight (Kg/100m) | |||||||
| 1670N/Mmm | 1770N/Mmm | 1770N/Mmm | 1960N/Mmm | |||||||
| 6 | 21.40 | 22.70 | 14.60 | 22.70 | 25.10 | 14.40 | ||||
| 7 | 29.10 | 30.90 | 19.90 | 30.90 | 34.20 | 19.60 | ||||
| 8 | 38.00 | 40.30 | 25.90 | 40.30 | 44.70 | 25.60 | ||||
| 9 | 48.20 | 51.00 | 32.80 | 51.00 | 56.50 | 32.40 | ||||
| 10 | 59.50 | 63.00 | 40.60 | 63.00 | 69.80 | 40.00 | ||||
| 11 | 71.90 | 76.20 | 49.10 | 76.20 | 84.40 | 48.40 | ||||
| 12 | 85.60 | 90.70 | 58.40 | 90.70 | 100.00 | 57.60 | ||||
| 13 | 100.00 | 106.00 | 68.50 | 106.00 | 118.00 | 67.60 | ||||
| 14 | 117.00 | 124.00 | 79.50 | 124.00 | 137.00 | 78.40 | ||||
| 16 | 152.00 | 161.00 | 104.00 | 161.00 | 179.00 | 102.00 | ||||
| 18 | 193.00 | 204.00 | 131.00 | 204.00 | 226.00 | 130.00 | ||||
| 20 | 238.00 | 252.00 | 16200 | 252.00 | 279.00 | 160.00 | ||||
| Usage: | 22 | 288.00 | 305.00 | 19600 | 305.00 | 338.00 | 194.00 | |||
| Hoist,General Industry, | 24 | 342.00 | 363.00 | 234.00 | 363.00 | 402.00 | 230.00 | |||
| Crane,Mine Lifting. | 26 | 402.00 | 426.00 | 274.00 | 426.00 | 472.00 | 270.00 | |||
| High-furnace Hoisting, | 28 | 466.00 | 494.00 | 318.00 | 494.00 | 547.00 | 314.00 | |||
| Oil Drilling,Excavator, | 32 | 609.00 | 645.00 | 415.00 | 645.00 | 715.00 | 410.00 | |||
| Marine | ||||||||||
