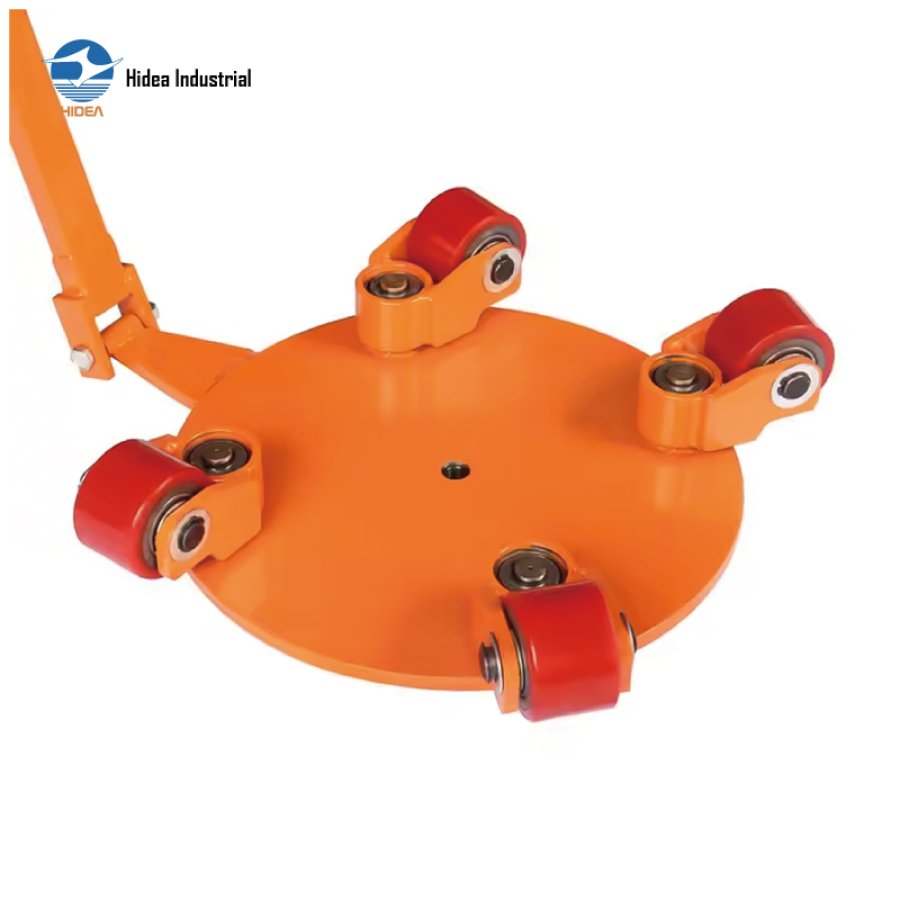

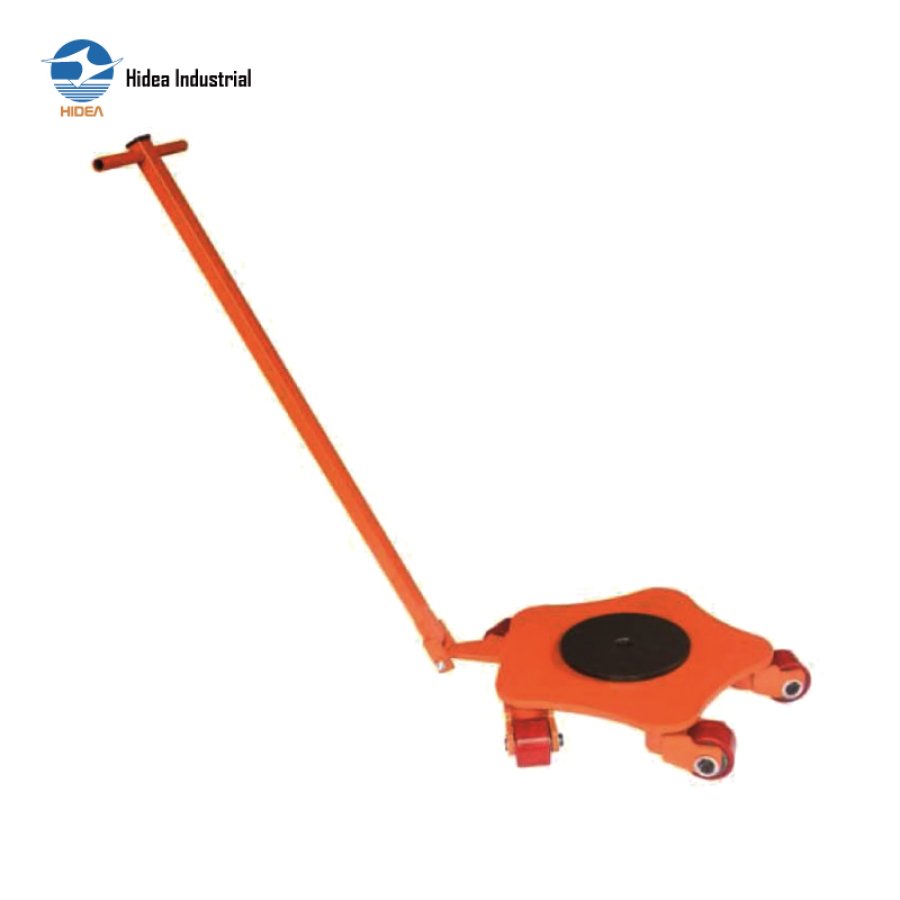

The CRP universal floor tank is a kind of 360 degrees turnable and rotational tank, it can move and rotate heavy loads in a narrow areas, which is special function of the unique tank item
The unique bearings built in allow the omnidirectional small tank the function of 360-degree arbitrary rotation
Several of the universal tanks can be used at the same time to handle heavy loads so the weight can be distributed reasonably & evenly, for better and safer movement of loads

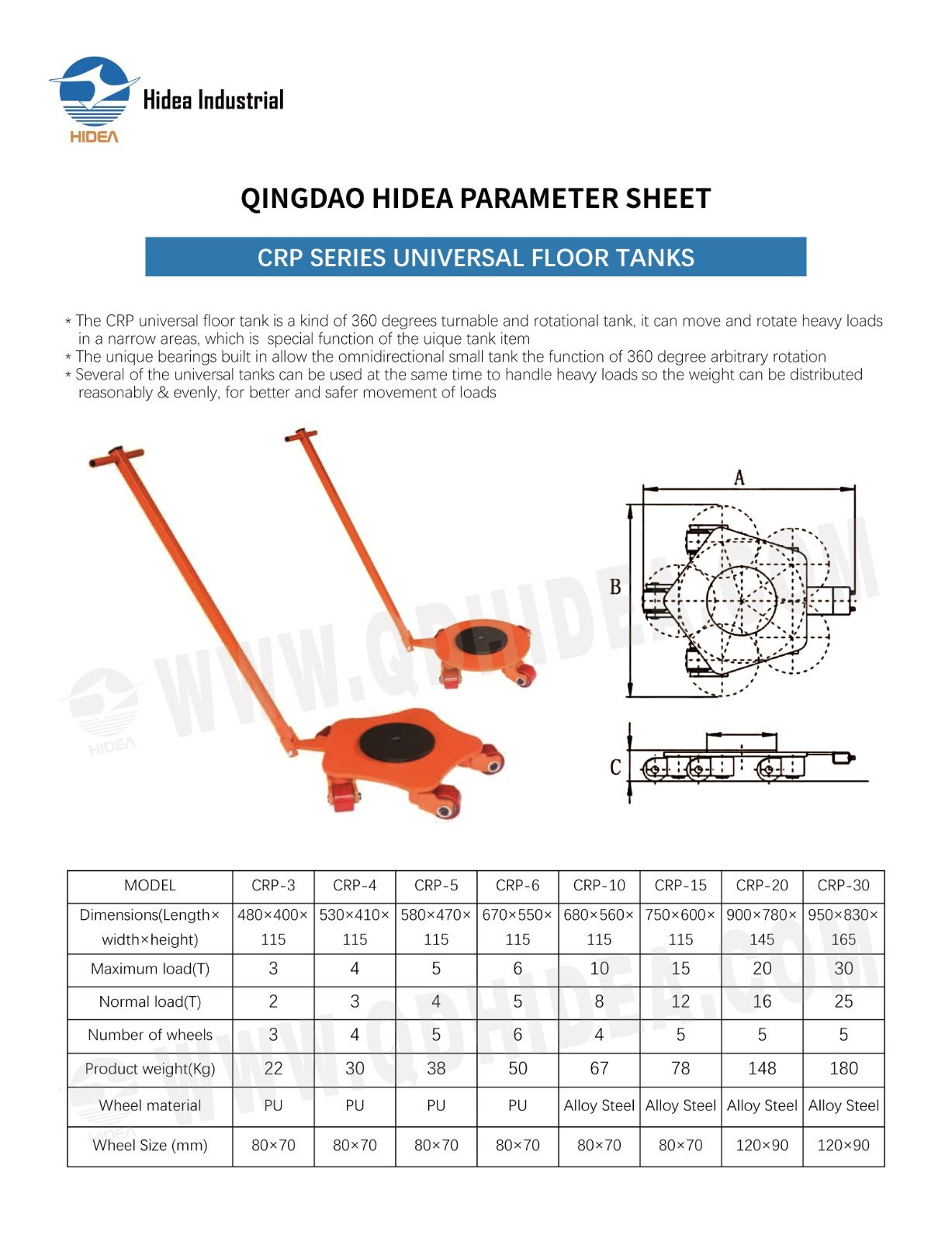

QINGDAO HIDEA PARAMETER SHEET FOR
CRP SERIES UNIVERSAL FLOOR TANKS
| MODEL | CRP-3 | CRP-4 | CRP-5 | CRP-6 | CRP-10 | CRP-15 | CRP-20 | CRP-30 | ||
| Dimensions(Length× width×height) | 480×400× 115 | 530×410× 115 | 580×470× 115 | 670×550× 115 | 680×560× 115 | 750×600× 115 | 900×780× 145 | 950×830× 165 | ||
| Maximum load(T) | 3 | 4 | 5 | 6 | 10 | 15 | 20 | 30 | ||
| Normal load(T) | 2 | 3 | 4 | 5 | 8 | 12 | 16 | 25 | ||
| Number of wheels | 3 | 4 | 5 | 6 | 4 | 5 | 5 | 5 | ||
| Product weight(Kg) | 22 | 30 | 38 | 50 | 67 | 78 | 148 | 180 | ||
| Wheel material | PU | PU | PU | PU | Alloy Steel | Alloy Steel | Alloy Steel | Alloy Stee | ||
| Wheel Size (mm) | 80×70 | 80×70 | 80×70 | 80×70 | 80×70 | 80×70 | 120×90 | 120×90 | ||
