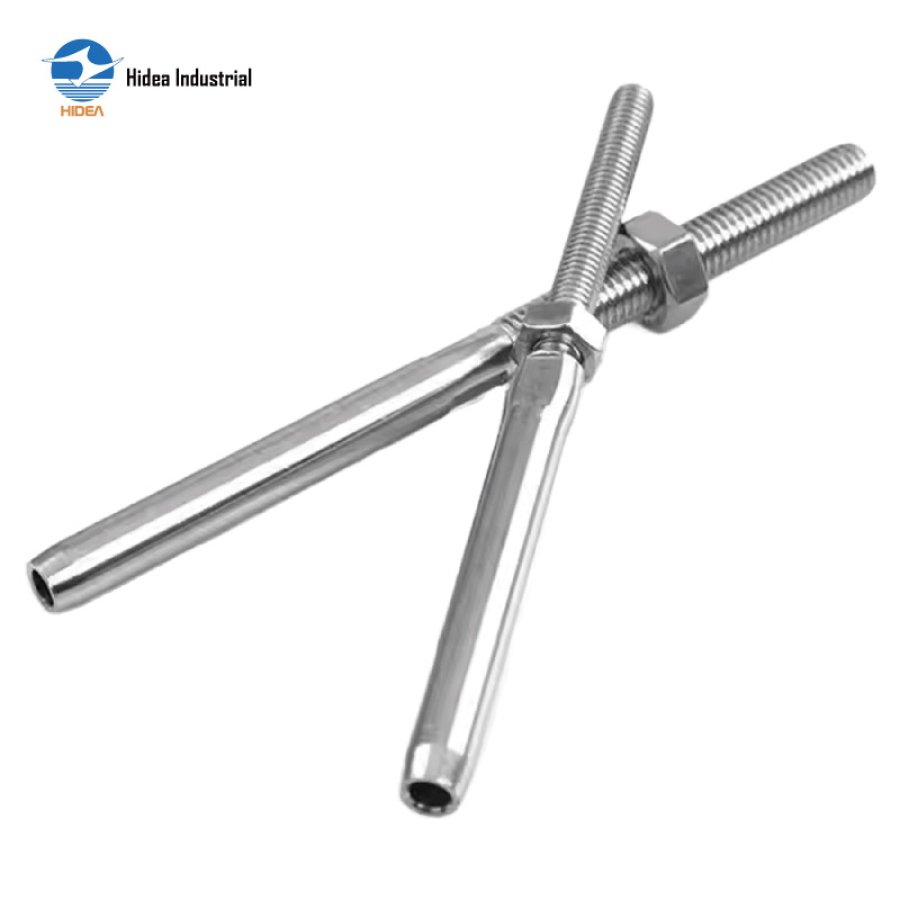

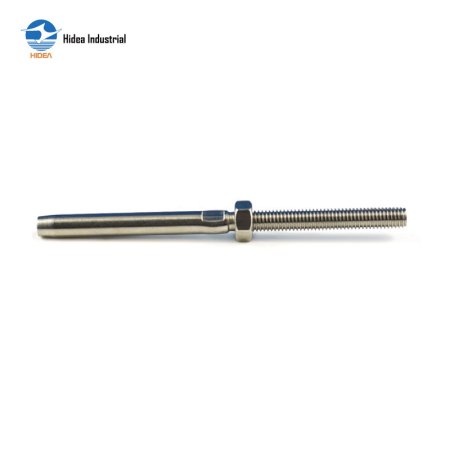

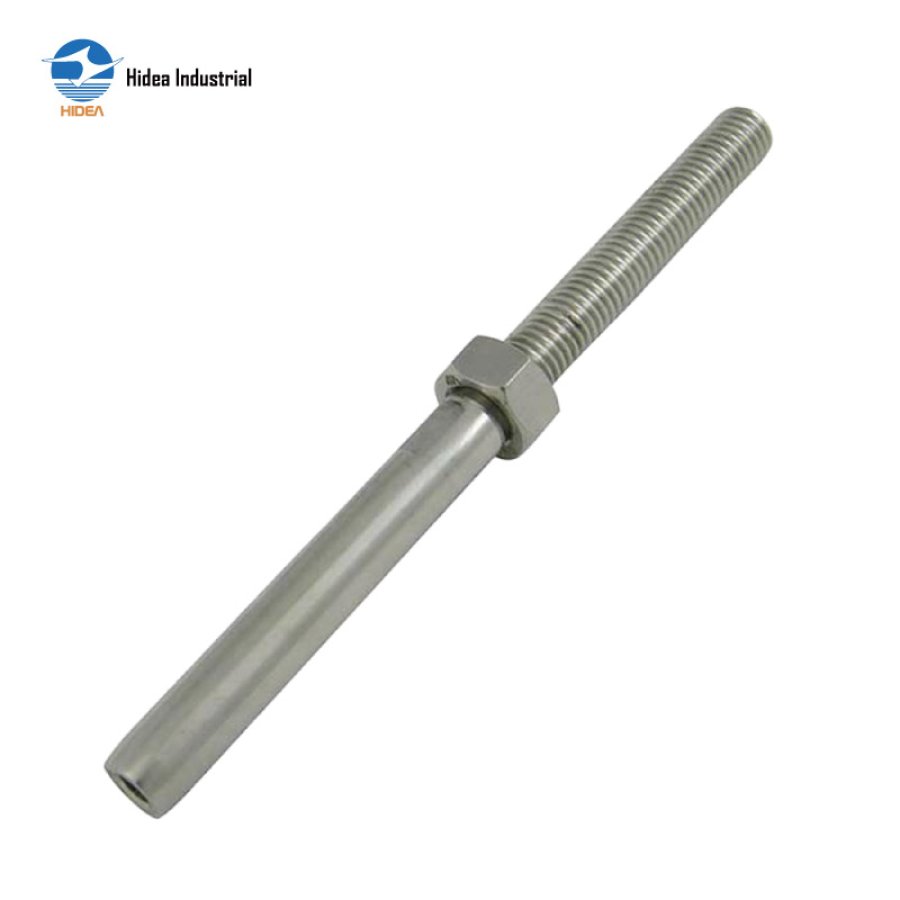

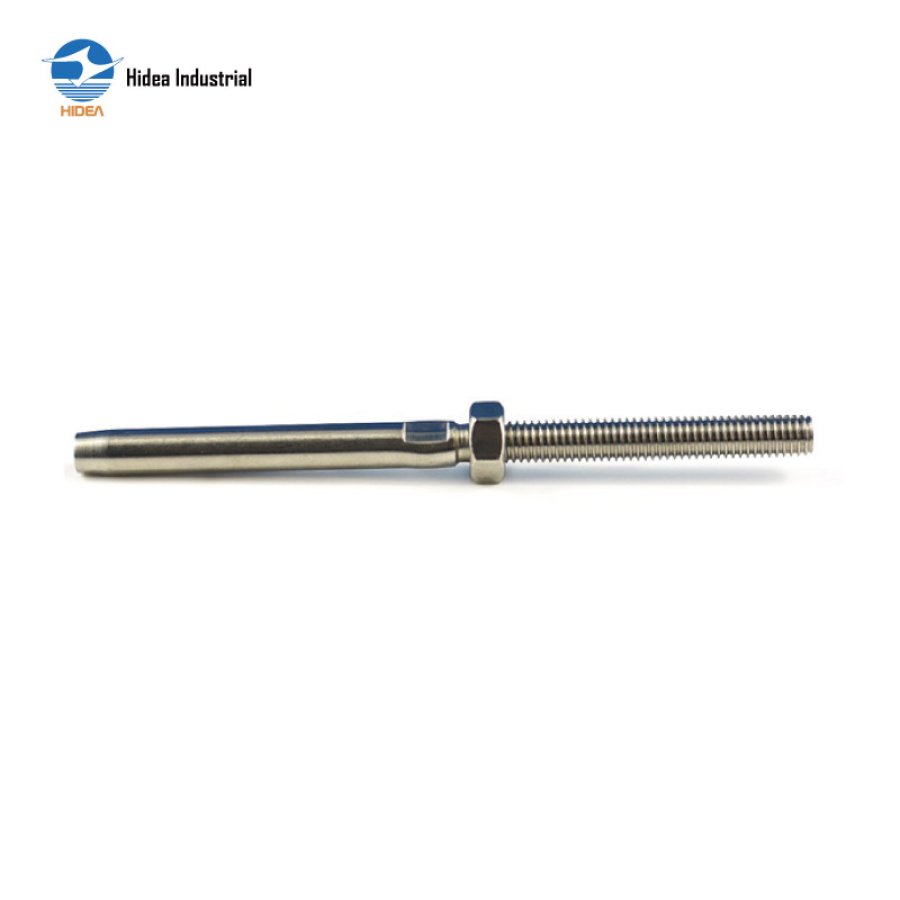

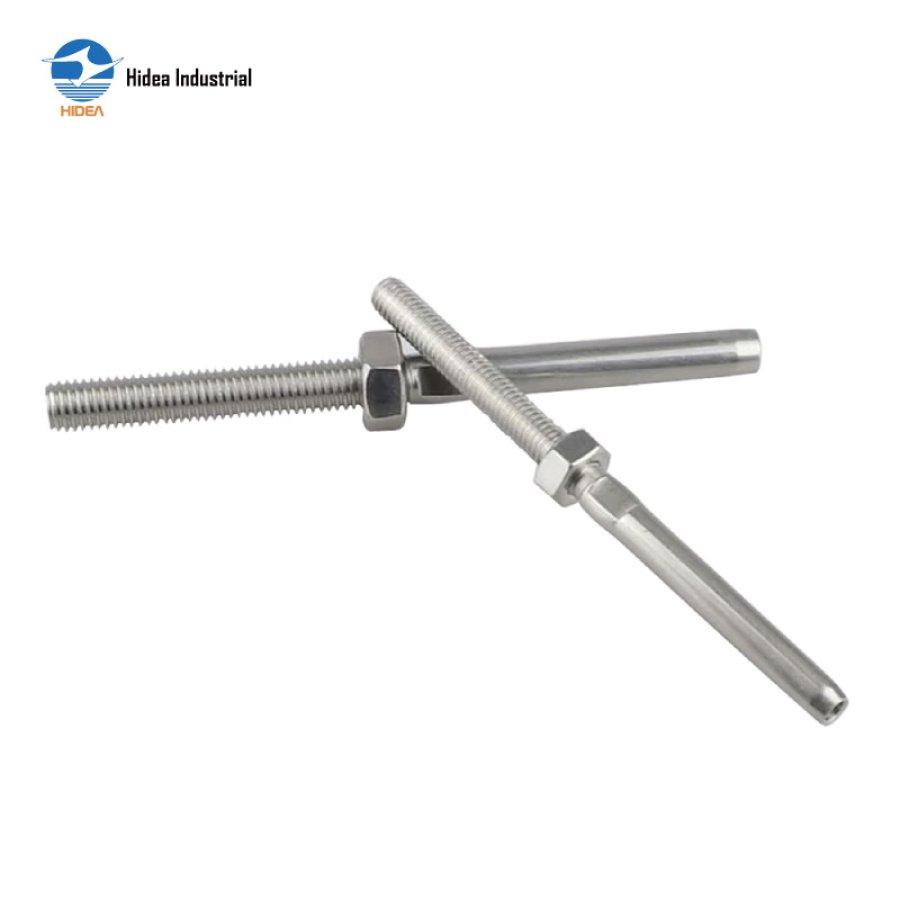

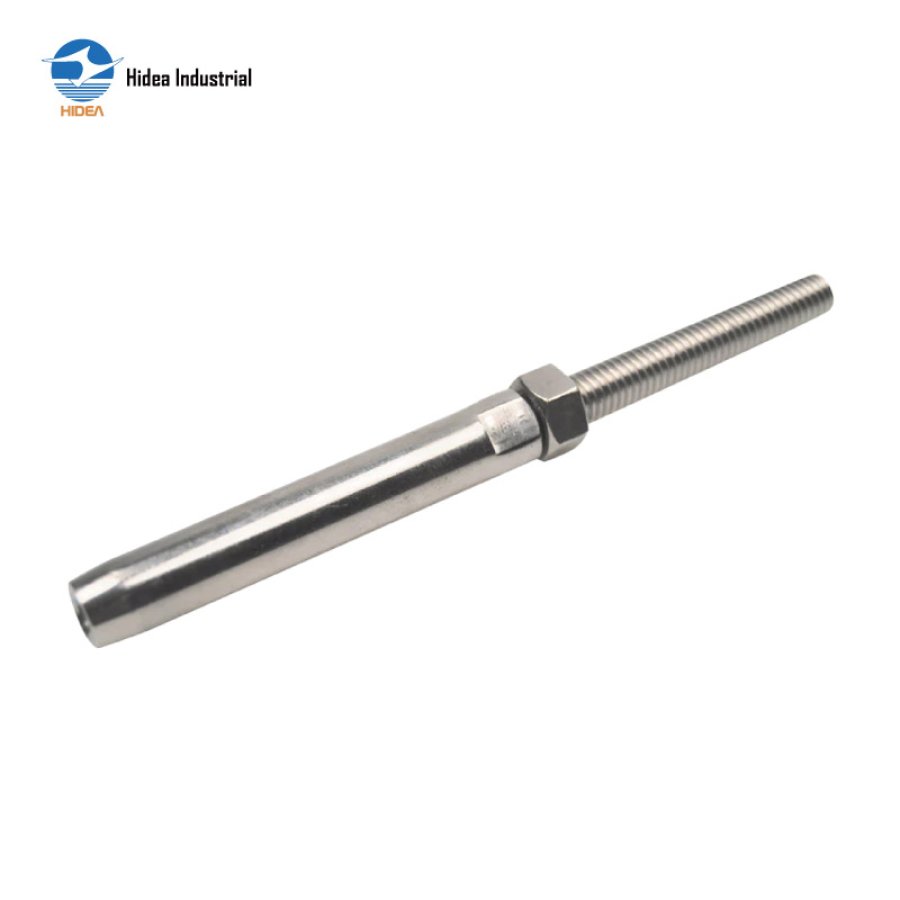

Hidea Stainless Steel Swage Stud – Ideal for Swaging and Balustrade Applications

SWAGE STUD TERMINALS

Technical Data: Investment Casting/Forged
Material: AISI 304/INOX A2, AISI 316/INOX A4
Surface Treatment: Electro Polished/Passivated

Inquire Now

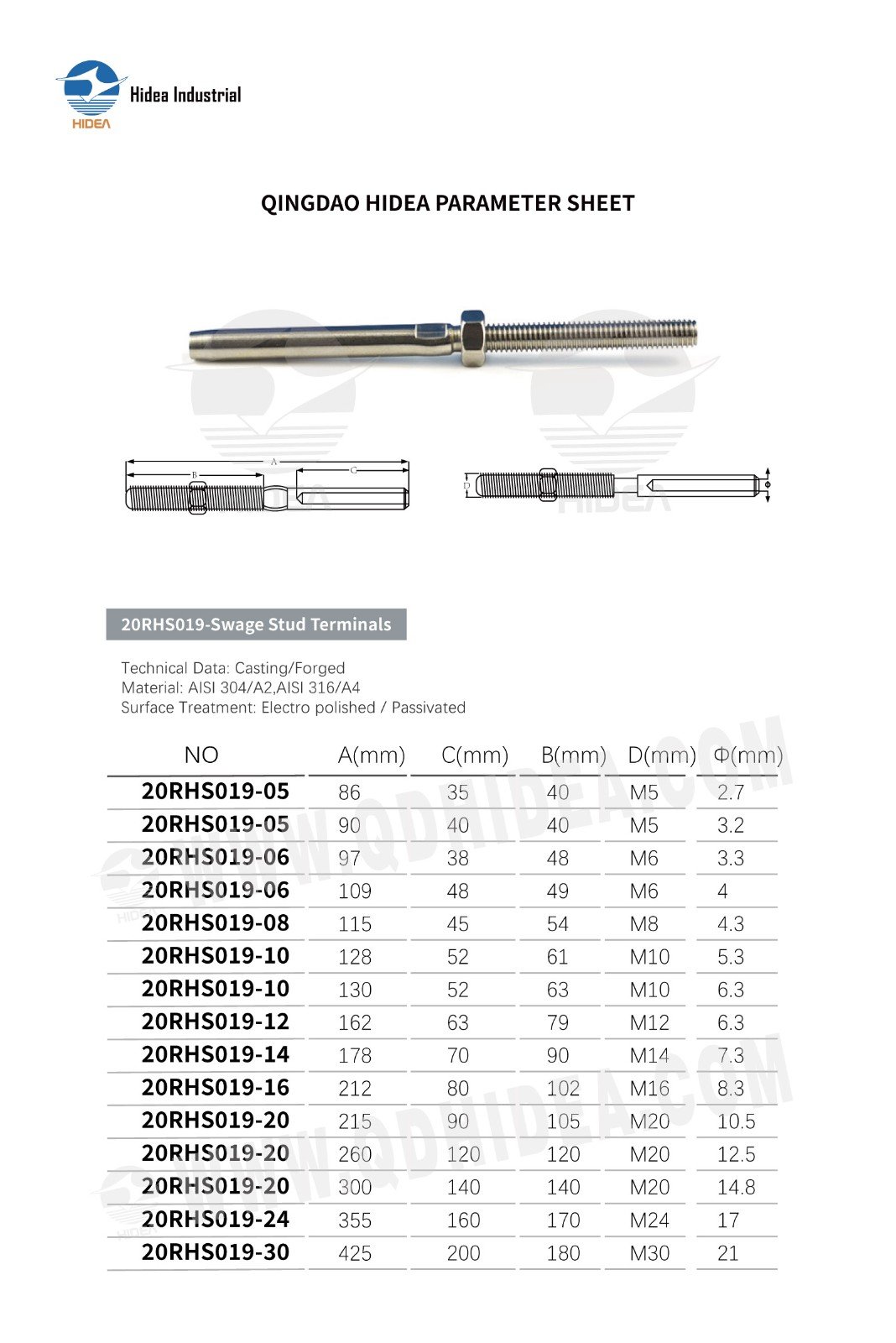

QINGDAO HIDEA PARAMETER SHEET FOR

20RHSO19-Swage Stud Terminals

NO	A(mm)	C(mm)	B(mm)	D(mm)	Φ(mm)
20RHS019-05	86	35	40	M5	2.7
20RHS019-05	90	40	40	M5	3.2
20RHS019-06	97	38	48	M6	3.3
20RHSO19-06	109	48	49	M6	4
20RHSO19-08	115	45	54	M8	4.3
20RHSO19-10	128	52	61	M10	5.3
20RHSO19-10	130	52	63	M10	6.3
20RHS019-12	162	63	79	M12	6.3
20RHS019-14	178	70	90	M14	7.3
20RHSO19-16	212	80	102	M16	8.3
20RHSO19-20	215	90	105	M20	10.5
20RHSO19-20	260	120	120	M20	12.5
20RHS019-20	300	140	140	M20	14.8
20RHS019-24	355	160	170	M24	17
20RHS019-30	425	200	180	M30	21
