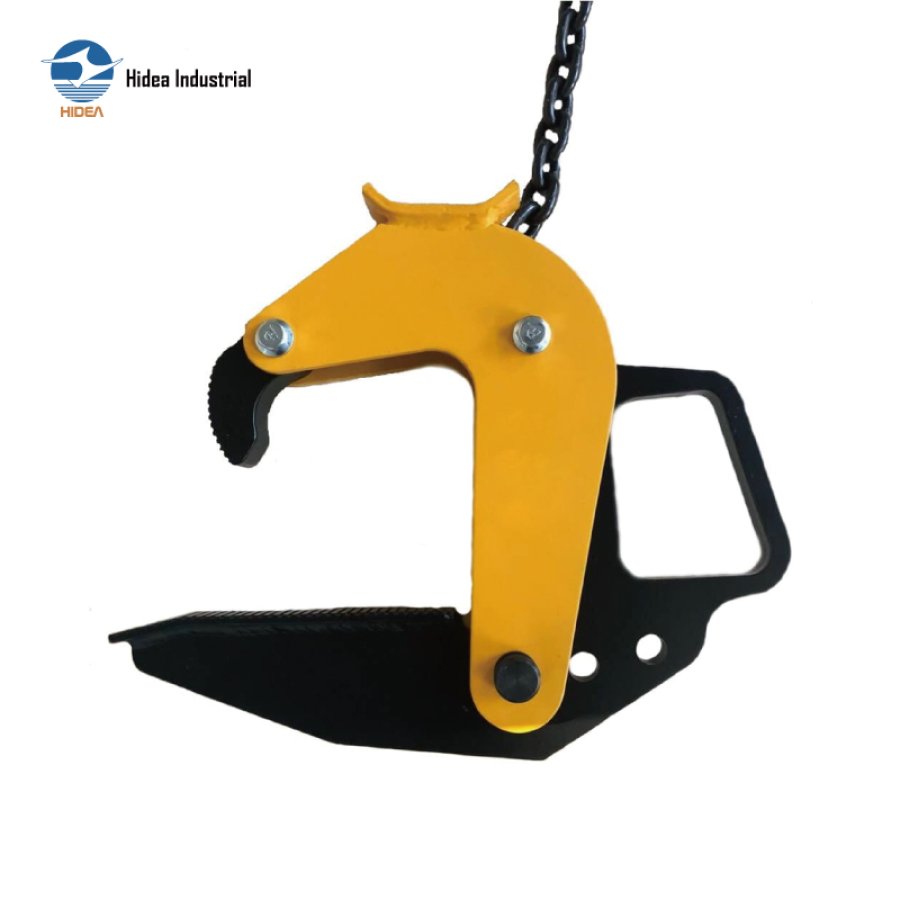

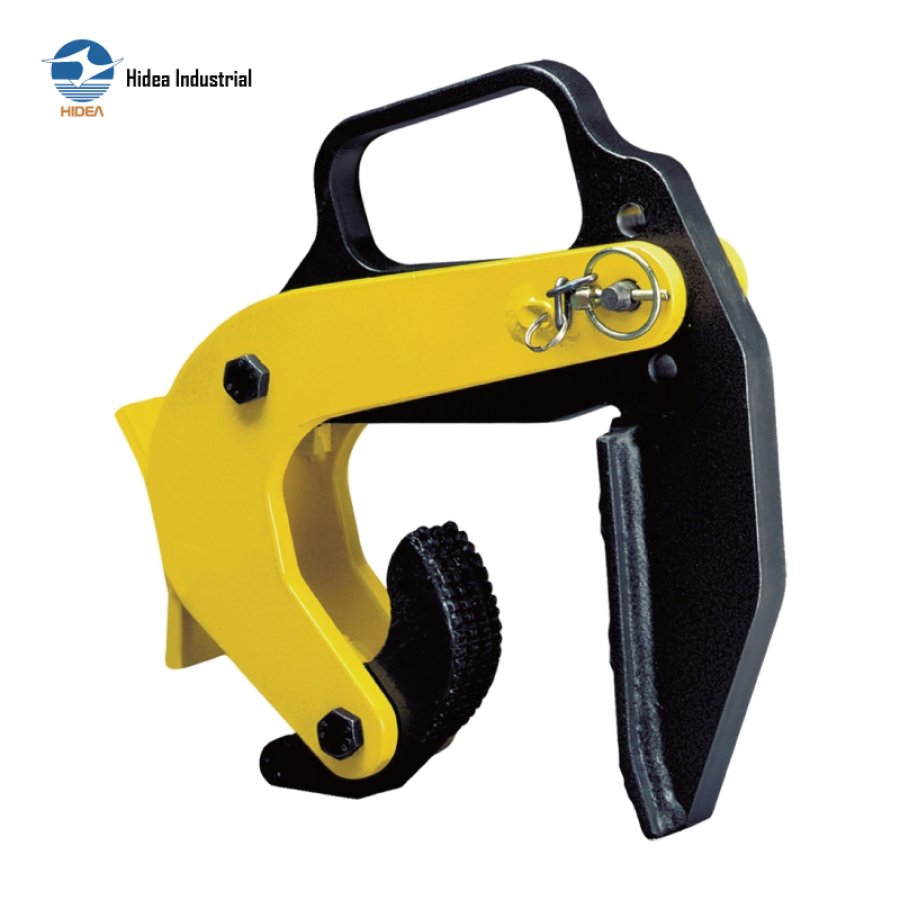

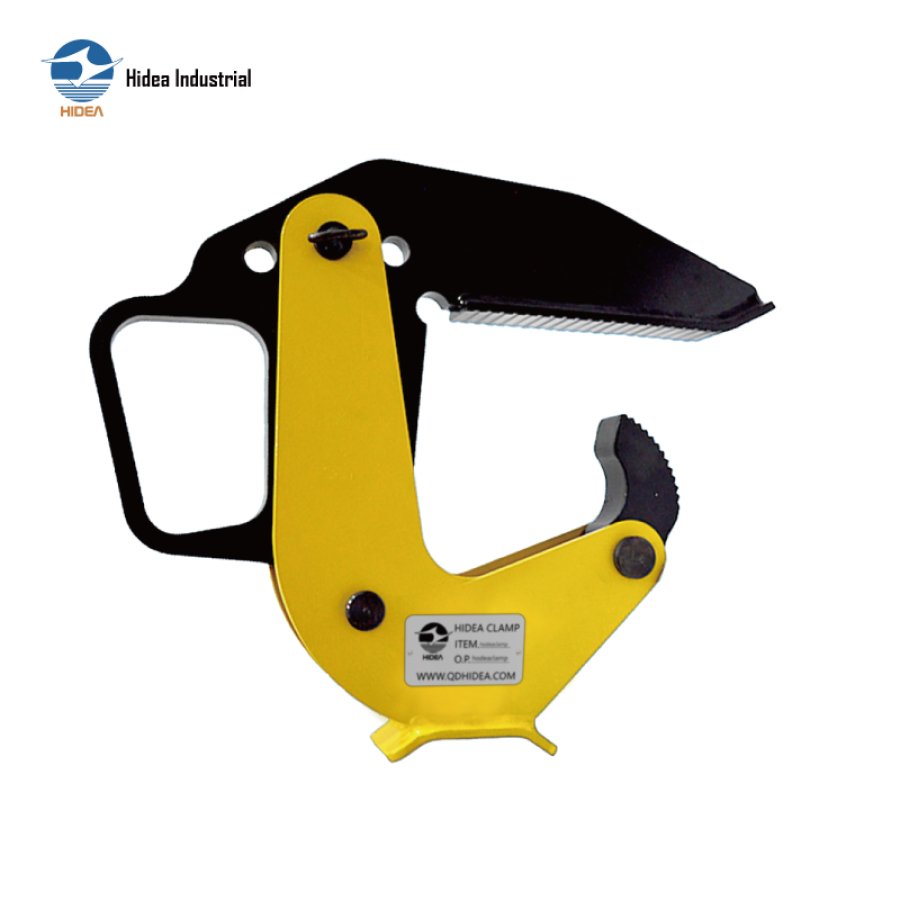

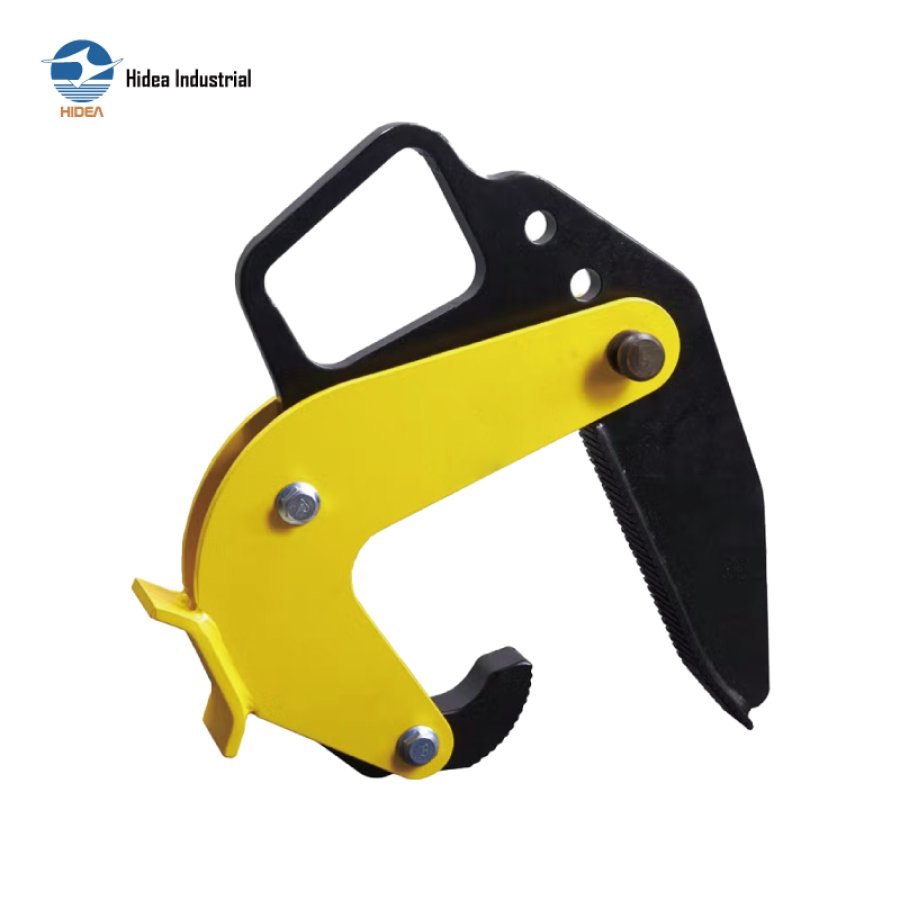

The TBL type precast concrete pipe lifting clamps are designed for vertical lifting and transporting of precast concrete pipes

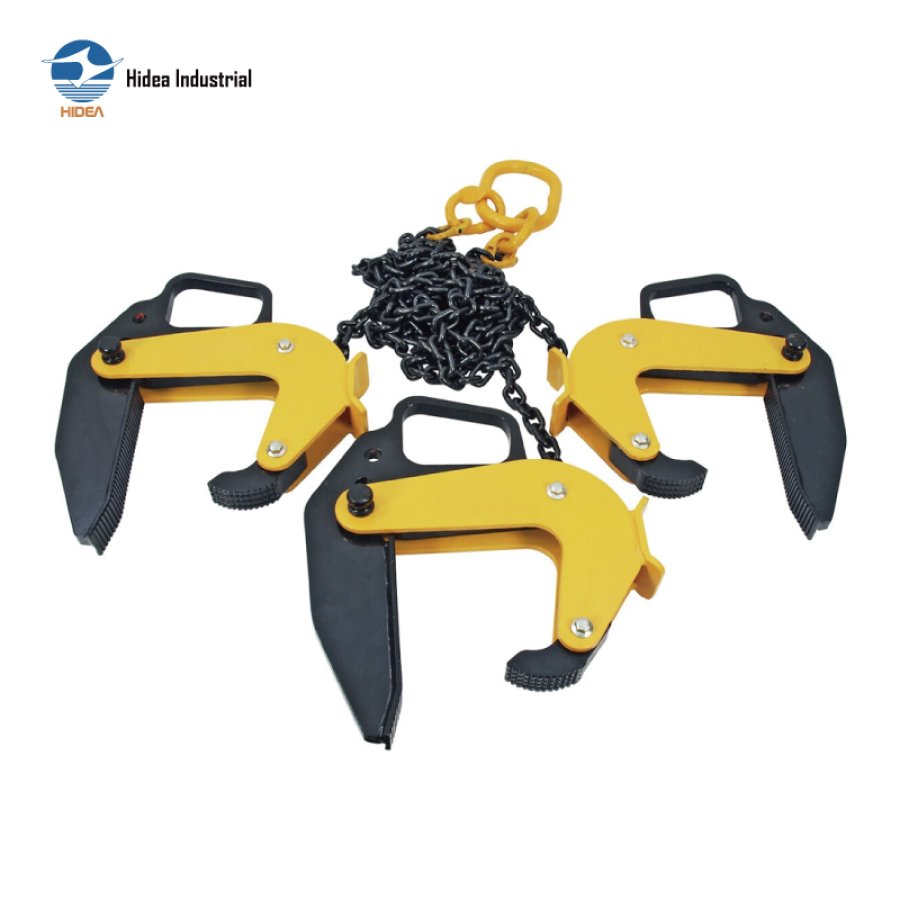

The TBL type concrete pipe lifting clamps usually need a three-Legged lifting system combined with 3 clamps for safe and non-marring transport of concrete pipes up to diameter of 2000mm and a load of up to 3T each leg
The TBL type concrete pipe lifting clamp jaws opening size is designed for concrete pipe thicknesses from 40mm - 220mm
solid construction type-tested 4 to 1 against breakage simple and safe handling large jaw capacity for heavy duty use light weight design service-friendly
The TBL type concrete pipe lifting clamps meeting standards of and in conformity with European Norm (EN) 13155, Machinery Directive 2006/42/EC & ASME B30.20

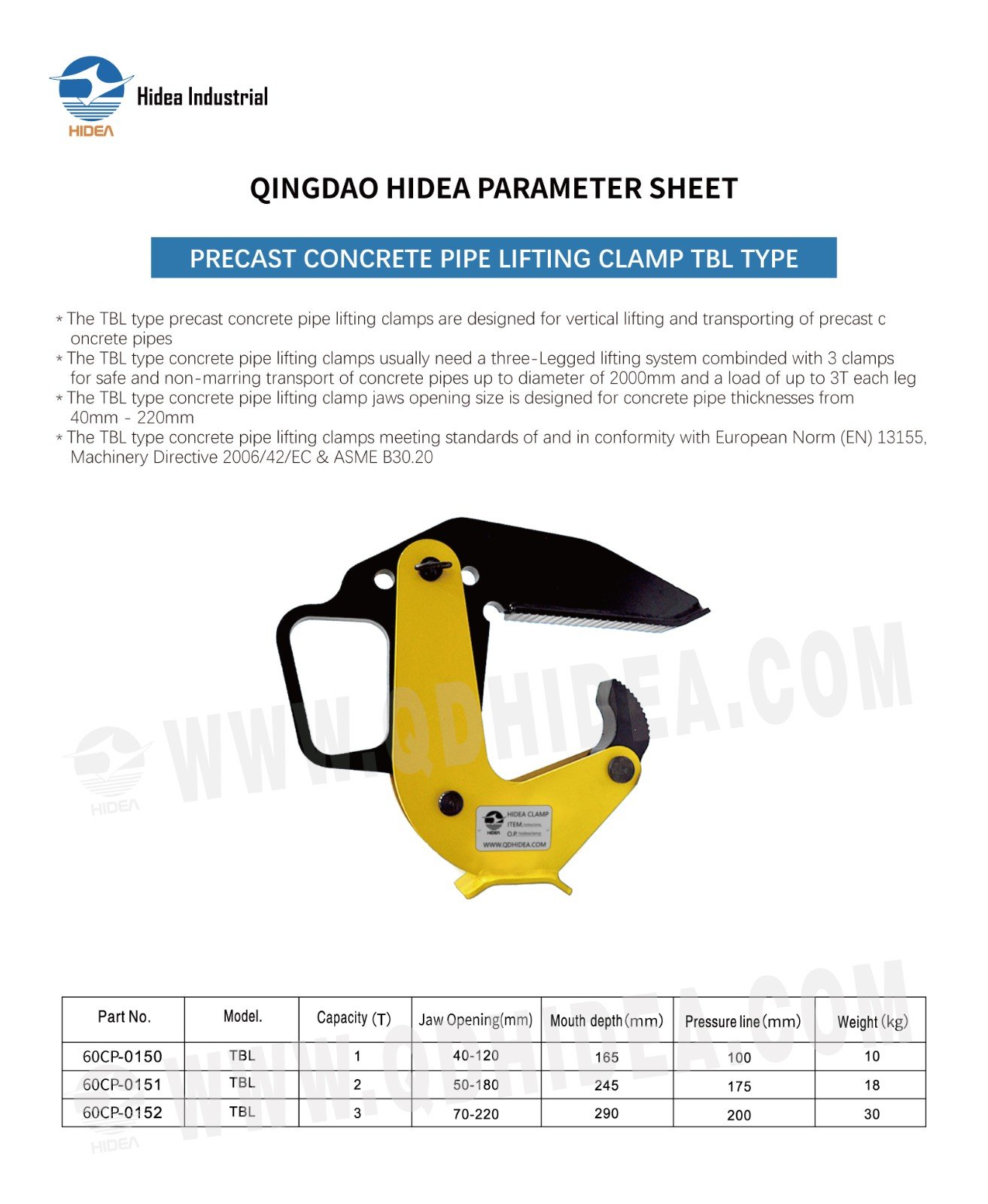

QINGDAO HIDEA PARAMETER SHEET FOR
PRECAST CONCRETE PIPE LIFTING CLAMP TBL TYPE
| Part No. | Model. | Capacity(T) | Jaw Opening(mm) | Mouth depth(mm) | Pressure line(mm) | Weight(kg) | |
| 60CP-0150 | TBL | 1 | 40-120 | 165 | 100 | 10 | |
| 60CP-0151 | TBL | 2 | 50-180 | 245 | 175 | 18 | |
| 60CP-0152 | TBL | 3 | 70-220 | 290 | 200 | 30 | |
