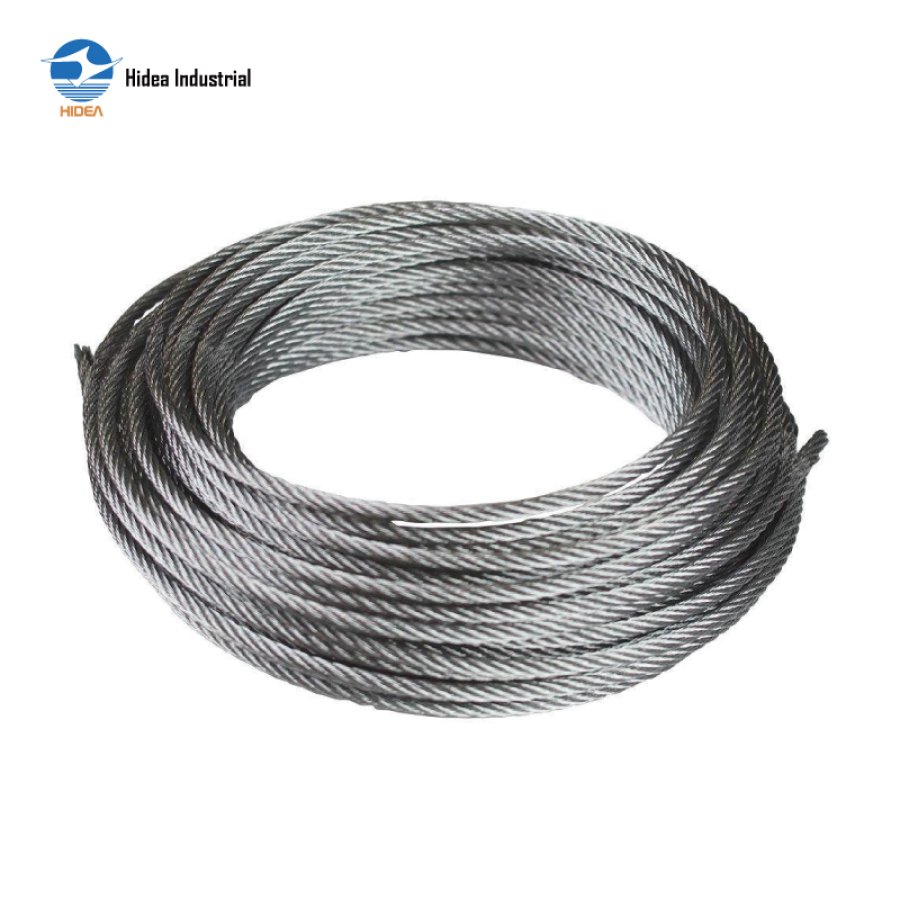

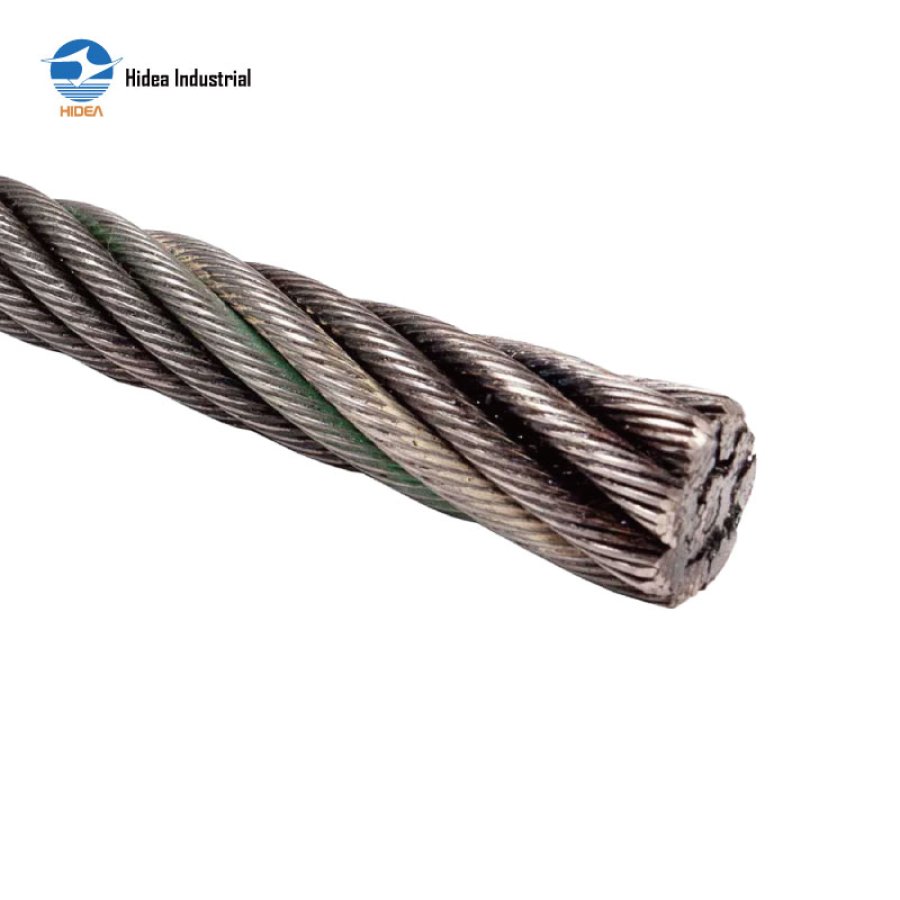

HIDEA FC Steel Wire Rope 8×19 Class: Compliant with Federal Specifications RR-W-410

RR-W-410 ROTATION RESISTANT WIRE ROPE IPS 8X19 CLASS FC/IWRC

Federal Spec. RR-W-410 Rotation Resistant Wire Rope IPS 8x19 Class FC or IWRC

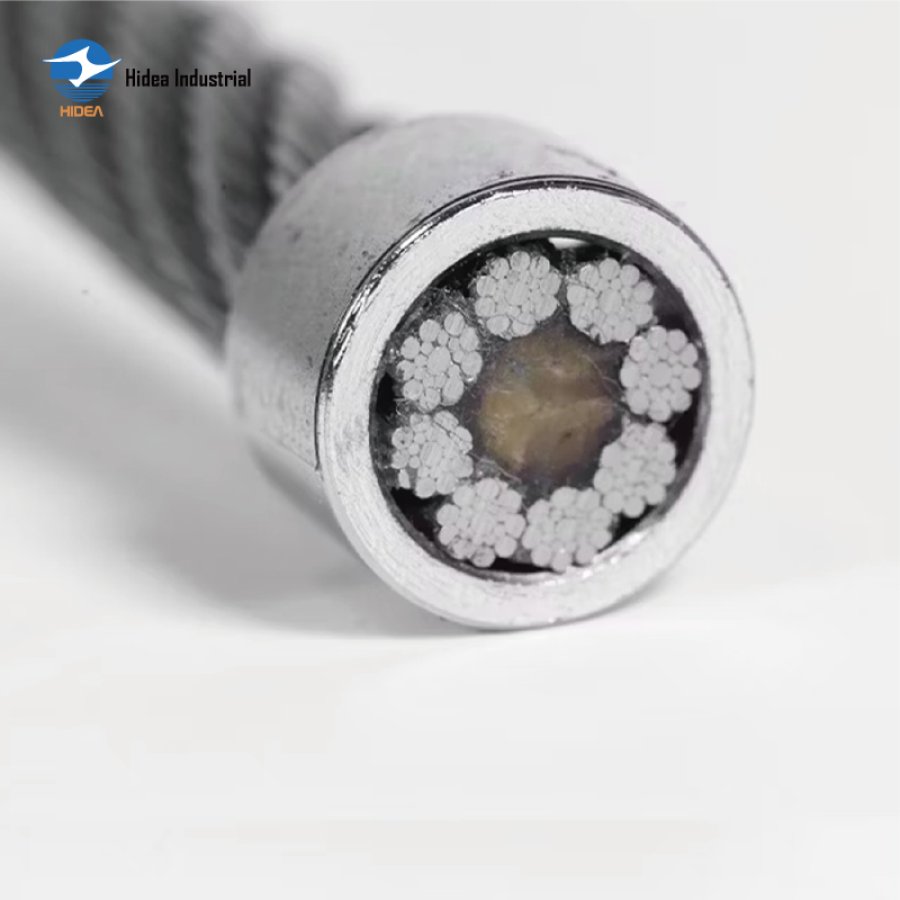

Constructions 8x19 + FC / IWRC
Improved Plow Steel, High Carbon Steel

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

RR-W-410 ROTATION RESISTANT WIRE ROPE IPS 8X19 CLASS FC/IWRC

	Specification:RR-W-4108×19Class,FC or IWRC Rotation Resistant

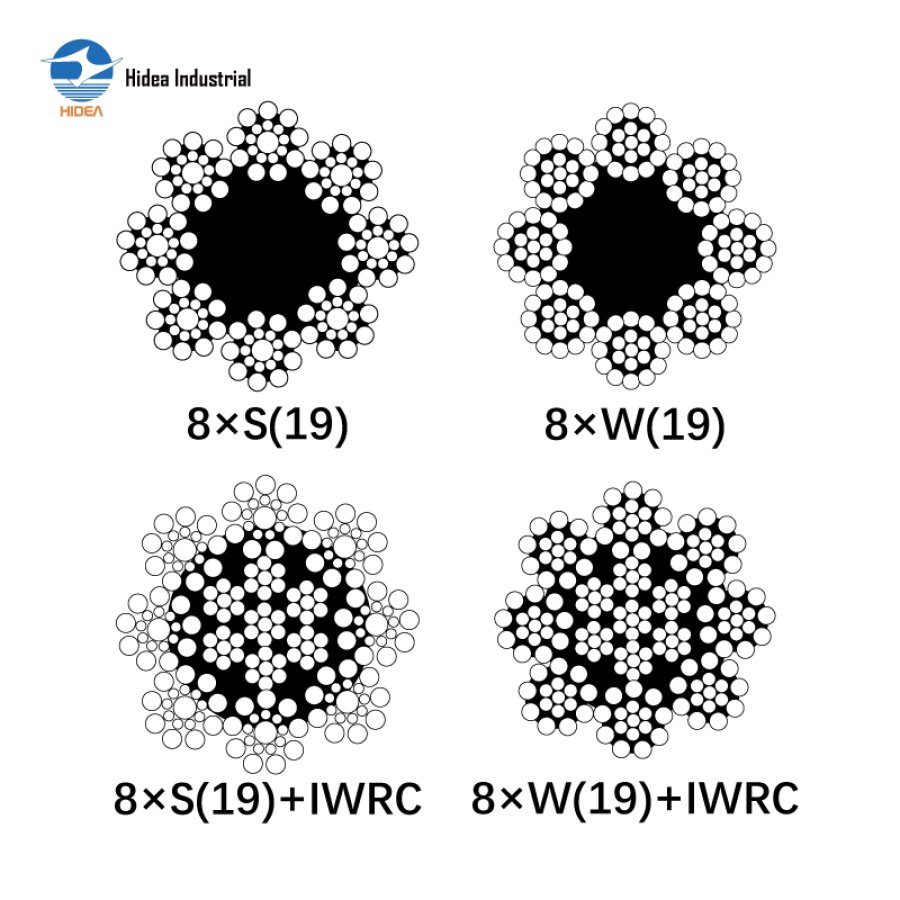

8×W(19)				8×S(19)+IWRC		8×W(19)+IWRC
Improved Plow Steel (IPS)
Diameter mm	Unit Weight		Min.Breaking Strength
			Ungalvanized			Galvanized
	FC	IWRC	FC		IWRC	FC	IWRC
in	lb/ft	Ib/ft	lb		Ib	Ib	lb
1/4	0.098	0.12	4,700		5,540	4,240	5,000
5/16	0.15	0.18	7,300		8,620	6,580	7,760
3/8	0.22	0.26	10,480		12,360	9,440	11,140
7/16	0.30	0.36	14,180		16,730	12,760	15,060
1/2	0.39	0.47	18,460		21,780	16,620	19,600
9/16	0.50	0.60	23,200		27,380	20,800	24,540
5/8	0.61	0.73	28,600		33,740	25,800	30,440
3/4	0.88	1.06	41,000		48,400	37,000	43,660
7/8	1.20	1.44	55,400		65,400	49,800	58,800
1	1.57	1.88	72,000		85,000	64,800	76,500
1-1/8	1.99	2.39	90,600		106,900	81,600	96,300
