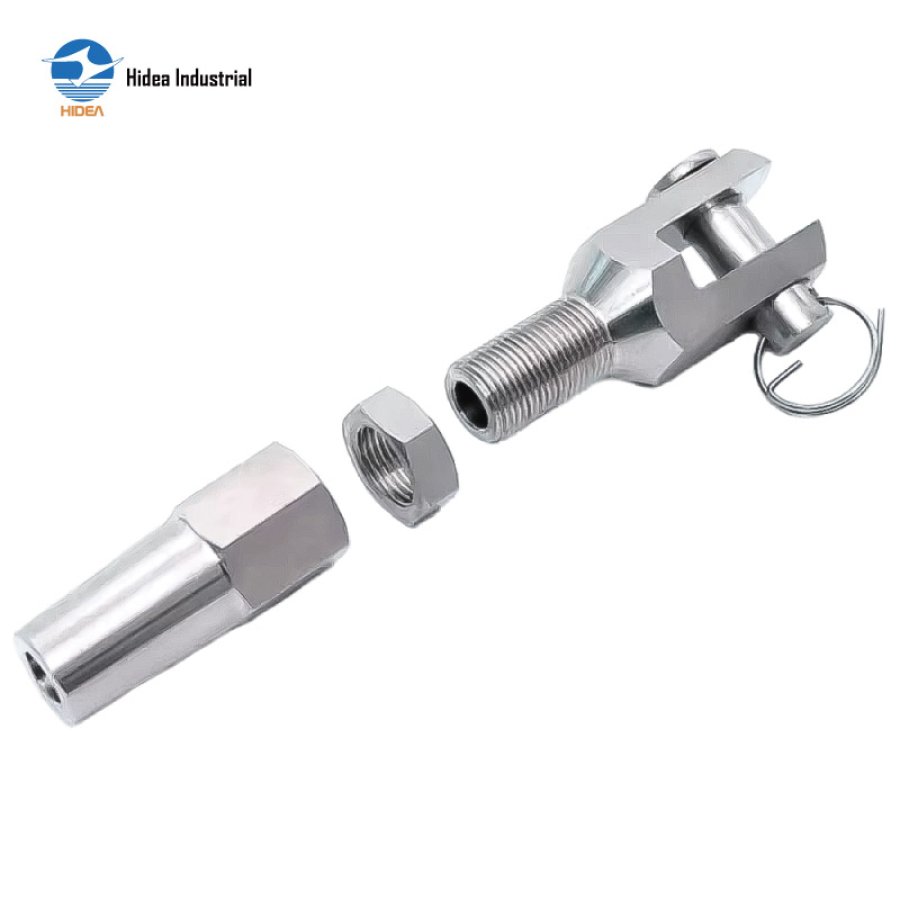

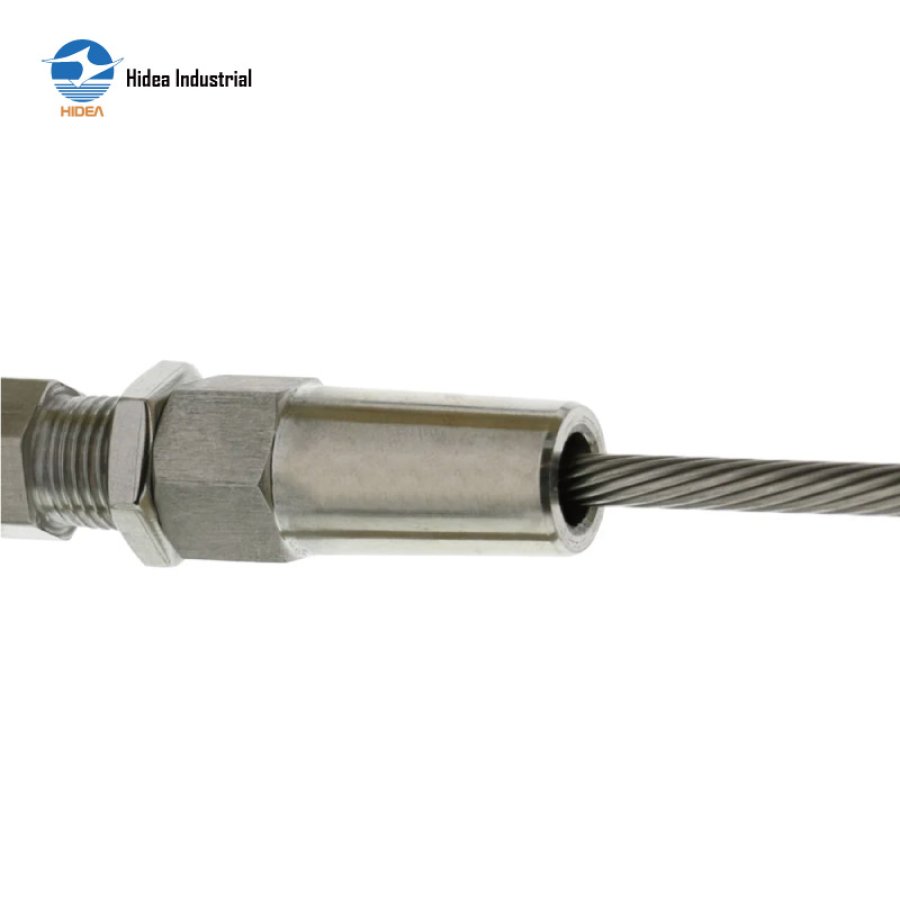

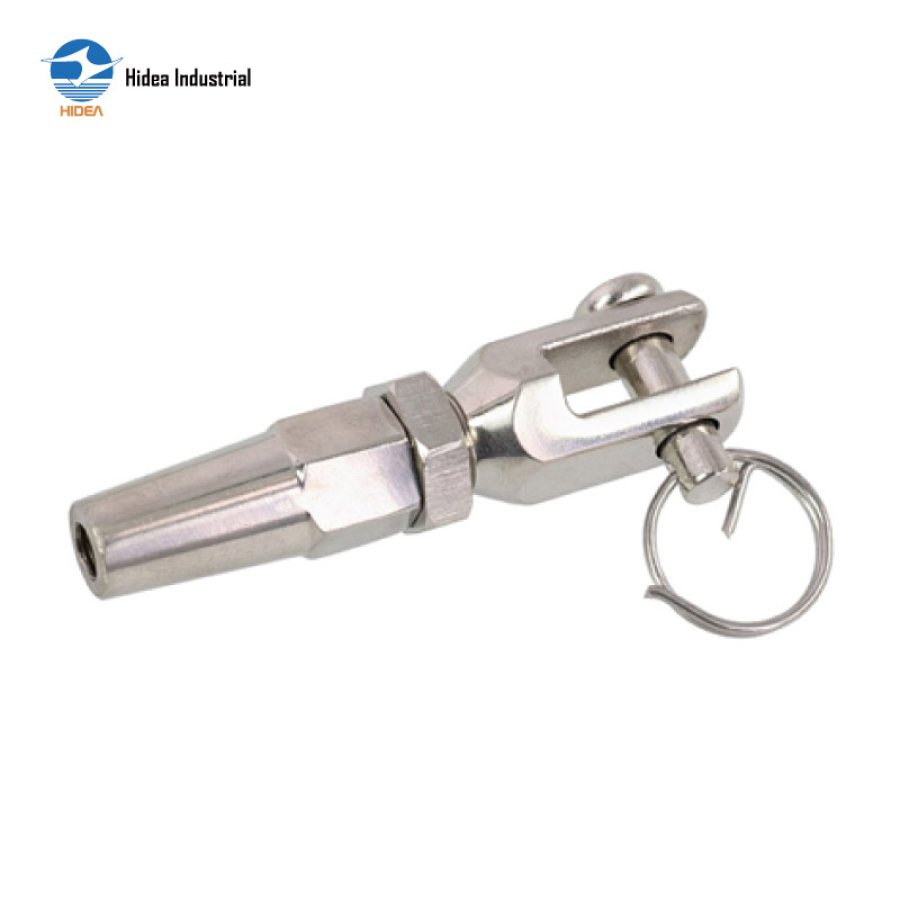

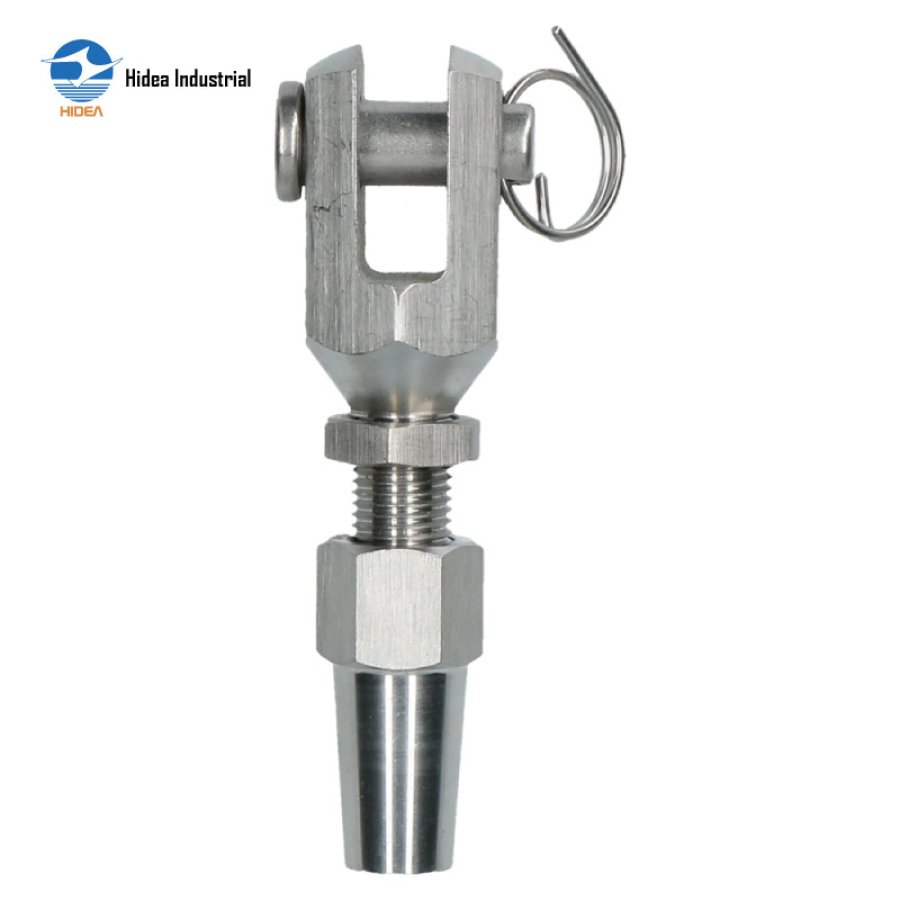

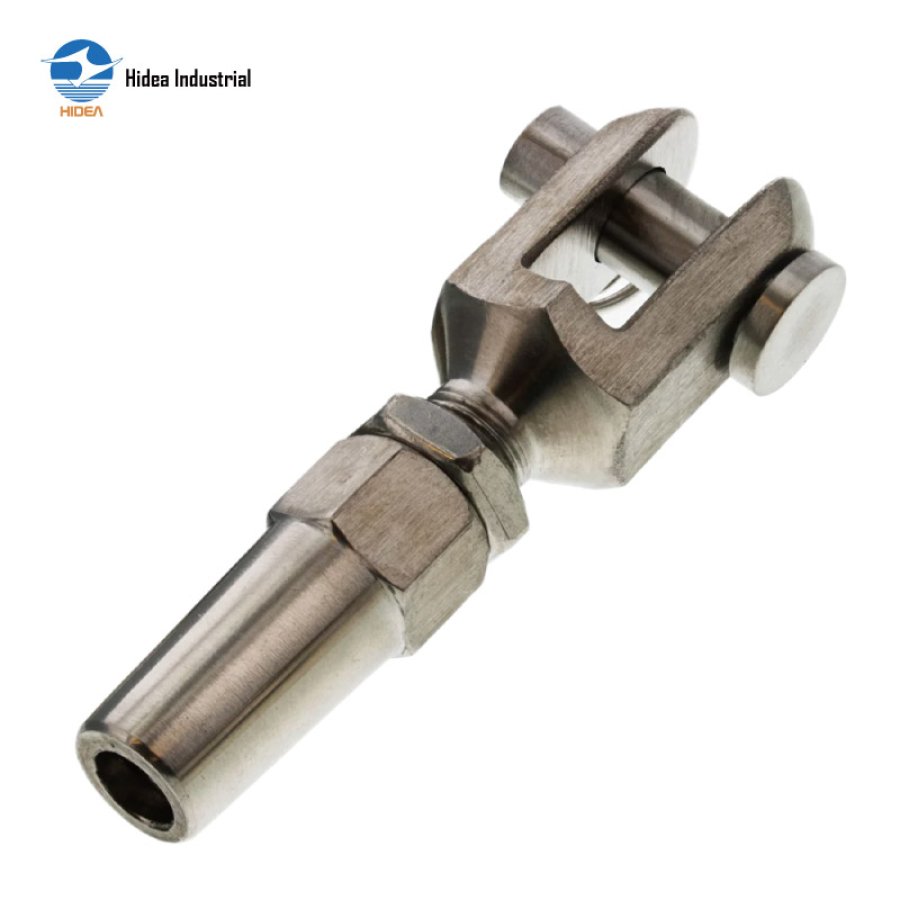

HIDEA Stainless Steel Swageless Jaw Terminal – Easy to use & Reliable Cable End Fittings

SWAGELESS JAW TERMINALS

Technical Data: Investment Casting/Forged
Material: AISI 304/INOX A2, AISI 316/INOX A4
Surface Treatment: Electro Polished/Passivated

Inquire Now

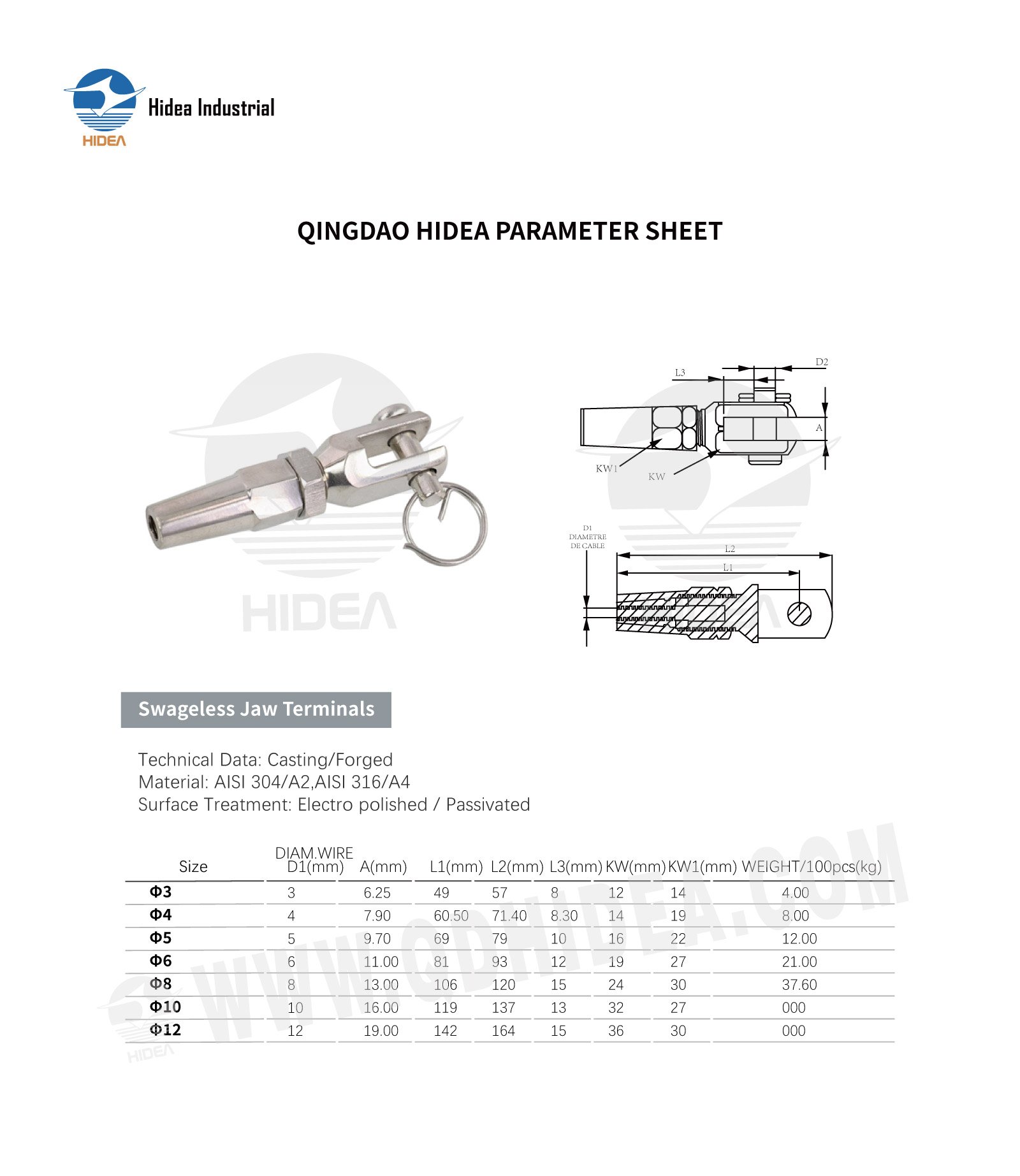

QINGDAO HIDEA PARAMETER SHEET FOR

Swageless Jaw Terminals

Size	D1(mm)	A(mm)	L1(mm)	L2(mm)	L3(mm)	KW(mm)	KW1(mm)	WEIGHT/100pcs(kg)
Ф3	3	6.25	49	57	8	12	14	4.00
Ф4	4	7.90	60.50	71.40	8.30	14	19	8.00
Ф5	5	9.70	69	79	10	16	22	12.00
Ф6	6	11.00	81	93	12	19	27	21.00
Ф8	8	13.00	106	120	15	24	30	37.60
Ф10	10	16.00	119	137	13	32	27	000
Ф12	12	19.00	142	164	15	36	30	000
