Premium Hidea Stainless Steel Single Cable Clamp for Reliable Wire Rope Connections

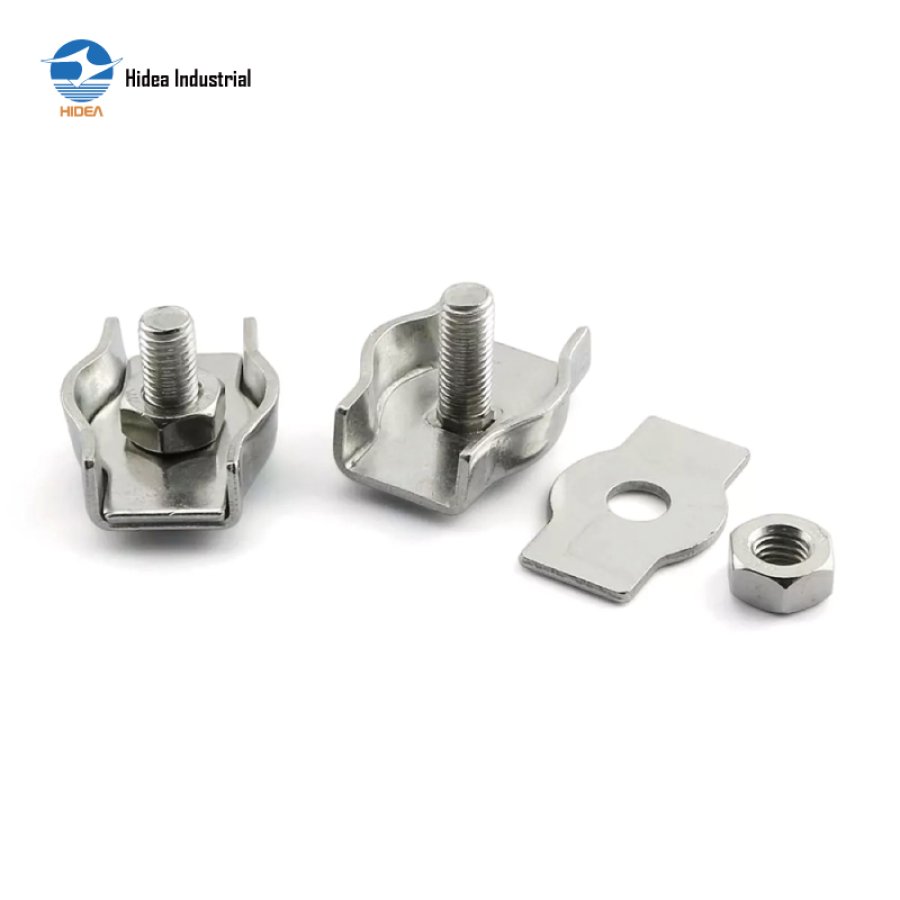

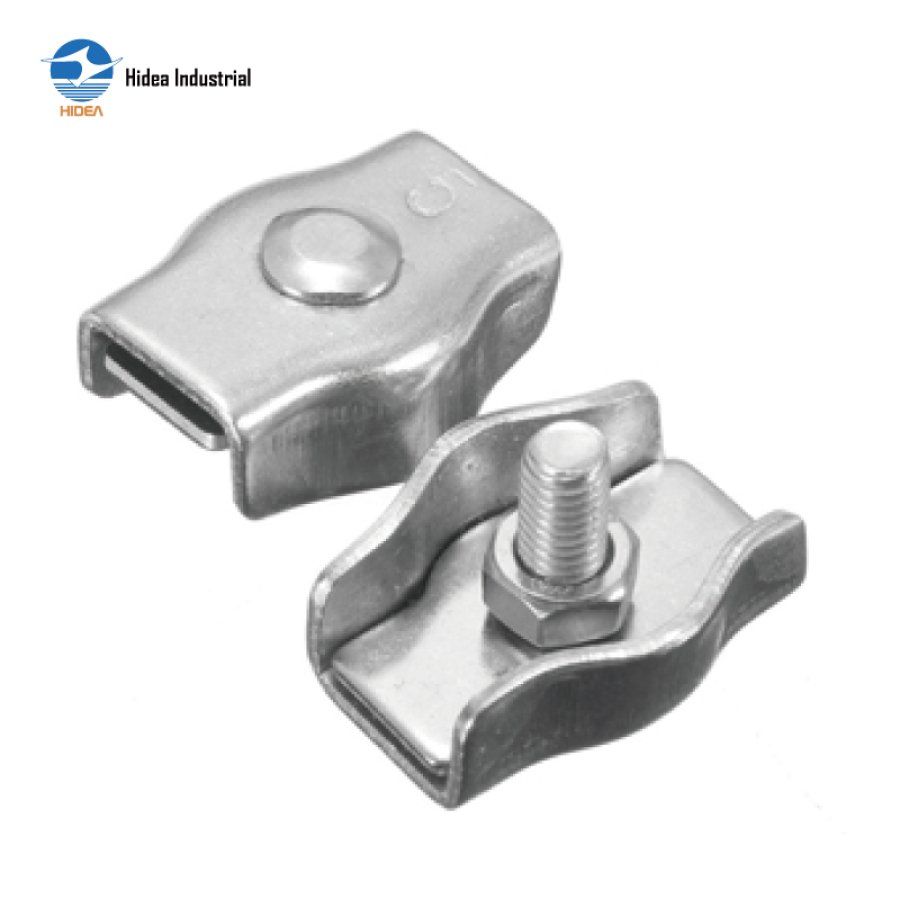

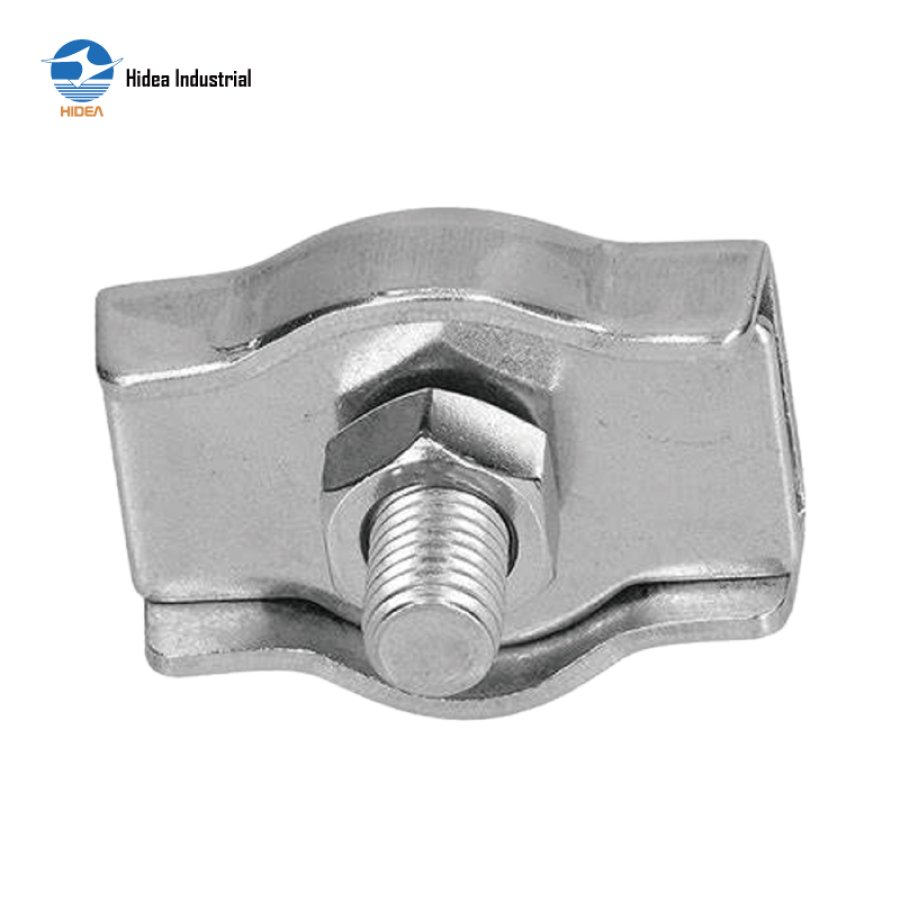

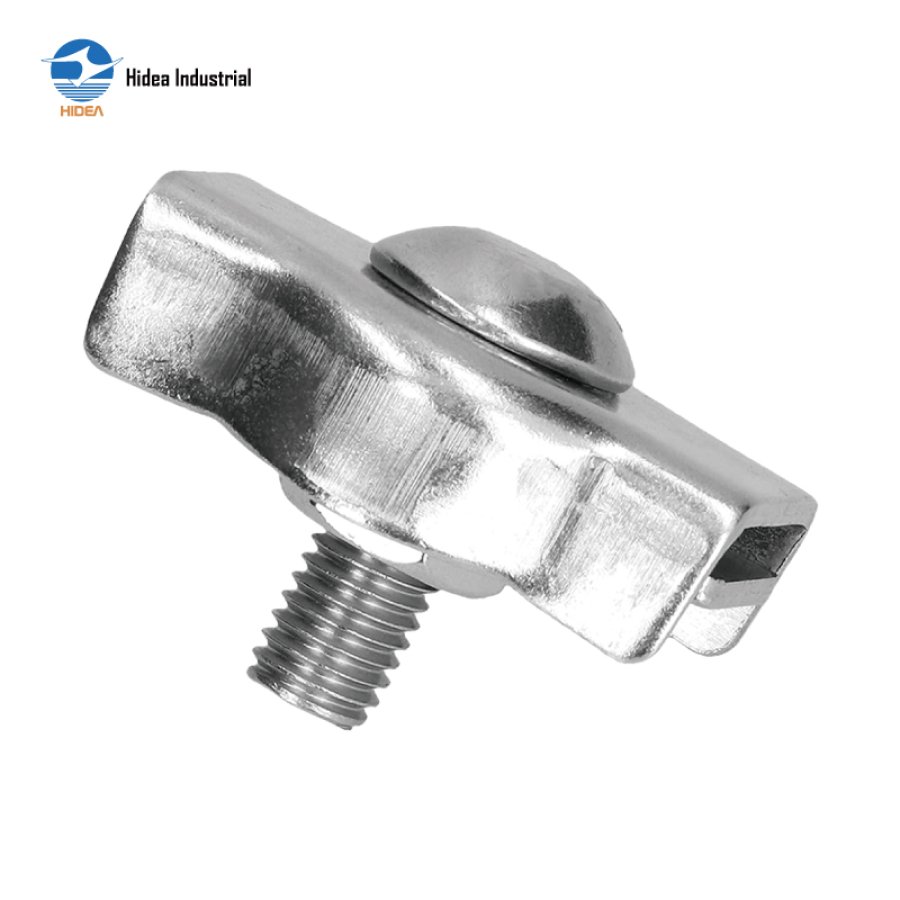

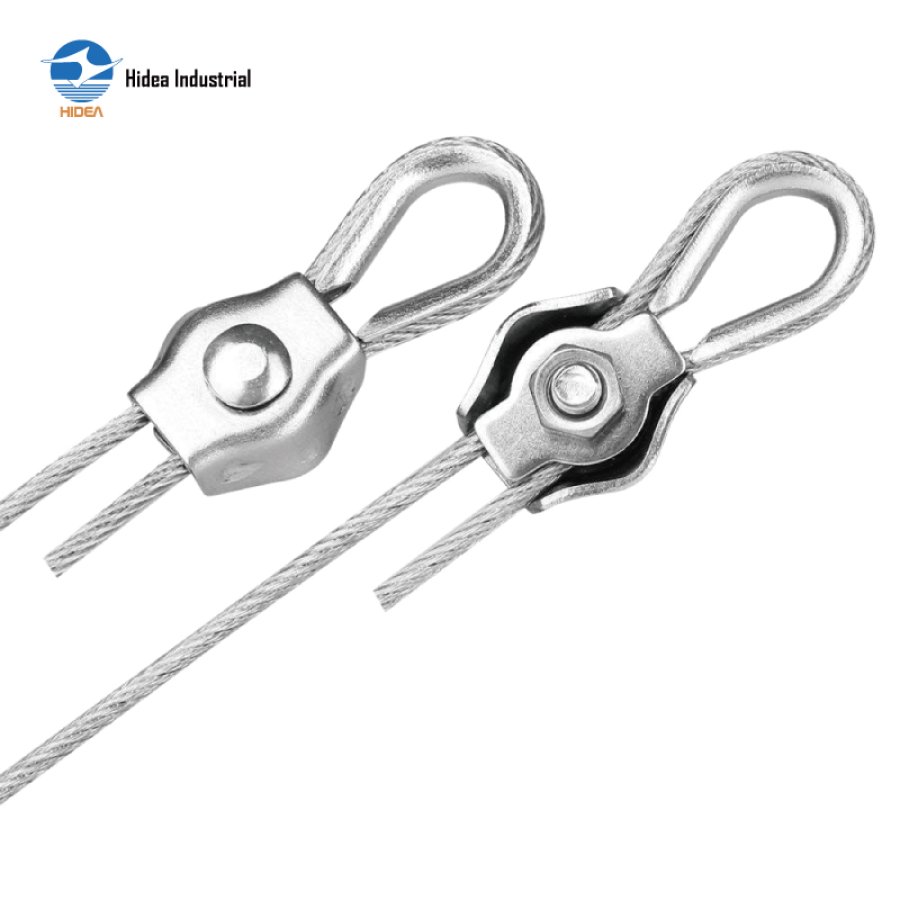

SIMPLEX WIRE ROPE CLIP

Technical Data: Investment Casting/Forged
Material: AISI 304/INOX A2, AISI 316/INOX A4
Surface Treatment: Electro Polished/Passivated

Inquire Now

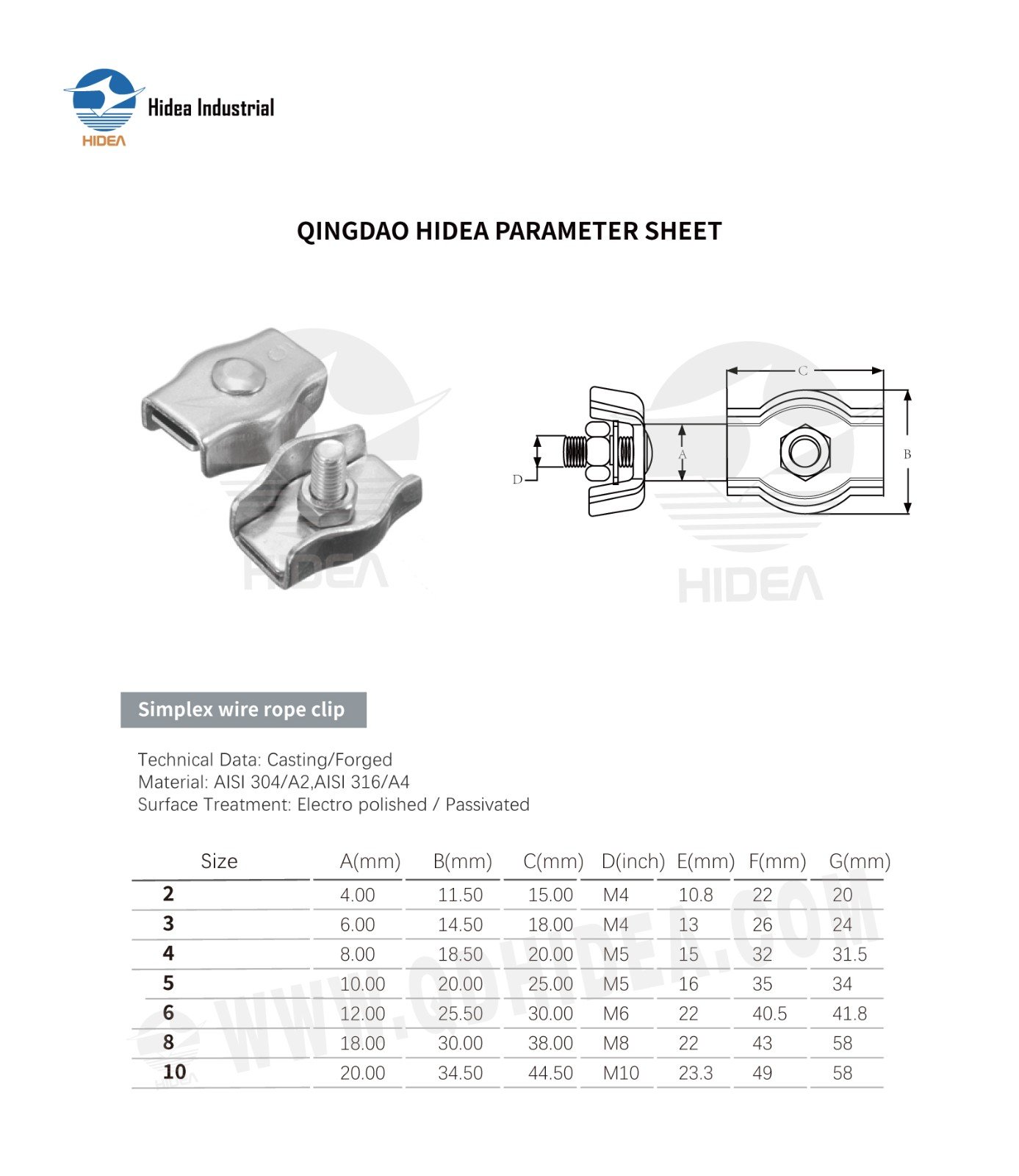

QINGDAO HIDEA PARAMETER SHEET FOR

Simplex wire rope clip

Size	A(mm)	B(mm)	C(mm)	D(inch	)E(mm)	F(mm)	G(mm)
2	4.00	11.50	15.00	M4	10.8	22	20
3	6.00	14.50	18.00	M4	13	26	24
4	8.00	18.50	20.00	M5	15	32	31.5
5	10.00	20.00	25.00	M5	16	35	34
6	12.00	25.50	30.00	M6	22	40.5	41.8
8	18.00	30.00	38.00	M8	22	43	58
10	20.00	34.50	44.50	M10	23.3	49	58
