Reliable and Tough: Hidea G70/G43 Forged Clevis Slip Hook

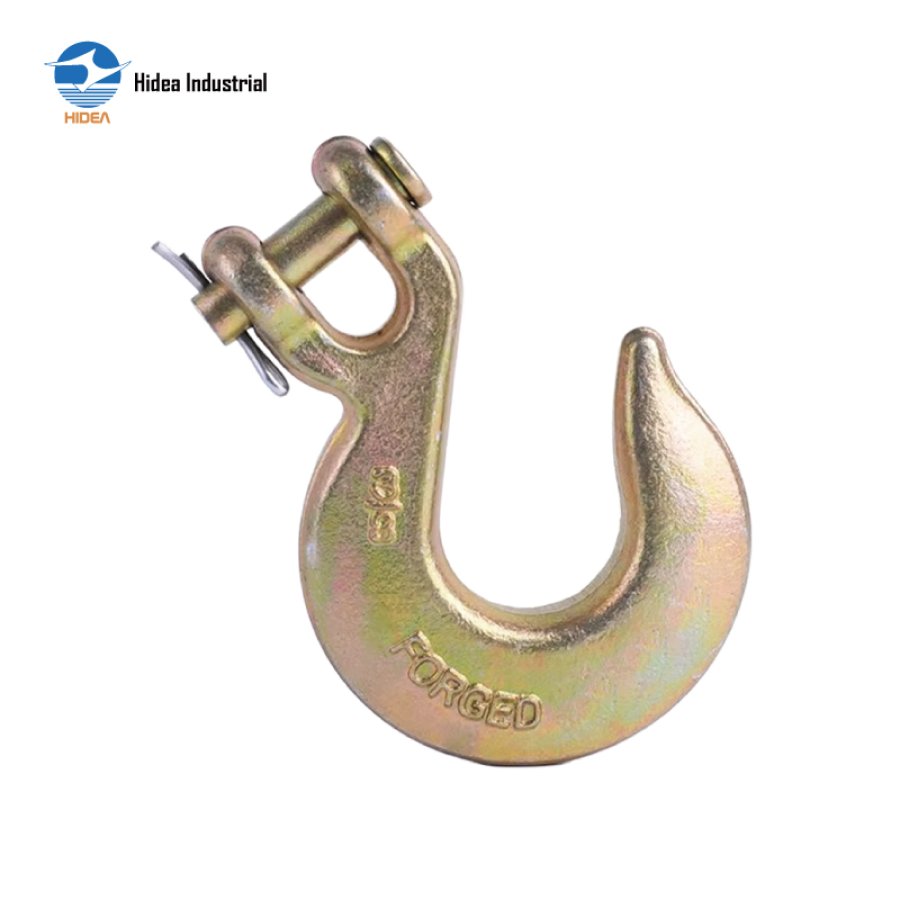

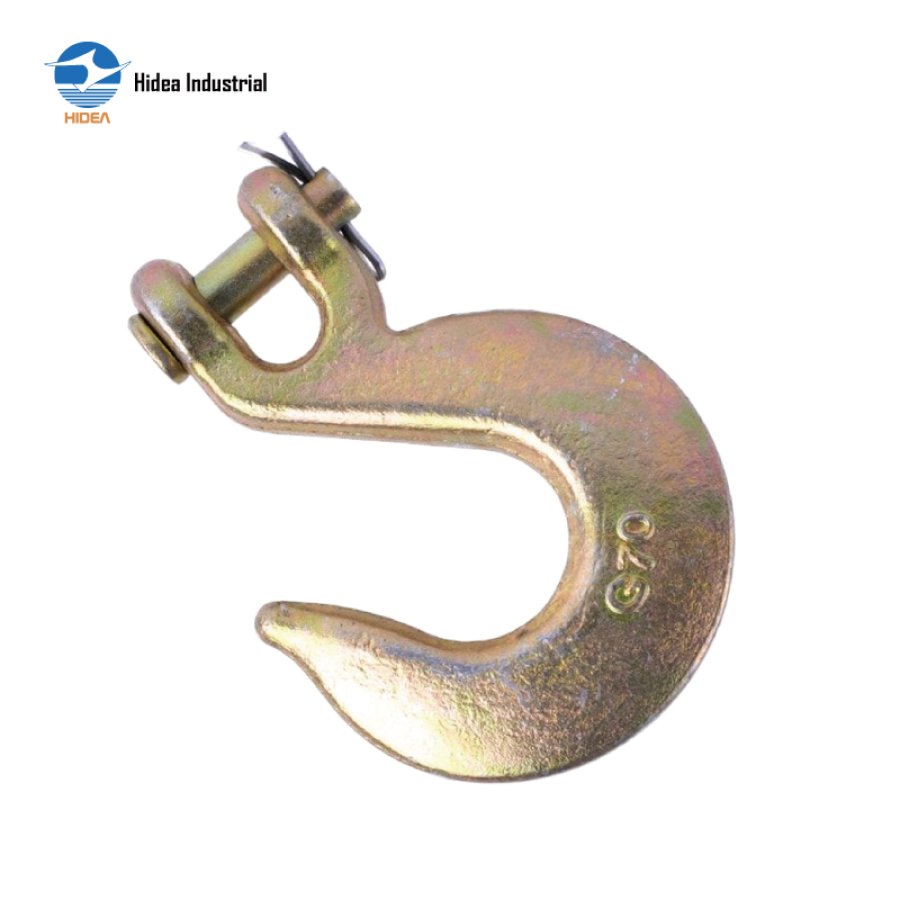

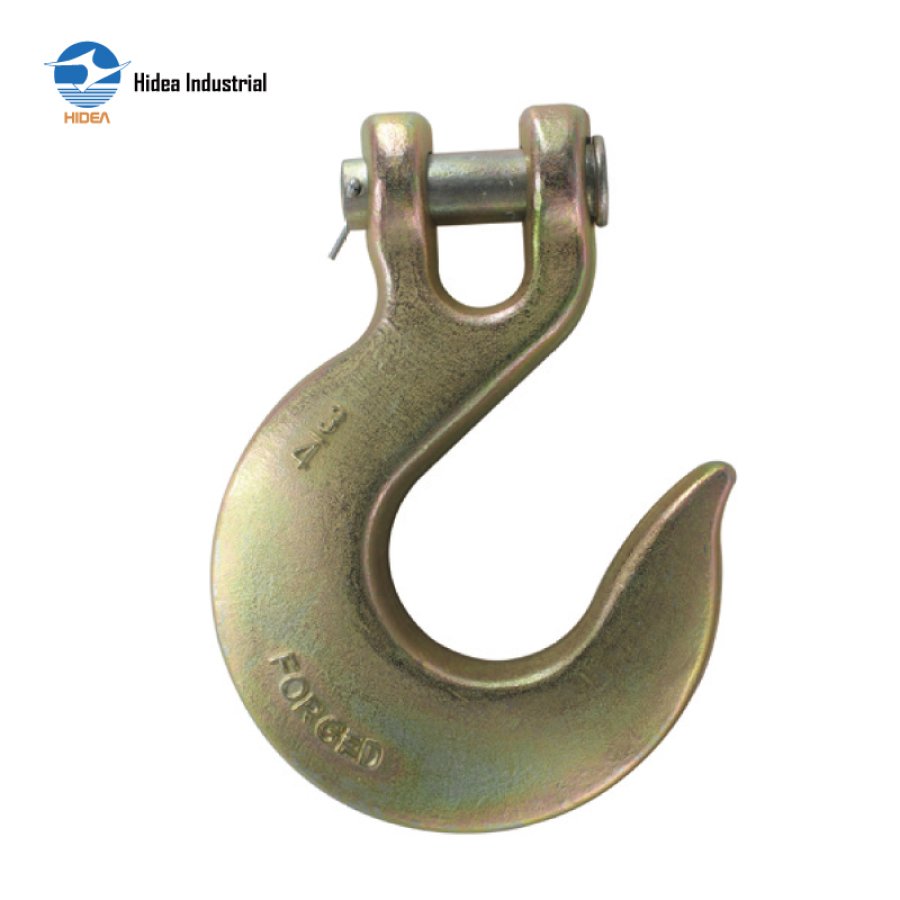

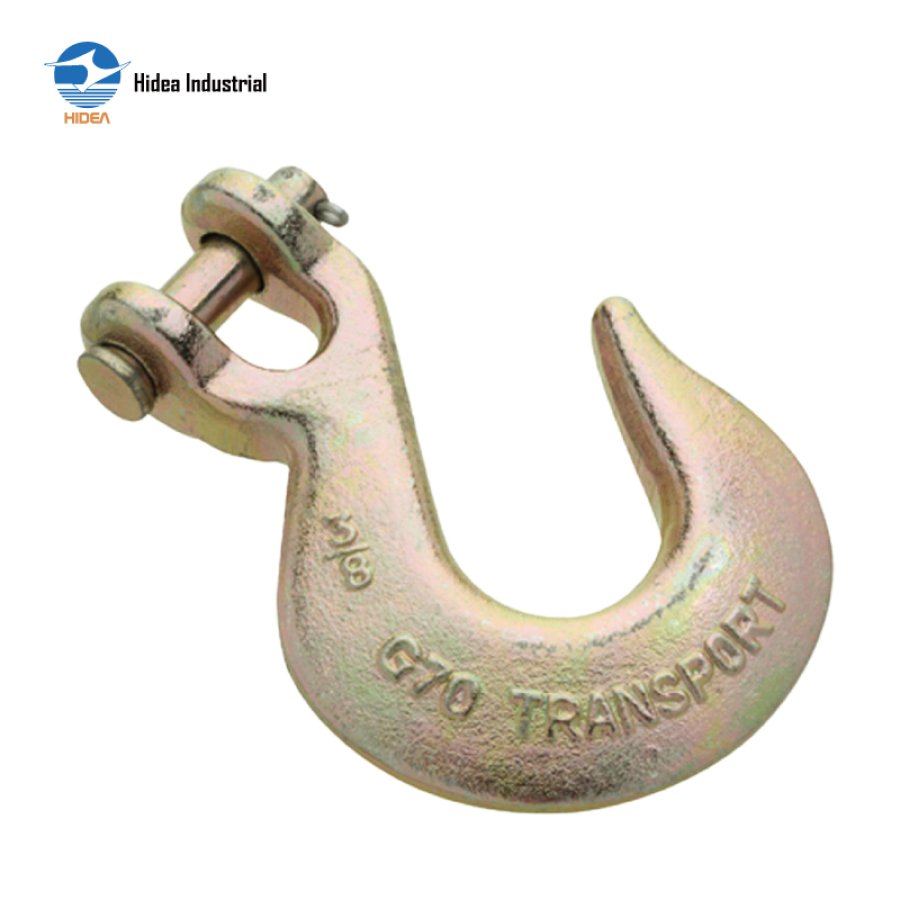

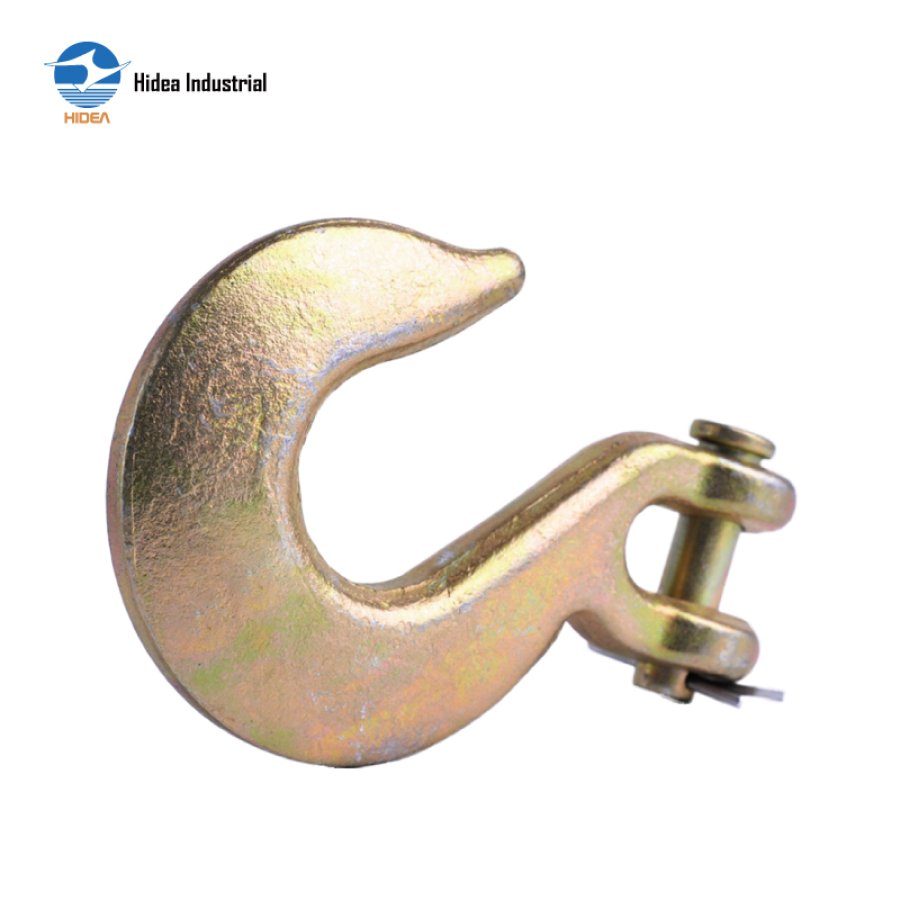

G43/G70 CLEVIS SLIP HOOK H331/A331

Material: supper alloy steel/carbon steel rated G70/G43
Drop forged, quenched & tempered
Breakage test & magnaflux crack detection
Safety factor 4:1 & certificates available
Surface electro galvanized (EG) OR powder coated OR as requested

Inquire Now

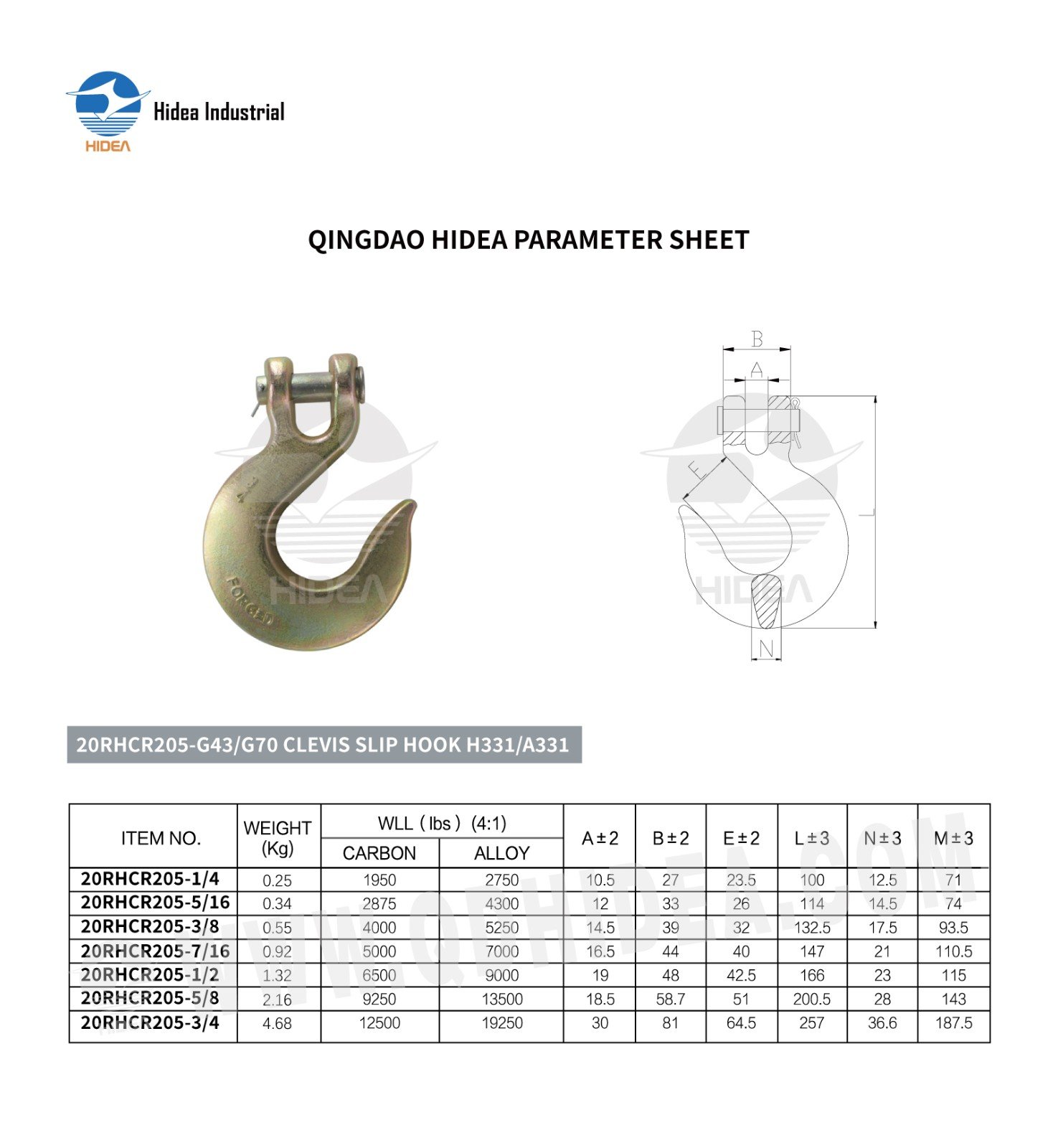

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR205-G43/G70 CLEVIS SLIP HOOK H331/A331

ITEM NO.	WEIGHT (Kg)	WLL(Ibs)(4:1)		A±2	B±2	E±2	L±3	N±3	M±3
ITEM NO.	WEIGHT (Kg)	CARBON	ALLOY	A±2	B±2	E±2	L±3	N±3	M±3
20RHCR205-1/4	0.25	1950	2750	10.5	27	23.5	100	12.5	71
20RHCR205-5/16	0.34	2875	4300	12	33	26	114	14.5	74
20RHCR205-3/8	0.55	4000	5250	14.5	39	32	132.5	17.5	93.5
20RHCR205-7/16	0.92	5000	7000	16.5	44	40	147	21	110.5
20RHCR205-1/2	1.32	6500	9000	19	48	42.5	166	23	115
20RHCR205-5/8	2.16	9250	13500	18.5	58.7	51	200.5	28	143
20RHCR205-3/4	4.68	12500	19250	30	81	64.5	257	36.6	187.5
