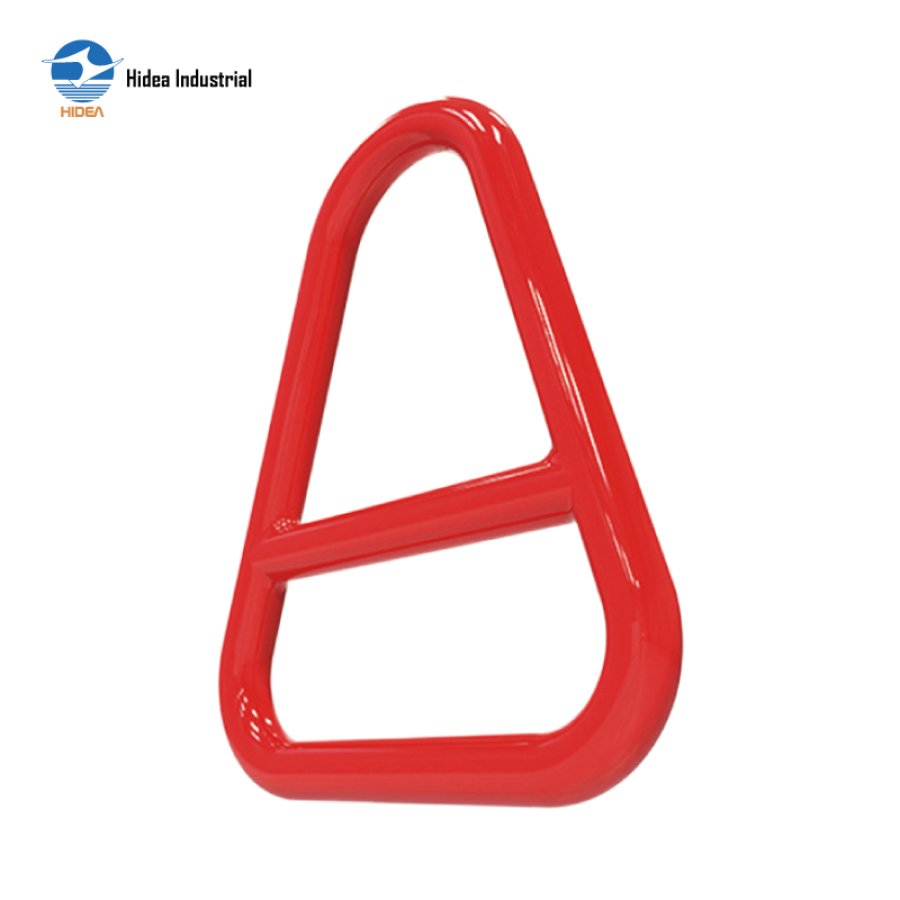

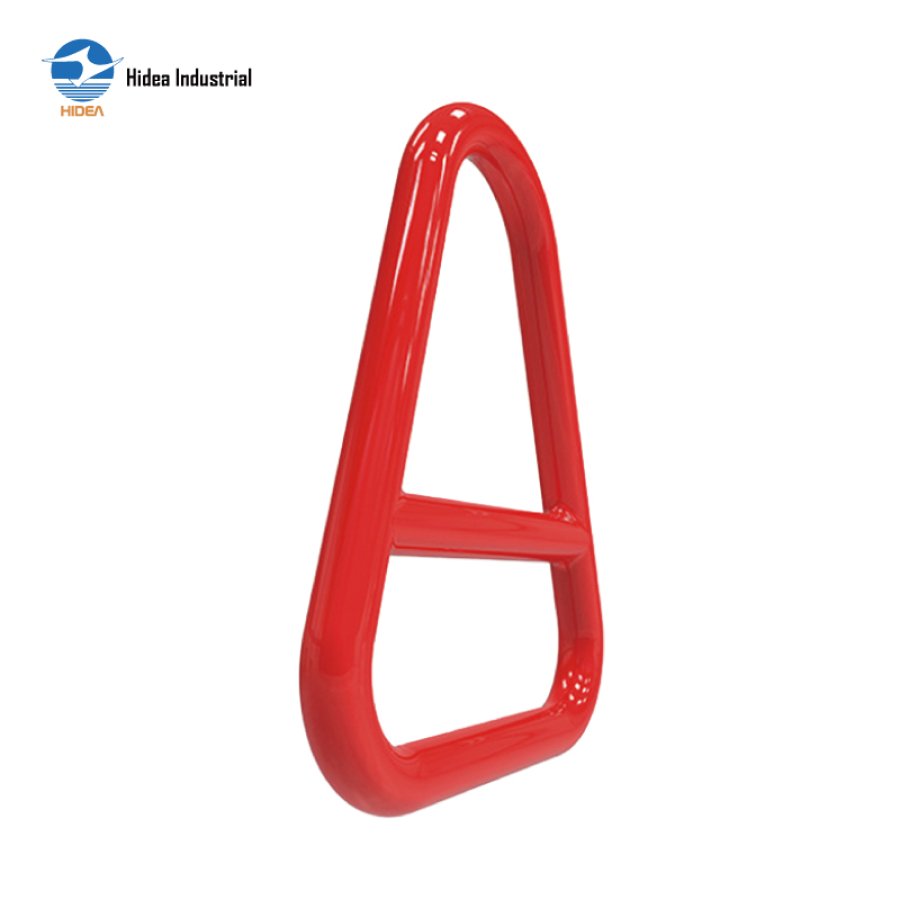

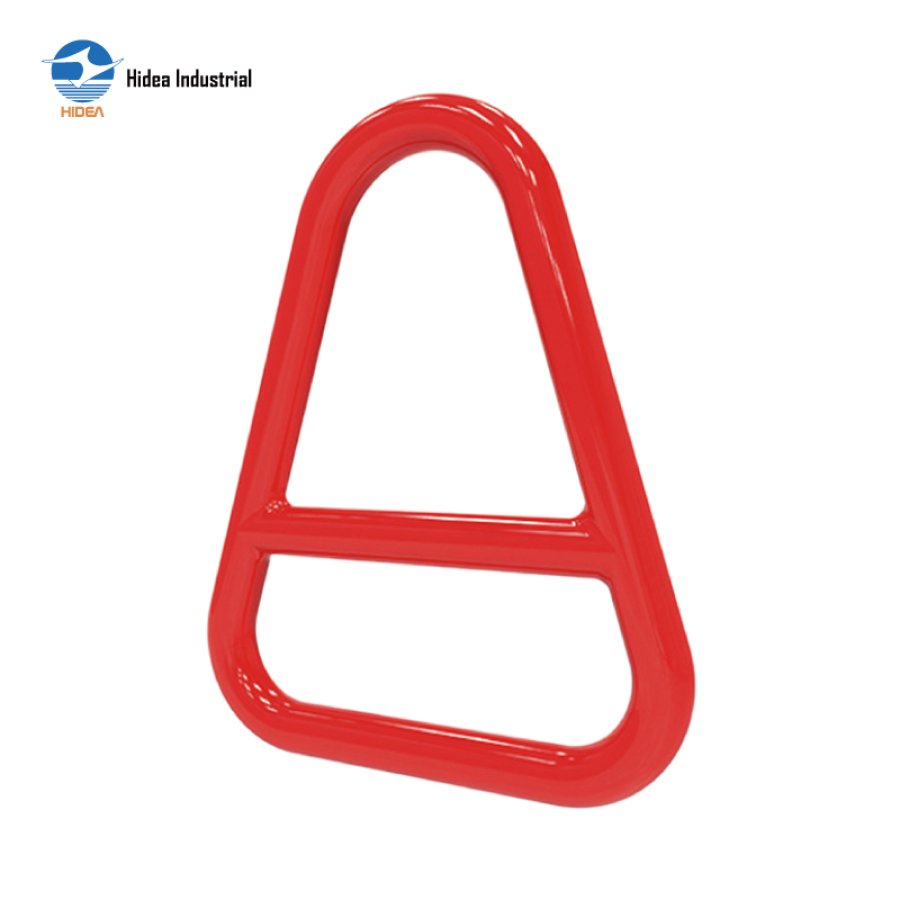

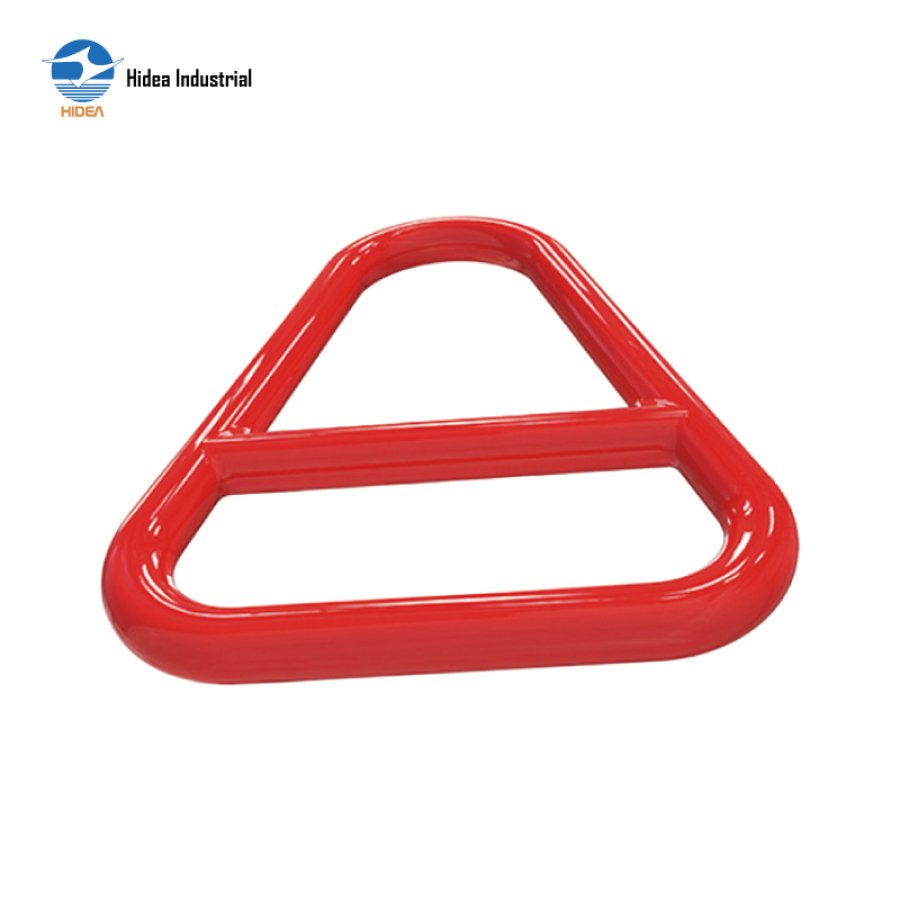

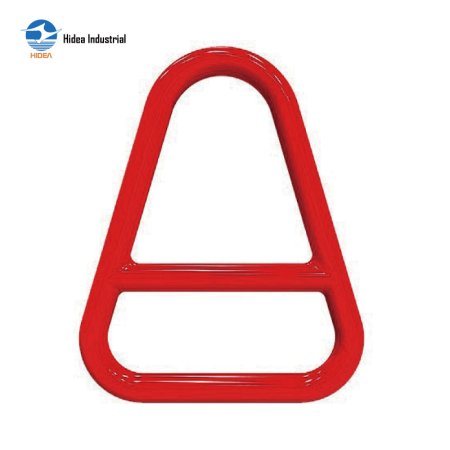

G80 Alloy Triangle Ring for Maximum Load Safety

G80 ALLOY TRIANGLE RING FOR WEB SLING

Super alloy steel-Quenched and Tempered
Breakage test
100% magnaflux crack detection
Surface finish: powder plastifed
Colour code: Red RAL3020/Yellow RAL1003

Inquire Now

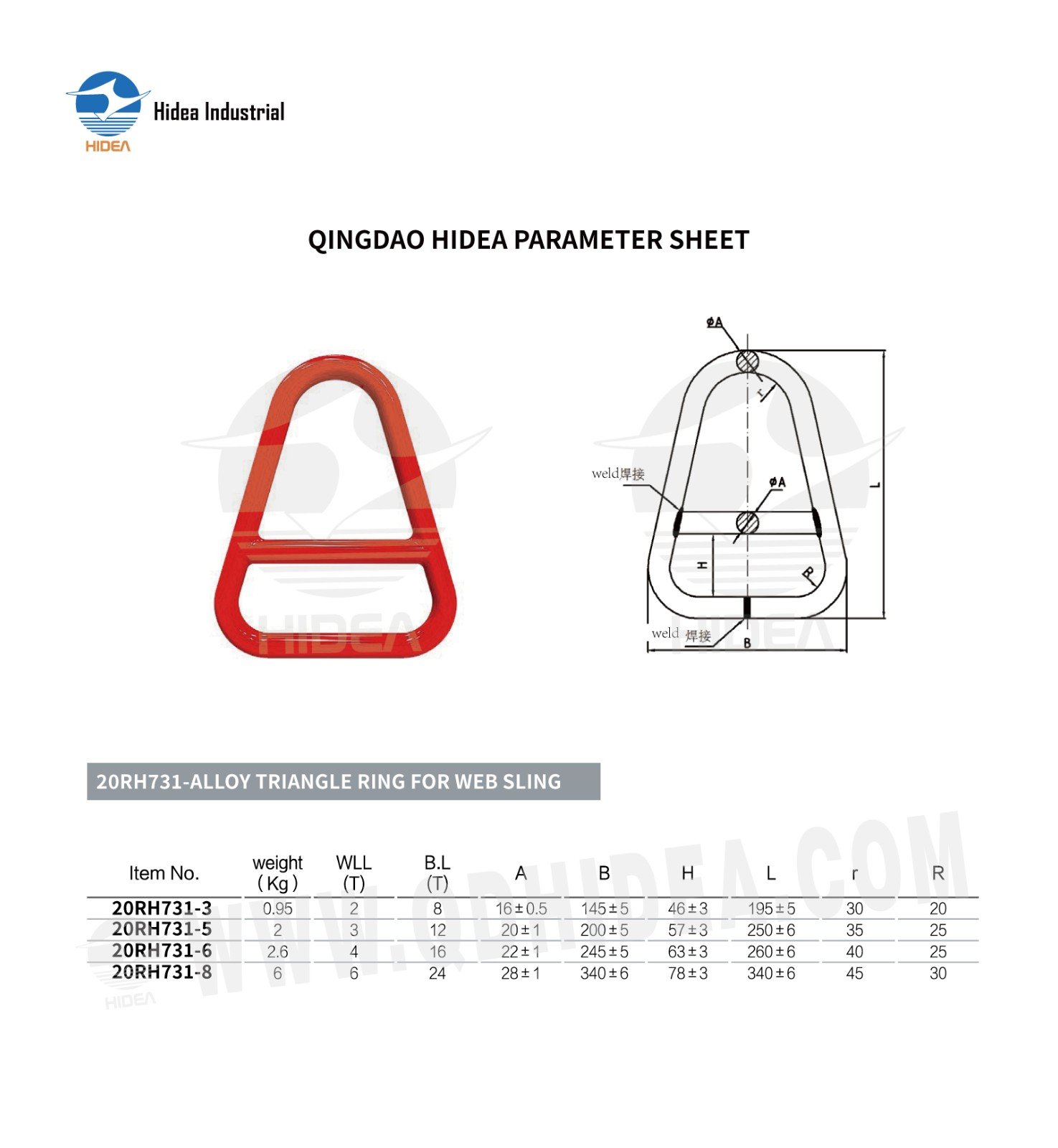

QINGDAO HIDEA PARAMETER SHEET FOR

20RH731-ALLOY TRIANGLE RING FOR WEB SLING

Item No.	weight (Kg)	WLL (T)	B.L (T)	A	B	H	L	r	R
20RH731-3	0.95	2	8	16±0.5	145±5	46±3	195±5	30	20
20RH731-5	2	3	12	20±1	200±5	57±3	250±6	35	25
20RH731-6	2.6	4	16	22±1	245±5	63±3	260±6	40	25
20RH731-8	6	6	24	28±1	340±6	78±3	340±6	45	30
