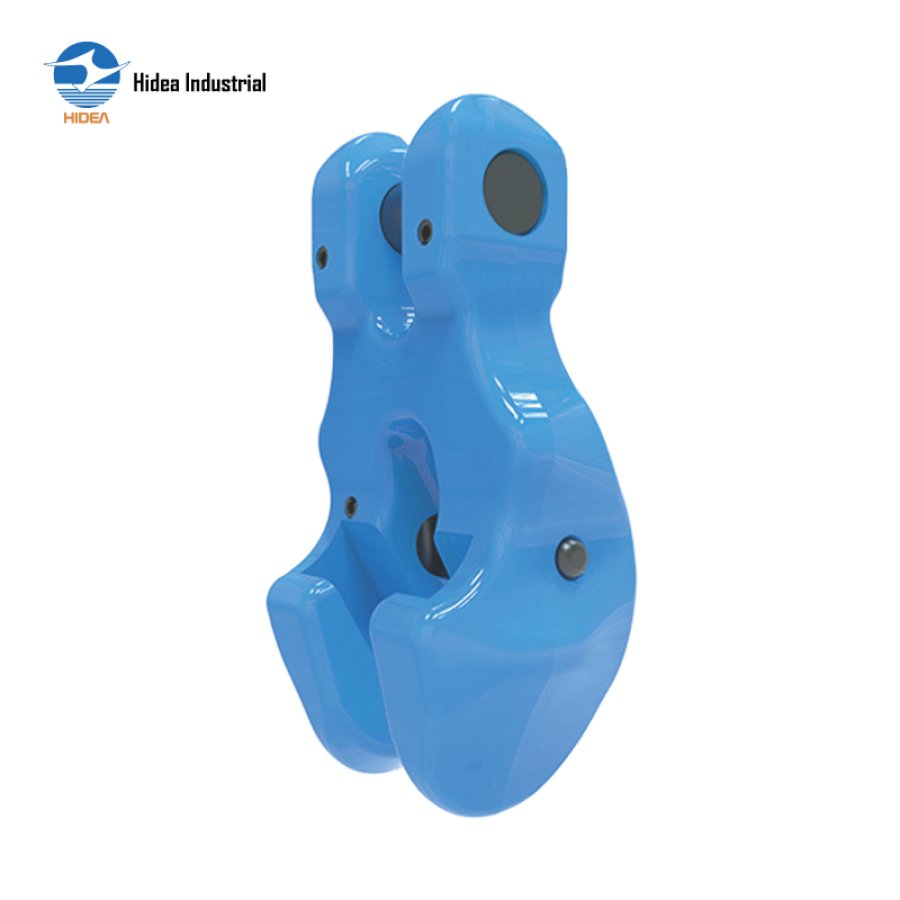

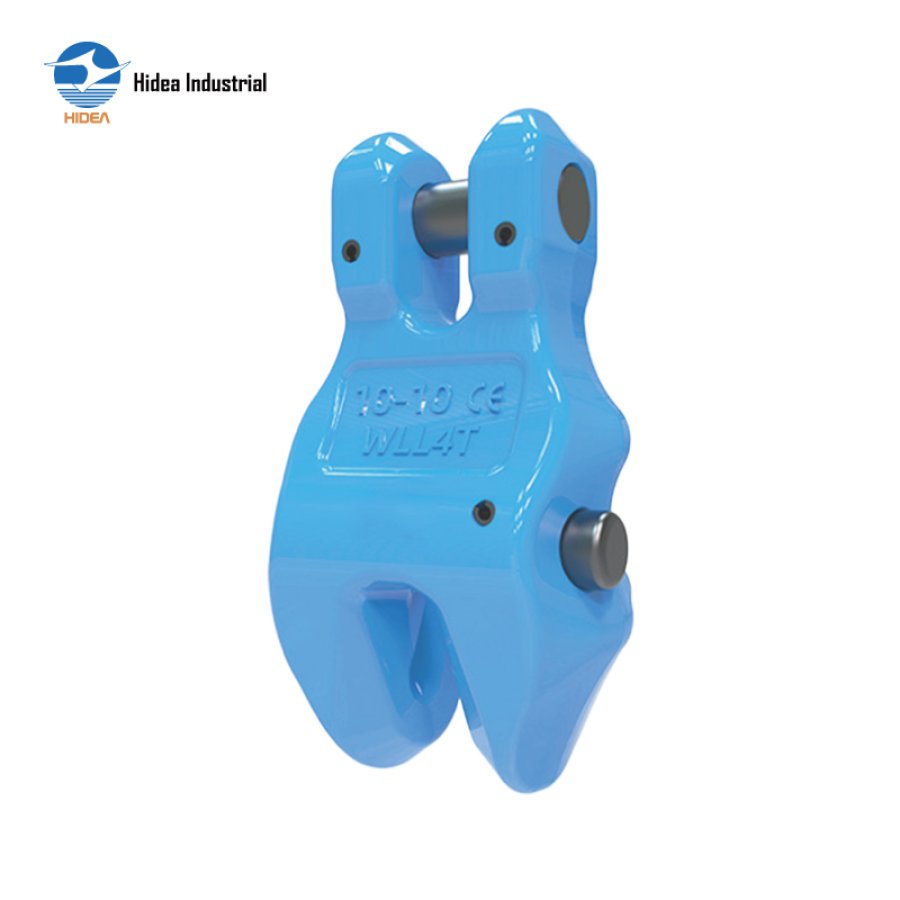

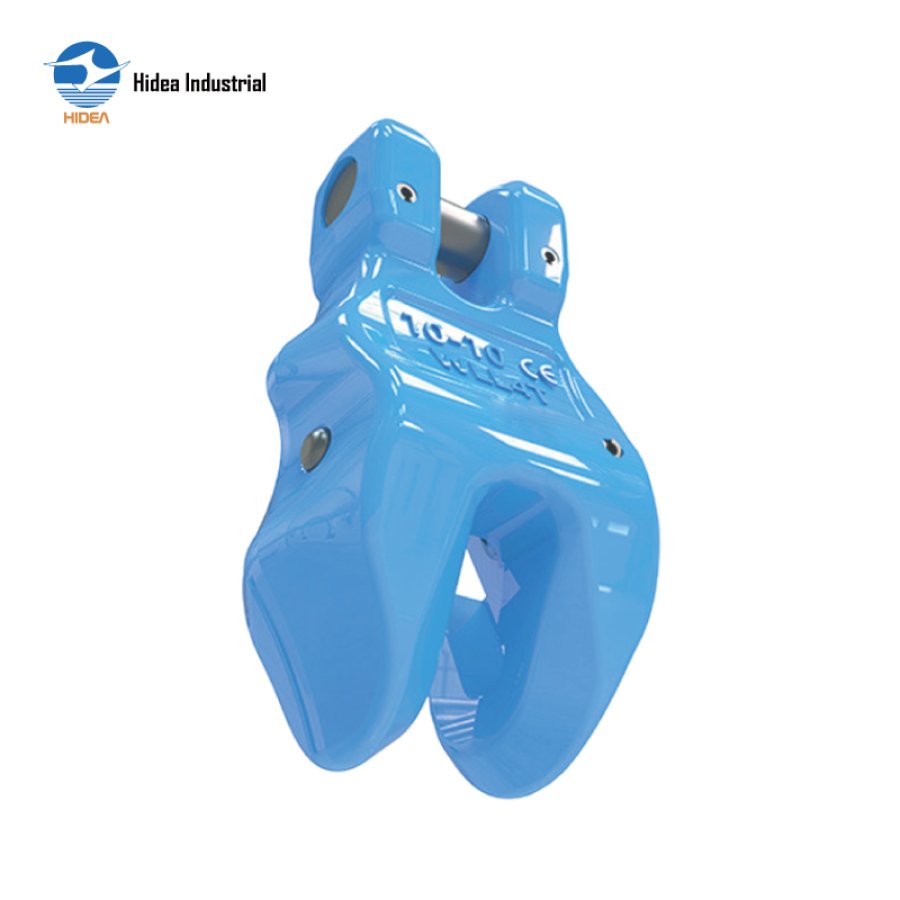

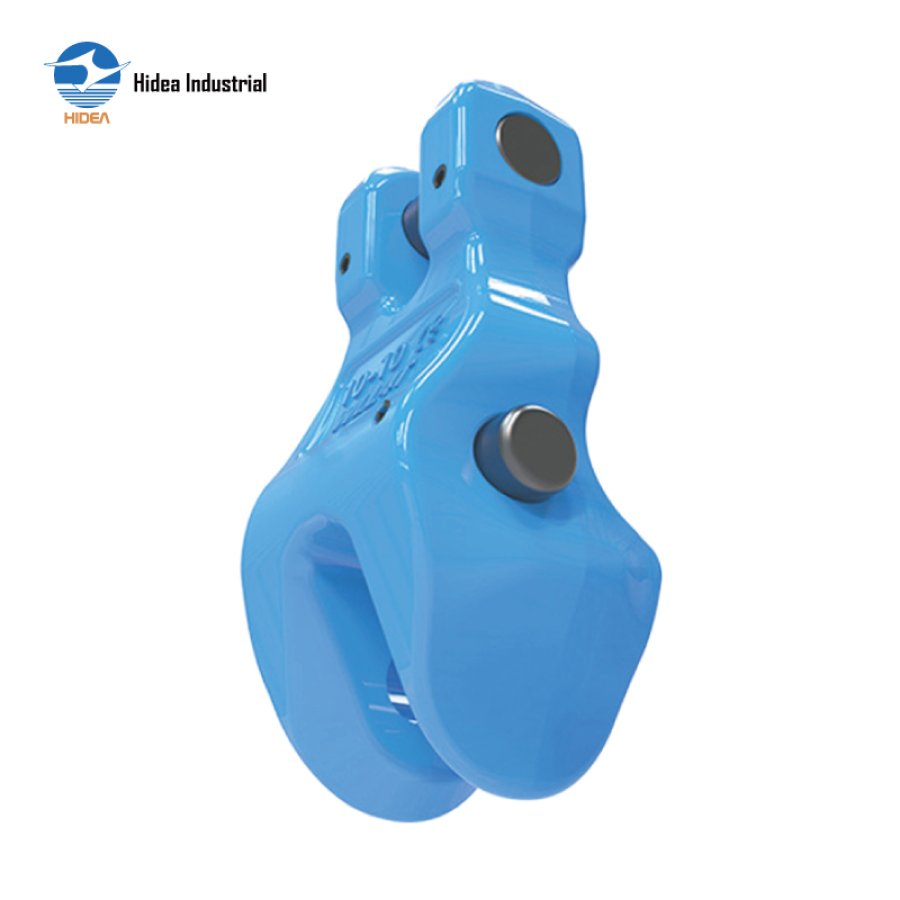

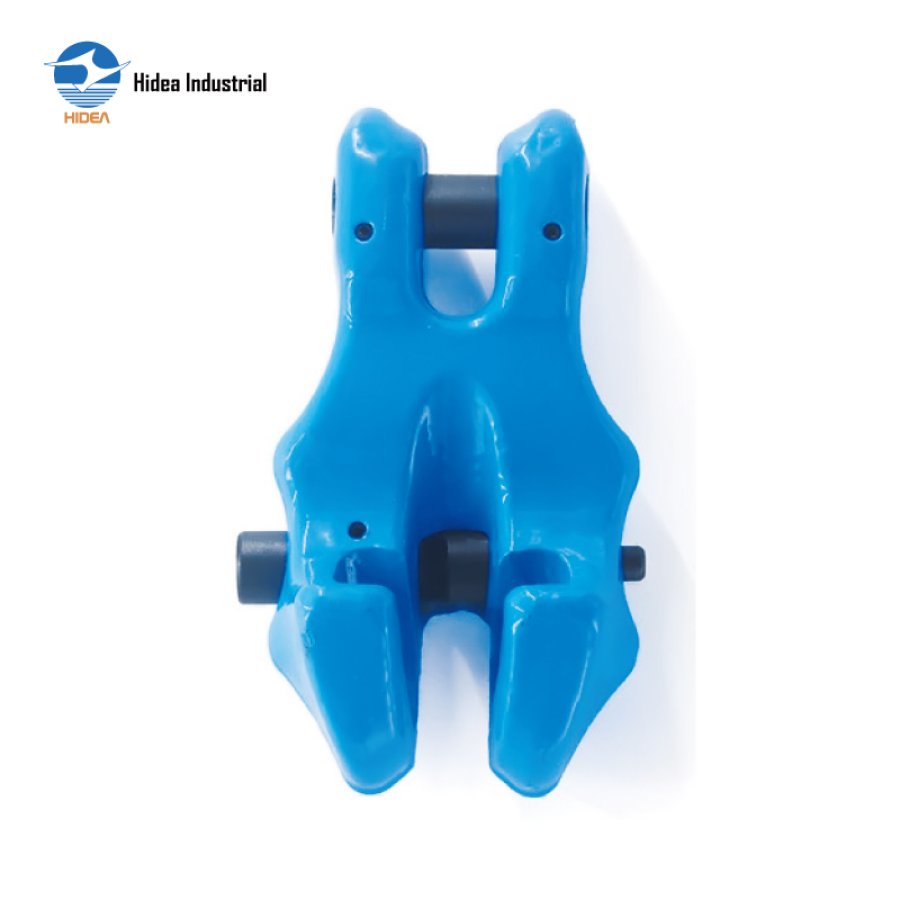

Hidea Grade 100 Clevis Clutch with Pin for Construction & Transport

G100 CLEVIS CLUTCH WITH PIN

Forged super alloy steel-Quenched and Tempered
25% strongerthan G80
Breakage test
100% magnaflux crack detection
Surface finish: Powder plastified
Color code: Blue RAL5015

Inquire Now

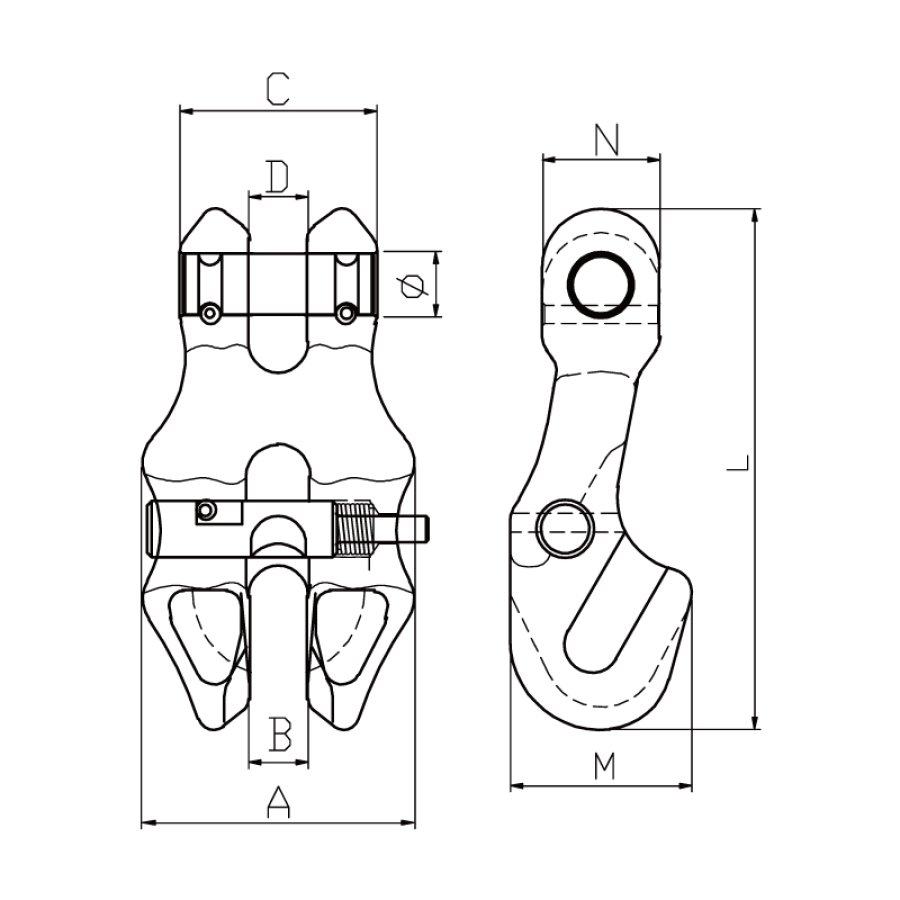

QINGDAO HIDEA PARAMETER SHEET FOR

20RH7501-G100 CLEVIS CLUTCH WITH PIN

ITEM CODE

WEIGHT

WLL

B.L

A±0.5

B±0.5

C±0.5

D±0.5

M±0.5

N±0.5

ø±0.1

L±3

(KG)

(T)

(T)

20RH7501-6

0.25

1.4

5.6

38

7.5

27

7.5

29

16

7.7

73

20RH7501-7/8

0.41

2.5

10

50

9.5

33

9.5

36

23

9.2

92

20RH7501-10

0.75

4

16

60

11.7

43.5

11.7

45.4

36

13.3

115

20RH7501-13

1.67

6.7

26.8

79

15

55

15

54

34

16.3

149

20RH7501-16

4.2

10

40

98

19

70

19

70

40

19.7

184
