HIDEA Grab Hook for Securing Loads on Trucks & Ships

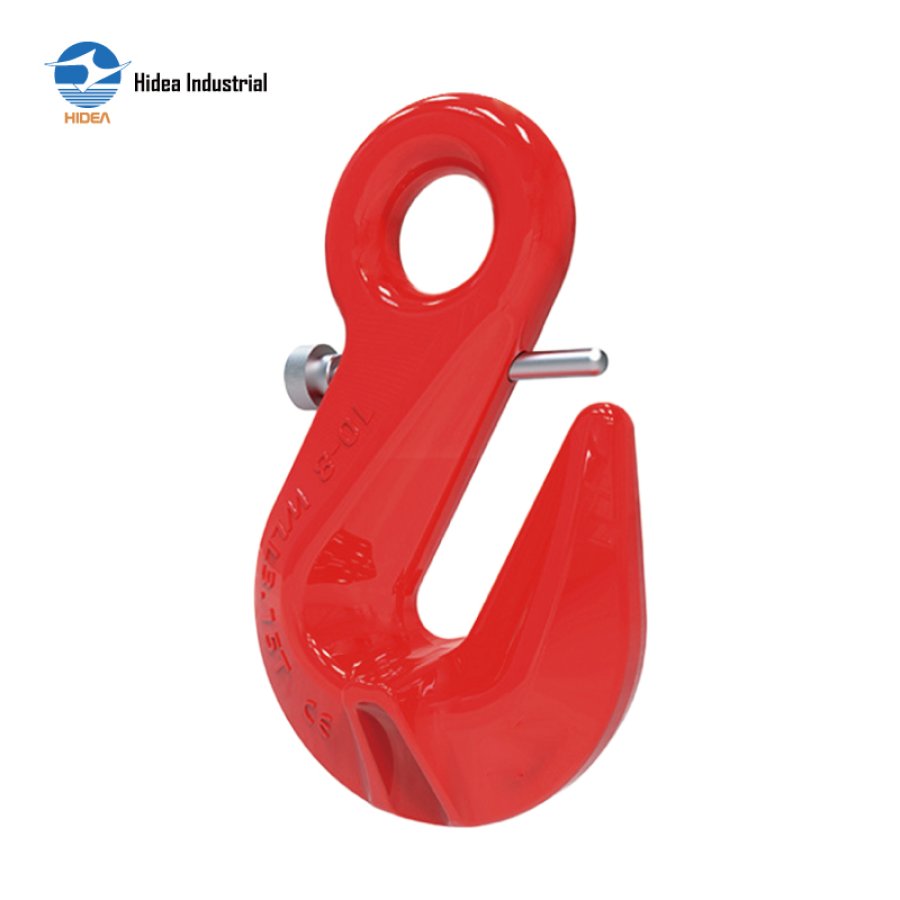

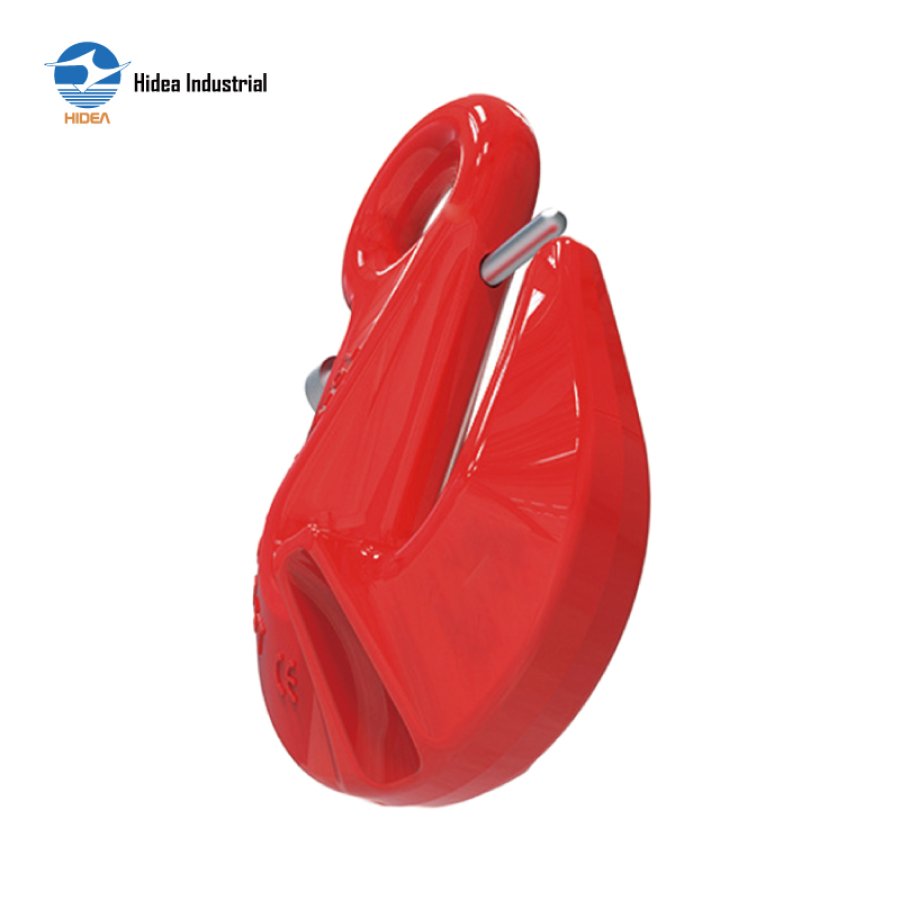

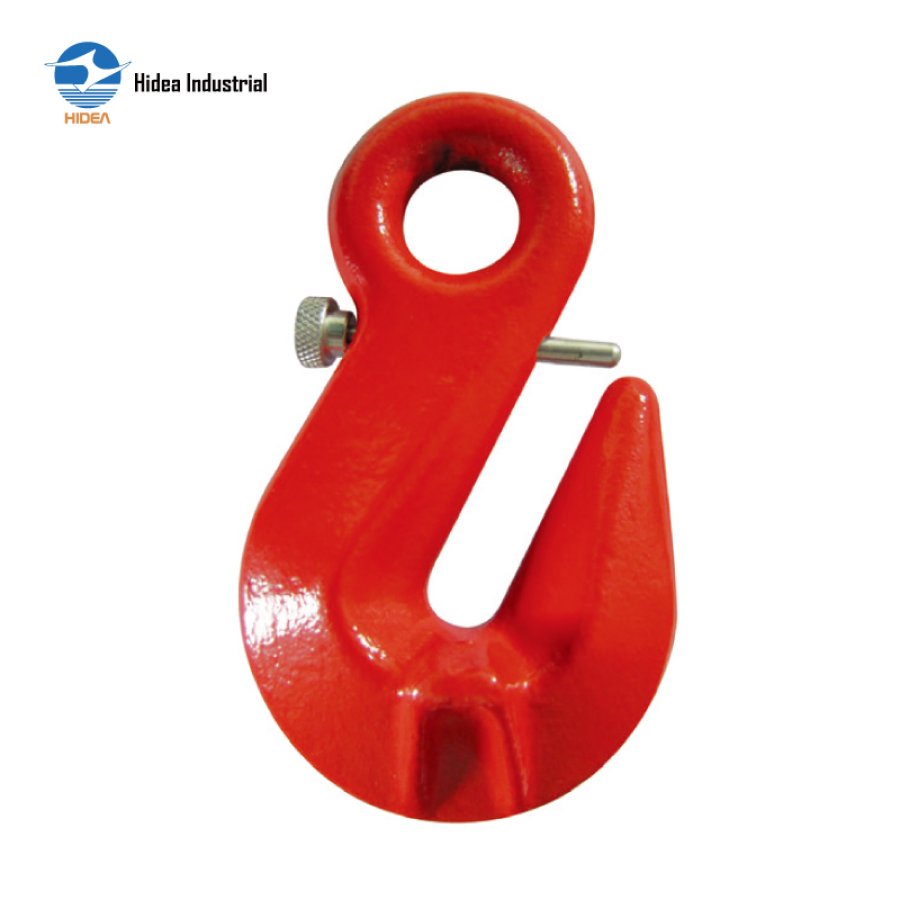

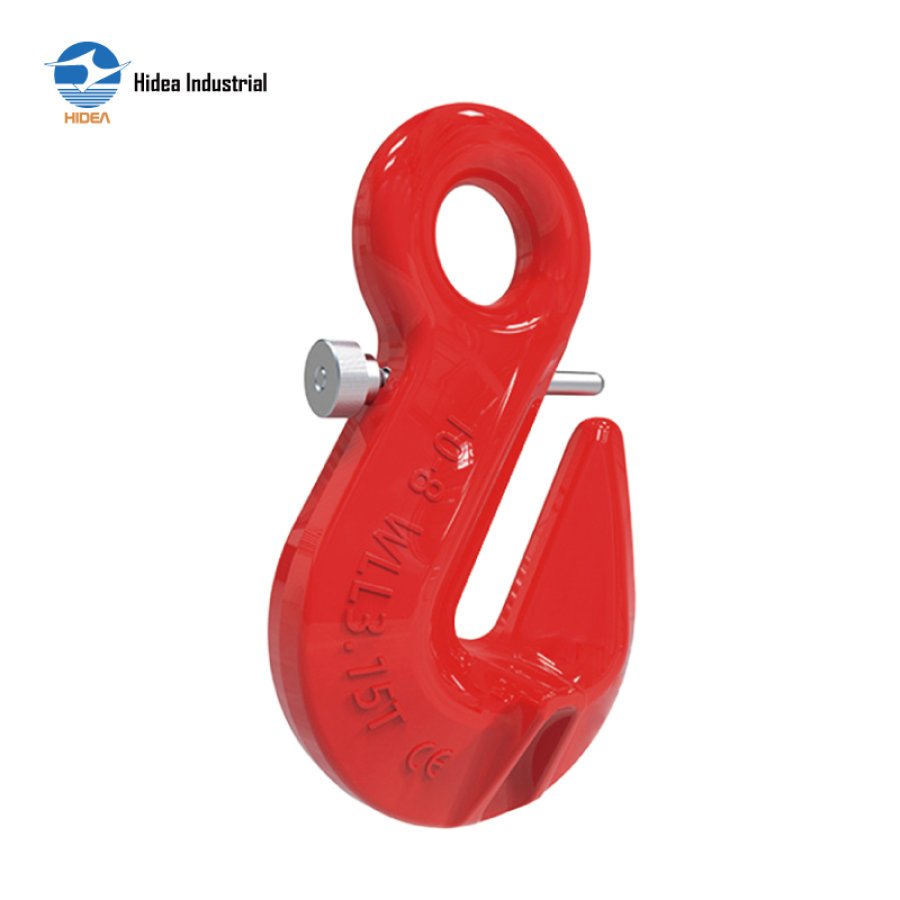

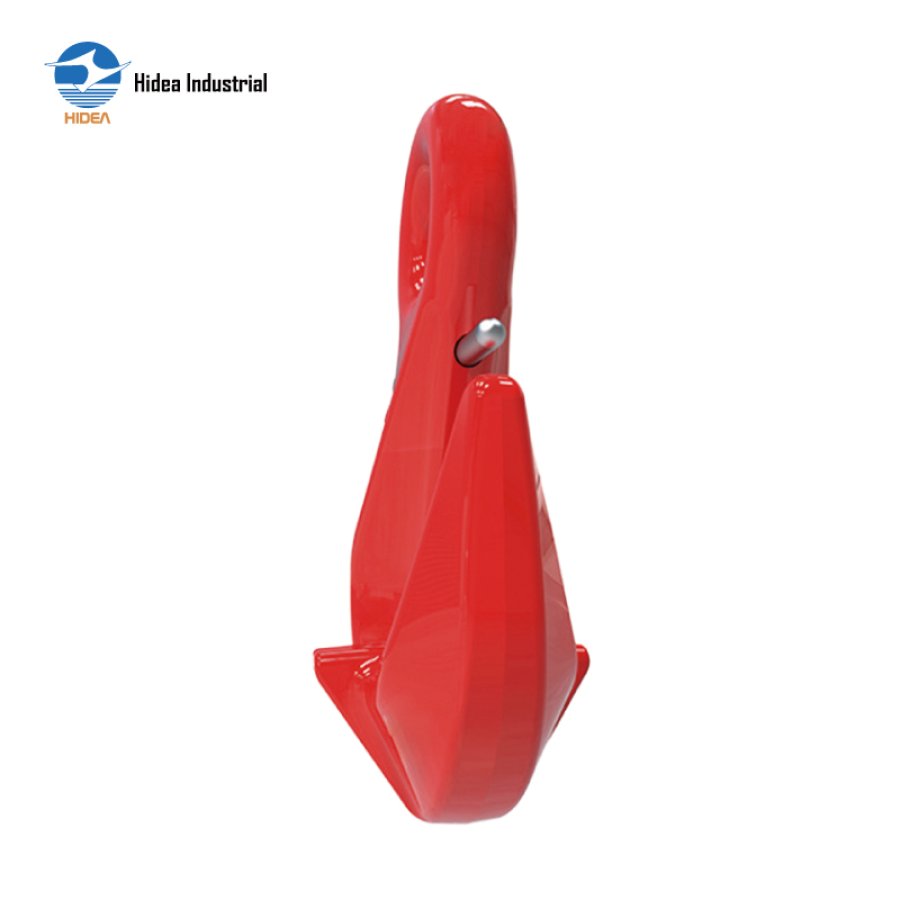

G80 EYE SHORTENING GRAB HOOK WITH SAFETY PIN

Forged super alloy steel-Quenched and Tempered
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection

Inquire Now

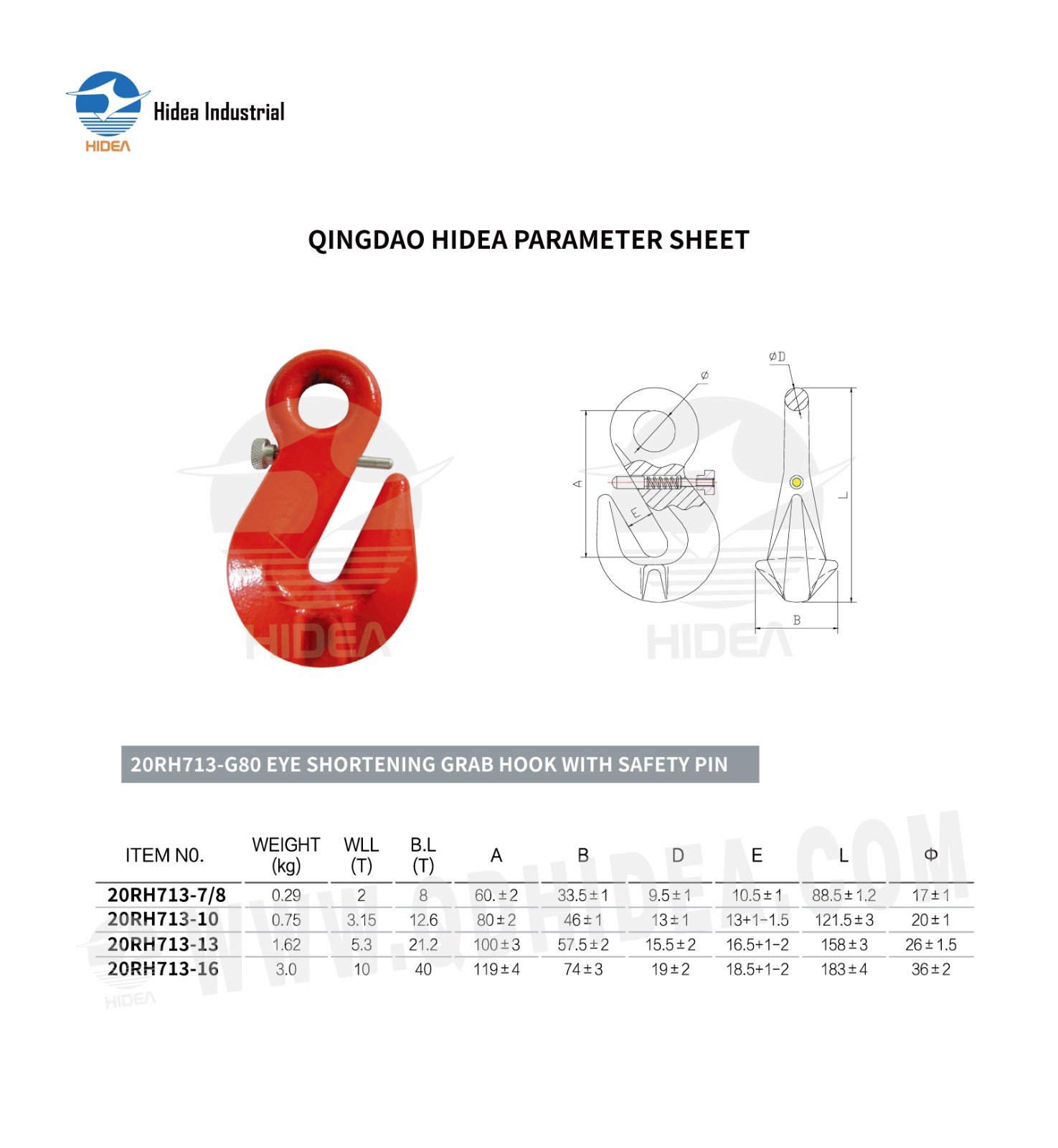

QINGDAO HIDEA PARAMETER SHEET FOR

20RH713-G80 EYE SHORTENING GRAB HOOK WITH SAFETY PIN

ITEM N0.	WEIGHT (kg)	WLL (T)	B.L (T)	A	B	D	E	L	Ф
20RH713-7/8	0.29	2	8	60. ±2	33.5±1	9.5±1	10.5±1	88.5±1.2	17±1
20RH713-10	0.75	3.15	12.6	80±2	46±1	13±1	13+1-1.5	121.5±3	20±1
20RH713-13	1.62	5.3	21.2	100±3	57.5±2	15.5±2	16.5+1-2	158±3	26±1.5
20RH713-16	3.0	10	40	119±4	74±3	19±2	18.5+1-2	183±4	36±2
