HIDEA YG Type Round Stock Grab Clamp: Secure Lifting Solution

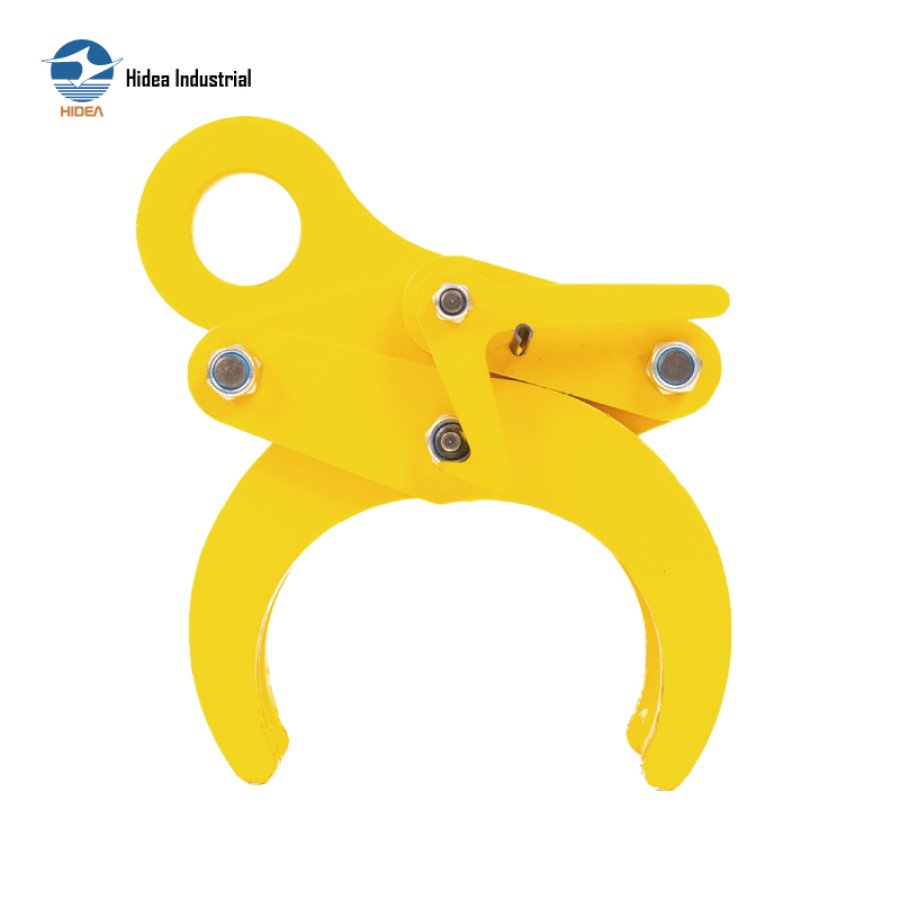

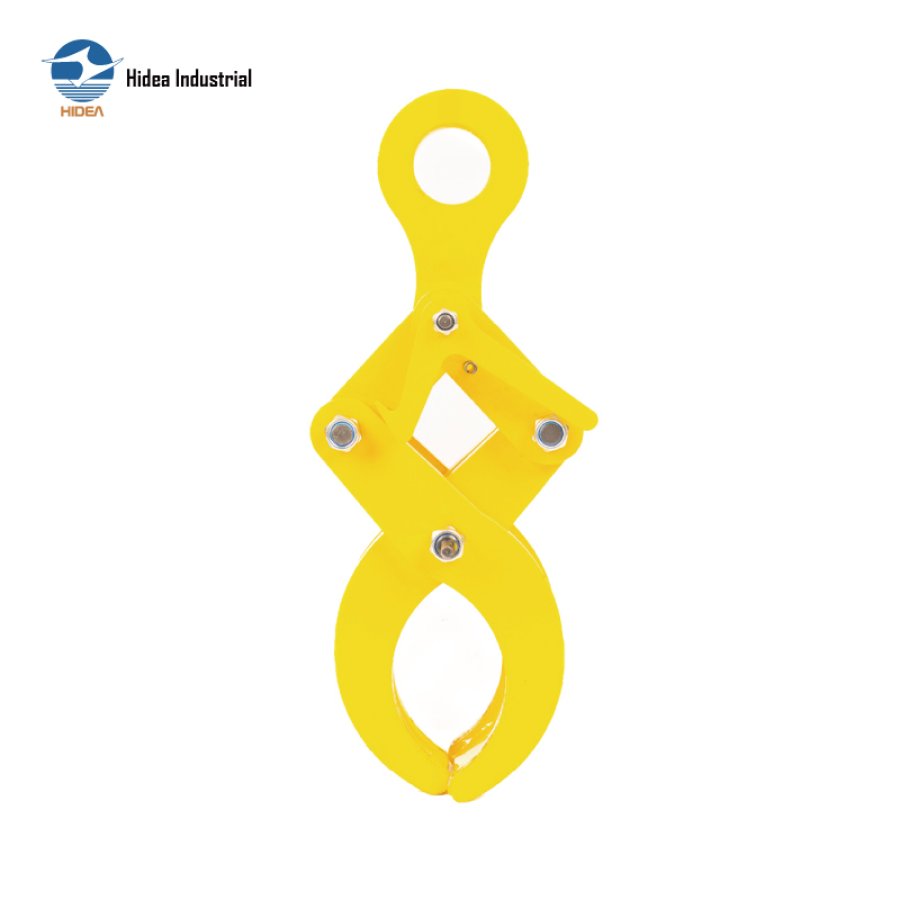

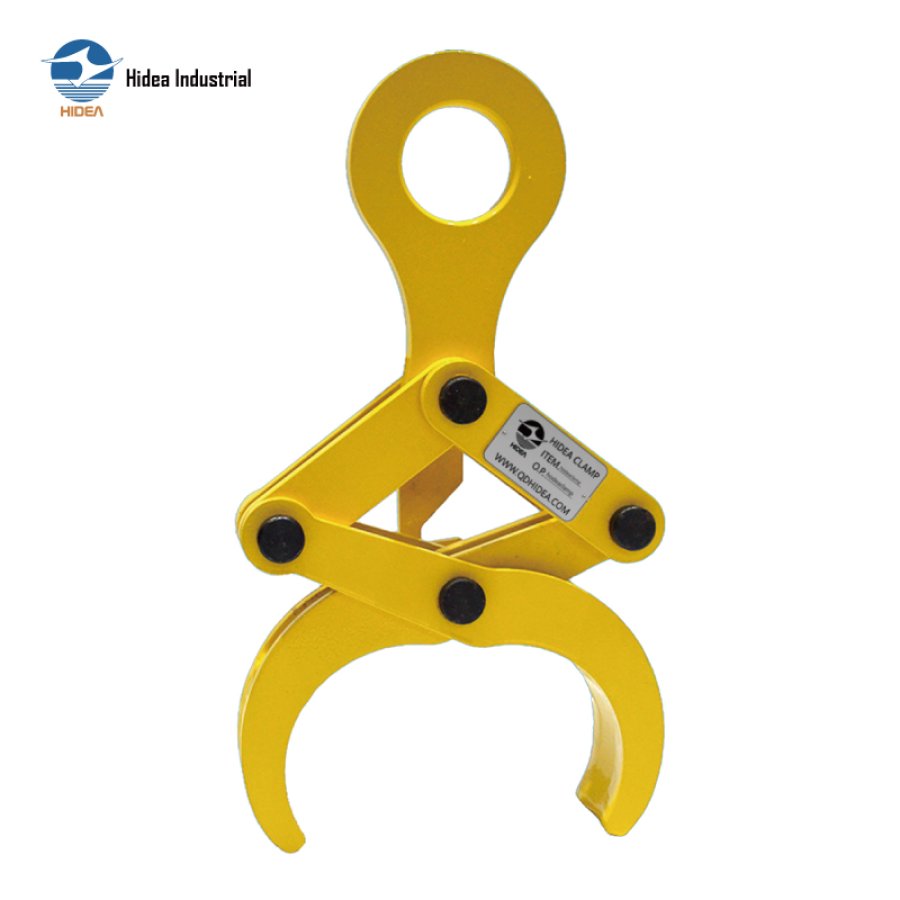

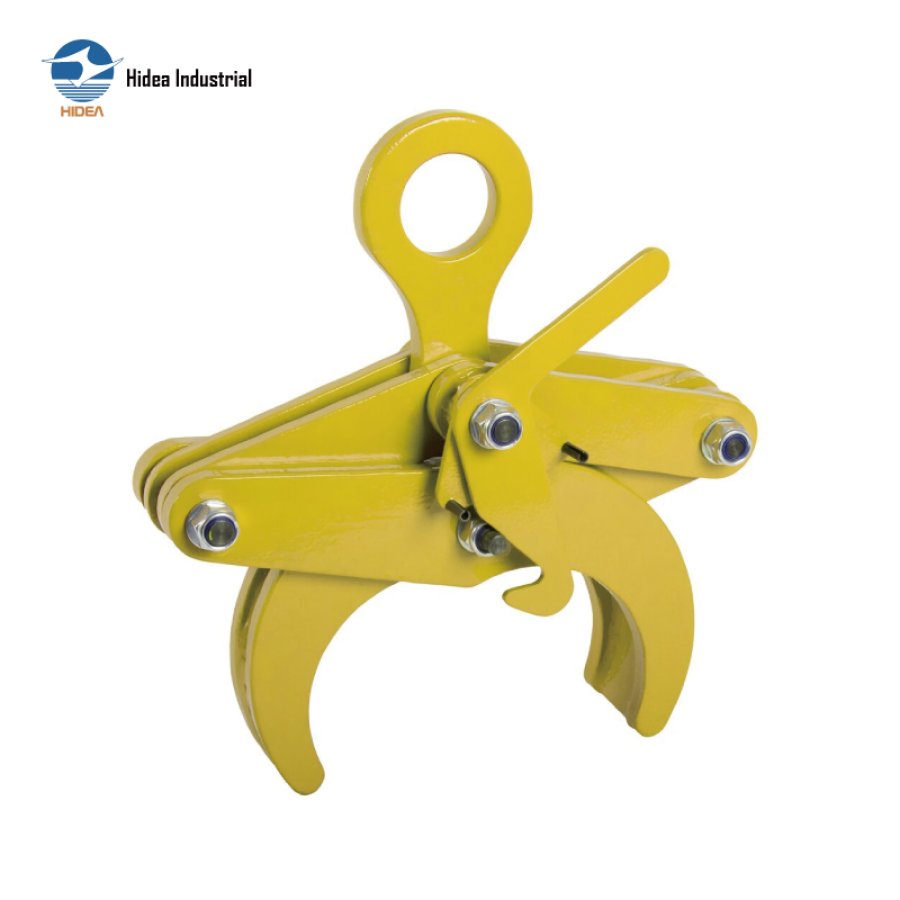

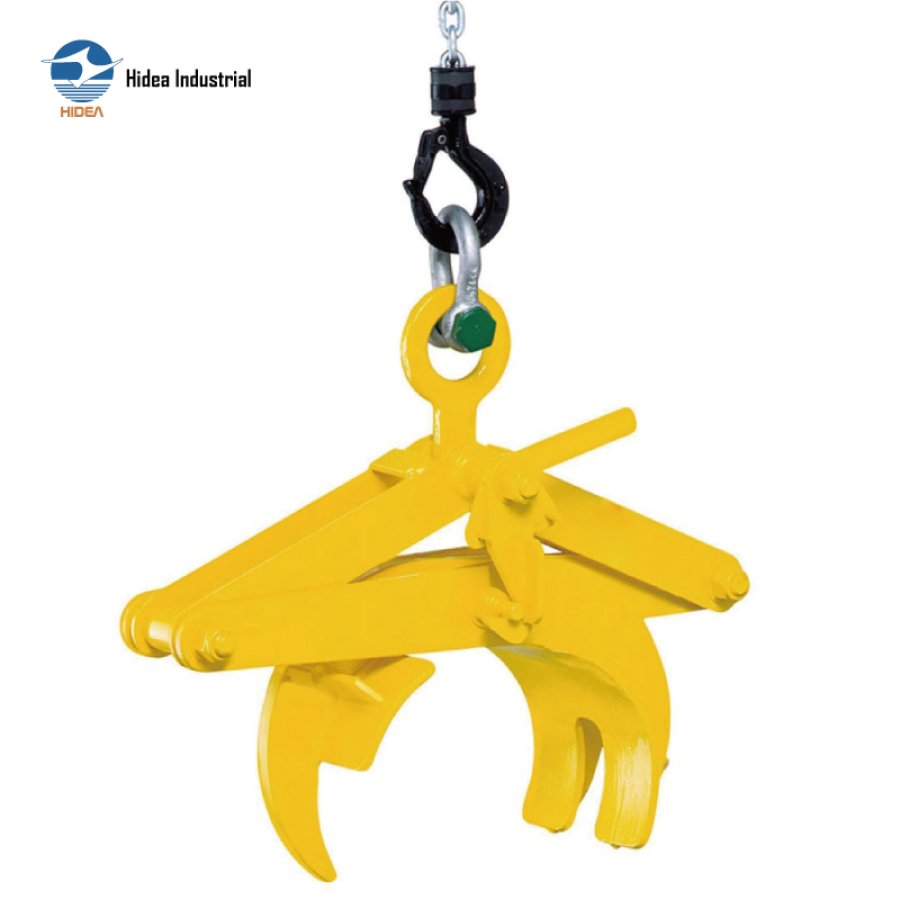

ROUND STOCK GRAB CLAMP YG TYPE

The YG type round stock grab clamps are designed for horizontal lifting and transporting of steel and concrete pipes, tubes and rolls or similar round stocks of diameter up to 320mm
The YG clamps available with automatic open / close device for lifting with working load from 0.5T up to 5T
The YG Type round stock grab clamps meeting standards of and in conformity with European Norm (EN) 13155, Machinery Directive 2006/42/EC & ASME B30.20

Inquire Now

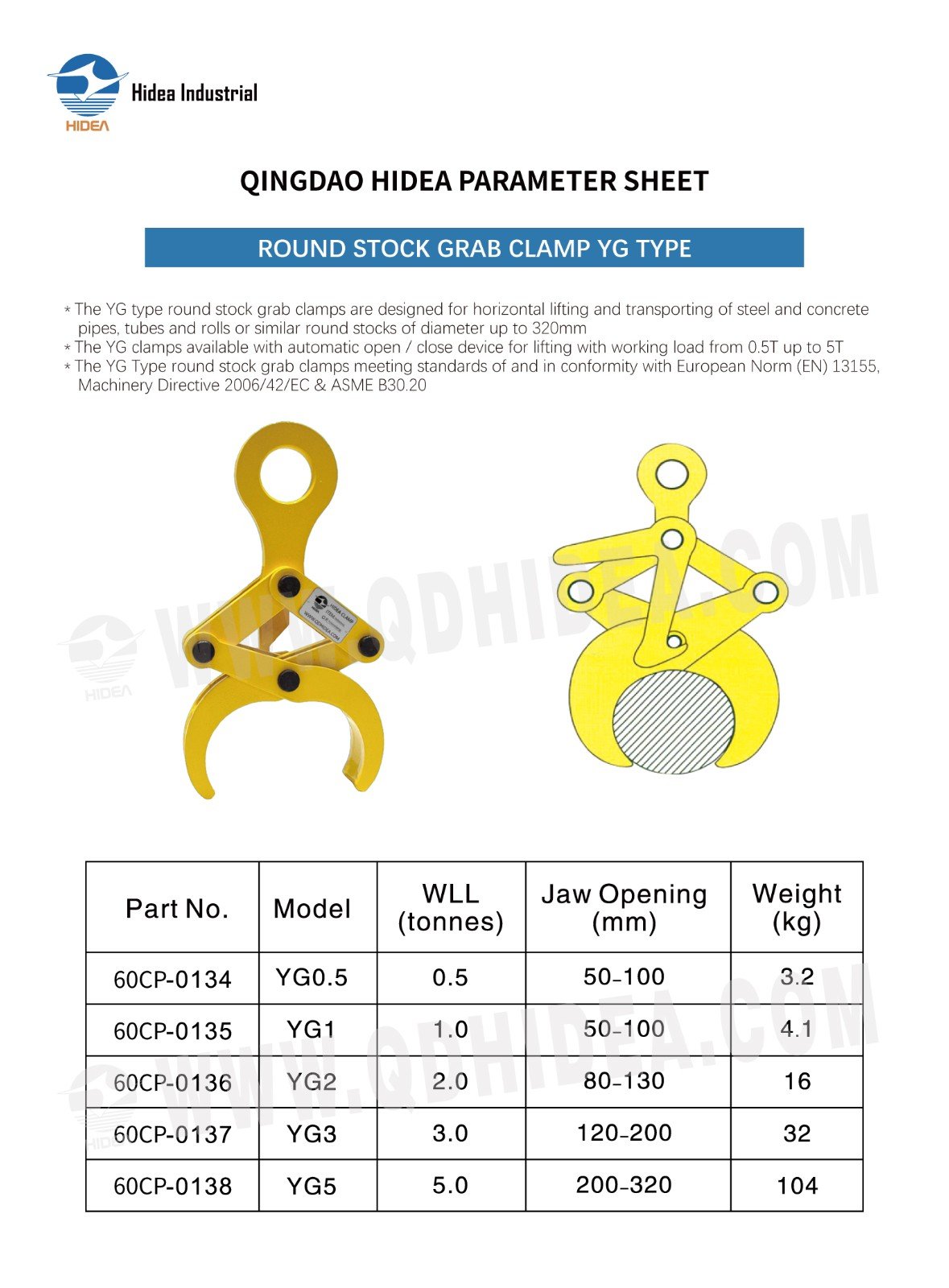

QINGDAO HIDEA PARAMETER SHEET FOR

ROUND STOCK GRAB CLAMP YG TYPE

Part No.	Model	WLL (tonnes)	Jaw Opening (mm)	Weight (kg)
60CP-0134	YG0.5	0.5	50-100	3.2
60CP-0135	YG1	1.0	50-100	4.1
60CP-0136	YG2	2.0	80-130	16
60CP-0137	YG3	3.0	120-200	32
60CP-0138	YG5	5.0	200-320	104
