Material: High tensile carbon steel ASTM(AISI)1045
Drop forged, quenched & tempered
Proof tested individually & certificate available
Surface Hot Dip Galv. OR as requested
Meets the performance requirements of Federal Specifications FF-T-791b,Type 1, Form 1 & ASTM F-1145; Meets or exceeds all requirements of ASME B30.26

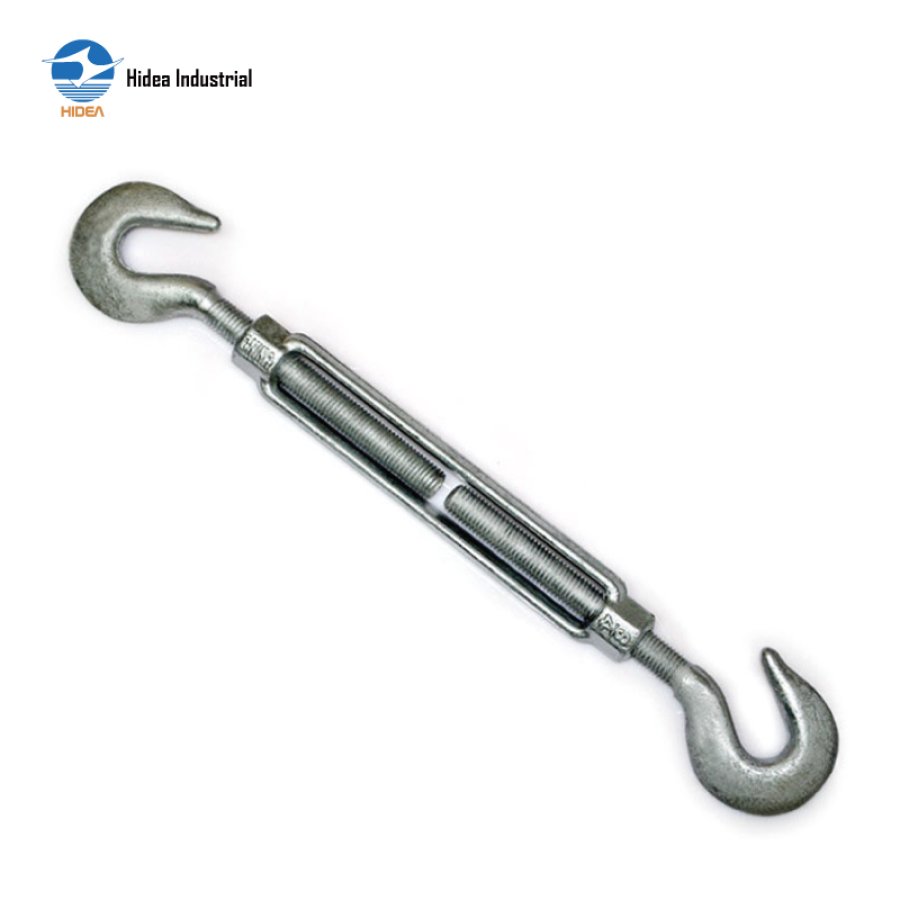

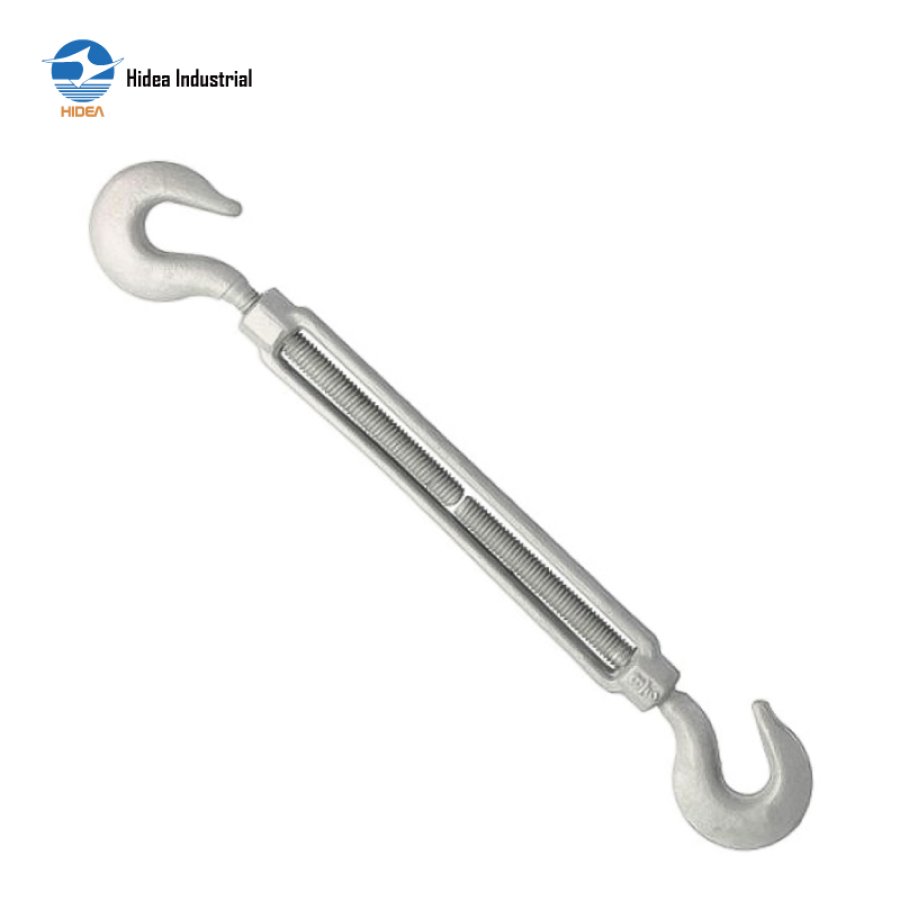

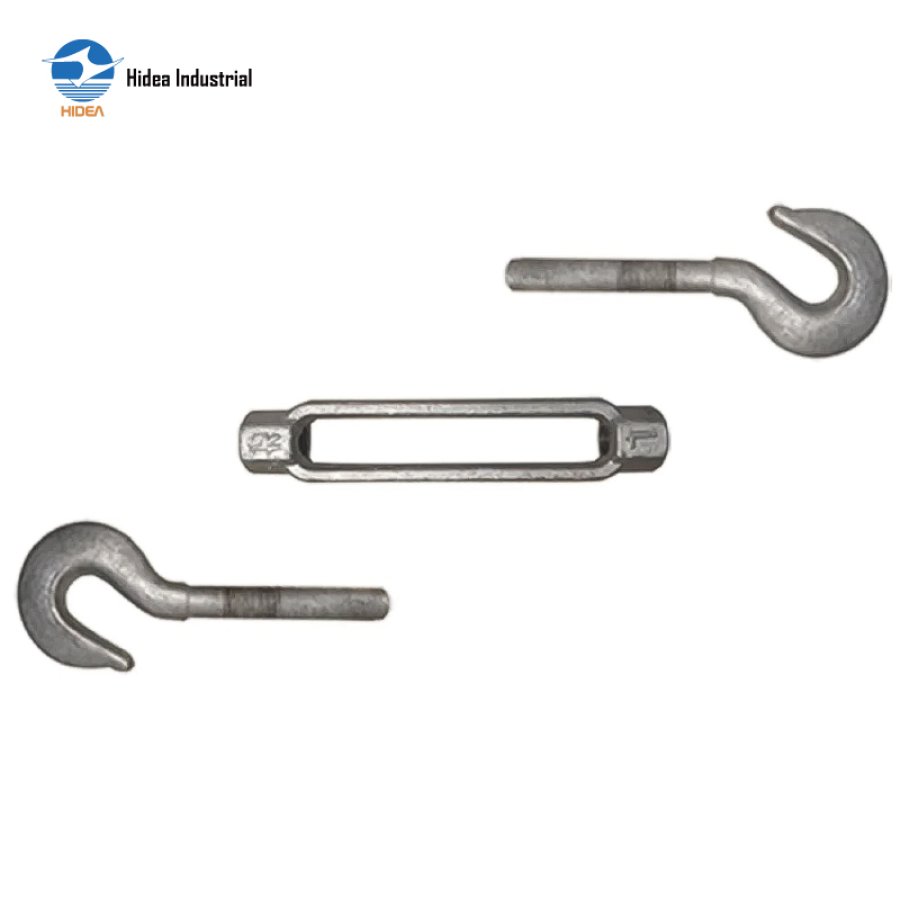

HG-223 US type drop forged turnbucle Hook & Hook type

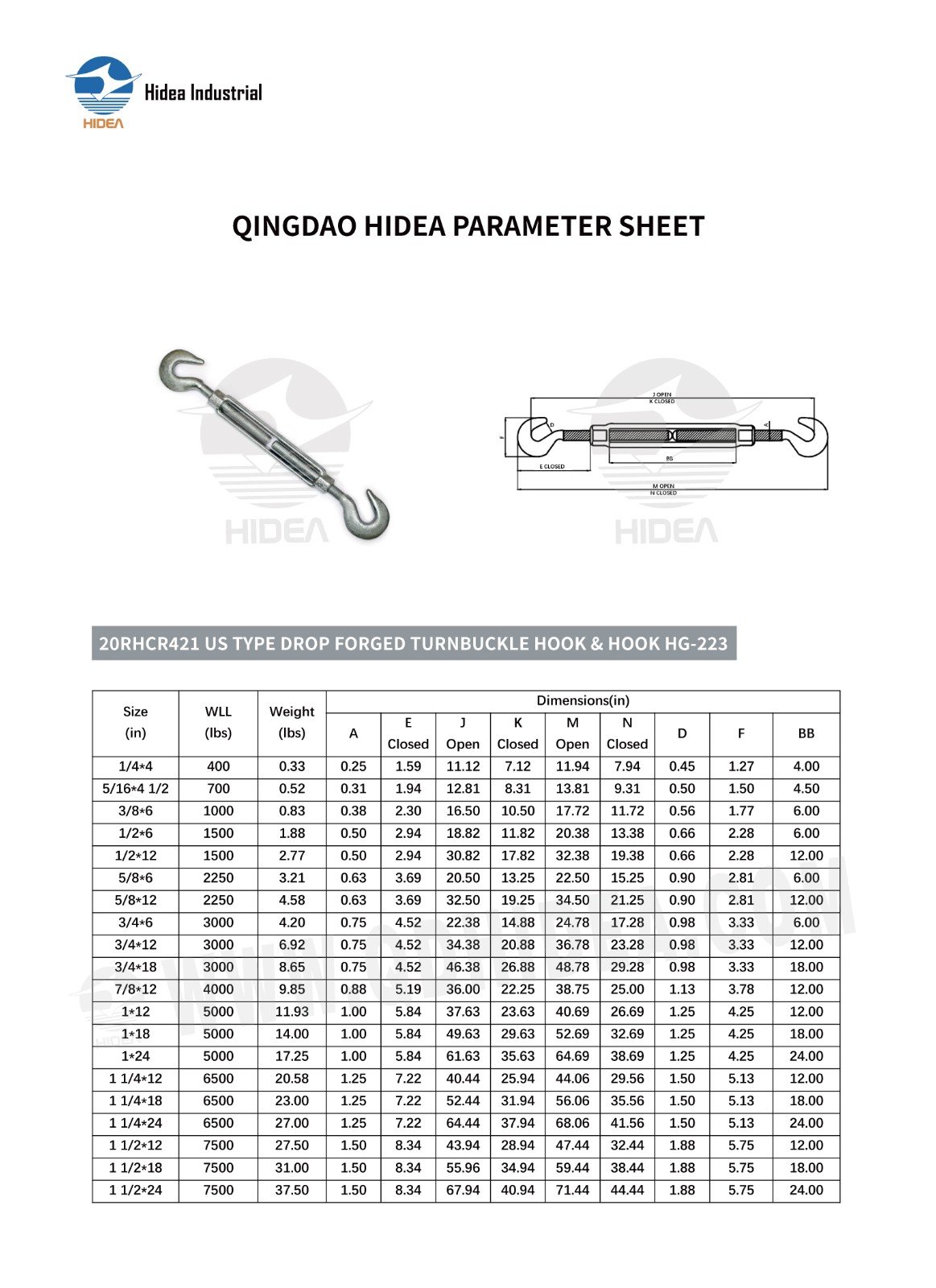

QINGDAO HIDEA PARAMETER SHEET FOR
20RHCR421US TYPE DROP FORGED TURNBUCKLE HOOK&HOOK HG-223
| Size (in) | WLL (Ibs) | Weight (Ibs) | Dimensions(in) | |||||||||
| A | E Closed | J Open | K Closed | M Open | N Closed | D | F | BB | ||||
| 1/4*4 | 400 | 0.33 | 0.25 | 1.59 | 11.12 | 7.12 | 11.94 | 7.94 | 0.45 | 1.27 | 4.00 | |
| 5/16*41/2 | 700 | 0.52 | 0.31 | 1.94 | 12.81 | 8.31 | 13.81 | 9.31 | 0.50 | 1.50 | 4.50 | |
| 3/8*6 | 1000 | 0.83 | 0.38 | 2.30 | 16.50 | 10.50 | 17.72 | 11.72 | 0.56 | 1.77 | 6.00 | |
| 1/2*6 | 1500 | 1.88 | 0.50 | 2.94 | 18.82 | 11.82 | 20.38 | 13.38 | 0.66 | 2.28 | 6.00 | |
| 1/2*12 | 1500 | 2.77 | 0.50 | 2.94 | 30.82 | 17.82 | 32.38 | 19.38 | 0.66 | 2.28 | 12.00 | |
| 5/8*6 | 2250 | 3.21 | 0.63 | 3.69 | 20.50 | 13.25 | 22.50 | 15.25 | 0.90 | 2.81 | 6.00 | |
| 5/8*12 | 2250 | 4.58 | 0.63 | 3.69 | 32.50 | 19.25 | 34.50 | 21.25 | 0.90 | 2.81 | 12.00 | |
| 3/4*6 | 3000 | 4.20 | 0.75 | 4.52 | 22.38 | 14.88 | 24.78 | 17.28 | 0.98 | 3.33 | 6.00 | |
| 3/4*12 | 3000 | 6.92 | 0.75 | 4.52 | 34.38 | 20.88 | 36.78 | 23.28 | 0.98 | 3.33 | 12.00 | |
| 3/4*18 | 3000 | 8.65 | 0.75 | 4.52 | 46.38 | 26.88 | 48.78 | 29.28 | 0.98 | 3.33 | 18.00 | |
| 7/8*12 | 4000 | 9.85 | 0.88 | 5.19 | 36.00 | 22.25 | 38.75 | 25.00 | 1.13 | 3.78 | 12.00 | |
| 1*12 | 5000 | 11.93 | 1.00 | 5.84 | 37.63 | 23.63 | 40.69 | 26.69 | 1.25 | 4.25 | 12.00 | |
| 1*18 | 5000 | 14.00 | 1.00 | 5.84 | 49.63 | 29.63 | 52.69 | 32.69 | 1.25 | 4.25 | 18.00 | |
| 1*24 | 5000 | 17.25 | 1.00 | 5.84 | 61.63 | 35.63 | 64.69 | 38.69 | 1.25 | 4.25 | 24.00 | |
| 11/4*12 | 6500 | 20.58 | 1.25 | 7.22 | 40.44 | 25.94 | 44.06 | 29.56 | 1.50 | 5.13 | 12.00 | |
| 11/4*18 | 6500 | 23.00 | 1.25 | 7.22 | 52.44 | 31.94 | 56.06 | 35.56 | 1.50 | 5.13 | 18.00 | |
| 11/4*24 | 6500 | 27.00 | 1.25 | 7.22 | 64.44 | 37.94 | 68.06 | 41.56 | 1.50 | 5.13 | 24.00 | |
| 11/2*12 | 7500 | 27.50 | 1.50 | 8.34 | 43.94 | 28.94 | 47.44 | 32.44 | 1.88 | 5.75 | 12.00 | |
| 11/2*18 | 7500 | 31.00 | 1.50 | 8.34 | 55.96 | 34.94 | 59.44 | 38.44 | 1.88 | 5.75 | 18.00 | |
| 11/2*24 | 7500 | 37.50 | 1.50 | 8.34 | 67.94 | 40.94 | 71.44 | 44.44 | 1.88 | 5.75 | 24.00 | |
