HIDEA Industrial Coal Transfer Chains – Superior Strength for Mining Operations

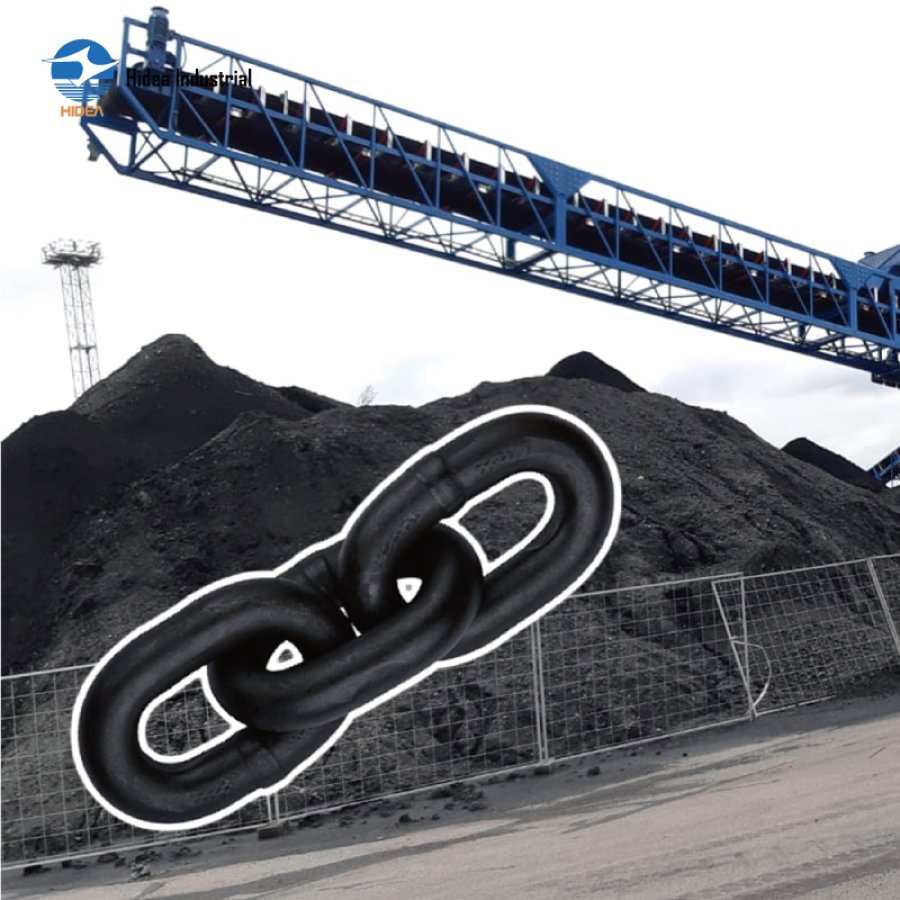

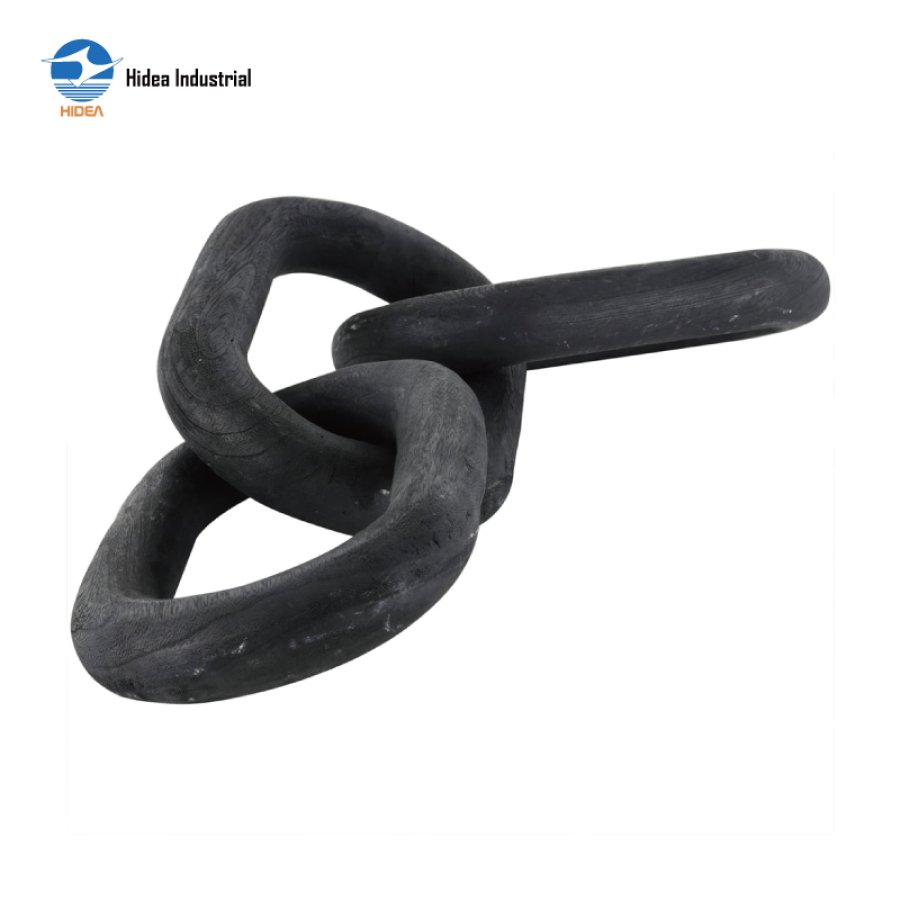

THREE-LINK CHAIN FOR COAL TRANSFER

Material: High-Quality Alloy Steel
Three-Link / 3-Link Chain for Coal Transfer mining chains

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

30SC112 Three-Link Chain for Coal Transfer

Grade B

Size(d)	Pitch(p)	Min.Inside Width(a)	Max. Outside Width(b)	Curve Radius(r)	Test Load	Max. Elongation At Test Load	Min. Breaking Load	Min.Total Elongation At Fracture	3 Links
mm	mm	mm	mm	mm	kn	%	kn	%	kn
22	105	40	87	41	70	2	370	15	2.9
26	118	46	102	48	100	2	520	15	4.6
28	120	48	108	51	110	2	610	15	6.7
30	120	48	112	53	120	2	670	15	7.8
30	130	50	119	56.5	120	2	670	15	6.9

Grade C

Size(d)	Pitch(p)	Min.Inside Width(a)	Max. Outside Width(b)	Curve Radius(r)	Test Load	Max. Elongation At Test Load	Min. Breaking Load	Min.Total Elongation At Fracture	3 Links
mm	mm	mm	mm	mm	kn	%	kn	%	kn
22	105	40	87	41	135	2	530	15	2.9
26	118	46	102	48	190	2	740	15	4.6
28	120	48	108	51	220	2	860	15	6.7
30	120	48	112	53	250	2	990	15	7.8
30	130	55	119	56.5	250	2	990	15	6.9
