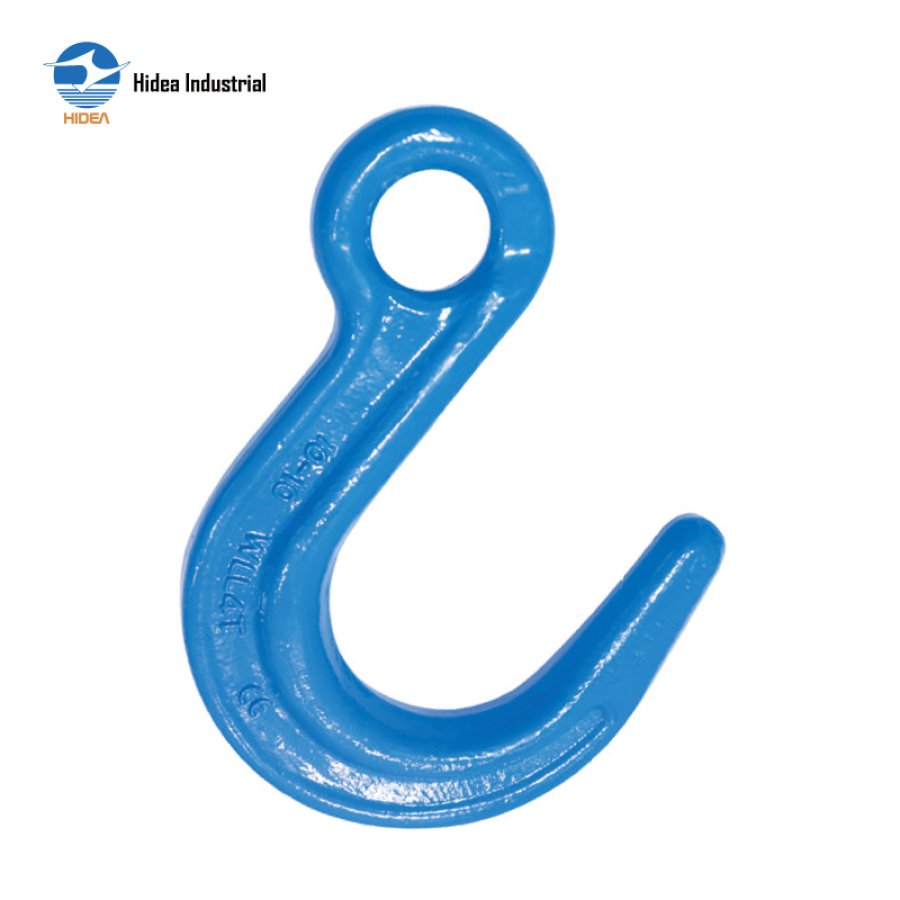

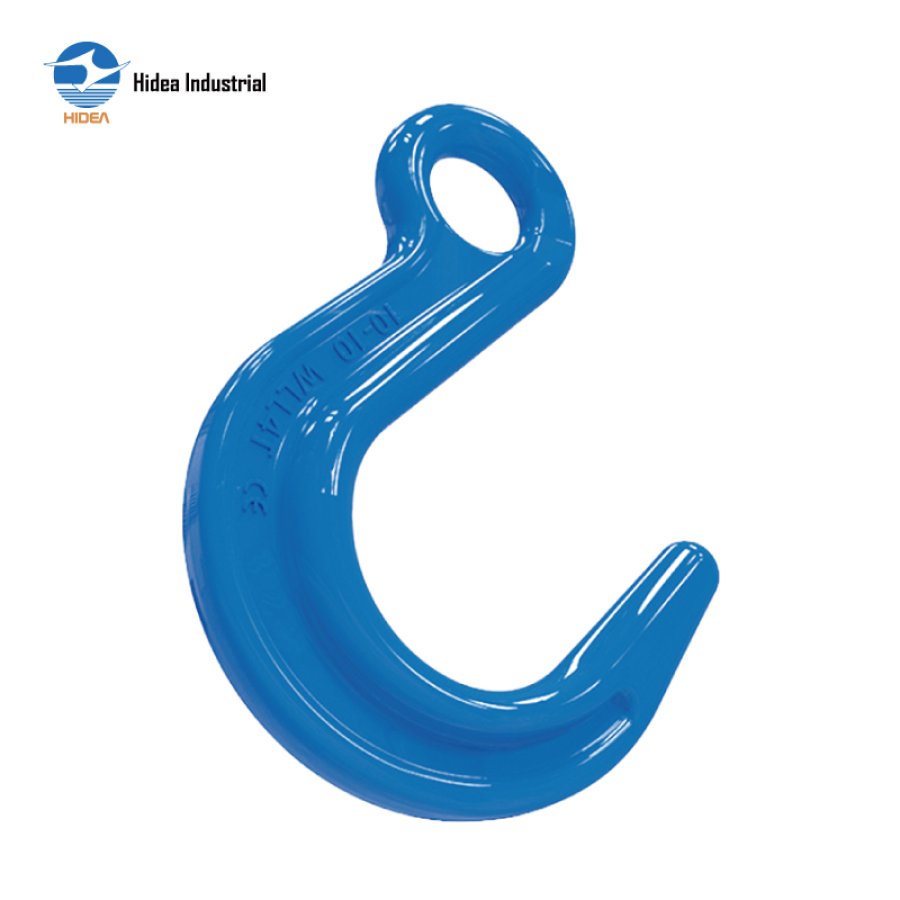

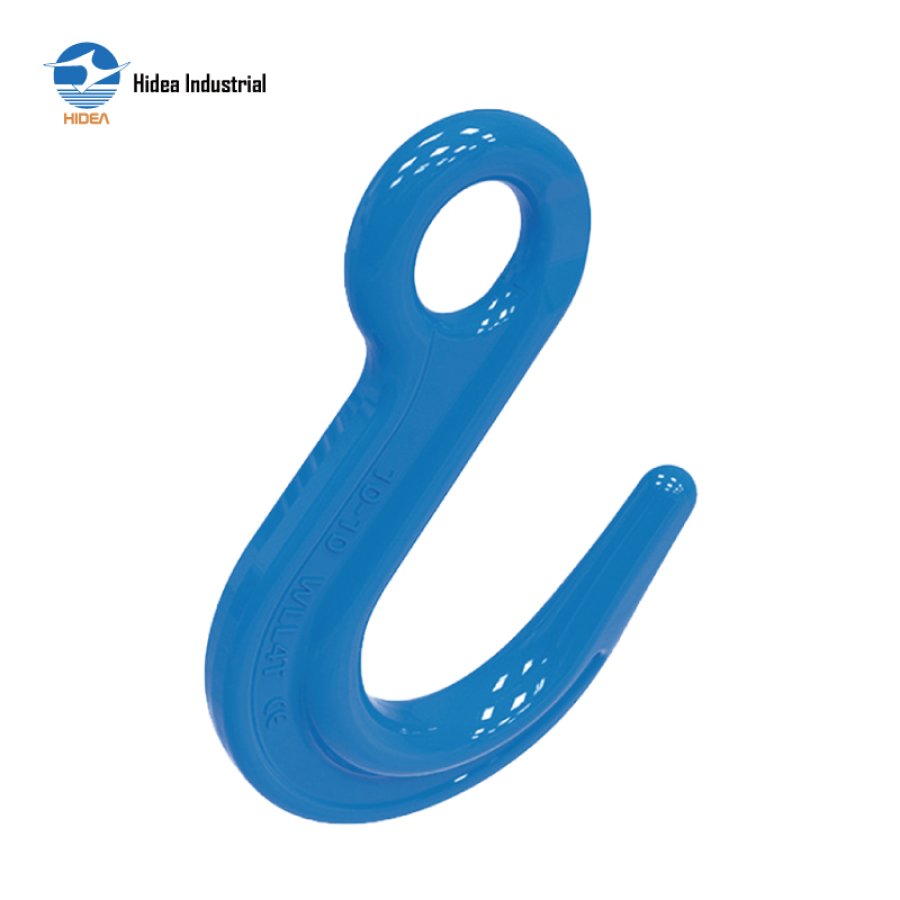

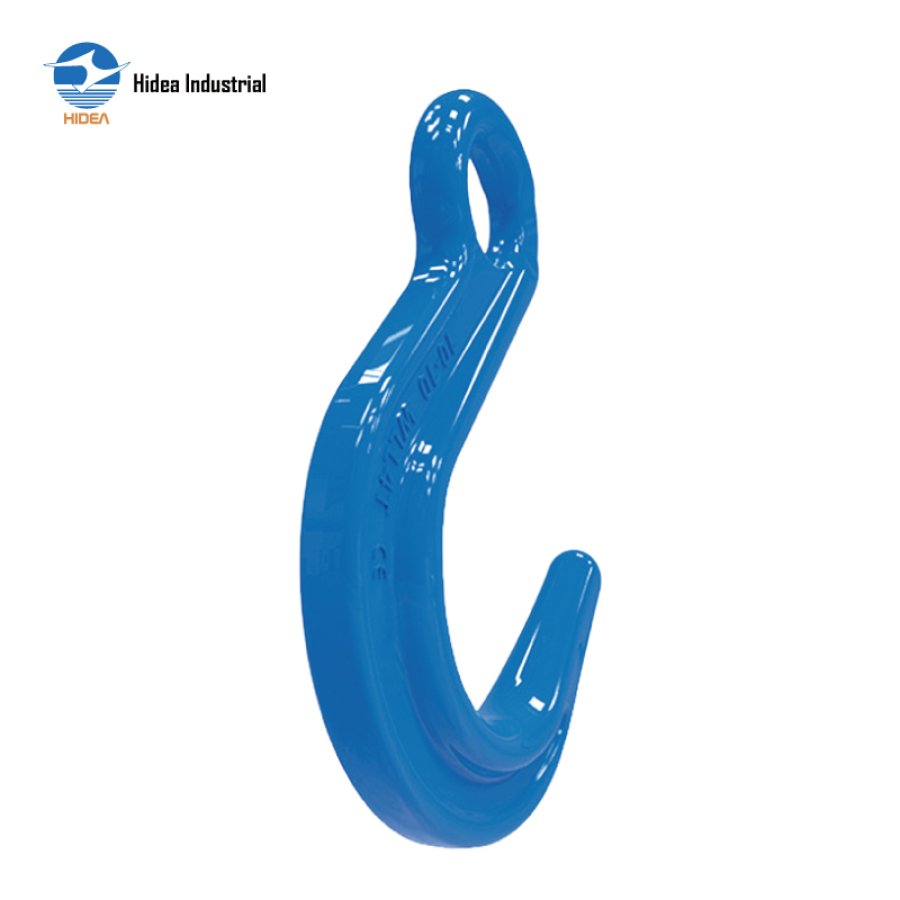

Hidea Grade 100 Large Opening Eye Hook with Flat for Robust Rigging Solutions

G100 LARGE OPENING EYE HOOK WITH FLAT

Forged super alloy steel-Quenched and Tempered
Suitable for G100 chain
25% stronger than G80
Individually proof test at 2.5 times Working Load Limit
Sample tested at 1.5 times Working Load for 20000 cycles
Breakage test
100% magnaflux crack detection
All load pins are 100% individually inspected and tested
Powder coating
Colour code: Blue RAL5015

Inquire Now

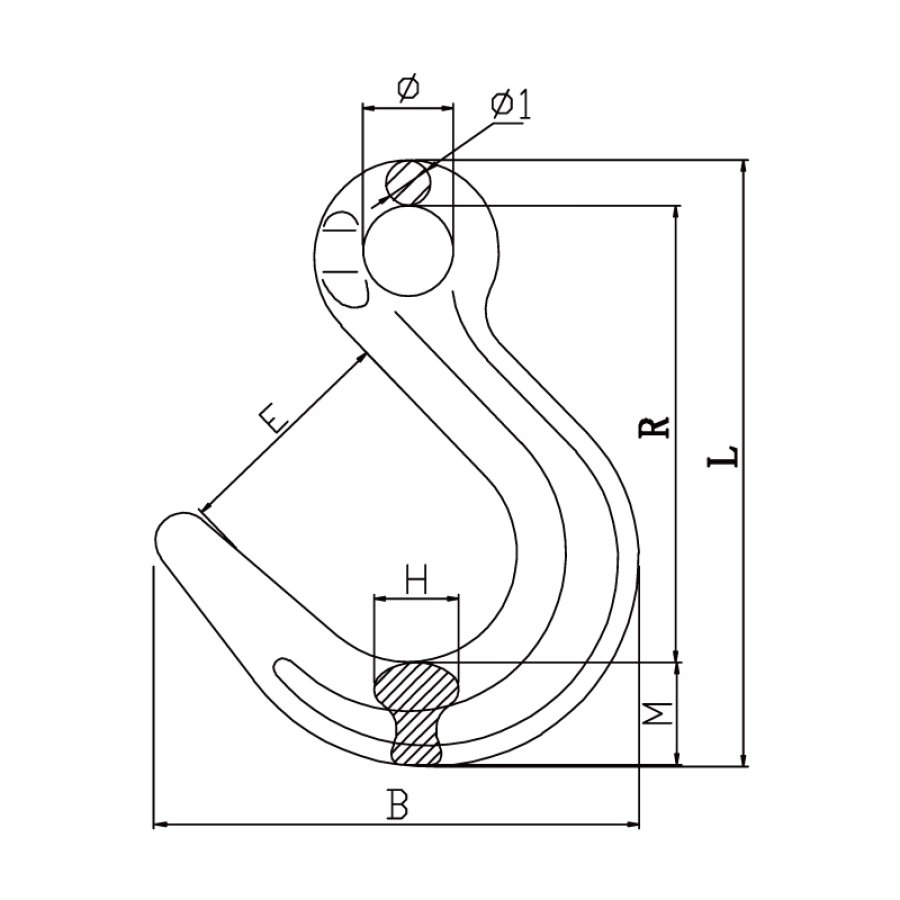

QINGDAO HIDEA PARAMETER SHEET FOR

20RH4701-G100 LARGE OPENING EYE HOOK WITH FLAT

ITEM CODE	WEIGHT	WLL	B.L	Φ±1	L±3	B±2	R±2	E±1	ø1±1	H±2	M
ITEM CODE	(kg)	(T)	(T)	Φ±1	L±3	B±2	R±2	E±1	ø1±1	H±2	M
20RH4701-6	0.382	1.4	5.6	20.5	133	100	102.7	49	10	17	19
20RH4701-8	0.72	2.5	10	24	158.5	130	120.5	62	12	19	27.5
20RH4701-10	1.25	4	16	31.5	199	152.5	153.2	73	15	25	31
20RH4701-13	2.32	6.7	26.8	44	241.5	186	184	90	19	33	39.3
20RH4701-16	3.45	10	40	49	279	218	216	105	22	37	42
