Maximize Efficiency with the Hidea CRL Floor Tank and Lever System

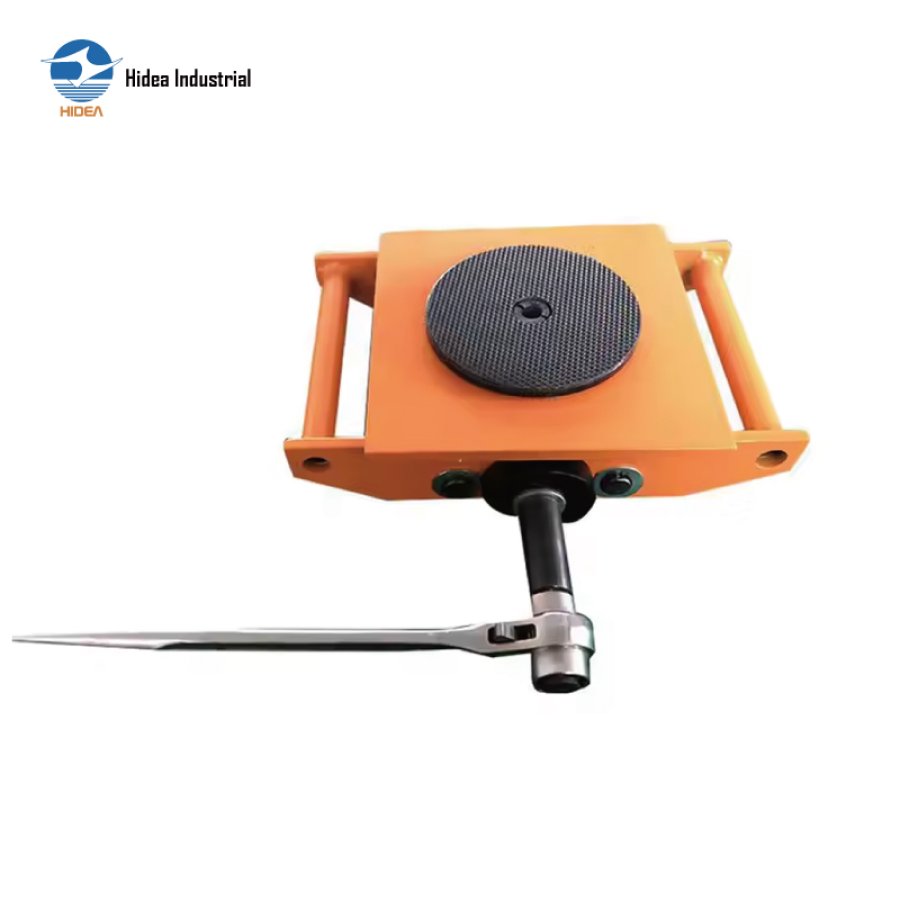

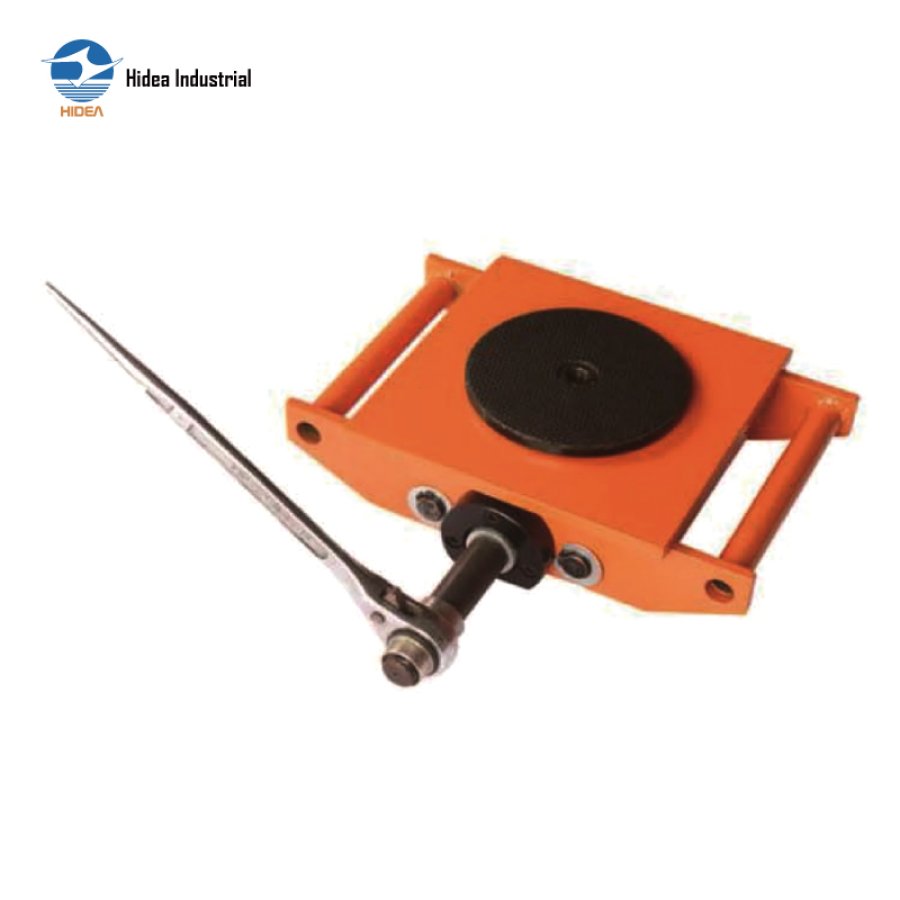

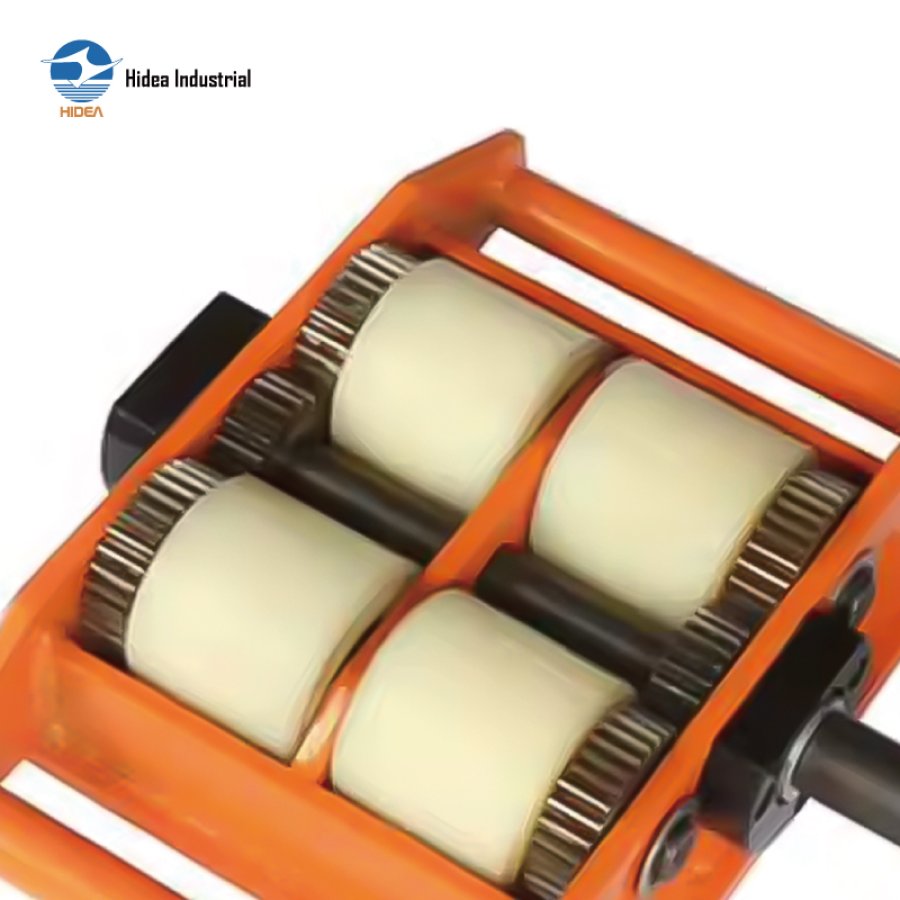

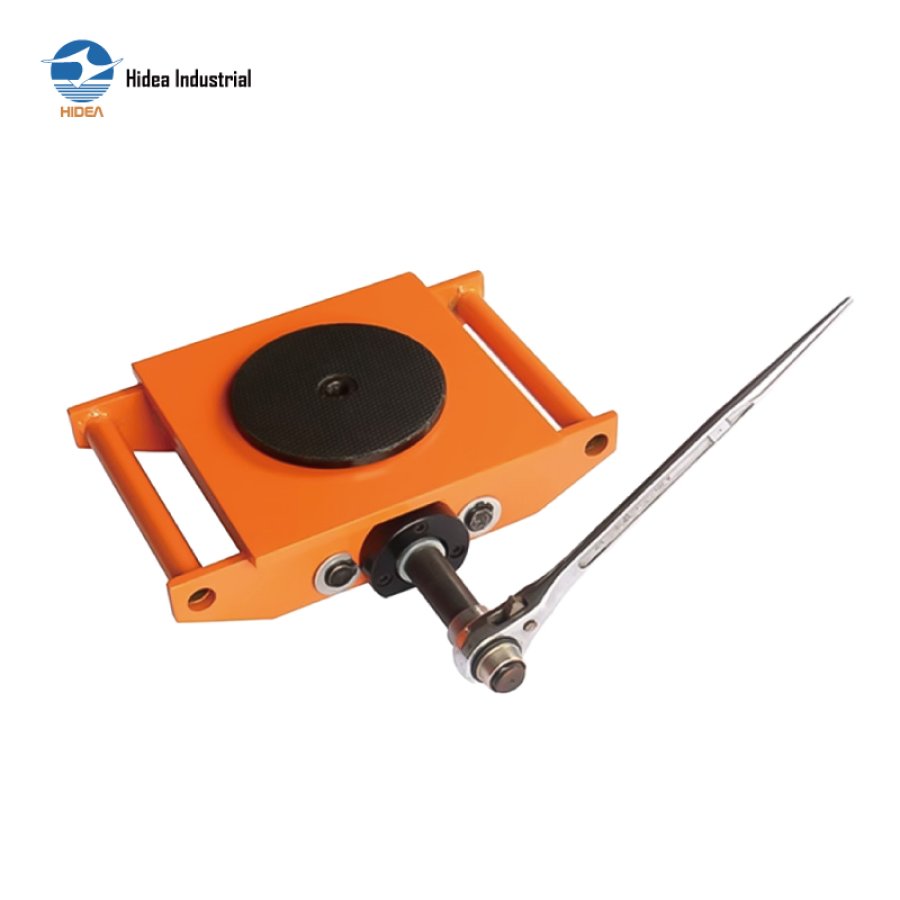

CRL CARGO SKATE TROLLEY LEVER TYPE

CRL floor tanks straight type are constructed with lever handle which can save several times of manpower, when lacking of external traction force or insufficient strength, it still can be used to move heavy loads; the max capacity can be from 4 tons to 18 tons or more
The CRL floor tanks is a straight type labor saving & easy operation floor tank
Floor tanks also known as Heavy Duty Dolly, Skate Roller Mover, Cargo Trolley

Inquire Now

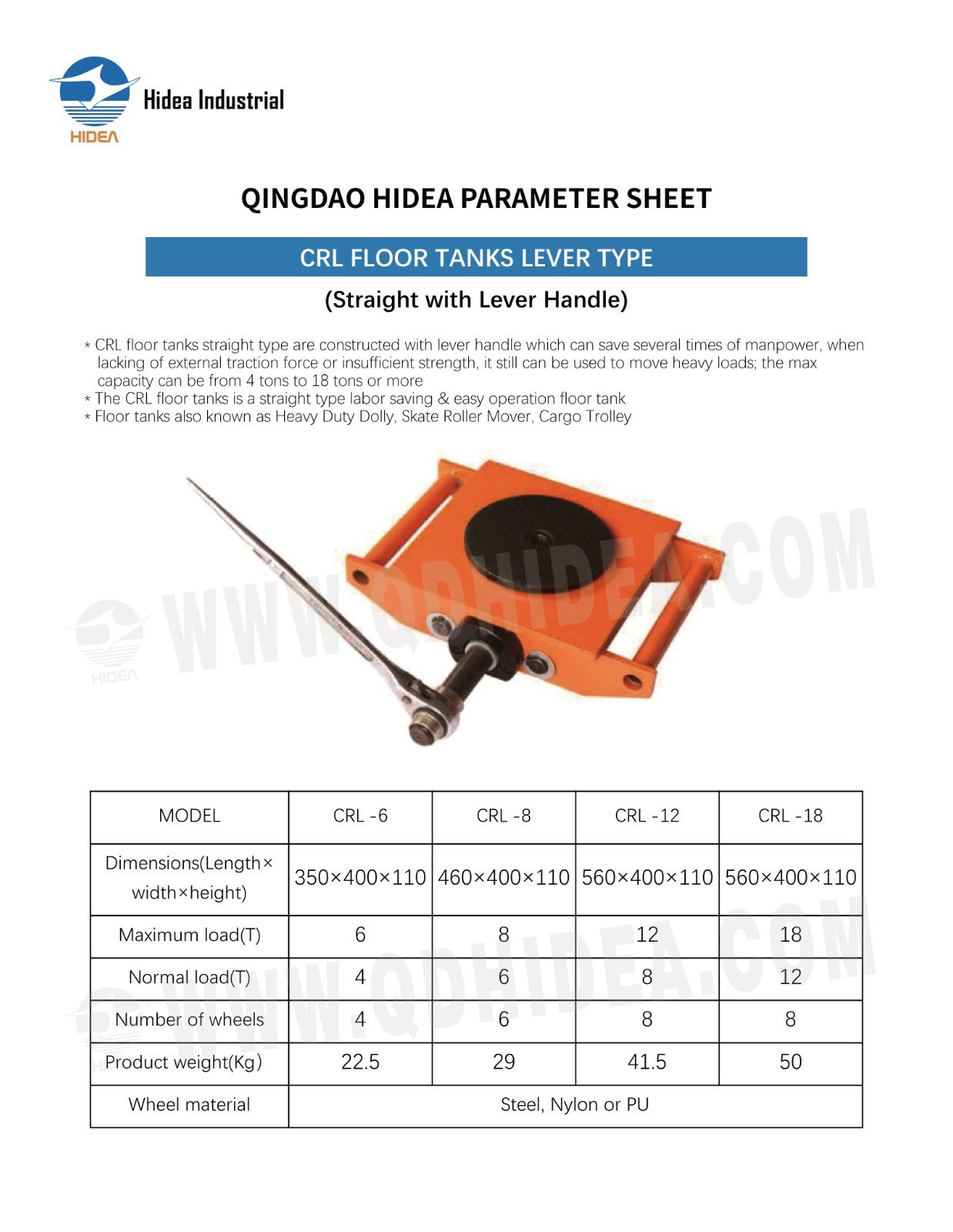

QINGDAO HIDEA PARAMETER SHEET FOR

CRL FLOOR TANKS LEVER TYPE

MODEL	CRL-6	CRL-8	CRL-12	CRL-18
Dimensions(Length× width×height)	350×400×110	460×400×110	560×400×110	560×400×110
Maximum load(T)	6	8	12	18
Normal load(T)	4	6	8	12
Number of wheels	4	6	8	8
Product weight(Kg)	22.5	29	41.5	50
Wheel material	Steel,Nylon or PU
