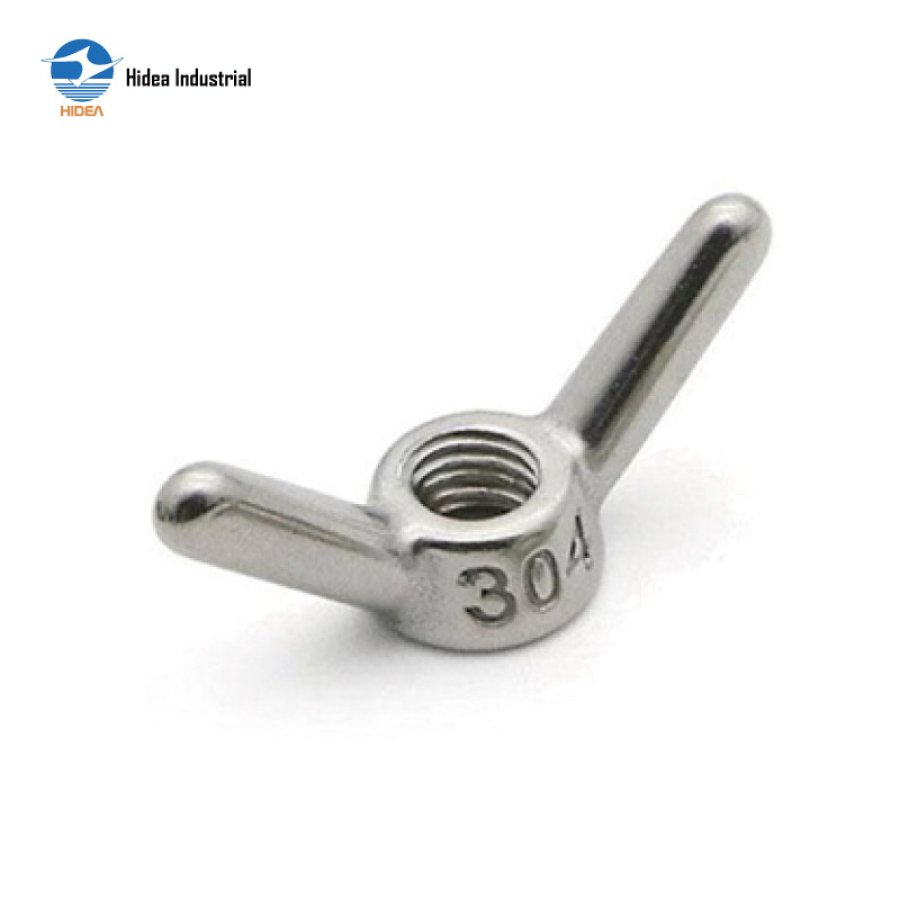

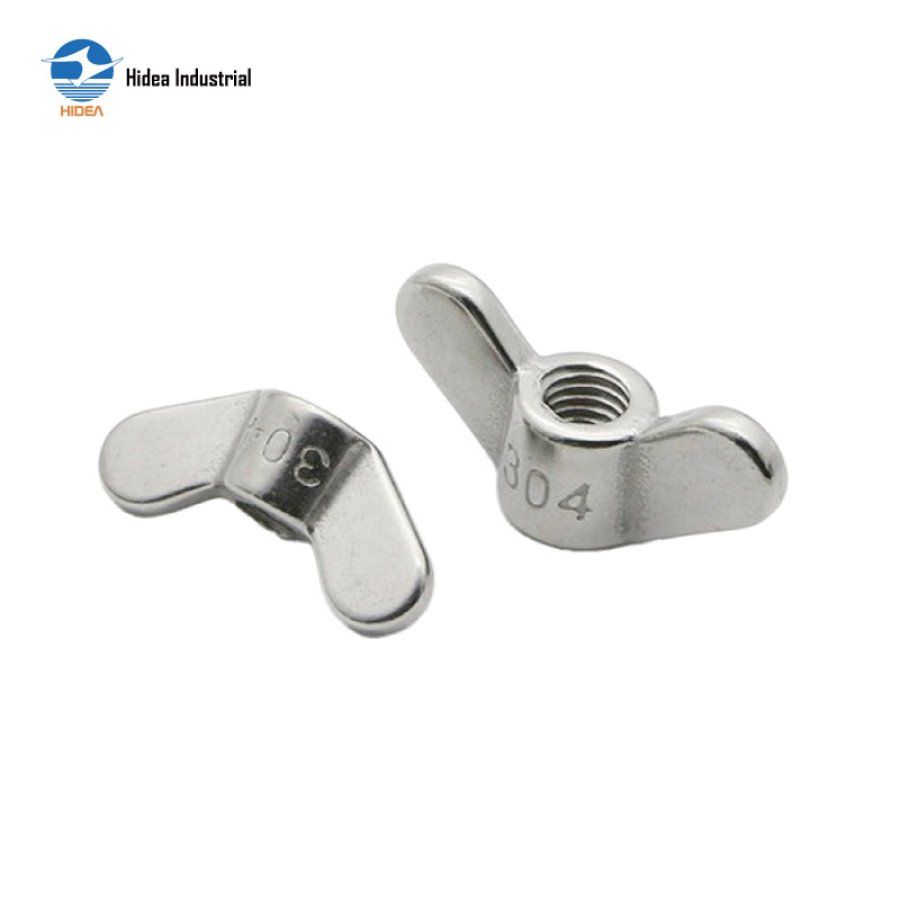

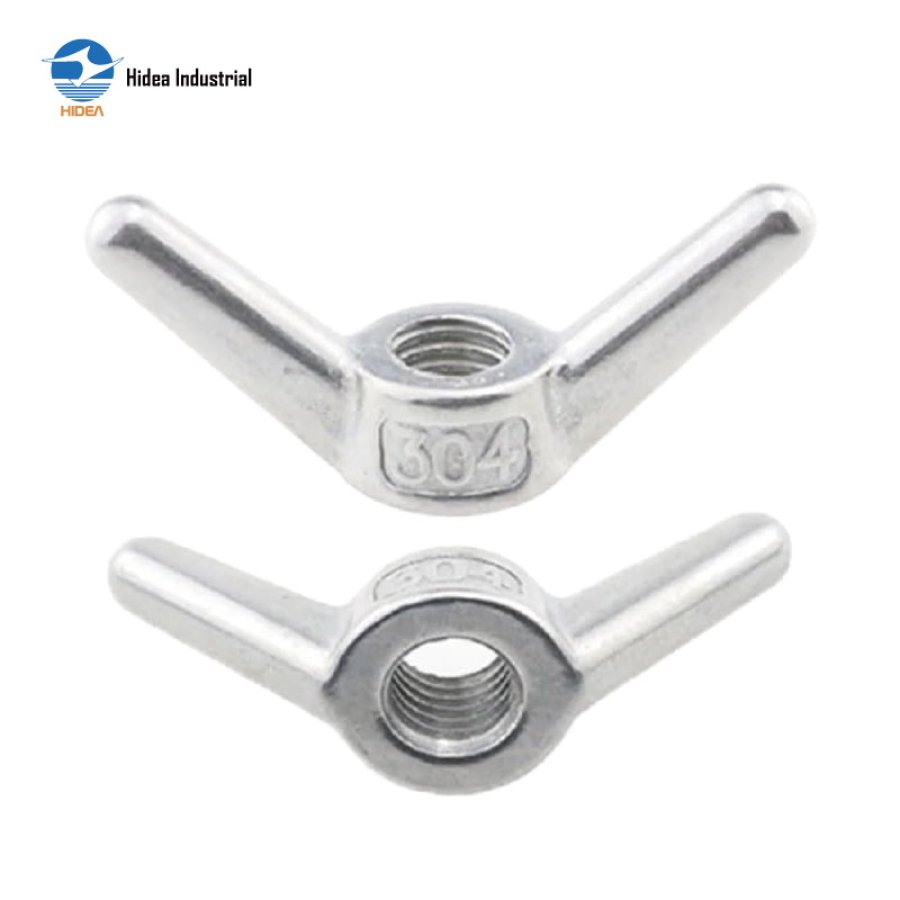

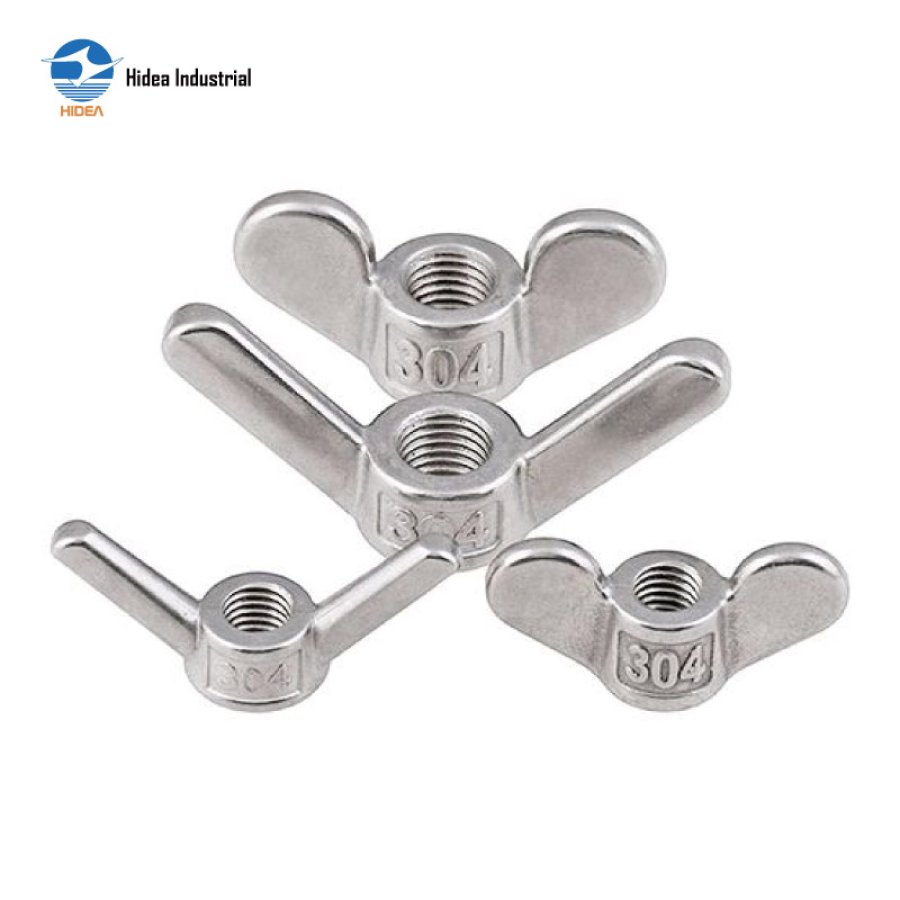

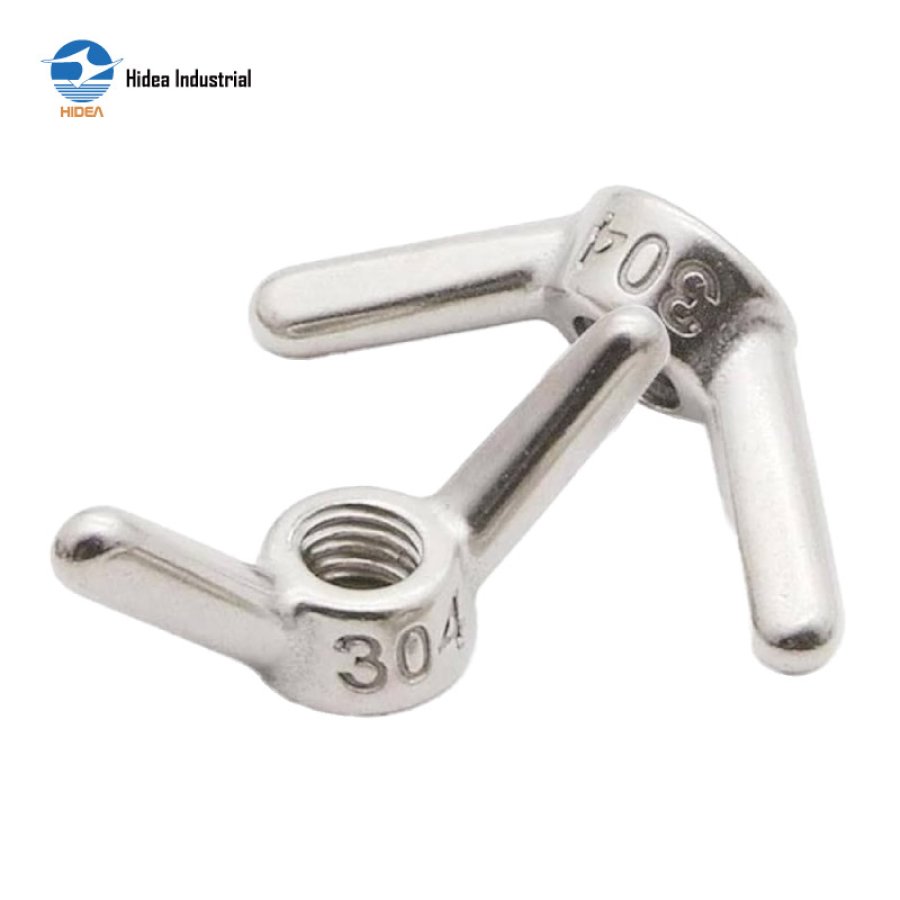

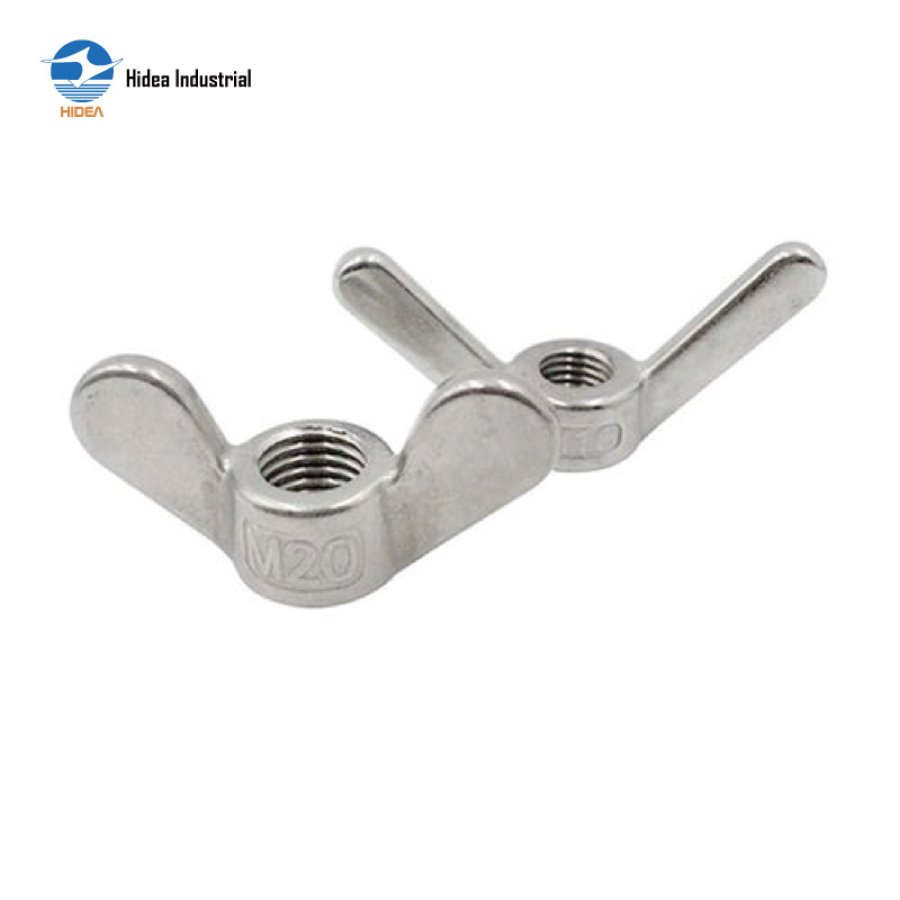

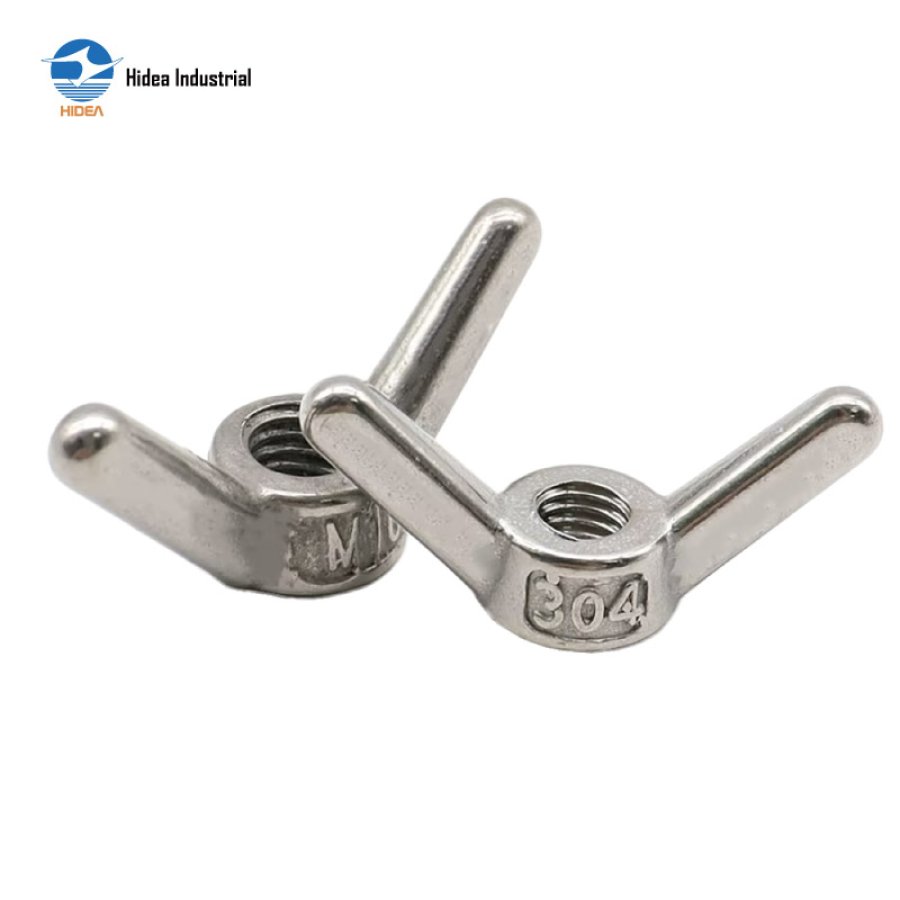

Hidea Stainless Steel Butterfly Wing Nut – Perfect for Secure and Tool-Free Tightening

WING NUT

Technical Data: Investment Casting/Forged
Material: AISI 304/INOX A2, AISI 316/INOX A4
Surface Treatment: Electro Polished/Passivated

Inquire Now

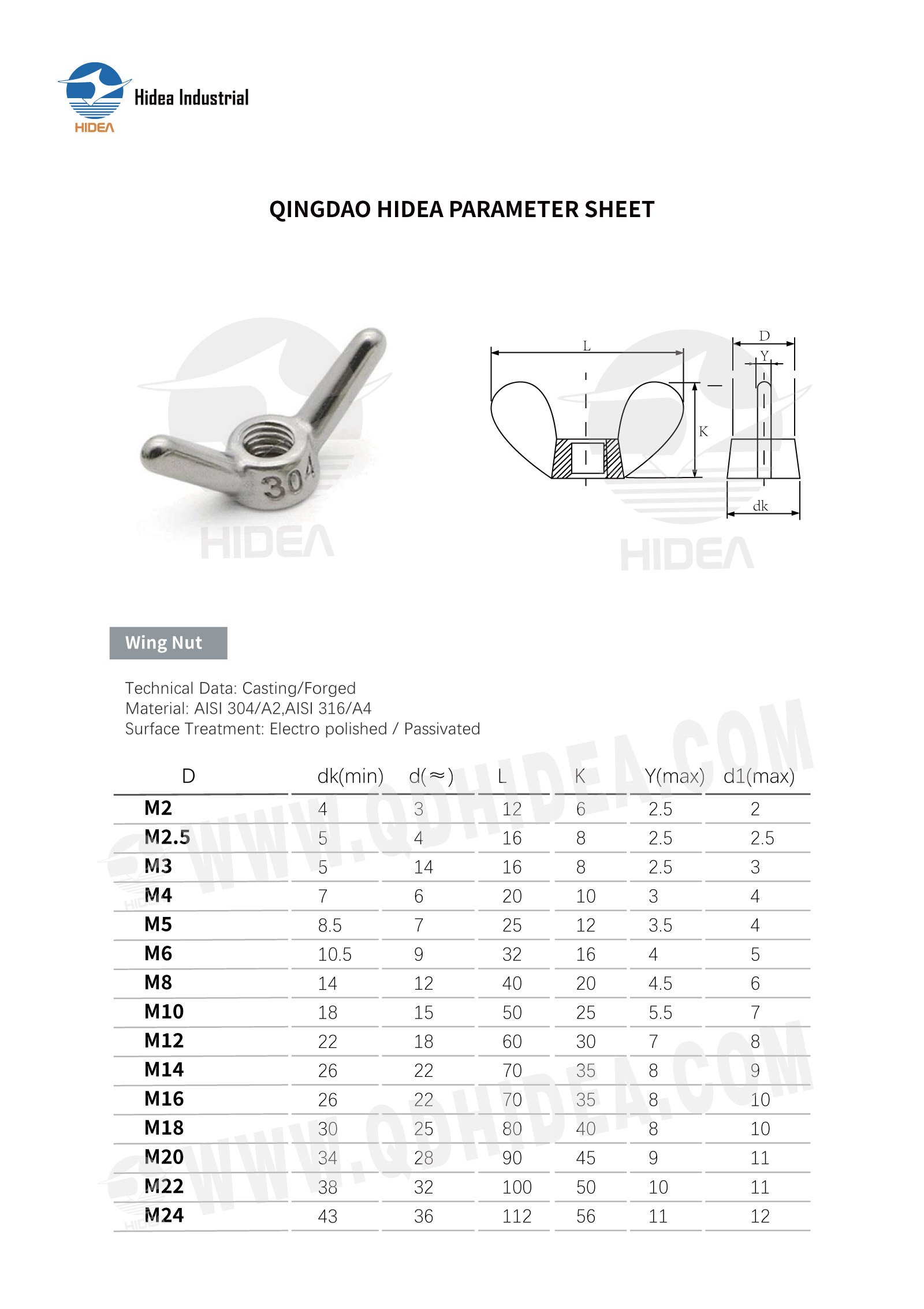

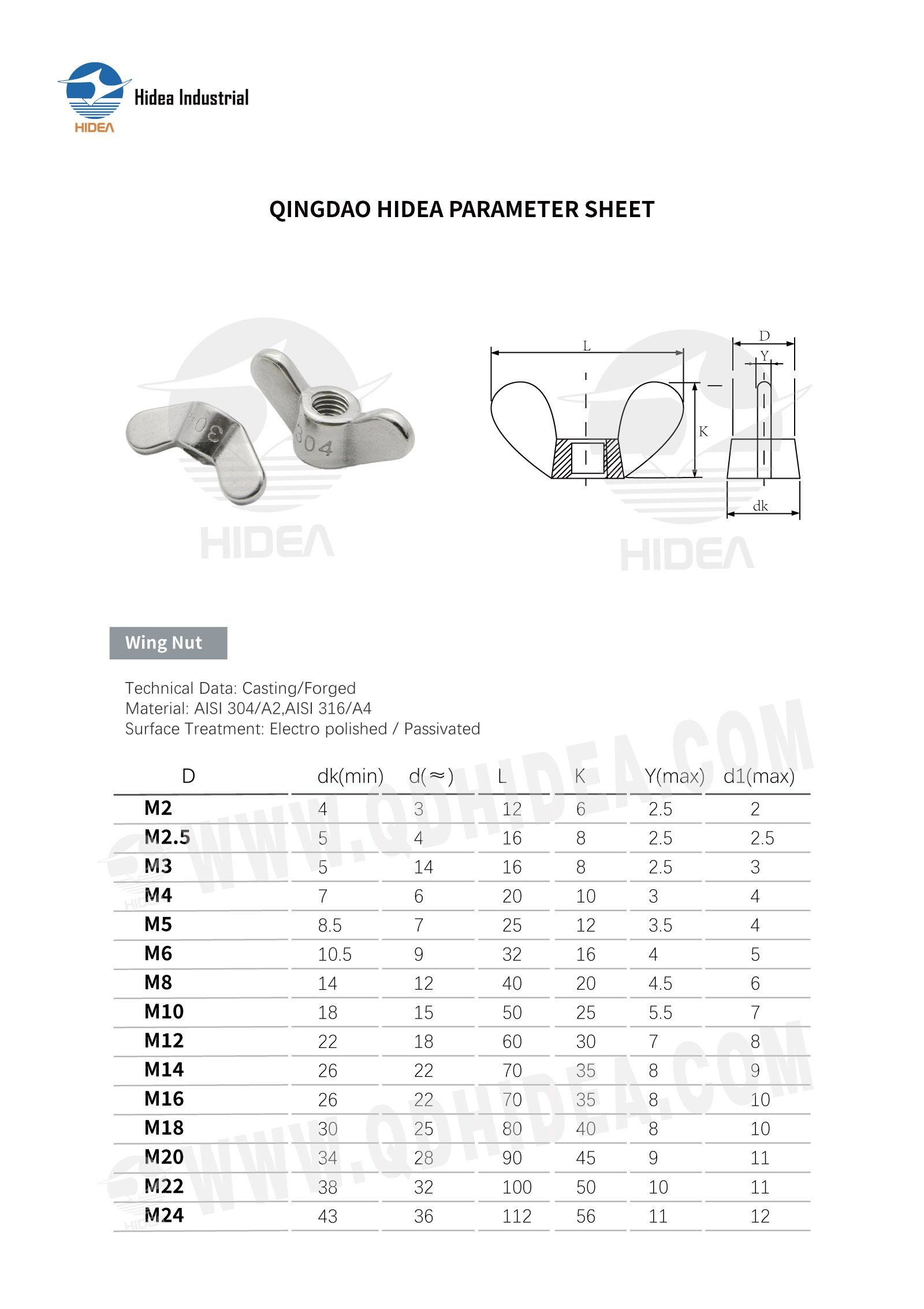

QINGDAO HIDEA PARAMETER SHEET FOR

Wing Nut

D	dk(min)	d(≈)	L	K	Y(max)	d1(max)
M2	4	3	12	6	2.5	2
M2.5	5	4	16	8	2.5	2.5
M3	5	14	16	8	2.5	3
M4	7	6	20	10	3	4
M5	8.5	7	25	12	3.5	4
M6	10.5	9	32	16	4	5
M8	14	12	40	20	4.5	6
M10	18	15	50	25	5.5	7
M12	22	18	60	30	7	8
M14	26	22	70	35	8	9
M16	26	22	70	35	8	10
M18	30	25	80	40	8	10
M20	34	28	90	45	9	11
M22	38	32	100	50	10	11
M24	43	36	112	56	11	12
