QINGDAO HIDEA PARAMETER SHEET FOR
GENERAL PURPOSE WIRE ROPES 6x37

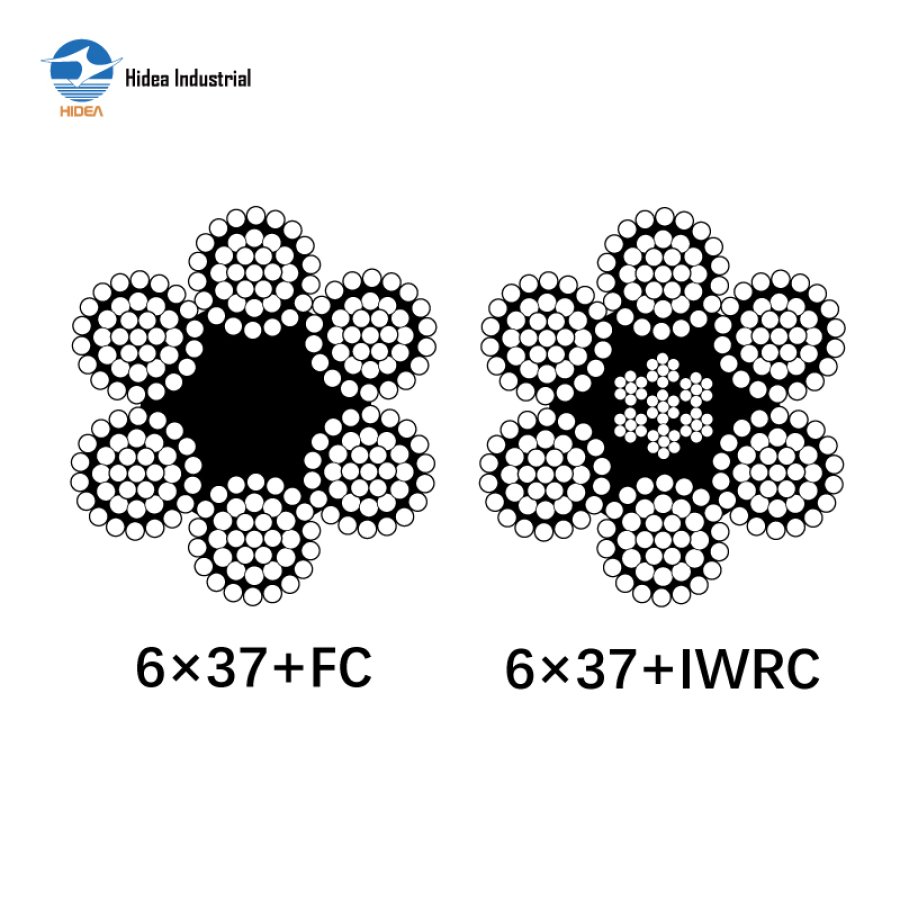

| 6×37+FC | ||||||||
| Diameter mm | GB/T 20118-2006/GB8918-2006 | EN 12385-4 | ||||||
| Min.Breaking Load(Kg) | Approx. Weight (Kg/100m) | Min.Breaking Load(Kg) | Approx. Weight (Kg/100m) | |||||
| 1670N/Mmm | 1770N/Mmm | 1770N/Mmm | 1960 N/Mmm | |||||
| 5 | 12.30 | 13.10 | 8.65 | 13.10 | 14.50 | 8.65 | ||
| 6 | 17.70 | 18.80 | 12.50 | 18.80 | 20.80 | 12.50 | ||
| 7 | 24.10 | 25.60 | 17.00 | 25.60 | 28.30 | 17.00 | ||
| 8 | 31.50 | 33.40 | 22.10 | 33.40 | 37.00 | 22.10 | ||
| 9 | 39.90 | 42.30 | 28.00 | 42.30 | 46.80 | 28.00 | ||
| 10 | 49.30 | 52.20 | 34.60 | 52.20 | 57.80 | 34.60 | ||
| 11 | 59.60 | 63.20 | 41.90 | 63.20 | 70.00 | 41.90 | ||
| Usage: | 12 | 70.90 | 75.20 | 49.80 | 75.20 | 83.30 | 49.80 | |
| 13 | 83.30 | 88.20 | 58.50 | 88.24 | 97.72 | 58.47 | ||
| Hoist,General | 14 | 96.60 | 102.00 | 67.80 | 102.34 | 11333 | 6782 | |
| Industry,Crane | 16 | 12600 | 134.00 | 88.60 | 134.00 | 148.00 | 88.58 | |
| 18 | 160.00 | 169.00 | 112.00 | 169.00 | 187.00 | 112.00 | ||
| 20 | 197.00 | 209.00 | 138.00 | 209.00 | 231.00 | 138.00 | ||
| 22 | 23800 | 253.00 | 167.00 | 252.00 | 280.00 | 167.00 | ||
| 24 | 284.00 | 301.00 | 199.00 | 300.00 | 333.00 | 199.00 | ||
| 26 | 333.00 | 353.00 | 234.00 | 353.00 | 391.00 | 234.00 | ||
| 28 | 386.00 | 409.00 | 271.00 | 409.00 | 453.00 | 271.00 | ||
| 32 | 504.00 | 535.00 | 354.00 | 534.00 | 592.00 | 354.00 | ||
| 6×37+IWRC | ||||||||
| Diameter mm | GB/T 20118-2006/GB 8918-2006 | EN 12385-4 | ||||||
| Min.Breaking Load(Kg) | Approx. Weight (Kg/100m) | Min.Breaking Load(Kg) | Approx. Weight (Kg/100m) | |||||
| 1670N/Mmm | 770N/Mmm | 1770N/Mmm | 1960 N/Mmm | |||||
| 5 | 13.30 | 14.10 | 10.00 | 14.12 | 15.63 | 9.53 | ||
| 6 | 19.20 | 20.30 | 14.40 | 20.33 | 22.51 | 13.70 | ||
| 7 | 26.10 | 27.70 | 19.60 | 27.67 | 30.64 | 18.70 | ||
| 8 | 34.10 | 36.10 | 25.60 | 36.14 | 40.02 | 24.40 | ||
| 9 | 43.20 | 45.70 | 32.40 | 45.74 | 50.64 | 30.90 | ||
| 10 | 53.30 | 56.50 | 40.00 | 56.46 | 62.52 | 38.10 | ||
| Usage: | 11 | 64.50 | 68.30 | 48.40 | 68.32 | 75.65 | 46.10 | |
| 12 | 76.70 | 81.30 | 57.60 | 81.31 | 90.03 | 54.90 | ||
| Hoist,General | 13 | 90.00 | 95.40 | 67.60 | 95.42 | 105.67 | 64.39 | |
| Industry,Crane | 14 | 104.00 | 111.00 | 78.40 | 111.00 | 123.00 | 74.68 | |
| 16 | 136.00 | 145.00 | 102.00 | 145.00 | 160.00 | 97.54 | ||
| 18 | 173.00 | 183.00 | 130.00 | 183.00 | 203.00 | 123.00 | ||
| 20 | 213.00 | 226.00 | 160.00 | 226.00 | 250.00 | 152.00 | ||
| 22 | 258.00 | 273.00 | 194.00 | 273.00 | 303.00 | 184.00 | ||
| 24 | 307.00 | 325.00 | 230.00 | 325.00 | 360.00 | 219.00 | ||
| 26 | 360.00 | 382.00 | 270.00 | 382.00 | 423.00 | 258.00 | ||
| 28 | 418.00 | 443.00 | 314.00 | 443.00 | 590.00 | 299.00 | ||
| 32 | 546.00 | 578.00 | 410.00 | 578.00 | 640.00 | 390.00 | ||
