Hidea Grade G80 Eye Foundry Hook: Tough, Reliable, and Tested for Heavy Duty Work

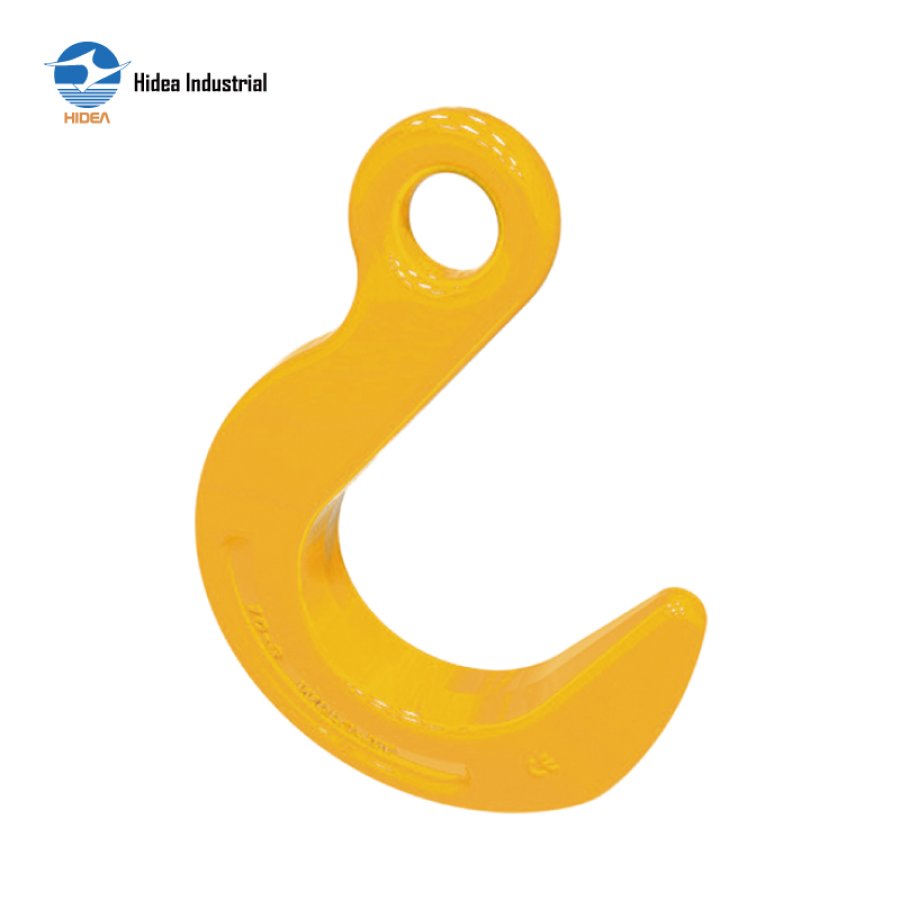

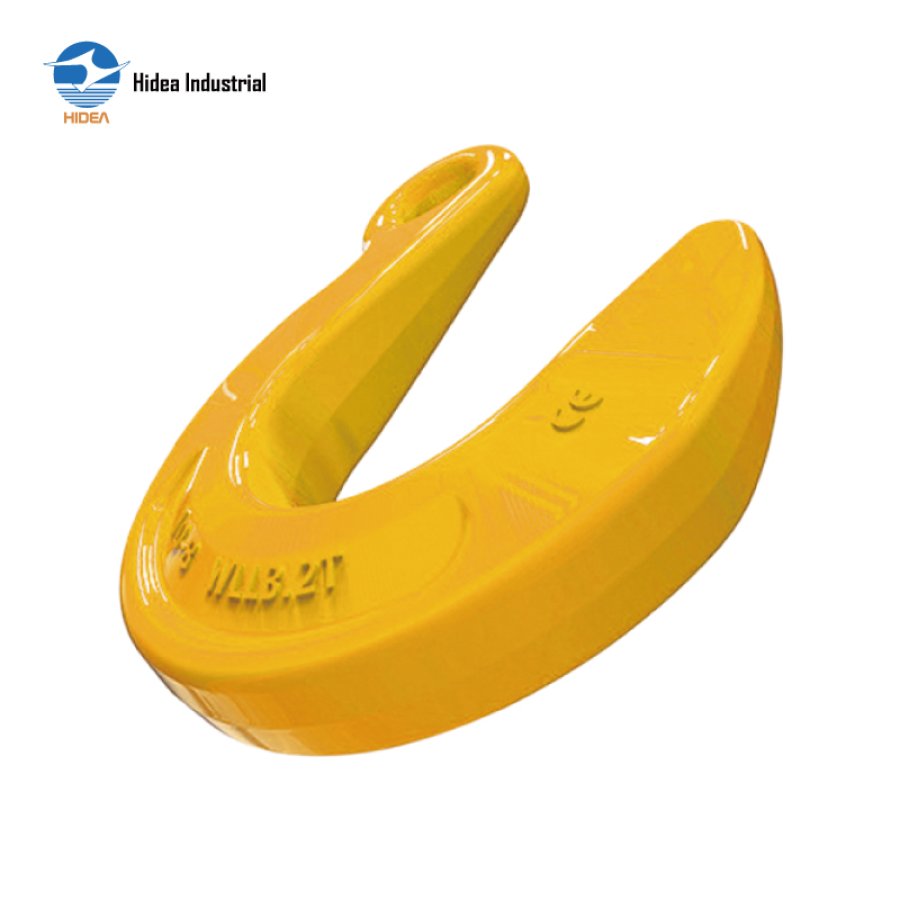

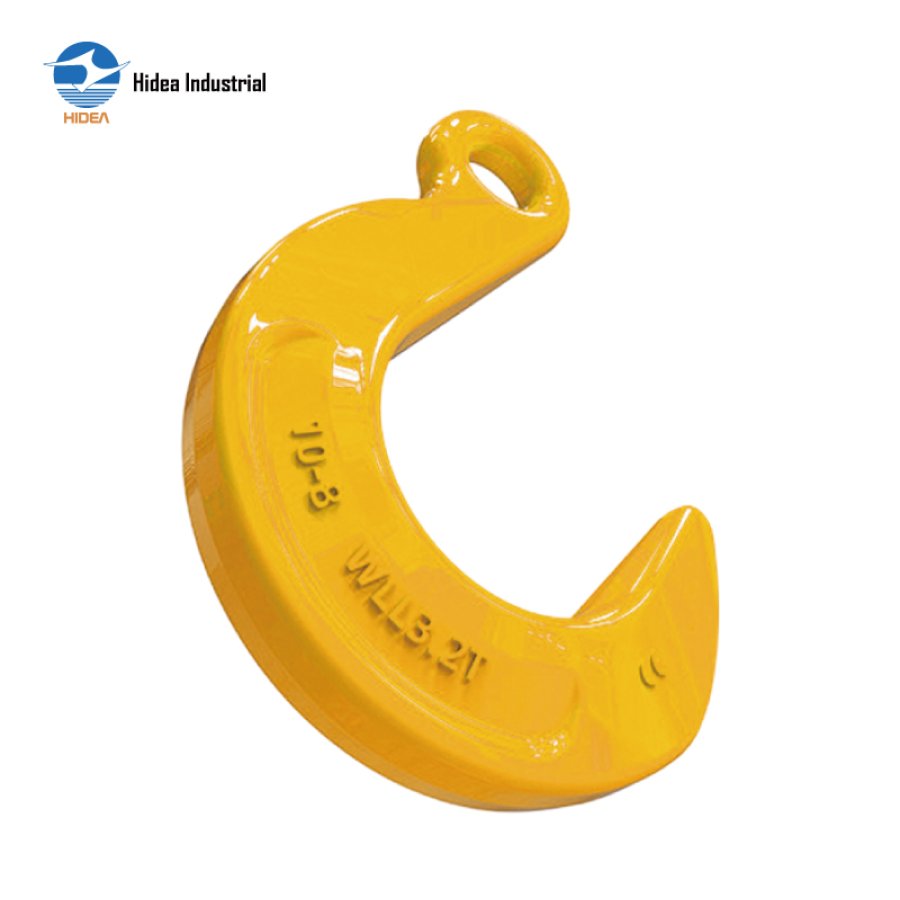

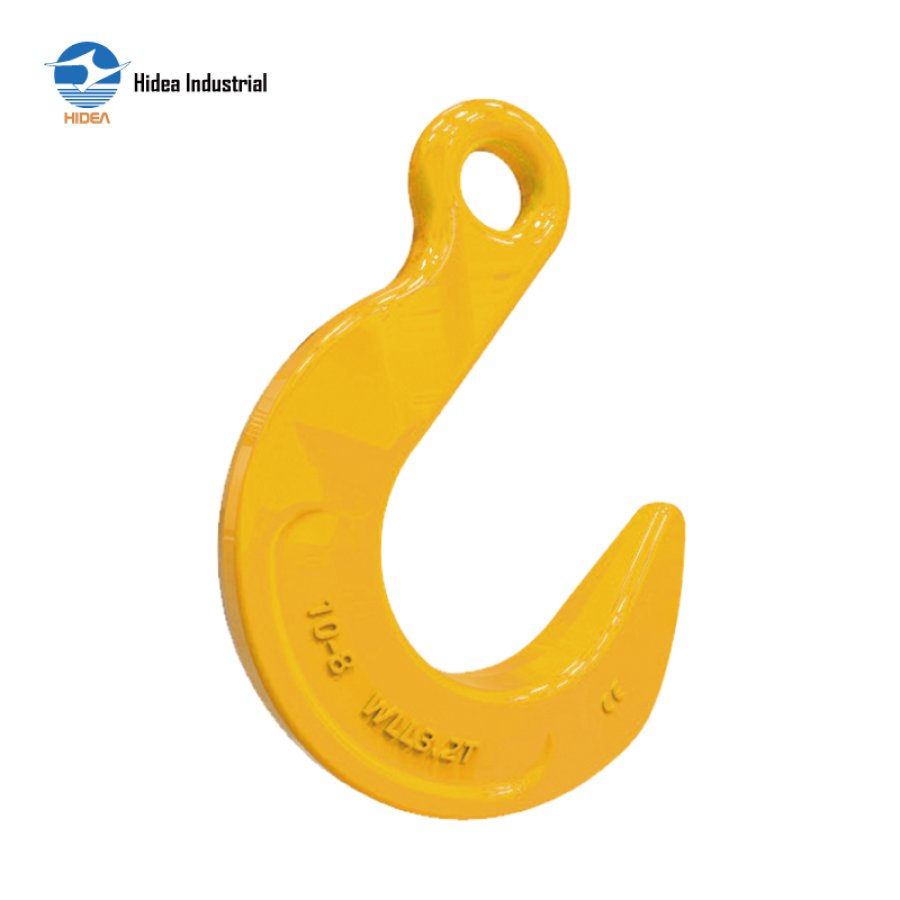

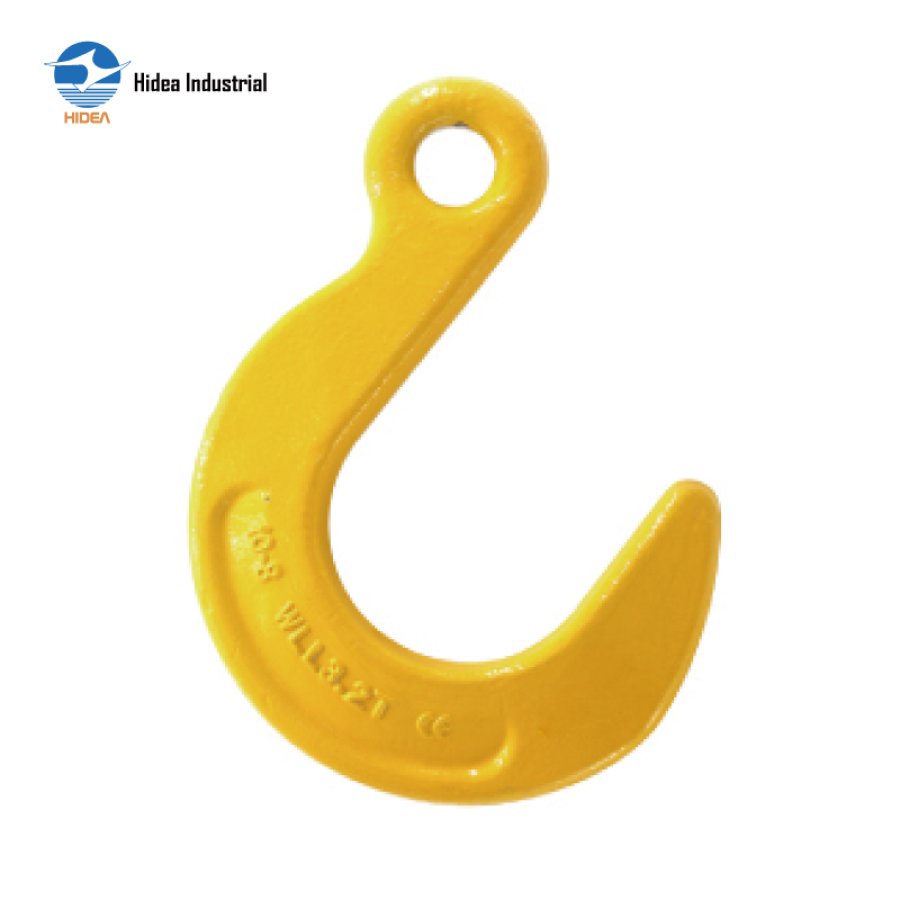

G80 EYE FOUNDRY HOOK

Forged super alloy steel-Quenched and Tempered
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection
Surface finish: Powder plastified
Colour code: Red RAL3020/Yellow RAL1003

Inquire Now

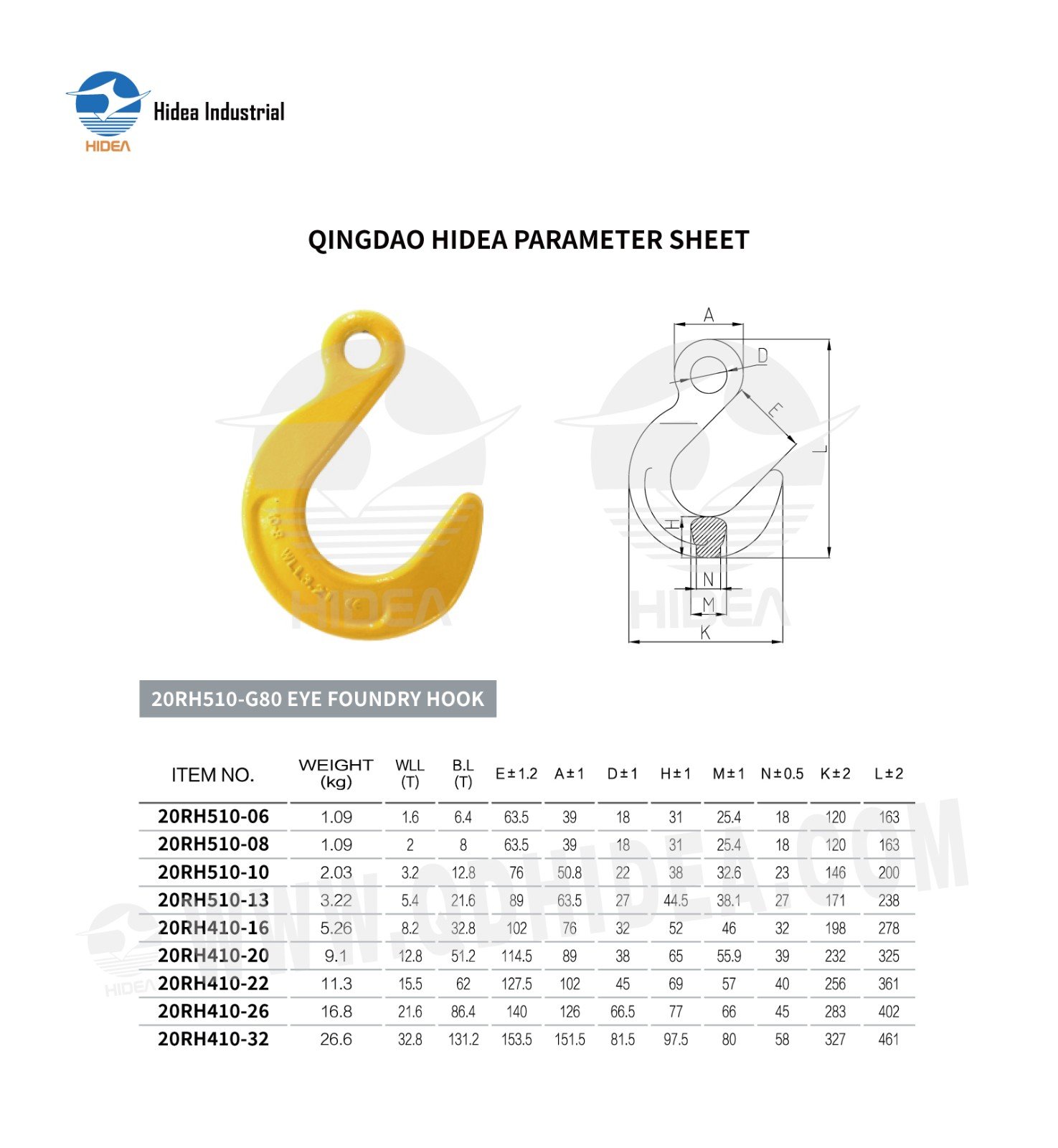

QINGDAO HIDEA PARAMETER SHEET FOR

20RH510-G80 EYE FOUNDRY HOOK

ITEM NO.

WEIGHT
(kg)

WLL
(T)

B.L
(T)

E±1.2

A±1

D±1

H±1

M±1

N±0.5

K±2

L±2

20RH510-06

1.09

1.6

6.4

63.5

39

18

31

25.4

18

120

163

20RH510-08

1.09

2

8

63.5

39

18

31

25.4

18

120

163

20RH510-10

2.03

3.2

12.8

76

50.8

22

38

32.6

23

146

200

20RH510-13

3.22

5.4

21.6

89

63.5

27

44.5

38.1

27

171

238

20RH410-16

5.26

8.2

32.8

102

76

32

52

46

32

198

278

20RH410-20

9.1

12.8

51.2

114.5

89

38

65

55.9

39

232

325

20RH410-22

11.3

15.5

62

127.5

102

45

69

57

40

256

361

20RH410-26

16.8

21.6

86.4

140

126

66.5

77

66

45

283

402

20RH410-32

26.6

32.8

131.2

153.5

151.5

81.5

97.5

80

58

327

461
