Straight Link Chain | NACM90 | ASTM80

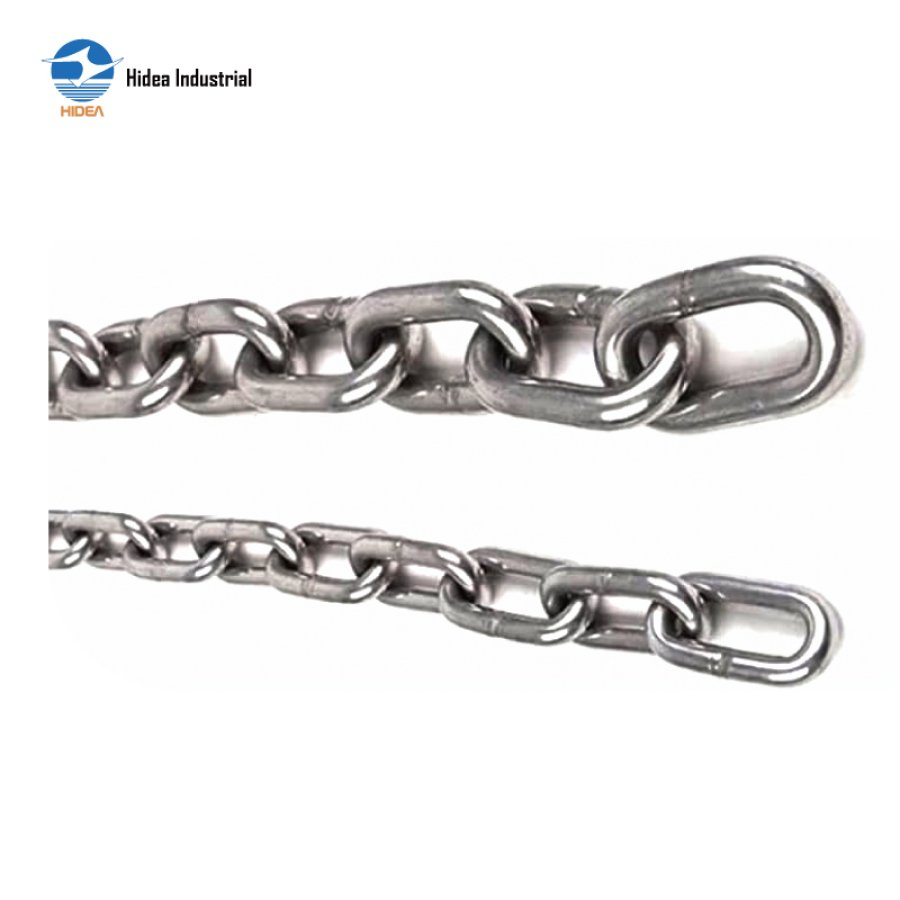

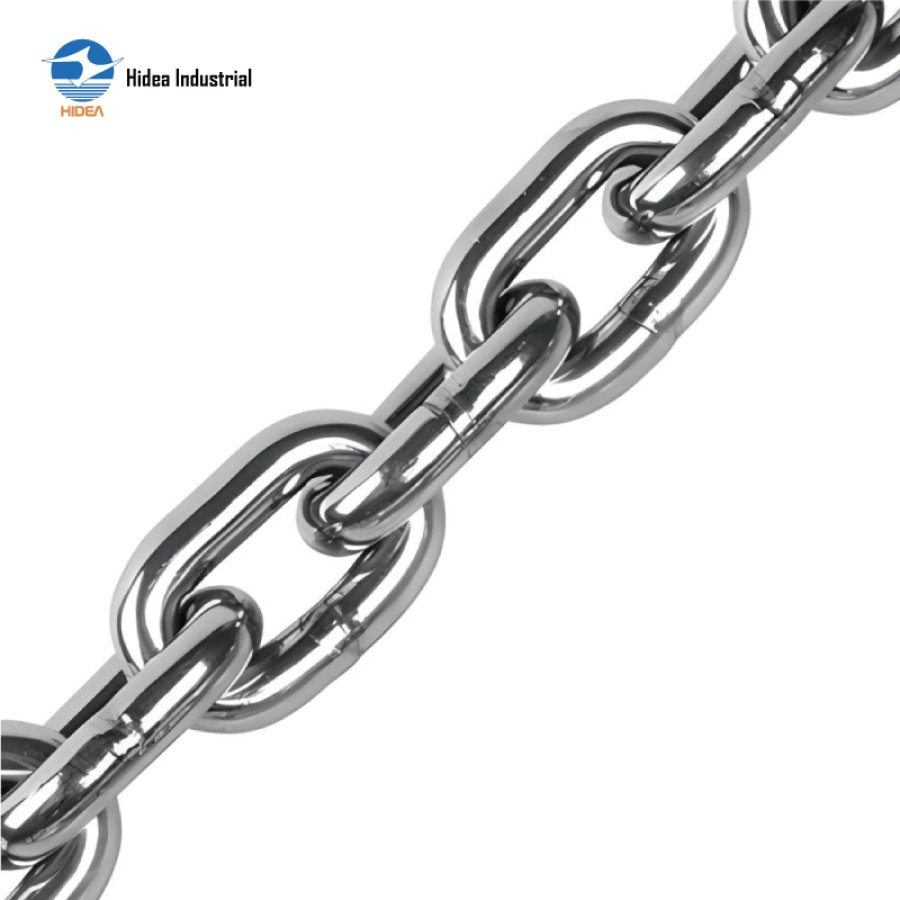

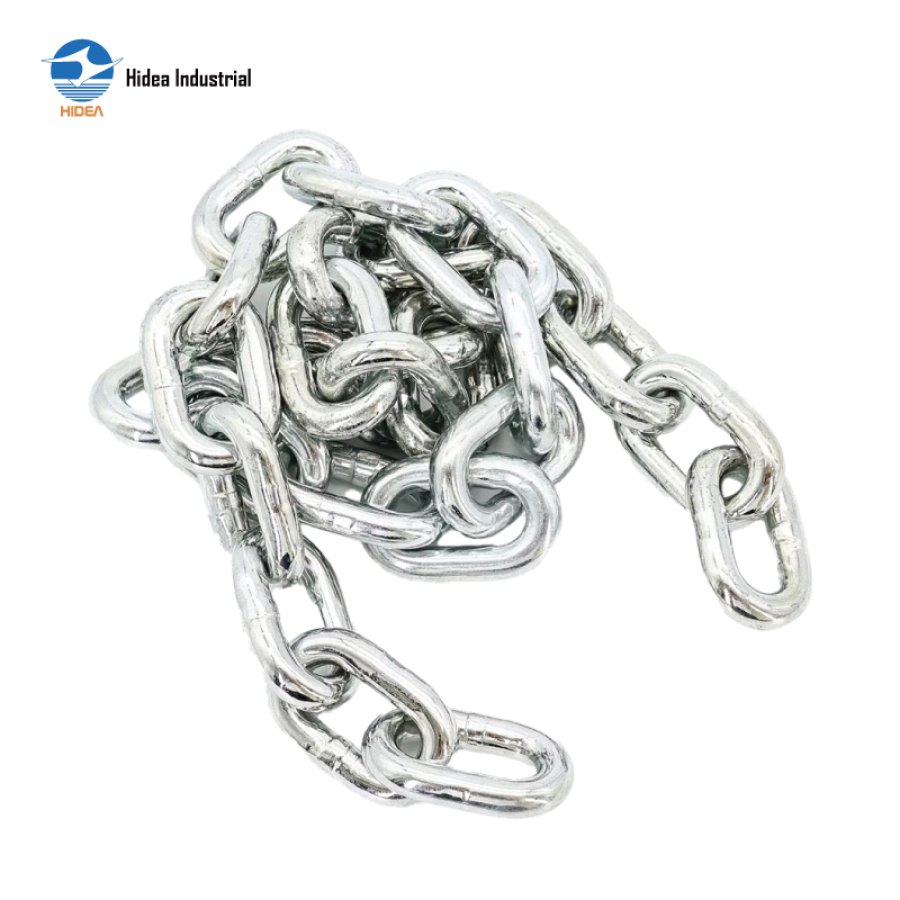

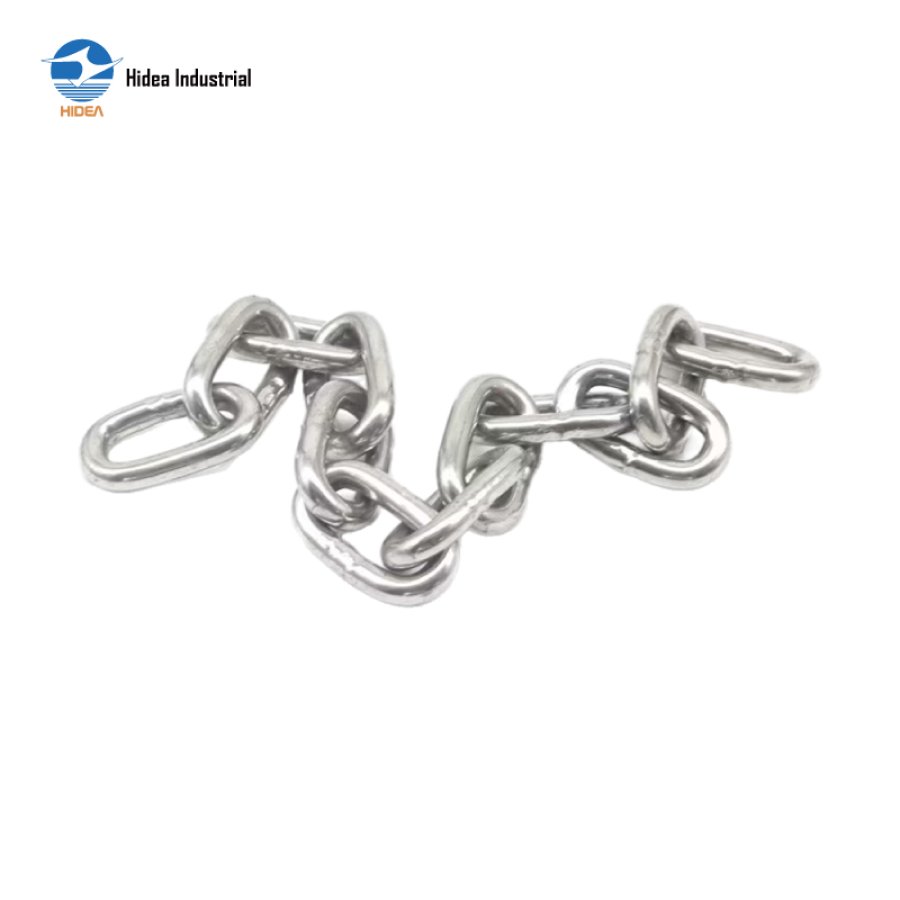

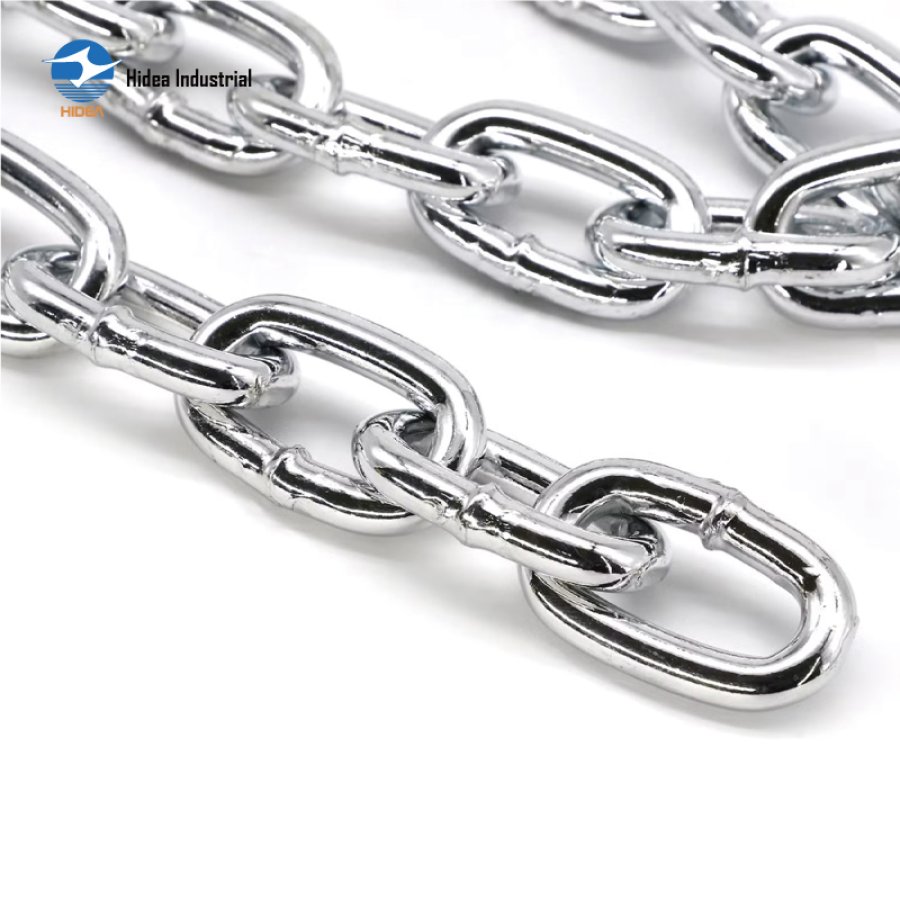

STAINLESS STEEL LINK CHAIN SUS 304 / 316 / 316L

Material: Stainless Steel SUS304 / SUS316 / SUS316L
Surface Treatment: Polished or coated or as requested
Various standards: Australian Standard, British Type, American Standard NACM90, American Standard ASTM80

QINGDAO HIDEA PARAMETER SHEET FOR

30SC145 Stainless Steel Link Chain SUS304/316/316L

A5 Australian Standard Stainless Steel A7American Standard NACM90 Stainless Steel
Diameter		Inside Length		Inside Width		Weight	Diameter	Diameter	Inside Length	Inside Width	Weigth
mm		mm		mm		kg/m
4		18.6		8		0.32	in	mm	mm	mm	kg/m
5		22		9.4		0.5	1/8"	4	23	7	0.29
6		26		11.5		0.72	3/16"	5.5	24	10.2	0.6
8		32.2		13.5		1.28	1/4"	7	29.3	11	0.98
10		39		16.2		2.06	5/16"	8	31.5	12.4	1.28
12		46		20		2.94	3/8"	10	33.6	15.1	2.12
13		49.1		20.1		3.96	1/2"	13	43.7	19.8	3.61
16		59.6		24.5		4.95	5/8"	16	54	21.5	5.34
A6 Common Short Link SS Link Chain British Type
Stainless Steel A8 American Standard ASTM80Stainless Steel
Diameter	Diameter		Inside Length		Inside Width	Weigth
							Diameter	Diameter	Inside Length	Inside Width	Weigth
in	mm		mm		mm	kg/m
1/8"	3.2		3.2		5.6	0.19	in	mm	mm	mm	kg/m
5/32"	4		4		6.5	0.31	1/8"	464	23	7	0.29
3/16"	4.7		4.7		7.6	0.44	3/16"	5.5	24	10.2	0.6
7/32"	5.5		5.5		8	0.62	1/4"	7	25.4	12.5	1.07
1/4"	6.3		6.3		8.4	0.82	5/16"	8.7	27.9	12.7	1.57
5/16"	7.9		7.9		9.2	1.33	3/8"	10	31.2	15.7	2.3
3/8"	9.5		9.5		13	2	1/2"	13.5	39.6	20.5	4.1
1/2"	12.7		12.7		16	3.5	5/8"	16.7	49	25.5
